Driver's Door Lock Master Switch

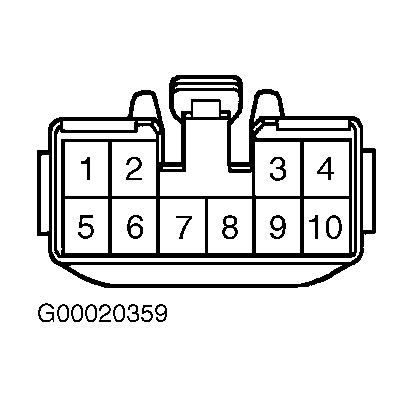

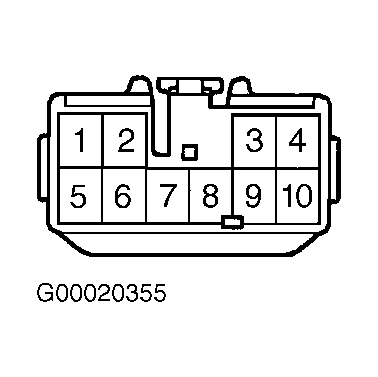

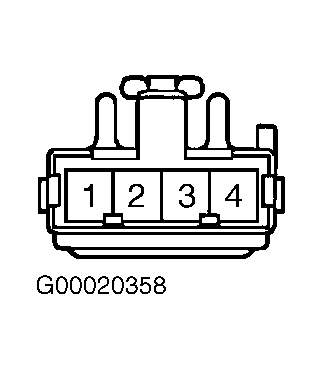

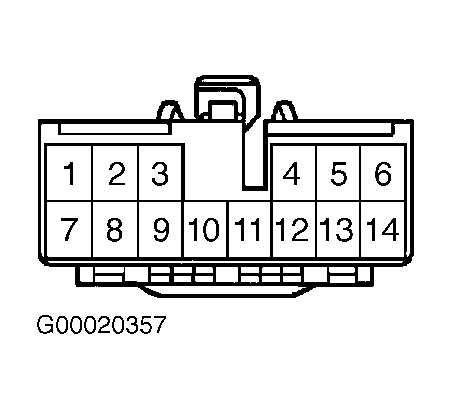

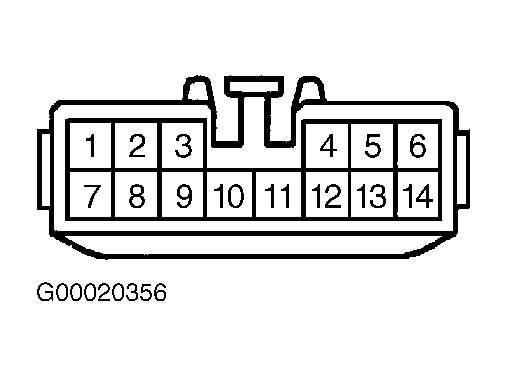

Inspect drivers door lock master switch continuity. See DRIVER'S DOOR CONTROL SWITCH CONTINUITY TEST table. If continuity is not as specified, replace driver's door lock master switch. See Fig 1-Fig 6 .
DRIVER'S DOOR CONTROL SWITCH CONTINUITY TEST
| Application & Switch Position | Terminals No. | Continuity | |
|---|---|---|---|
| Land Cruiser | |||
| LOCK | 4 & 6; 5 & 6 | Yes | |
| UNLOCK | 4 & 12; 5 & 12 | Yes | |
| LX470 | |||
| LOCK | 9 & 15 | Yes | |
| UNLOCK | 9 & 16 | Yes | |
| RAV4 (2-Door) | |||
| LOCK | 2 & 3 | Yes | |
| UNLOCK | 3 & 9 | Yes | |
| RAV4 (4-Door) | |||
| LOCK | 4 & 6; 5 & 6 | Yes | |
| UNLOCK | 4 & 12; 5 & 12 | Yes | |
| Sienna | |||
| LOCK | 1 & 2 | Yes | |
| UNLOCK | 1 & 5 | Yes | |
| Tacoma | |||
| LOCK | 1 & 5; 2 & 6 | Yes | |
| UNLOCK | 2 & 5; 1 & 6 | Yes | |
| Tundra | |||
| LOCK | 1 & 2 | Yes | |
| OFF | 1 & 2; 1 & 5 | No | |
| UNLOCK | 1 & 5 | Yes | |
| 4Runner | |||
| LOCK | 4 & 6 | Yes | |
| UNLOCK | 4 & 12 | Yes | |

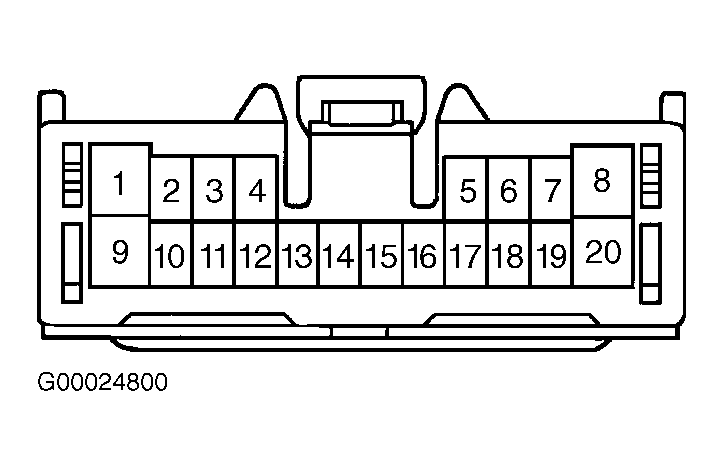

Fig 1: Identifying Power Door Lock Master Switch Harness Connector Terminals (Land Cruiser, RAV4 4-Door & 4Runner With Power Windows)
