Section 378 (Heater Control Assembly): Removal

WARNING: This page is about a different car, the 2004 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

Remove Center Cluster Finish Panel
1. Remove the 4 knobs.
2. Remove the 2 screws.

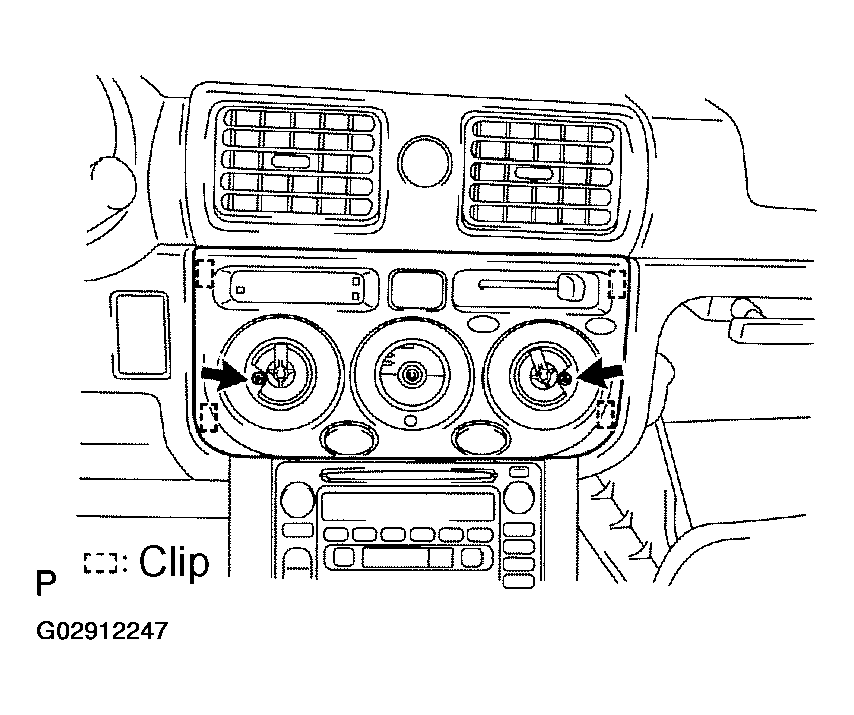

  Fig 1: Locating Center Cluster Finish Panel Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, remove the center cluster finish panel.
  NOTE: Tape the screwdriver tip before use.
4. Disconnect the clock connector from the clock.
5. Remove the center cluster finish panel.
Remove Glove Compartment Door
Disconnect Heater Control Cables

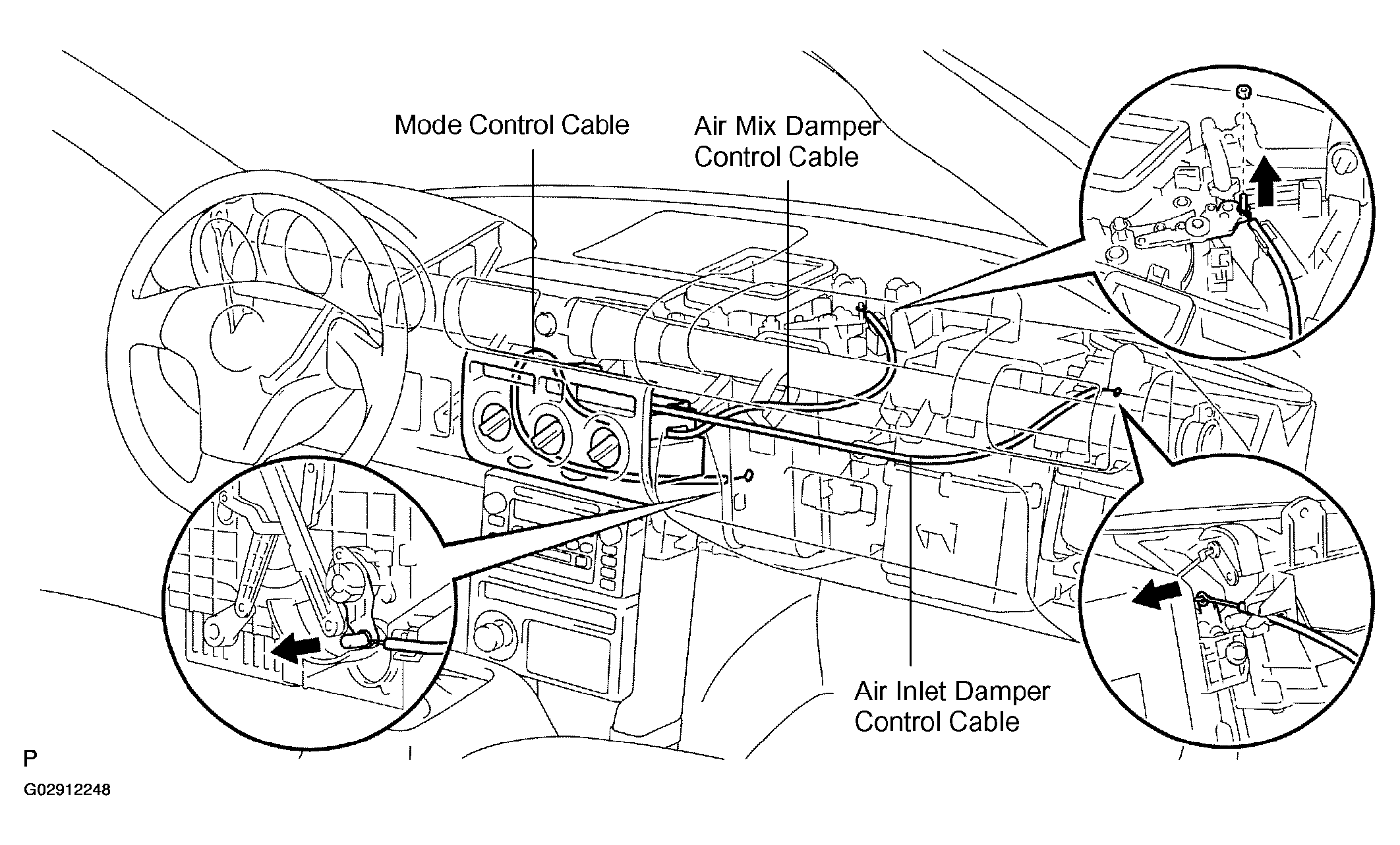

Fig 2: Disconnecting Heater Control Cables
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When the cables are disconnected, be careful not to bend the cable.
Remove Heater Control Assembly

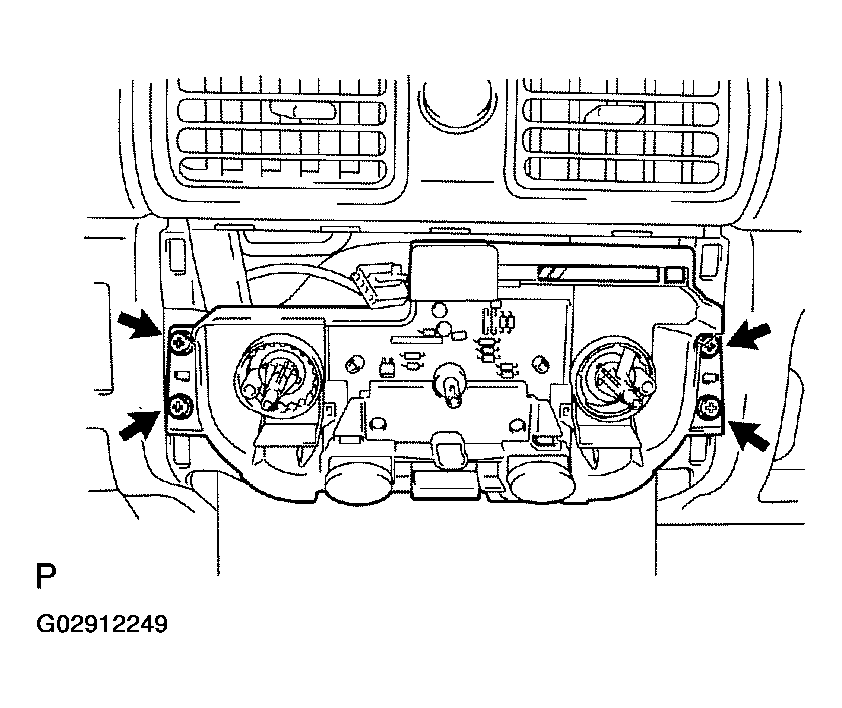

Fig 3: Locating Heater Control Assy Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 4 screws and control assembly, then disconnect the 2 connectors.
