Instrument Panel Fuses

NOTE: R/B No. 3 is located under the driver's side of the instrument panel. See Fig 1.

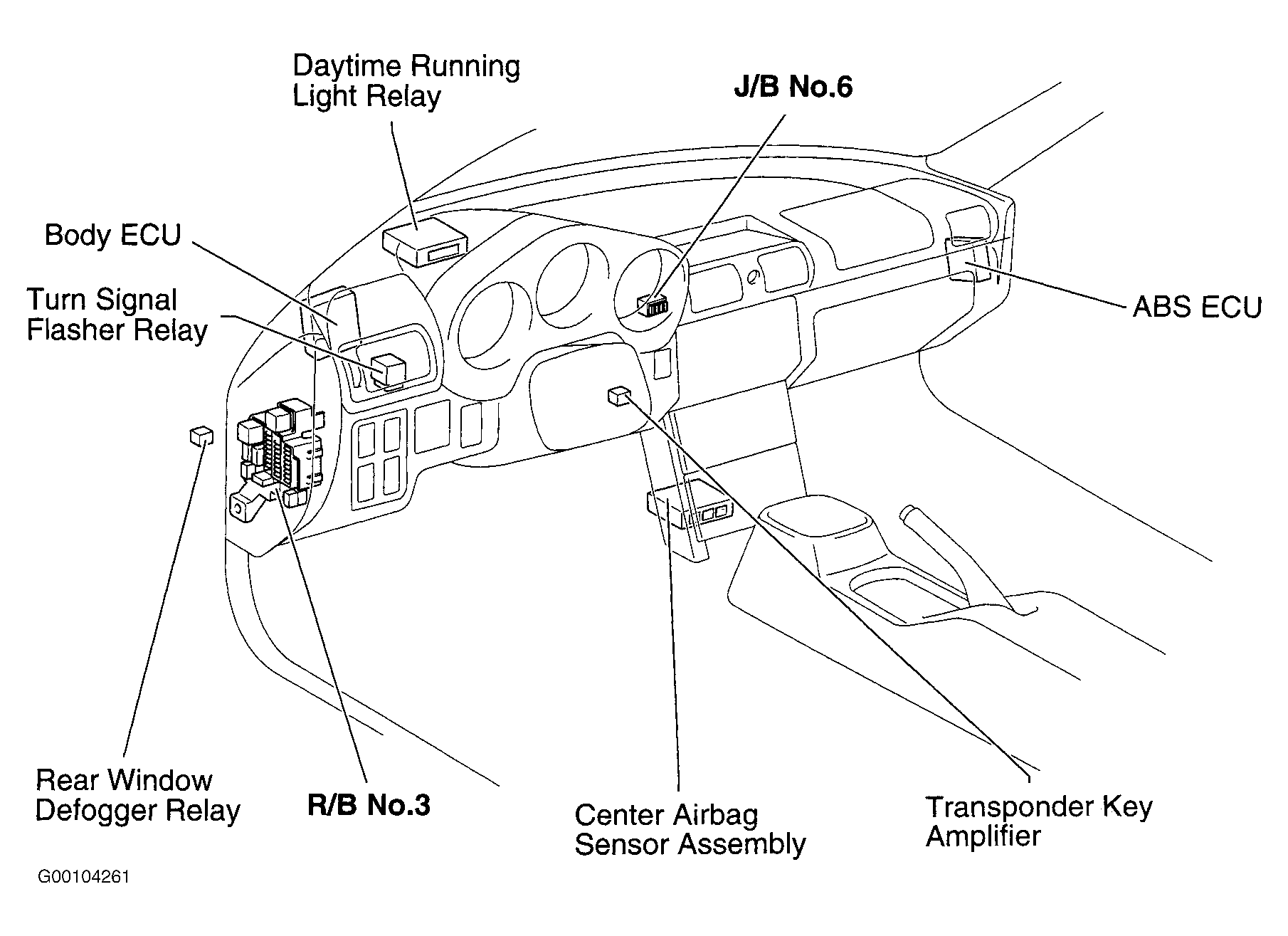

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

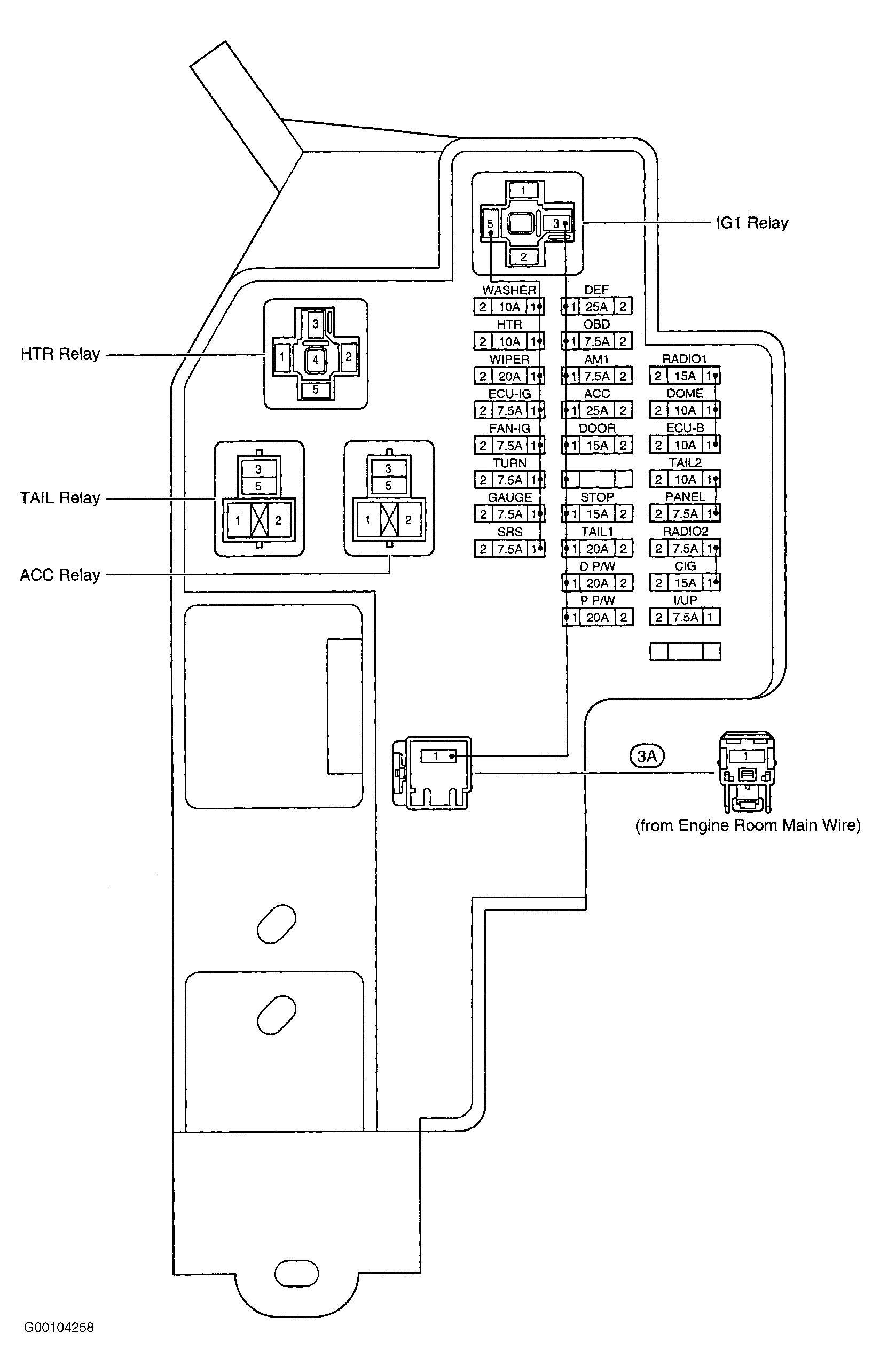

Fig 2: Identifying R/B No. 3 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

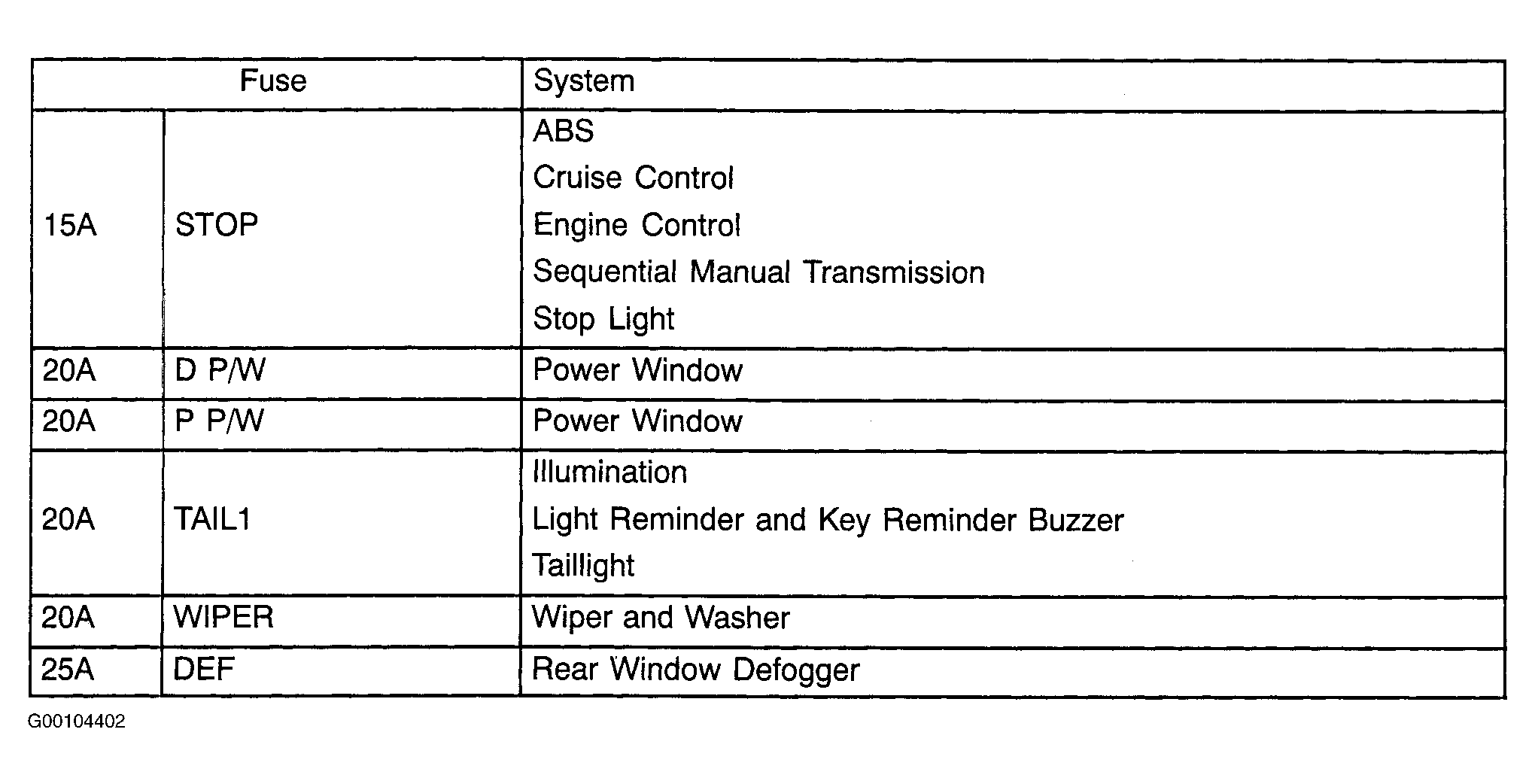

Fig 3: R/B No. 3 Legend (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

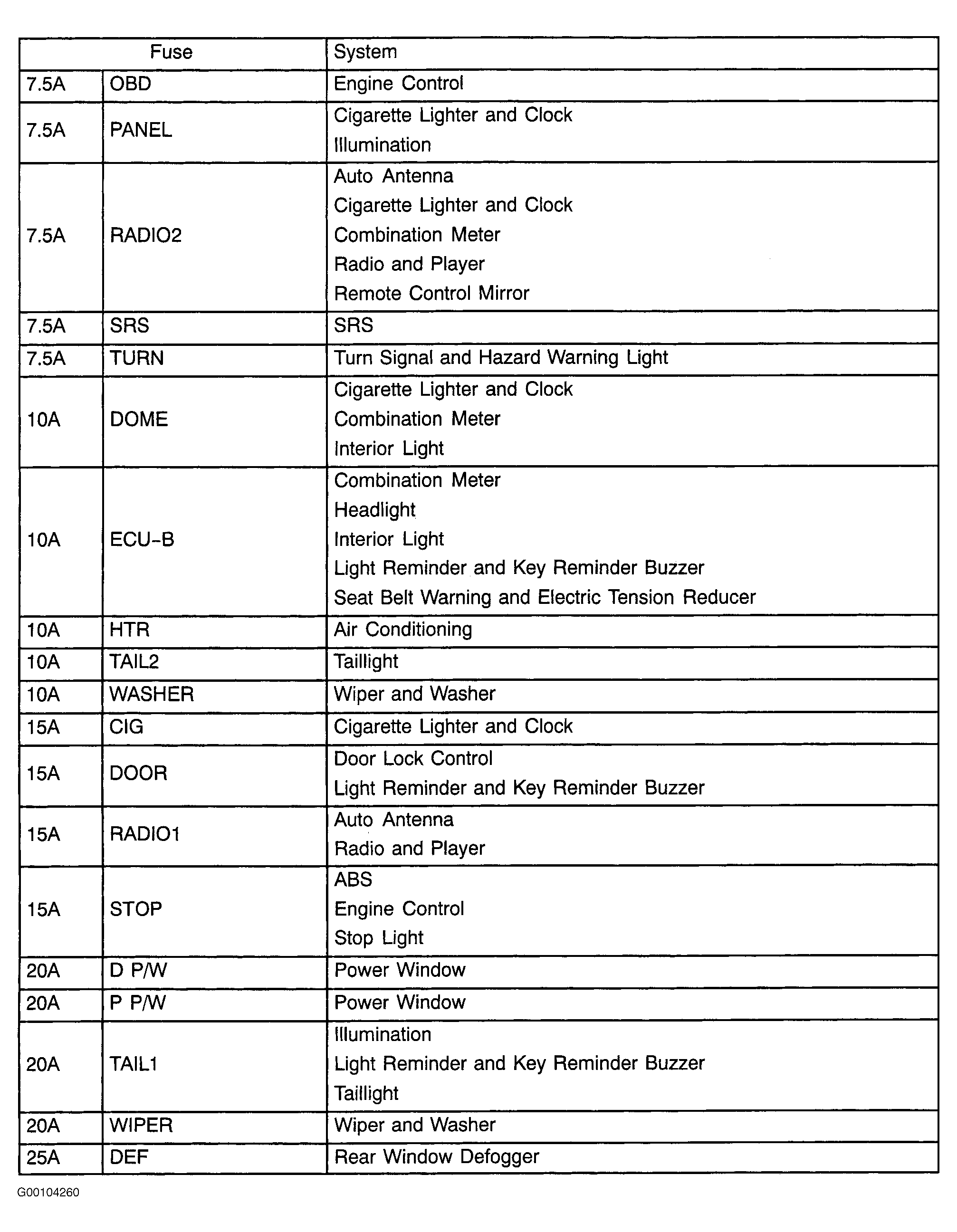

Fig 4: R/B No. 3 Legend (2 Of 3)

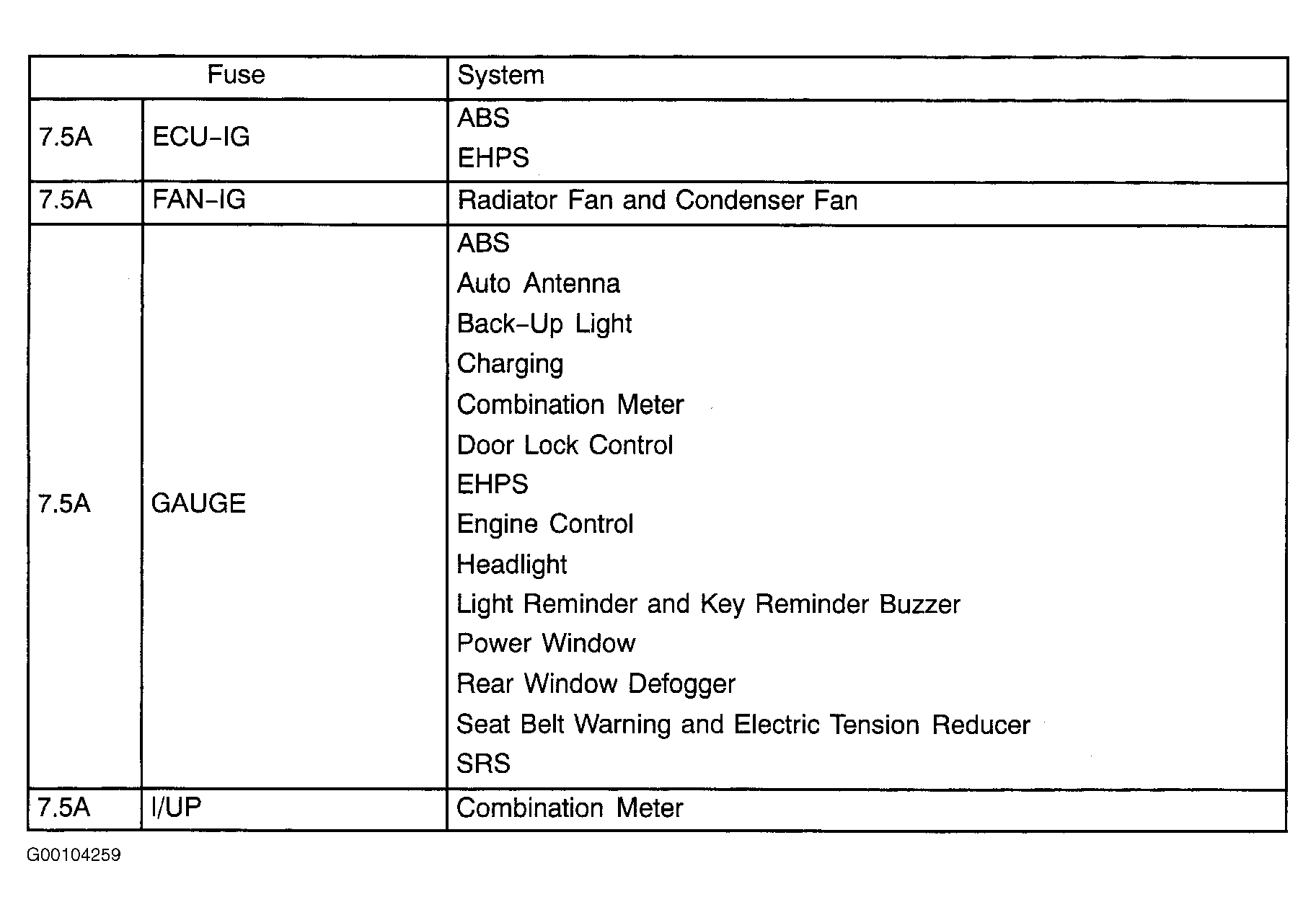

Fig 5: R/B No. 3 Legend (3 Of 3)
