Engine Compartment Fuses

Engine compartment fuses are located in the engine compartment. See Fig 1 andFig 4 .

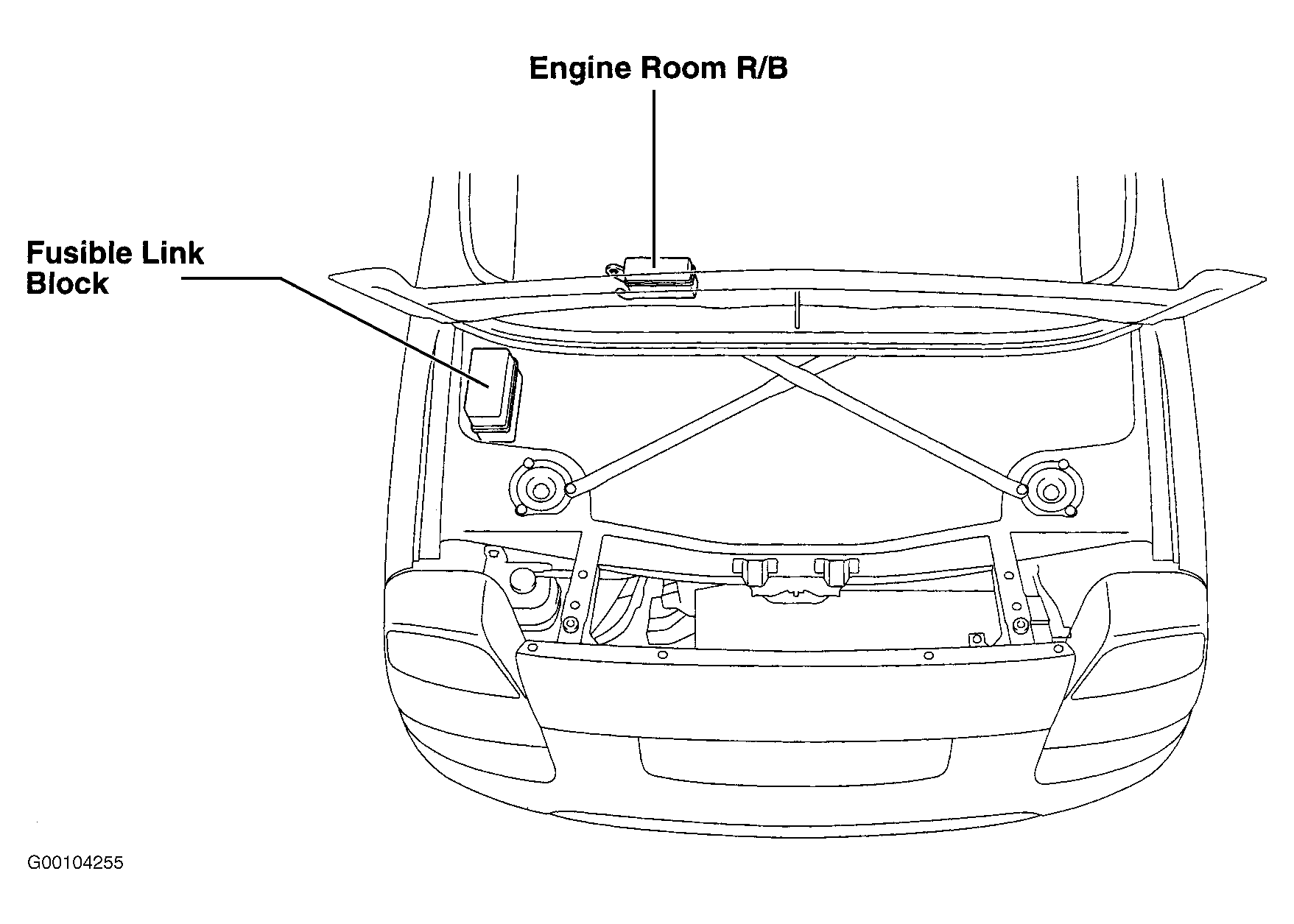

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

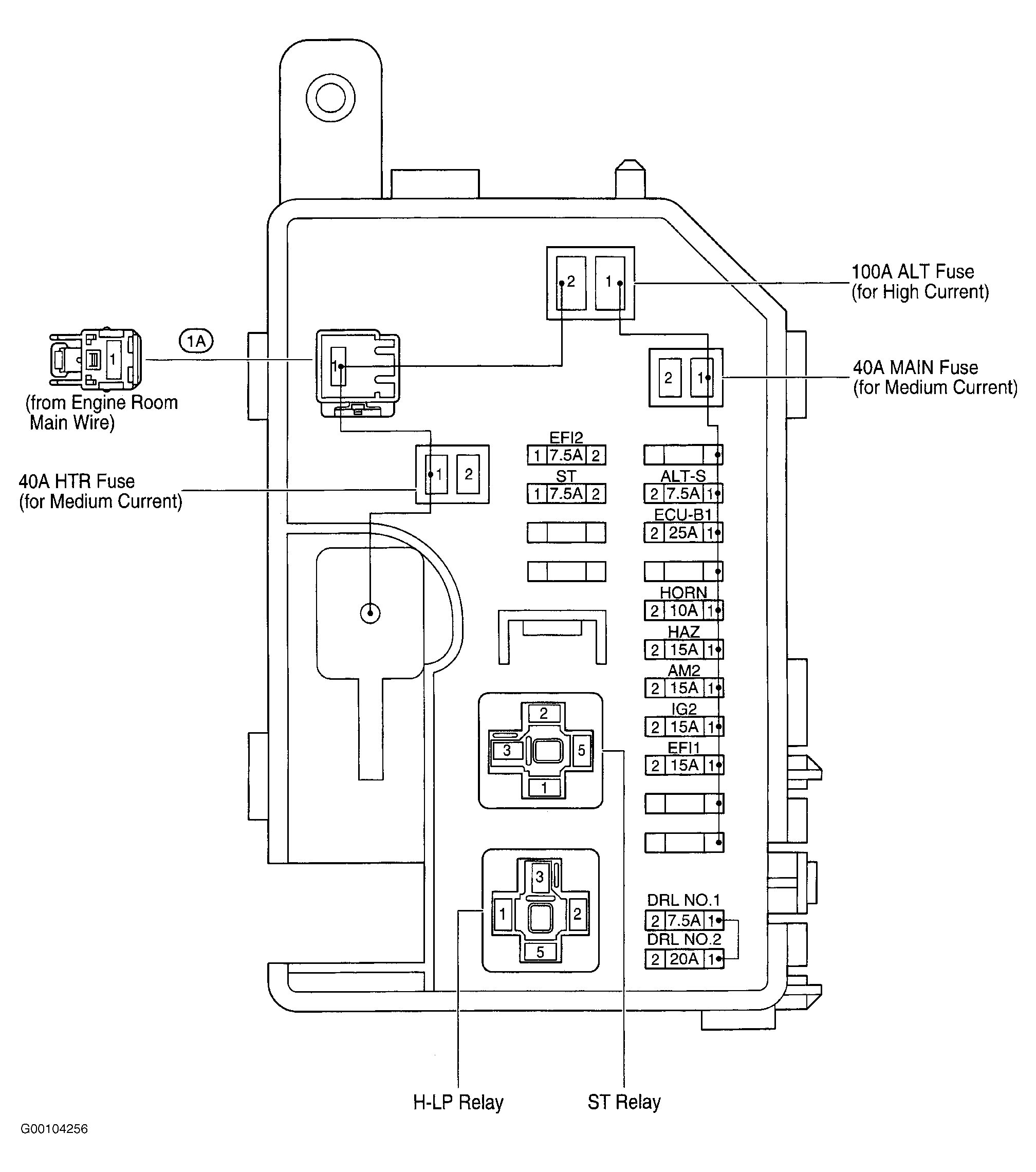

Fig 2: Identifying Fusible Link Block Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

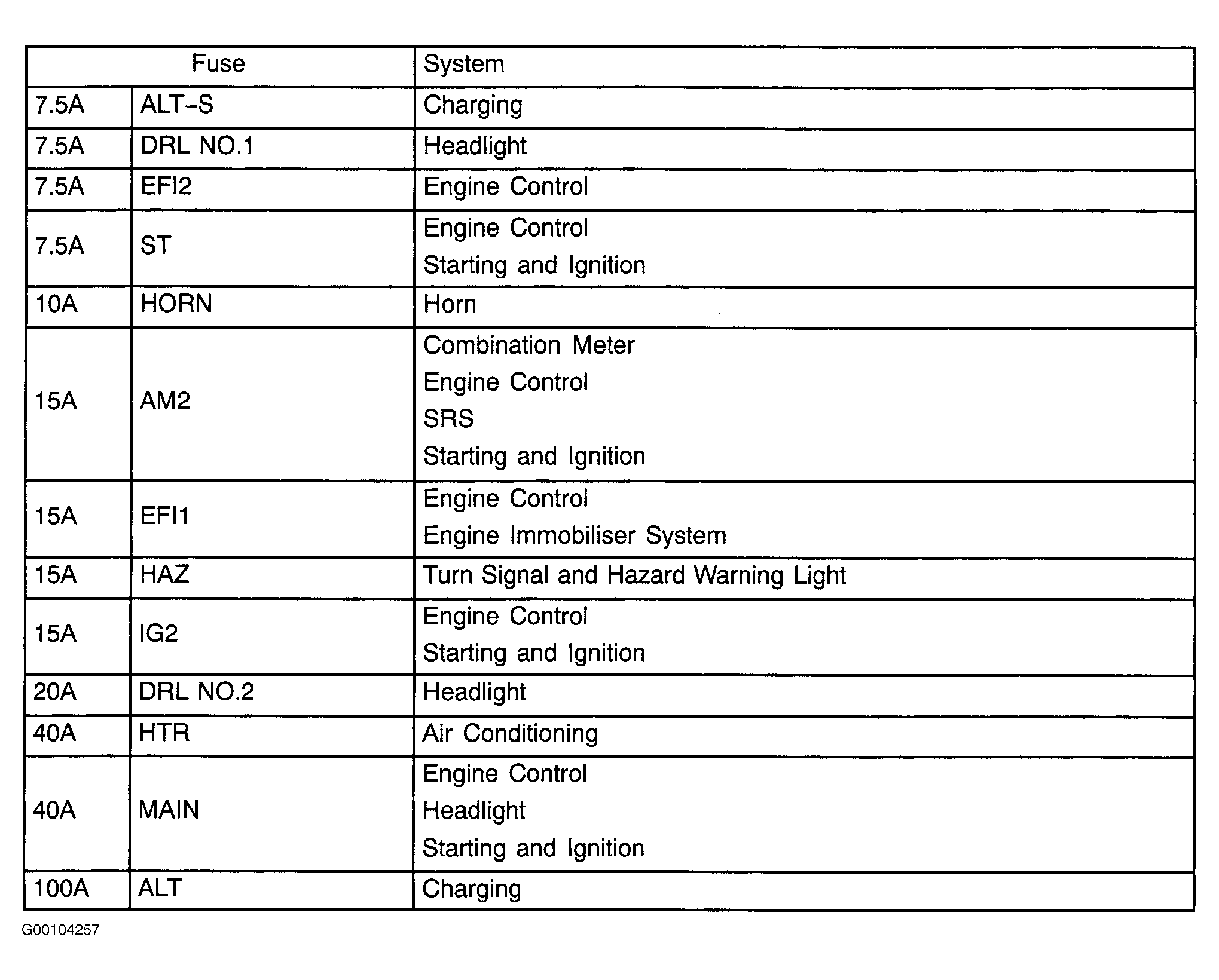

Fig 3: Fusible Link Block Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

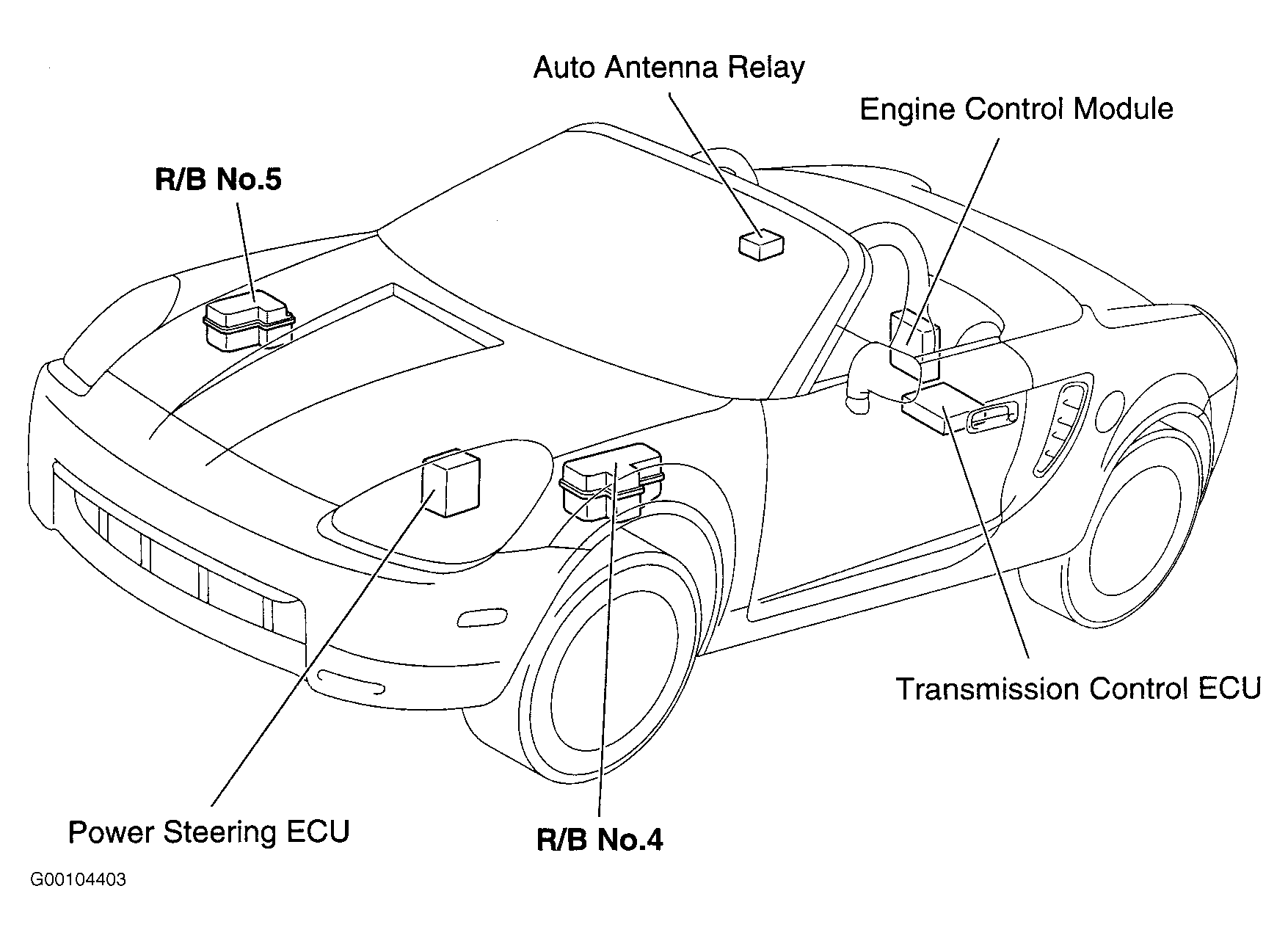

Fig 4: Locating Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

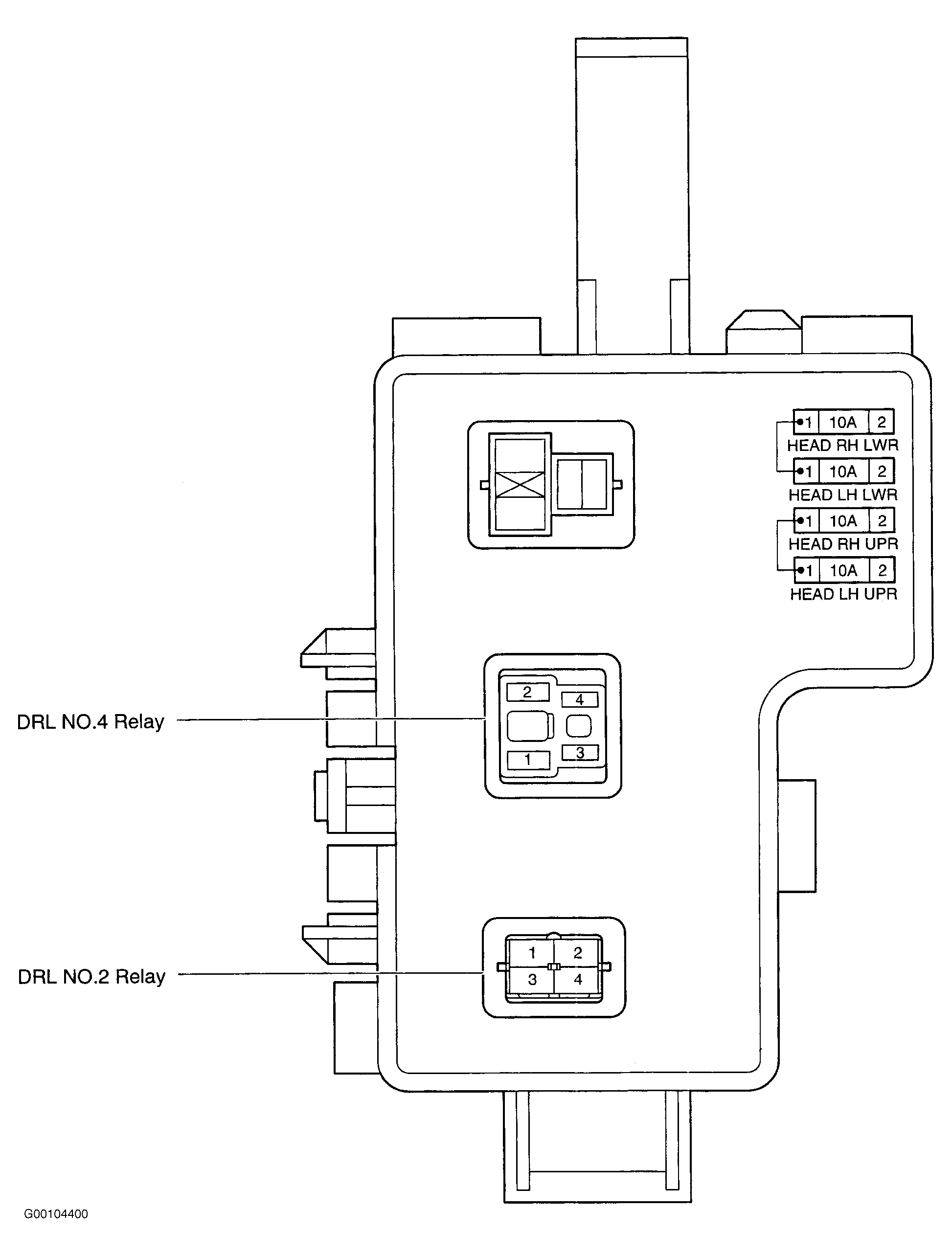

Fig 5: Identifying R/B No. 4 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

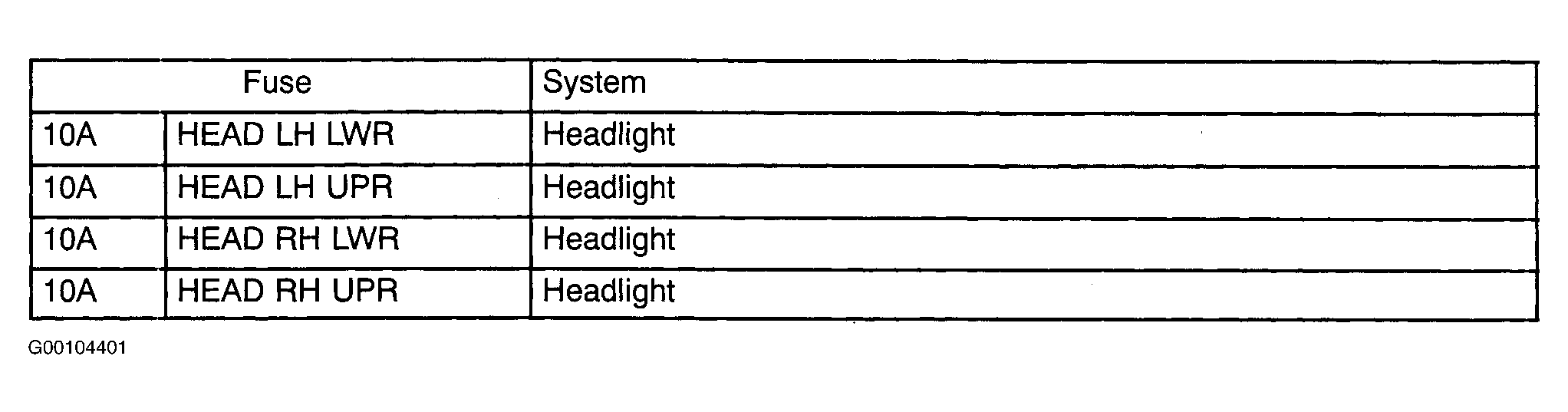

Fig 6: R/B No. 4 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

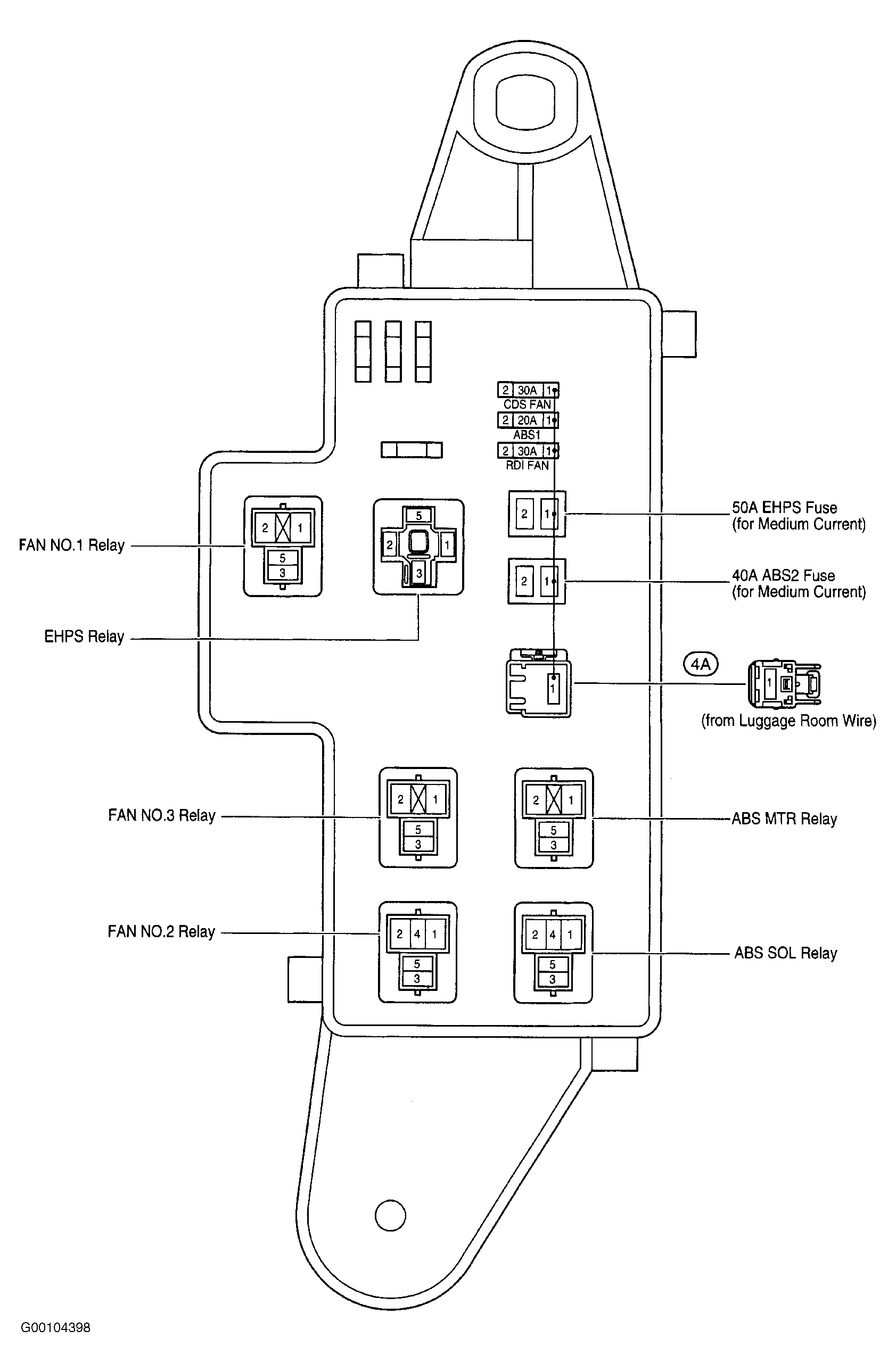

Fig 7: Identifying R/B No. 5 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

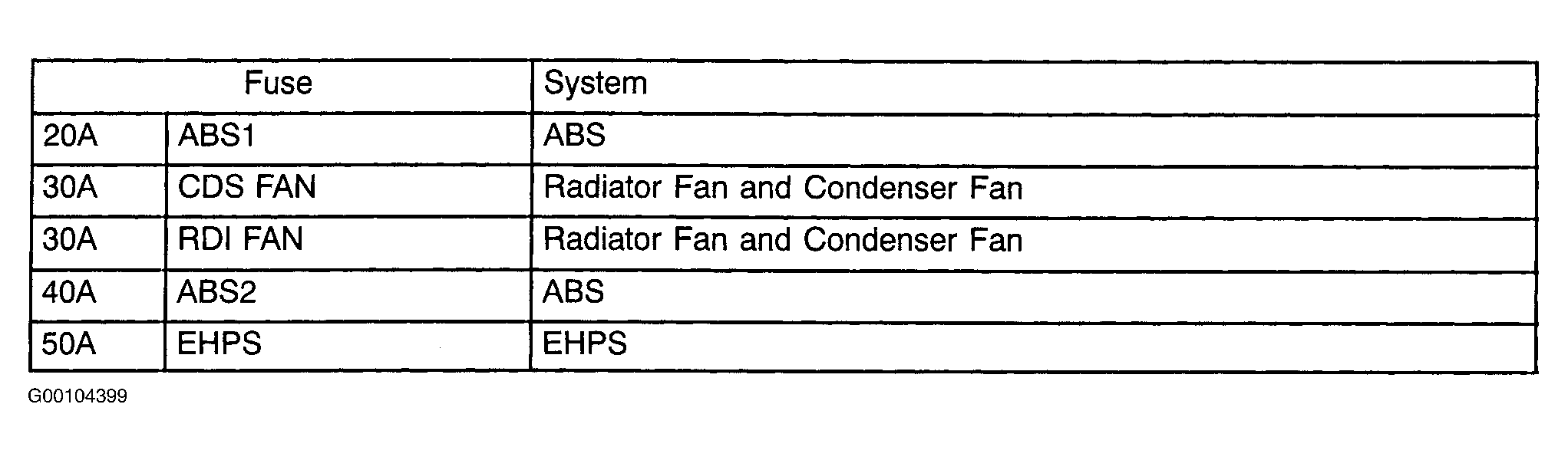

Fig 8: R/B No. 5 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
