Diagnostic Tests: Notes
NOTE:

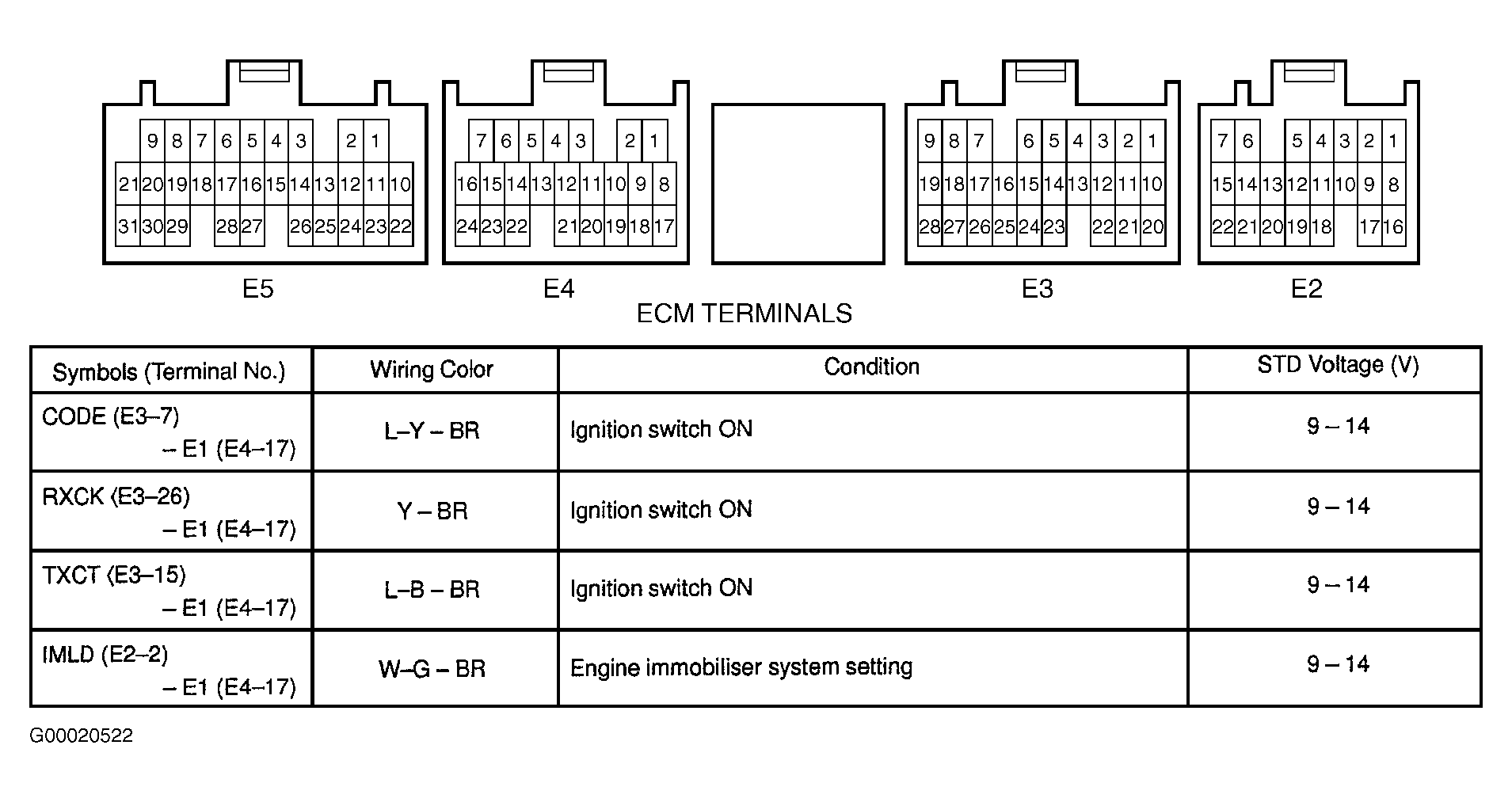

When performing diagnostic tests, it may be necessary to identify Engine Control Module (ECM) terminals. For ECM terminal identification, see
Figure
.
