Instrument Panel Fuses

NOTE: Instrument panel J/B is located under the driver's side of the instrument panel. See Fig 1.

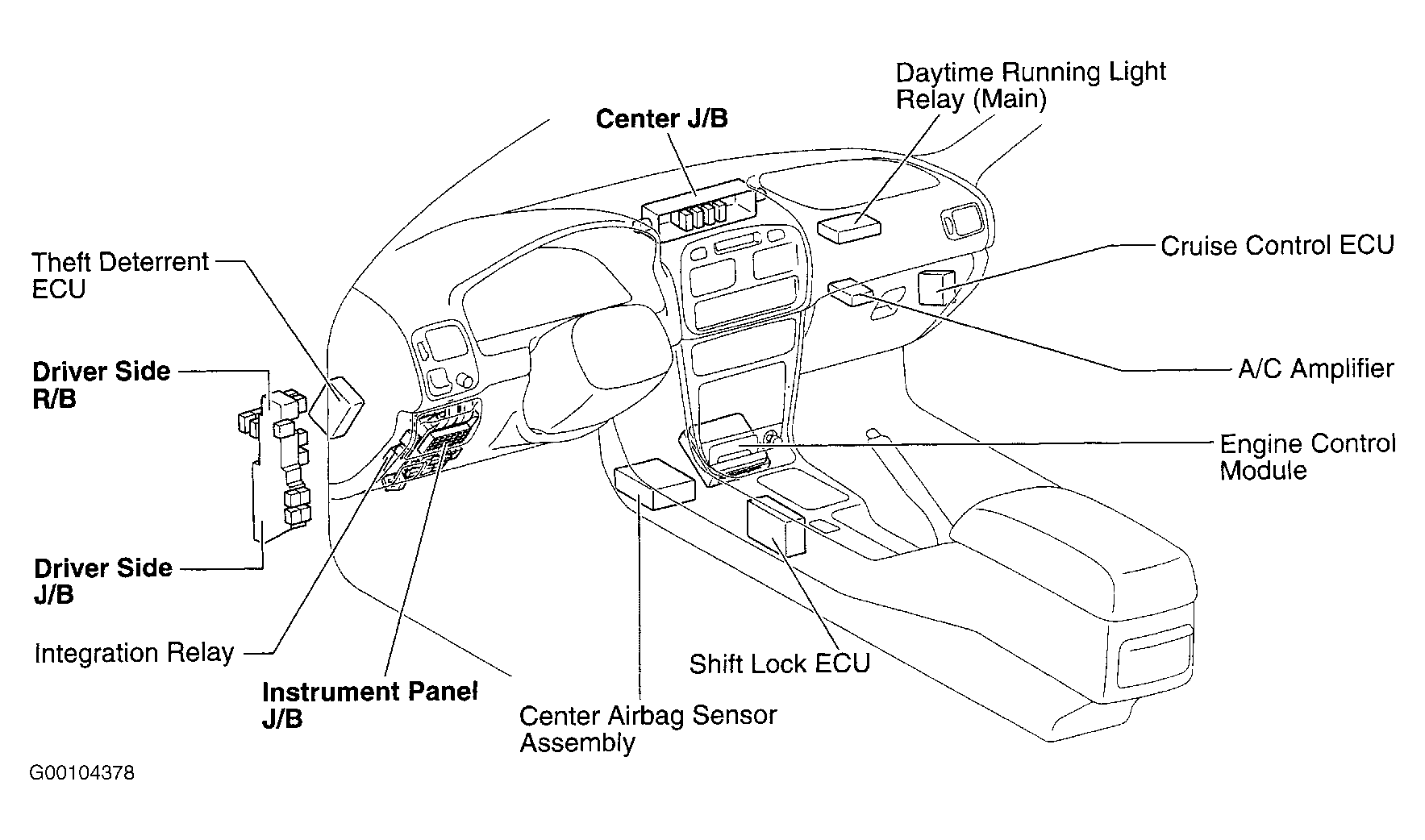

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

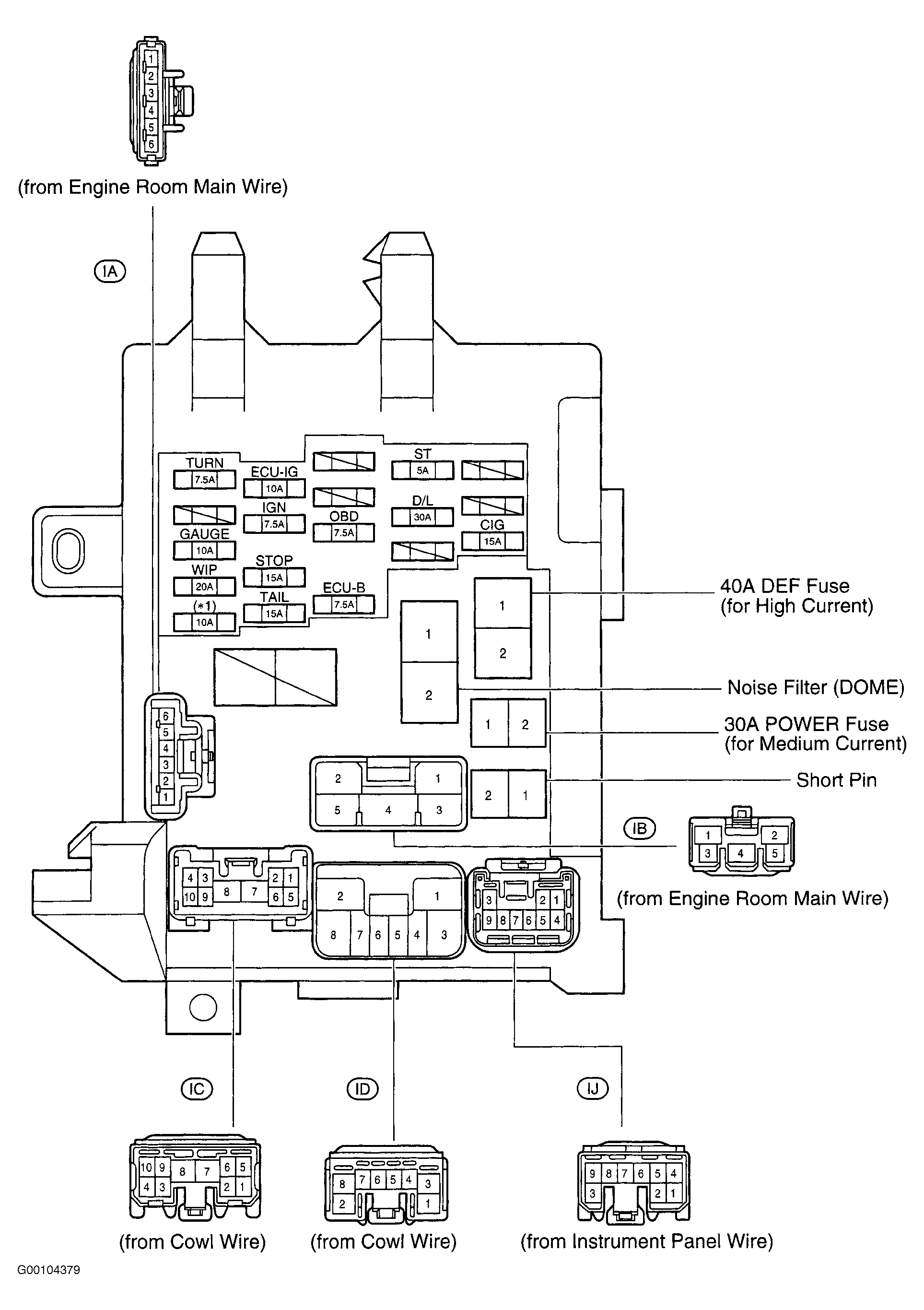

Fig 2: Identifying Instrument Panel J/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

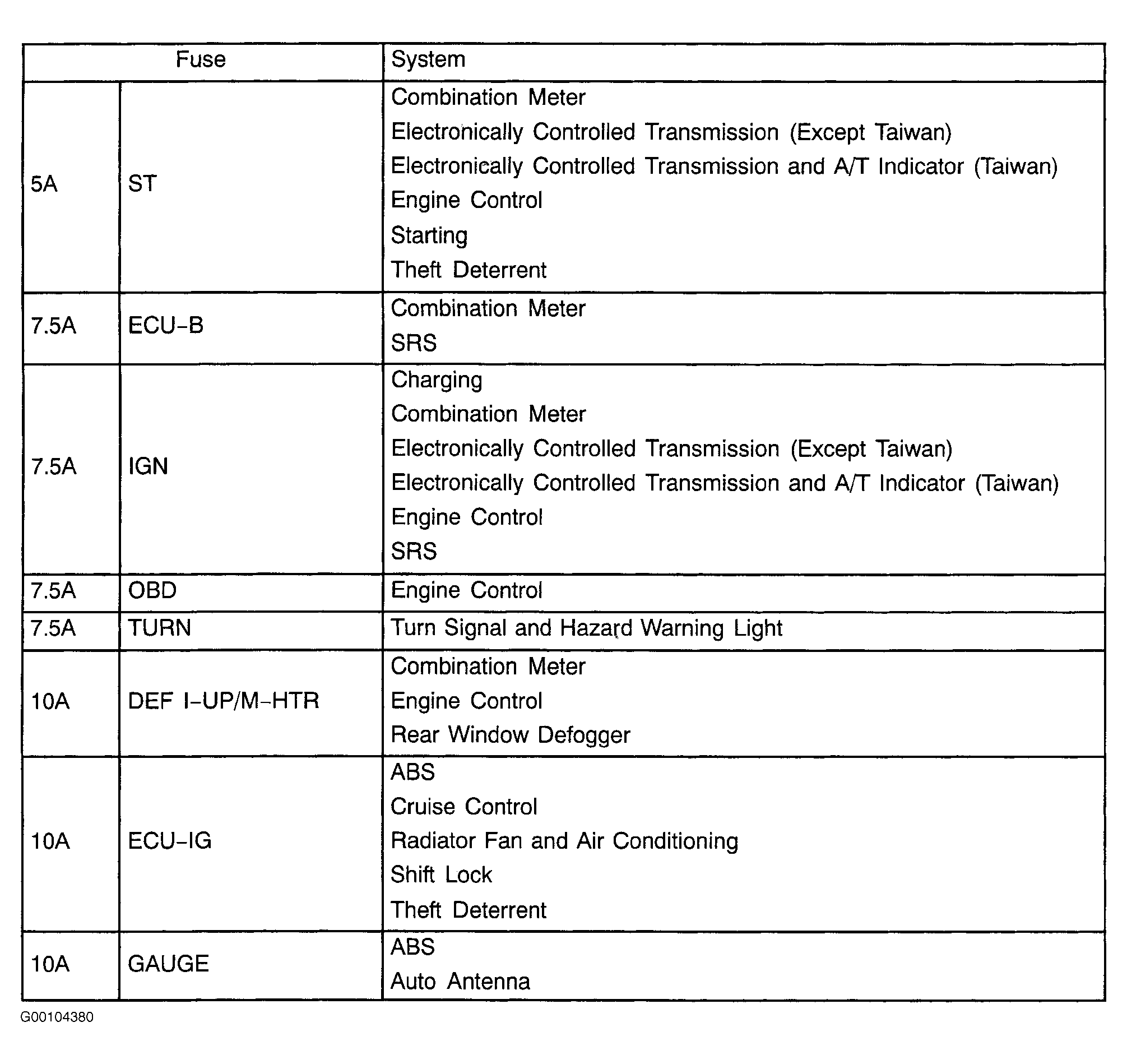

Fig 3: Instrument Panel J/B Legend (1 Of 2)

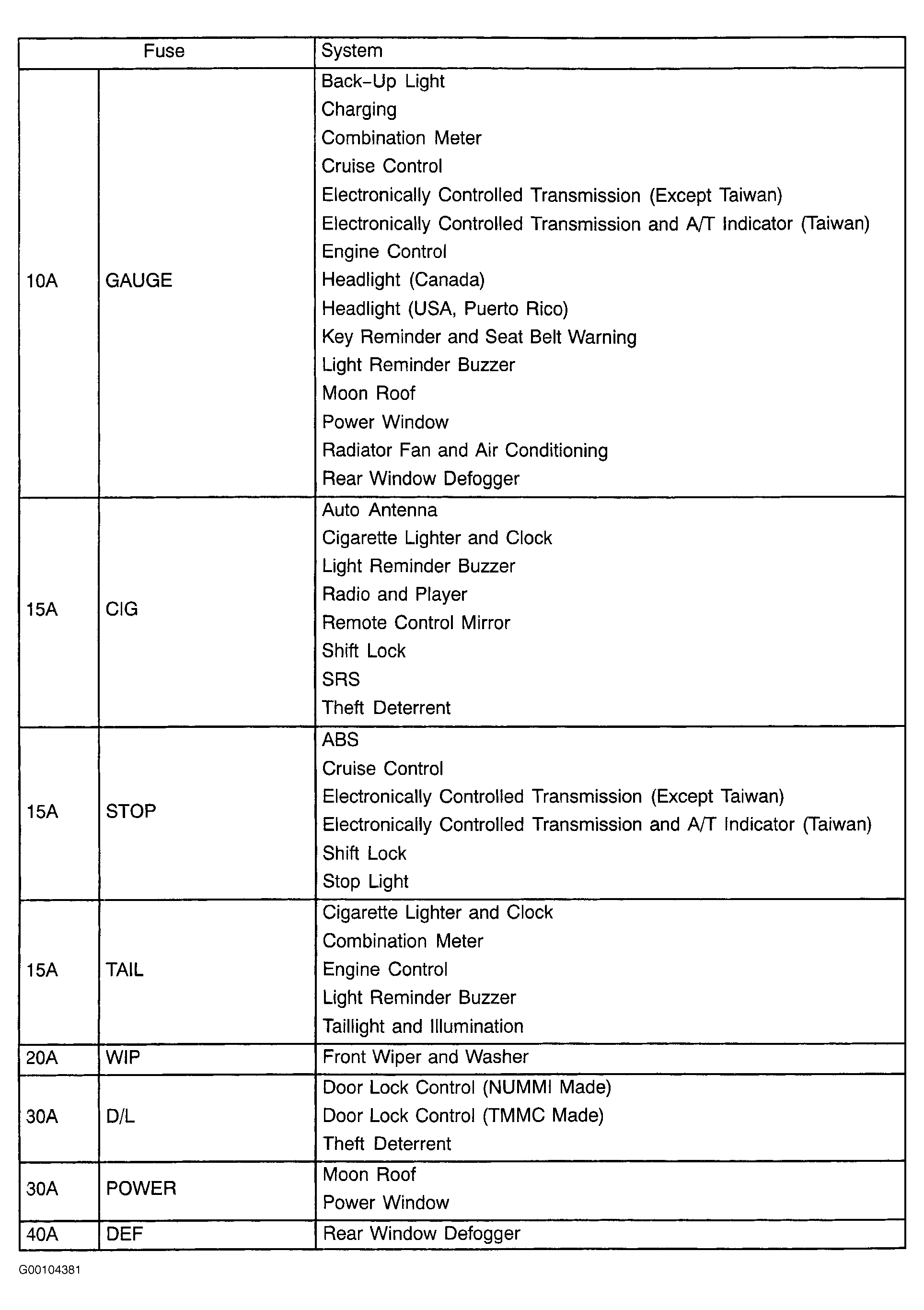

Fig 4: Instrument Panel J/B Legend (2 Of 2)
