| Accessory Drive Belt Tensioner Bolt/Nut |
| Bolt |
51 (69) |
| Nut |
21 (29) |
| A/C Compressor Bolt |
18 (24) |
| Axle Shaft Nut |
166 (225) |
| Ball Joint-To-Lower Control Arm Bolt/Nut |
105 (142) |
| Camshaft Bearing Cap Bolt |
|
| Camshaft Sprocket Bolt |
40 (55) |
| Coolant Drain Plug |
| Block |
10 (13) |
| Radiator Pipes (MR2) |
12 (17) |
| Connecting Rod Bolt |
| Step 1 |
15 (20) |
| Step 2 |
Additional 90 Degrees |
| Crankshaft Pulley Bolt |
102 (138) |
| Cylinder Head Bolt |
| Step 1 |
36 (49) |
| Step 2 |
Additional 90 Degrees |
| Drive Shaft Heat Insulator Bolt |
13 (18) |
| Engine Coolant Temperature Sensor |
15 (20) |
| Engine Hanger Bolt |
28 (38) |
| Exhaust Manifold Nut |
27 (37) |
| Exhaust Manifold Support Bracket Bolt |
37 (51) |
| Flywheel/Drive Plate Bolt |
| A/T |
61 (83) |
| M/T |
| Step 1 |
36 (49) |
| Step 2 |
Additional 90 Degrees |
| Front Exhaust Pipe-To-Center Exhaust Pipe Clamp Bolt |
24 (33) |
| Front Exhaust Pipe-To-Exhaust Manifold Bolt |
46 (62) |
| Front (Radiator Side) Engine Mount Bracket-To-Cylinder Block Bolt |
57 (77) |
| Front (Radiator Side) Engine Mount Through-Bolt/Nut |
64 (87) |
| Fuel Rail-To-Cylinder Head Bolt |
14 (19) |
| Generator Mounting Bolt |
| Small Bolt |
18 (24) |
| Large Bolt |
40 (54) |
| Intake Manifold Bolt/Nut |
14 (19) |
| Intake Manifold Support Brace Bolt |
14 (19) |
| Knock Sensor |
29 (39) |
| Left (Transaxle Side) Engine Mount Through-Bolt/Nut |
64 (87) |
| Left (Transaxle Side) Engine Mount-To-Transaxle Bolt |
48 (65) |
| Main Bearing Cap Subassembly-To-Cylinder Block Bolt |
| 6-Point Bolt |
14 (19) |
| 12-Point Bolt |
| Step 1 |
16 (22) |
| Step 2 |
32 (43) |
| Step 3 |
Additional 45 Degrees |
| Step 4 |
Additional 45 Degrees |
| Oil Filter Union |
22 (30) |
| Oil Pan Drain Plug |
27 (37) |
| Oxygen Sensor-To-Front Exhaust Pipe Nut |
15 (20) |
| Power Steering Pump Bolt/Nut |
27 (37) |
| Power Steering Gear Bolts |
33 (45) |
| Power Steering Pump Pulley Nut |
32 (43) |
| Rear (Firewall Side) Engine Mount Bracket-To-Cylinder Block Bolt |
57 (77) |
| Rear (Firewall Side) Engine Mount Through-Bolt/Nut |
64 (87) |
| Rear Suspension Member Bolts |
38 (52) |
| Rear Suspension Upper Brace Bolts & Nuts |
59 (80) |
| Relief Valve Plug |
27 (37) |
| Right (Timing Chain Side) Engine Mount Bracket-To-Cylinder Block Bolt |
35 (47) |
| Right (Timing Chain Side) Engine Mount Insulator-To-Body Bolt |
| Large Bolt |
47 (64) |
| Small Bolt |
38 (52) |
| Right (Timing Chain Side) Engine Mount Insulator-To-Engine Mount Bracket Bolt/Nut |
| Bolt |
47 (64) |
| Nut |
38 (52) |
| Support Bracket-To-Left (Transaxle Side) Engine Mount Bolt |
15 (20) |
| Throttle Body Bolt/Nut |
15 (20) |
| Tie Rod-To-Steering Knuckle Nut |
36 (49) |

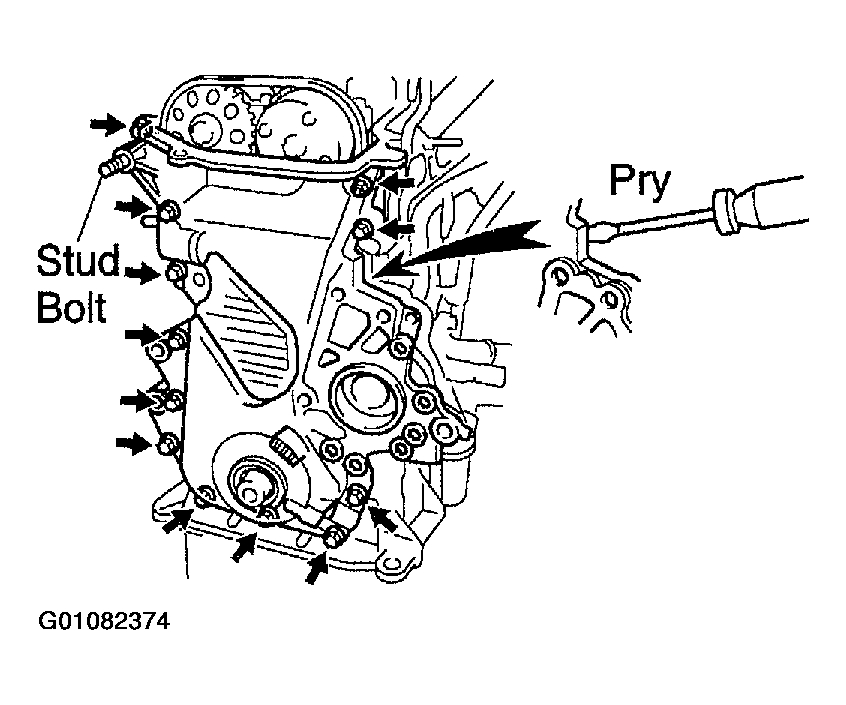

| Timing Chain Cover Bolt/Nut & Stud Bolt |
|
| Timing Chain Tensioner Slipper Bolt |
14 (19) |

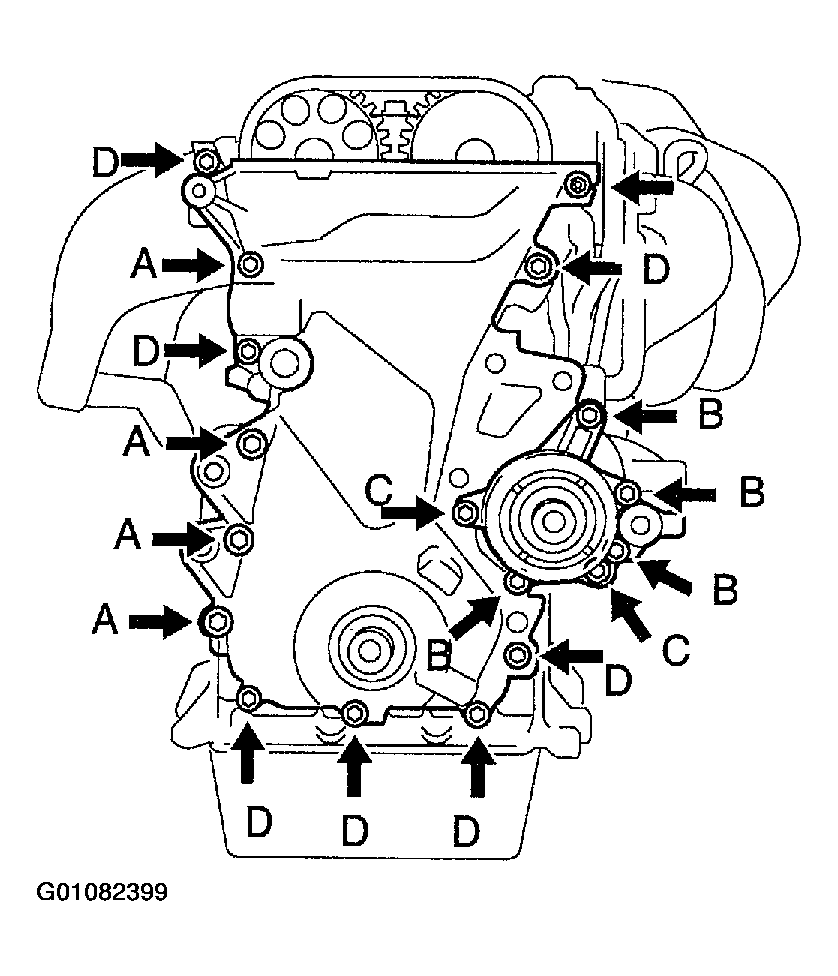

| Water Pump Bolt |
|
| Wheel Lug Nut |
76 (103) |
| INCH Lbs. (N.m) |
| ABS Speed Sensor Bolt |
71 (8) |
| Camshaft Position Sensor Bolt |
80 (9) |
| Clutch Release Cylinder Bolt |
106 (12) |
| Coolant Inlet Housing Nut |
80 (9) |
| Crankshaft Position Sensor Bolt |
80 (9) |
| Fuel Pipe Clamp-To-Cylinder Head Bolt |
80 (9) |
| Heat Insulator-To-Exhaust Manifold Bolt |
106 (12) |
| Ignition Coil-To-Cylinder Head Bolt/Nut |
80 (9) |
| Oil Pan Bolt/Nut |
80 (9) |
| Oil Pump Body Cover Screw |
93 (10.5) |
| Oil Pump Pick-Up Tube Bolt/Nut |
80 (9) |
| Oil Pump-To-Cylinder Block Bolt |
80 (9) |
| Timing Chain Tensioner Bolt |
80 (9) |
| Timing Chain Vibration Damper Bolt |
80 (9) |
| Valve Cover Bolt/Nut |
| With Washer |
80 (9) |
| Without Washer |
97 (11) |
