Combination Meter: Circuit

WARNING: This page is about a different car, the 2002 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

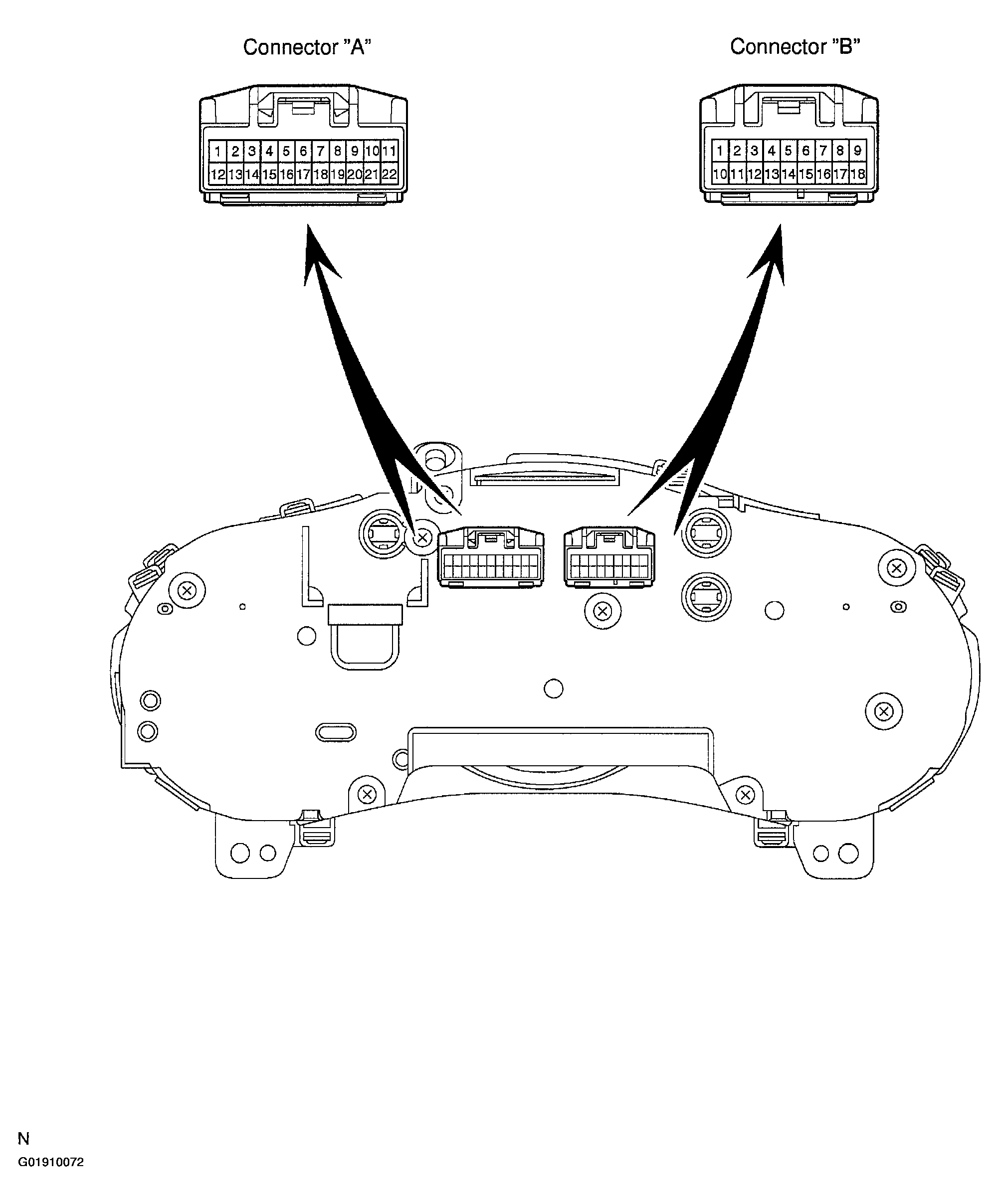

Fig 1: Identifying Combination Meter Connectors A & B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

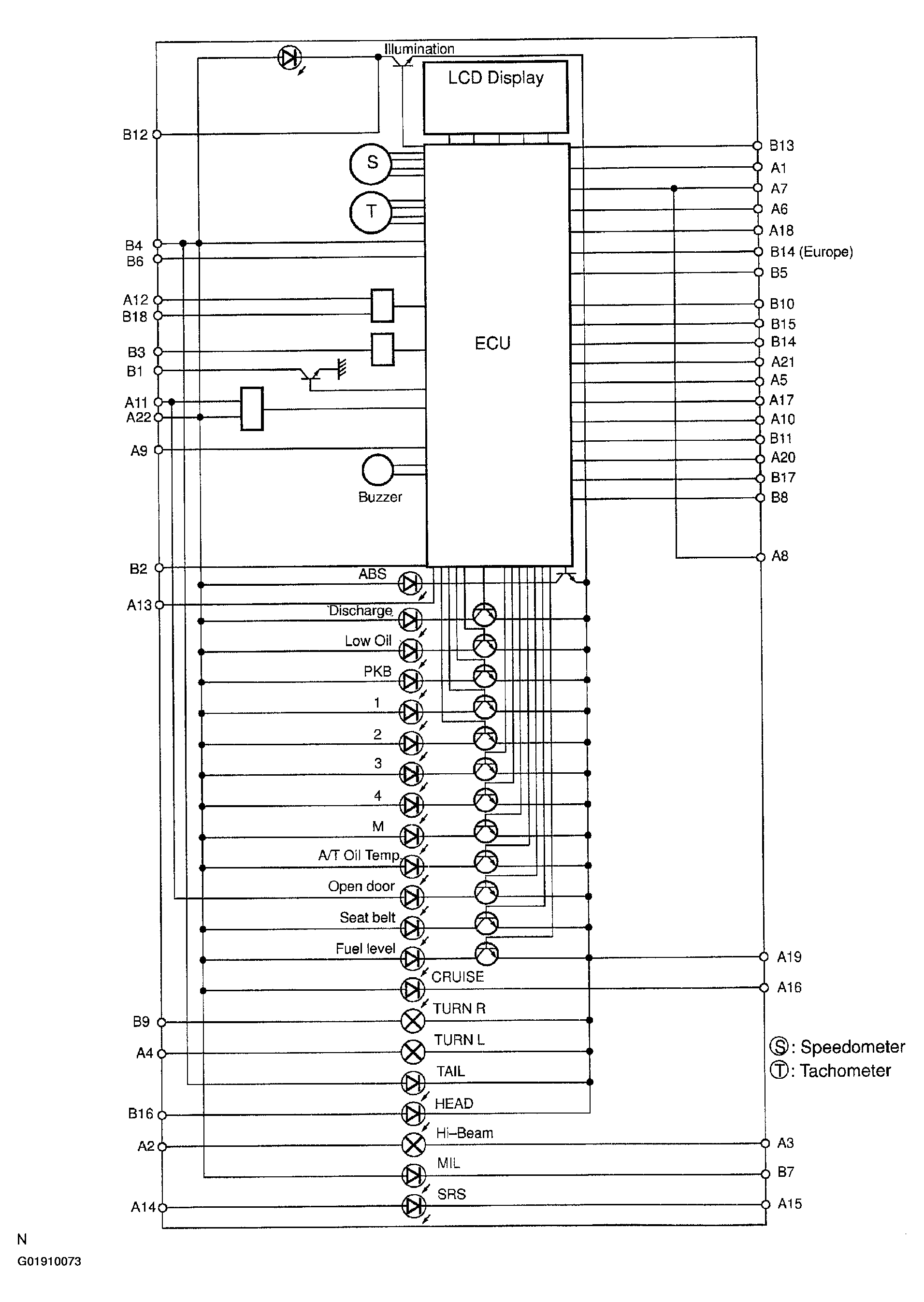

Fig 2: Combination Meter Circuit Schematic

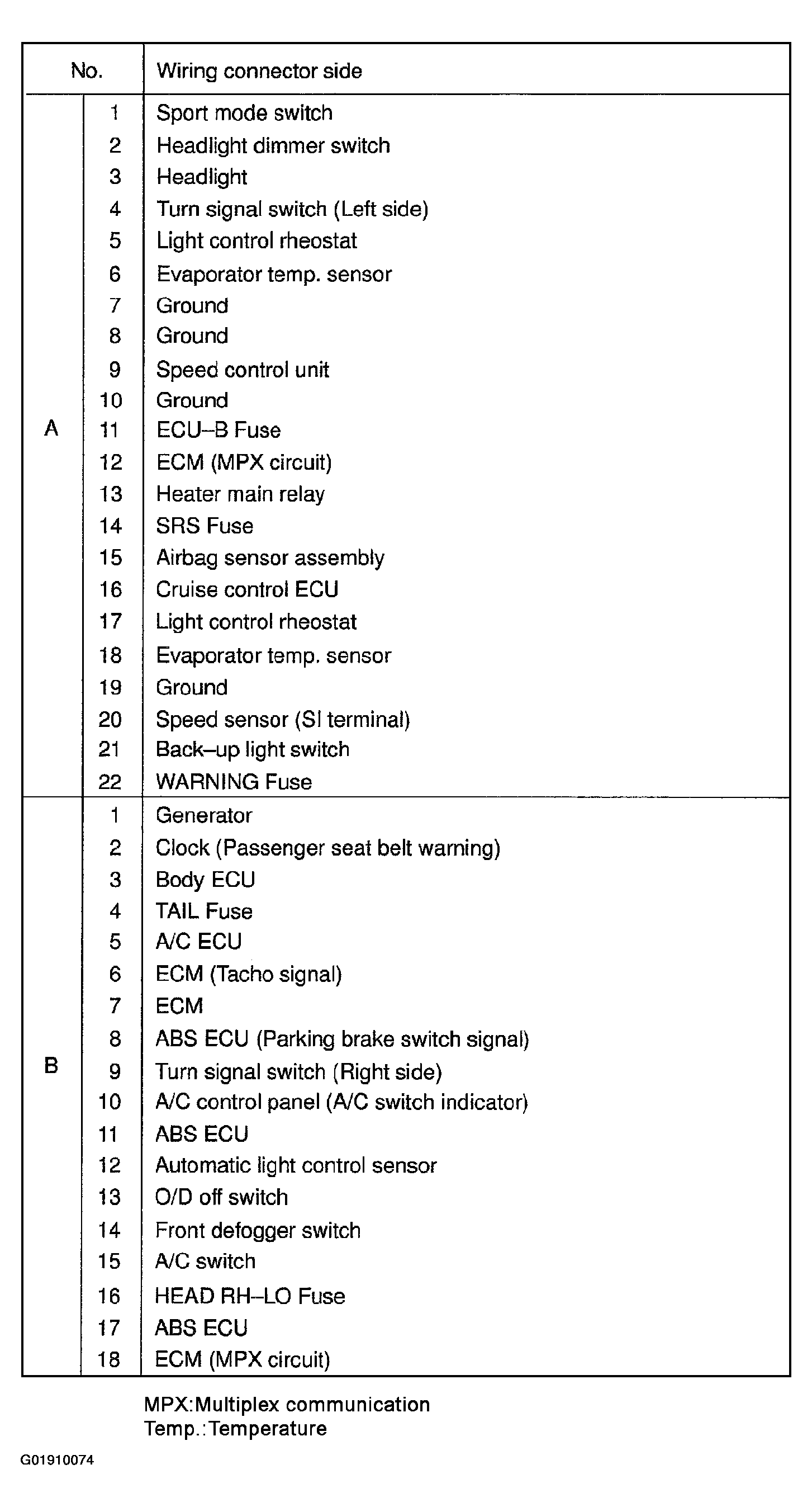

Fig 3: Combination Meter Circuit Schematic Legend (Connector A & B Terminals)
