Engine Compartment Fuses

Engine compartment fuses are located in the engine compartment. See Fig 1.

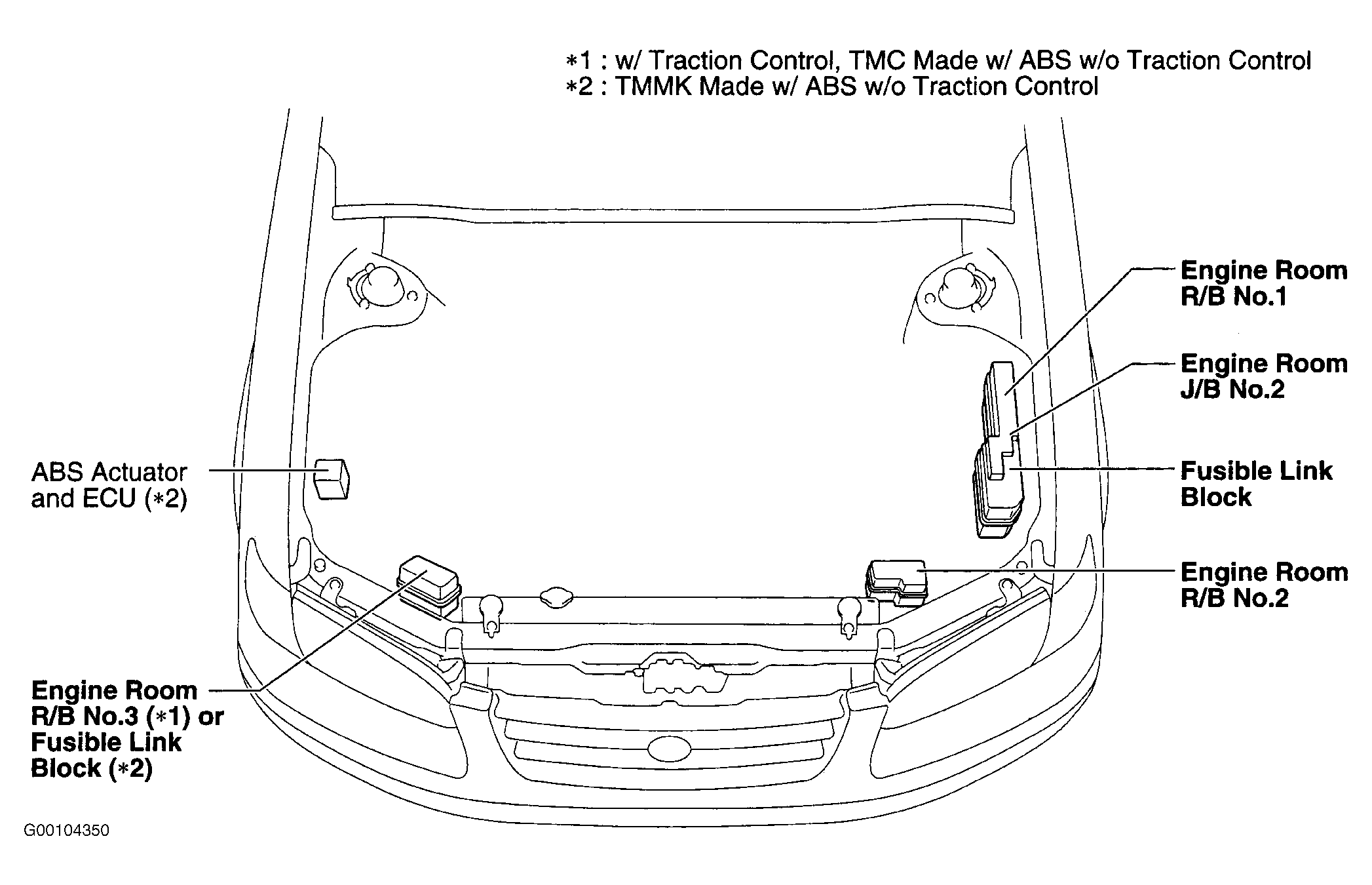

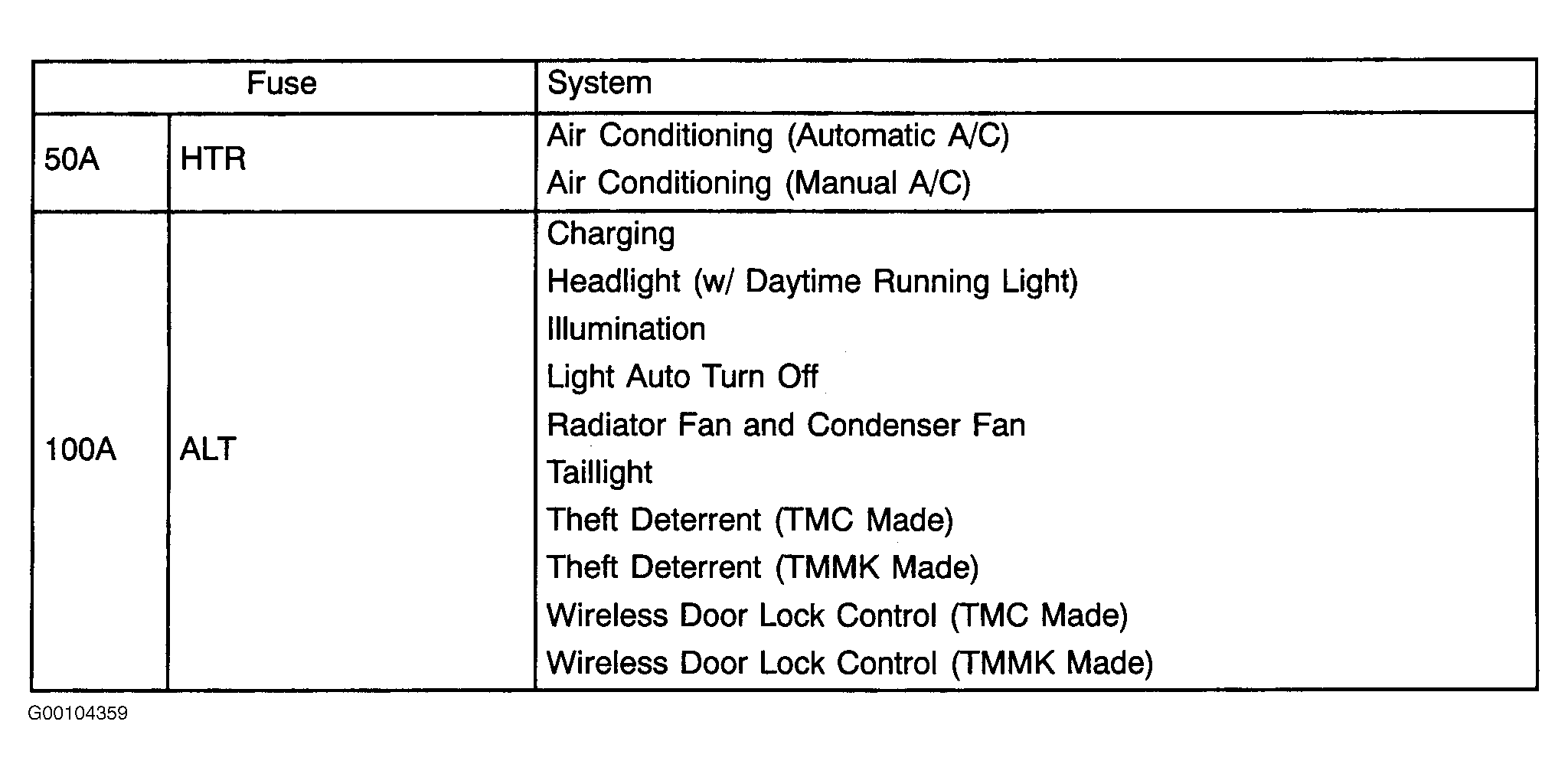

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

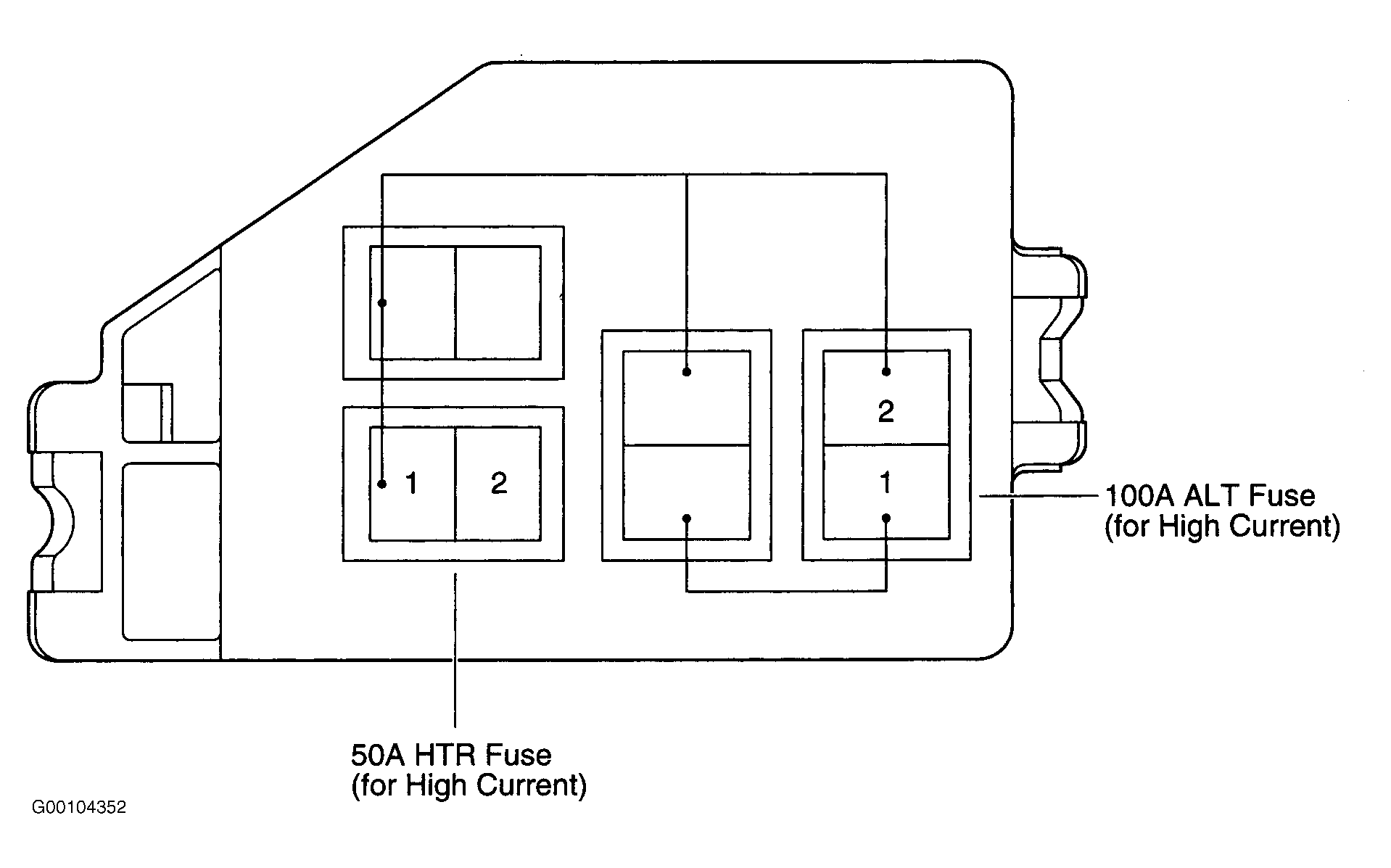

Fig 2: Identifying Fusible Link Block Fuses (Inside Engine Room J/B No. 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Fusible Link Block Legend (Inside Engine Room J/B No. 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

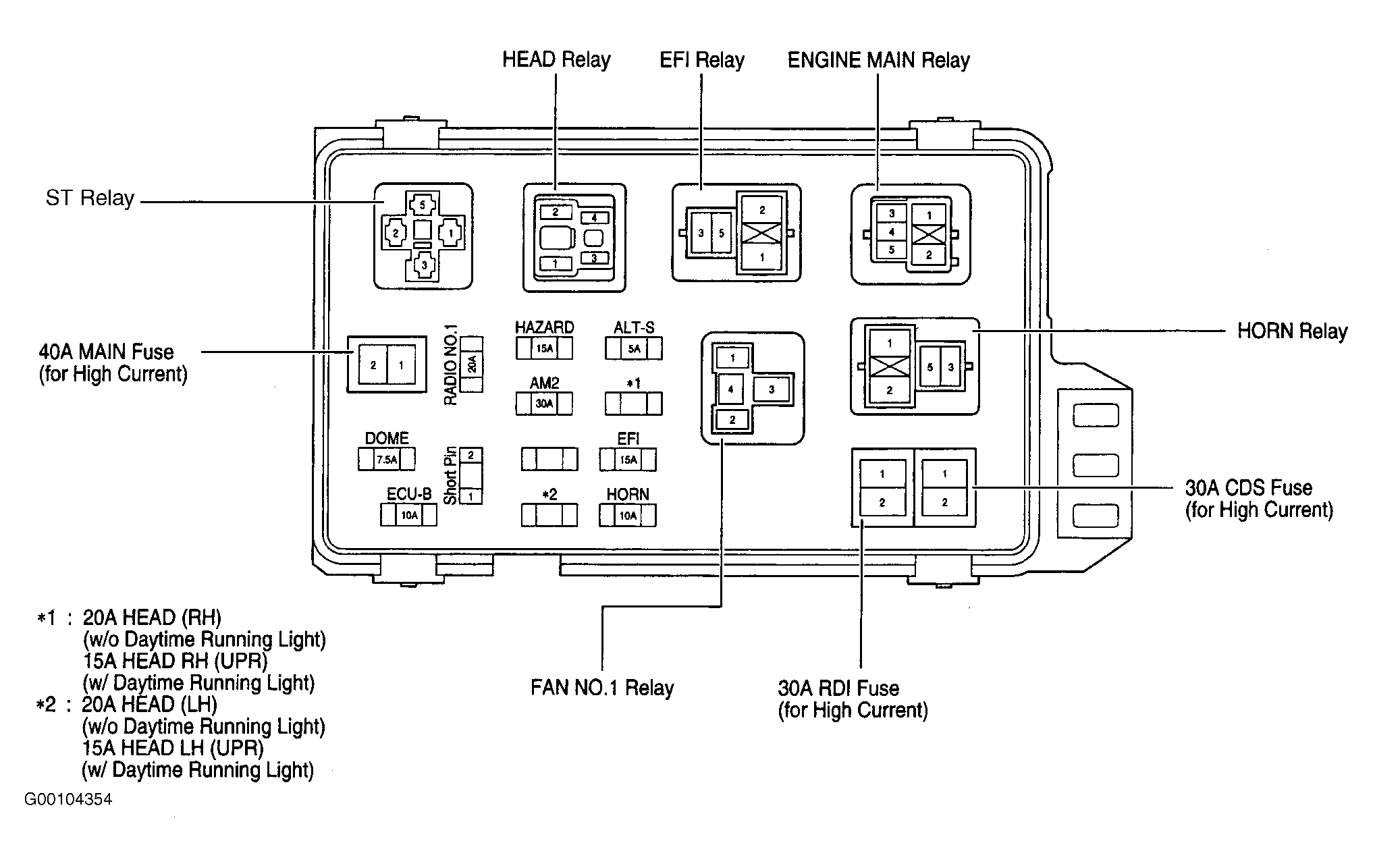

Fig 4: Identifying Engine Room J/B No. 2 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

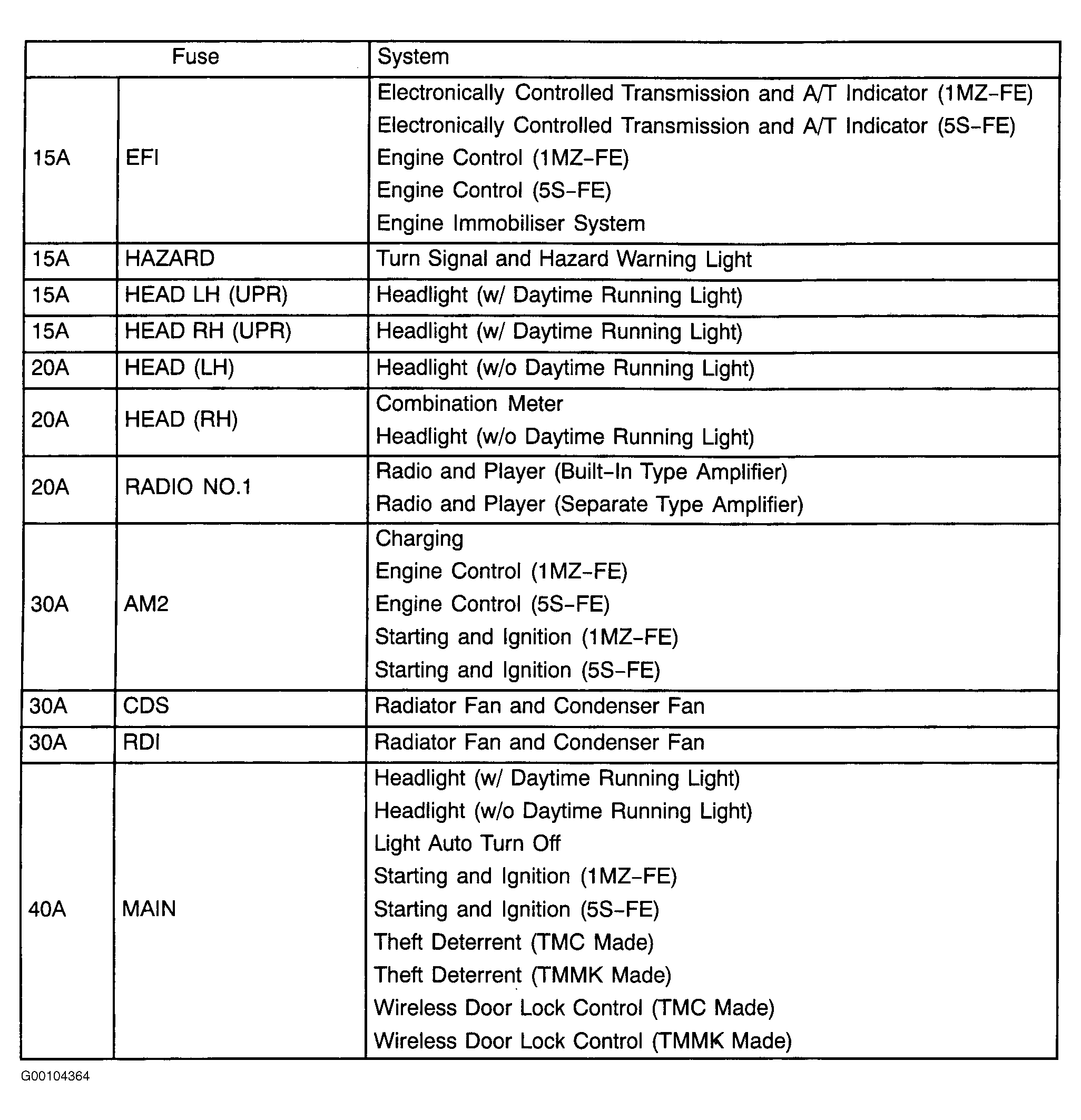

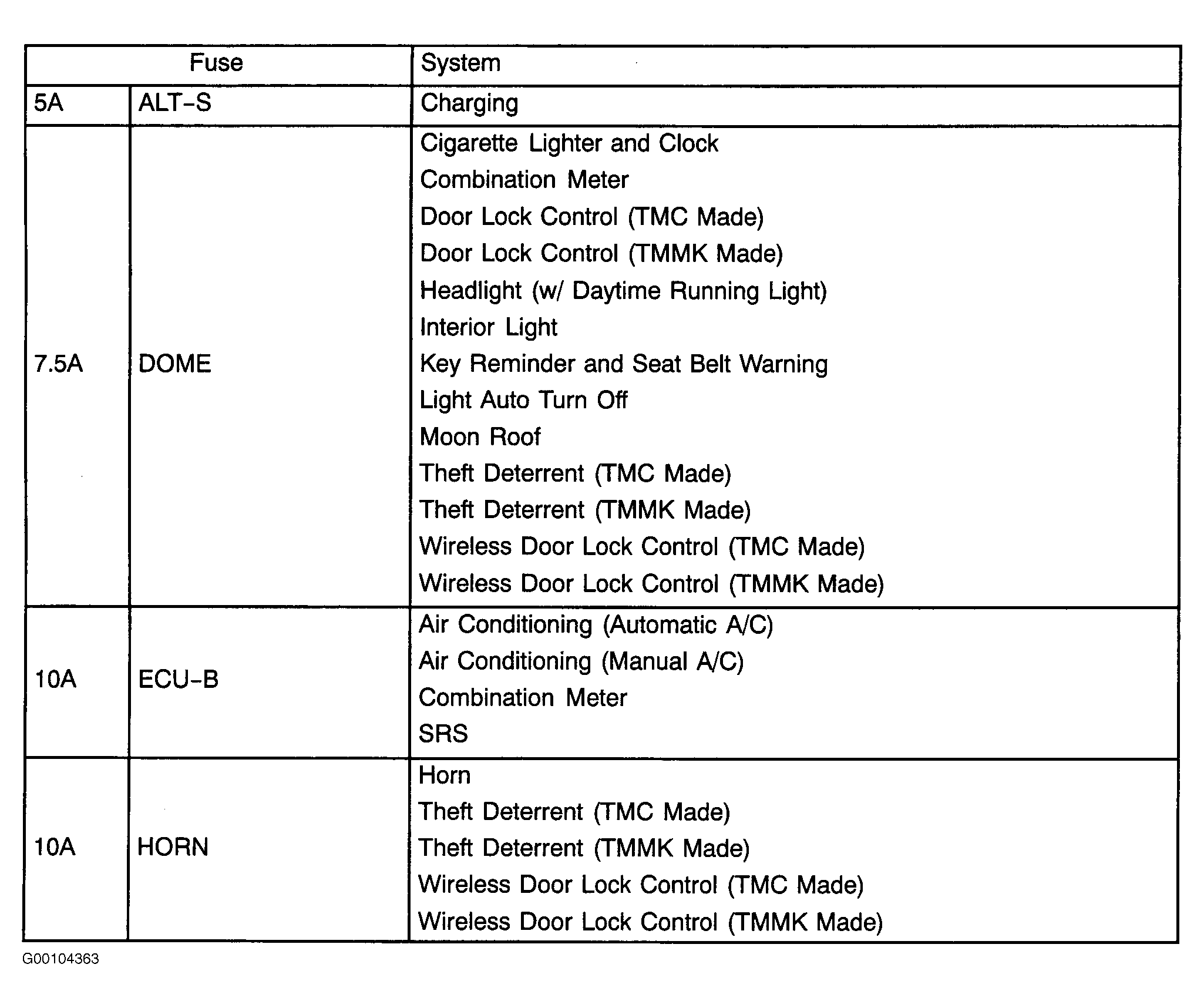

Fig 5: Engine Room J/B No. 2 Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room J/B No. 2 Legend (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Engine Room R/B No. 1 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Room R/B No. 1 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

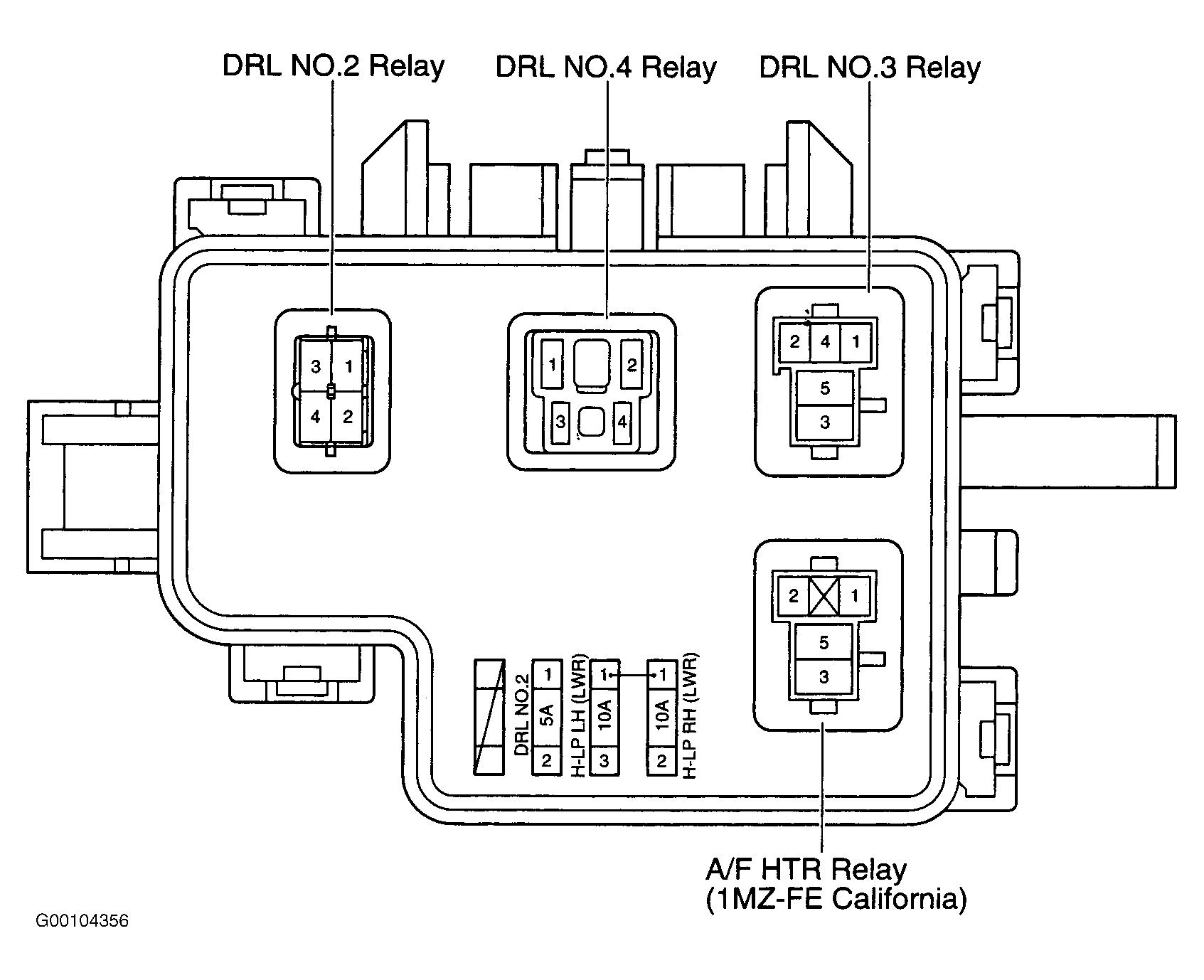

Fig 9: Identifying Engine Room R/B No. 2 Components (With Daytime Running Lights)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

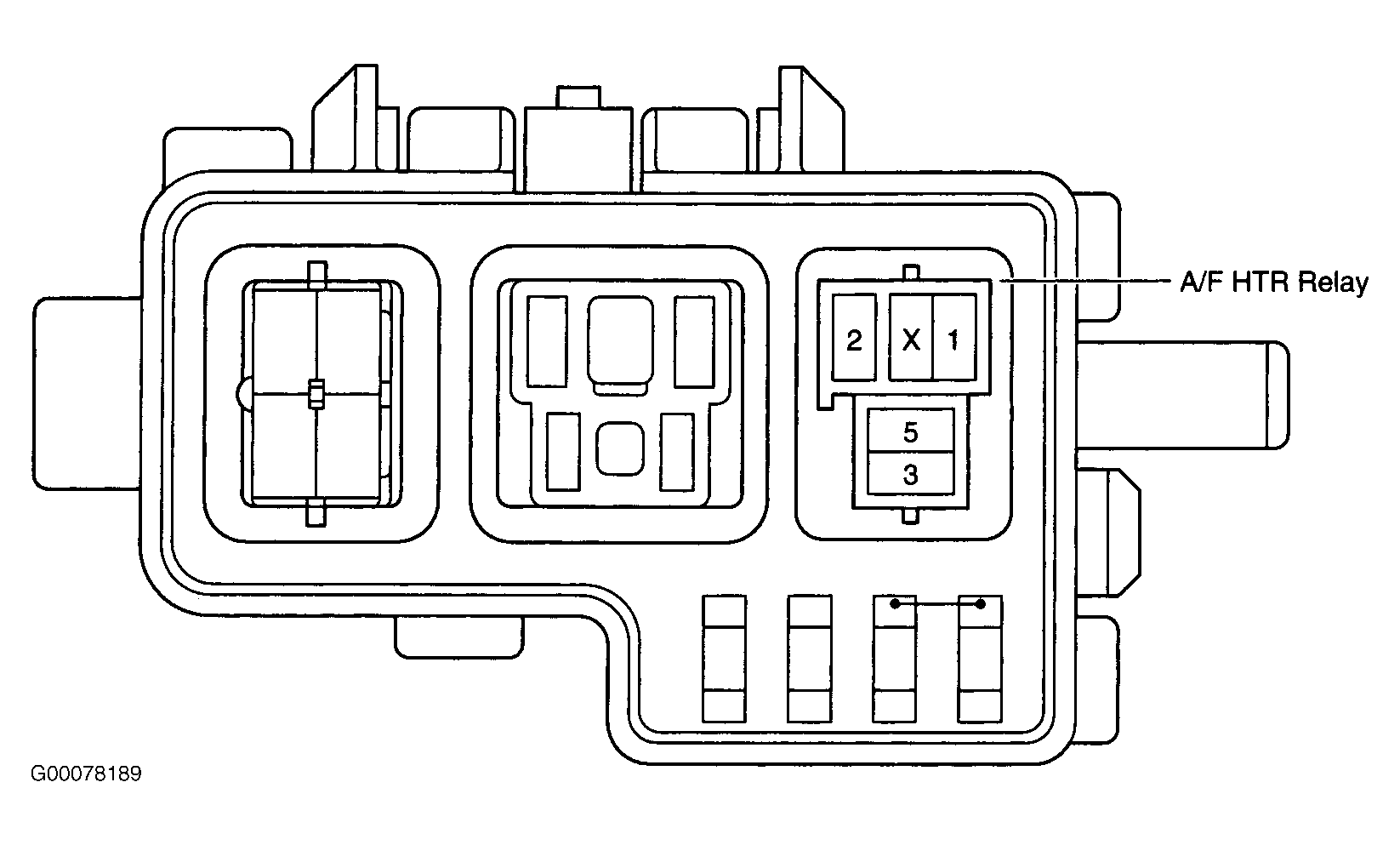

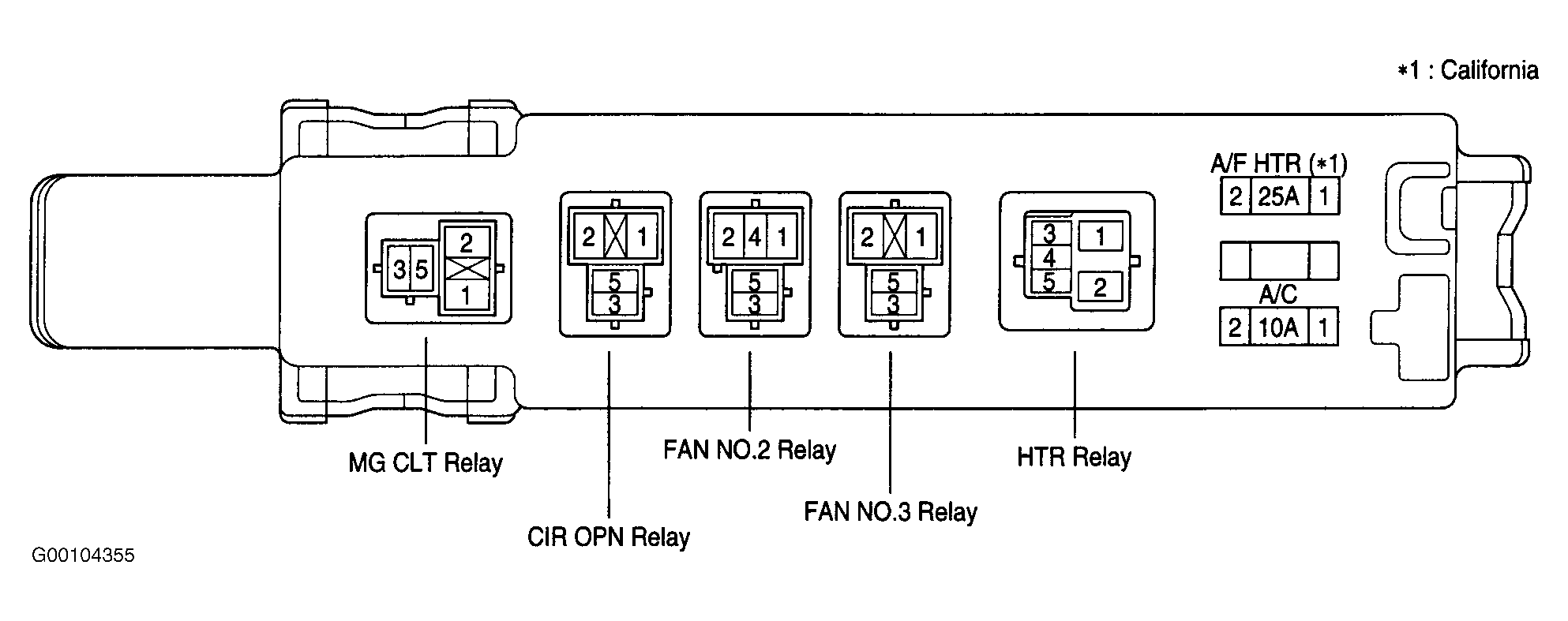

Fig 10: Identifying Engine Room R/B No. 2 Components (1MZ-FE California Without Daytime Running Lights)

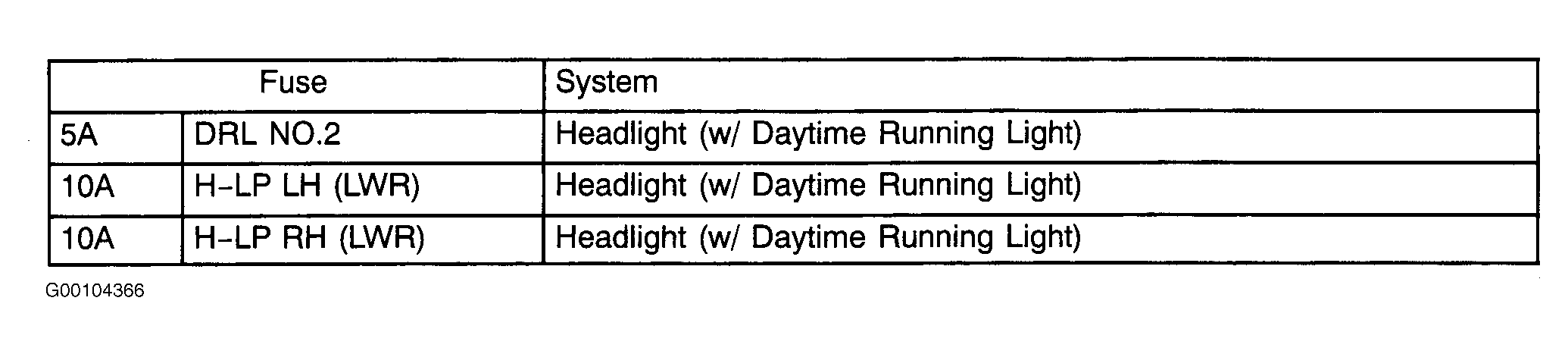

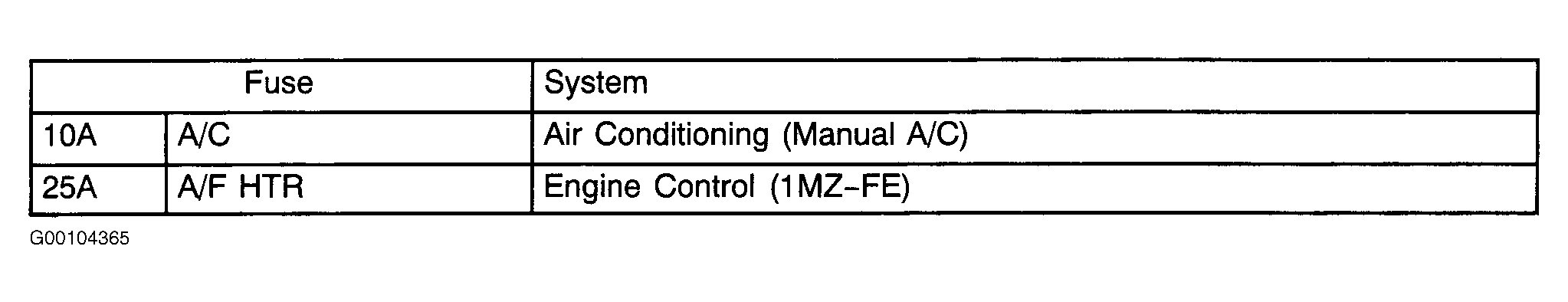

Fig 11: Engine Room R/B No. 2 Legend

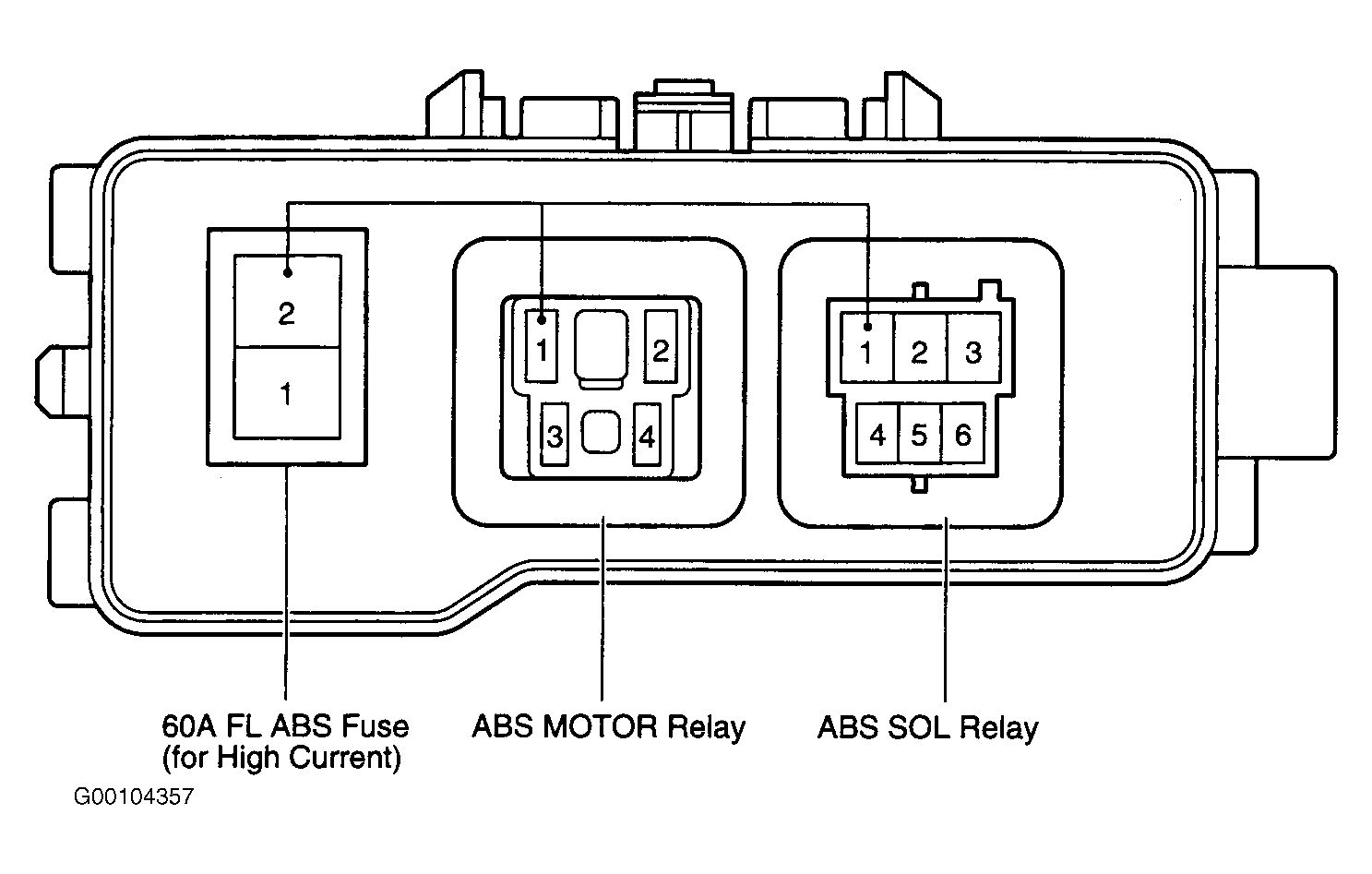

Fig 12: Identifying Engine Room R/B No. 3 (All Japan Production Vehicles & USA Production Vehicle With Traction Control)

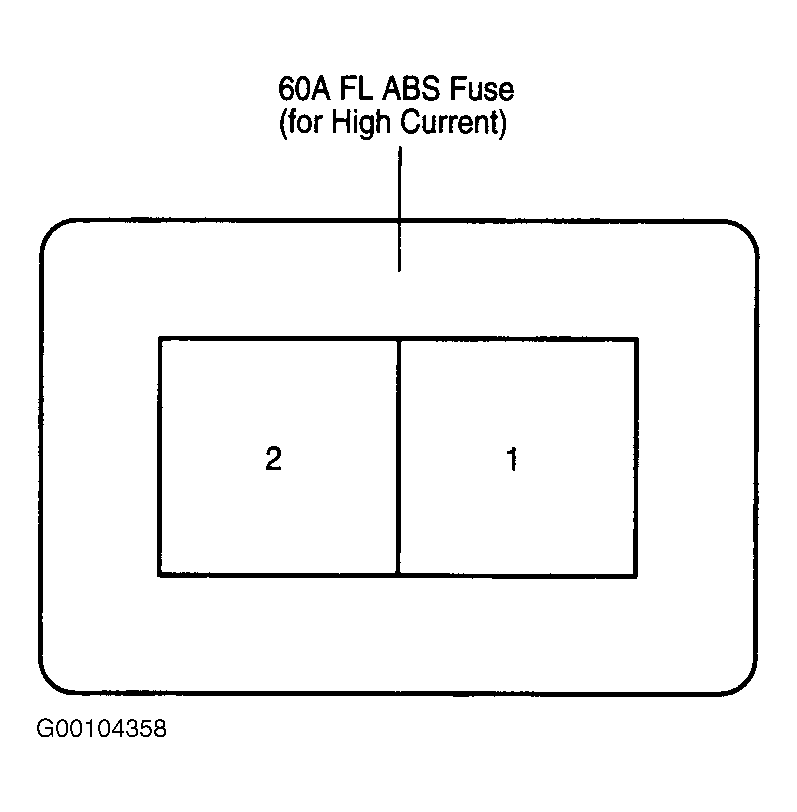

Fig 13: Identifying Fusible Link Block (USA Production Vehicles Without Traction Control)

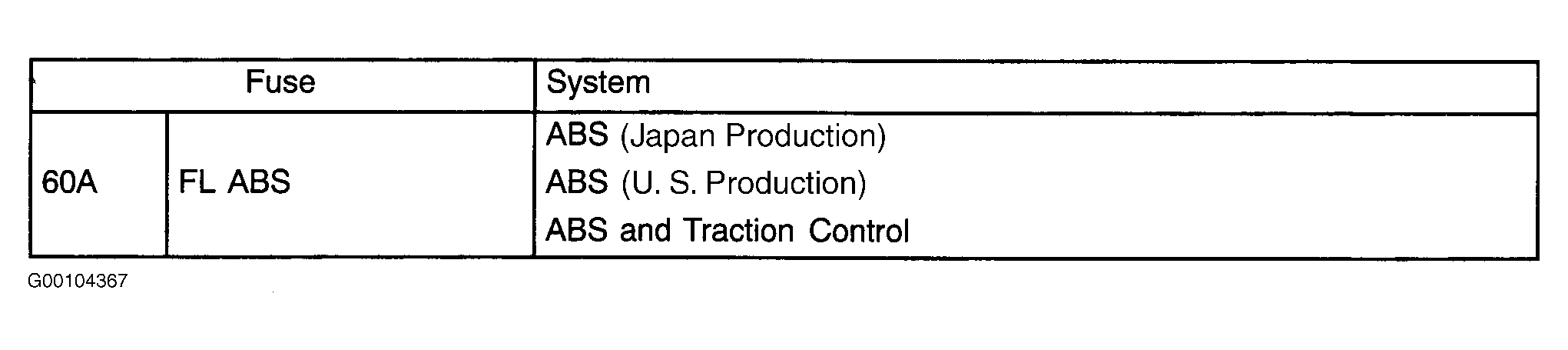

Fig 14: Engine Room R/B No. 3 Legend Or Fusible Link Block Legend
