Engine Room R/B

Engine Room/B is located in the engine compartment. See Fig 1.

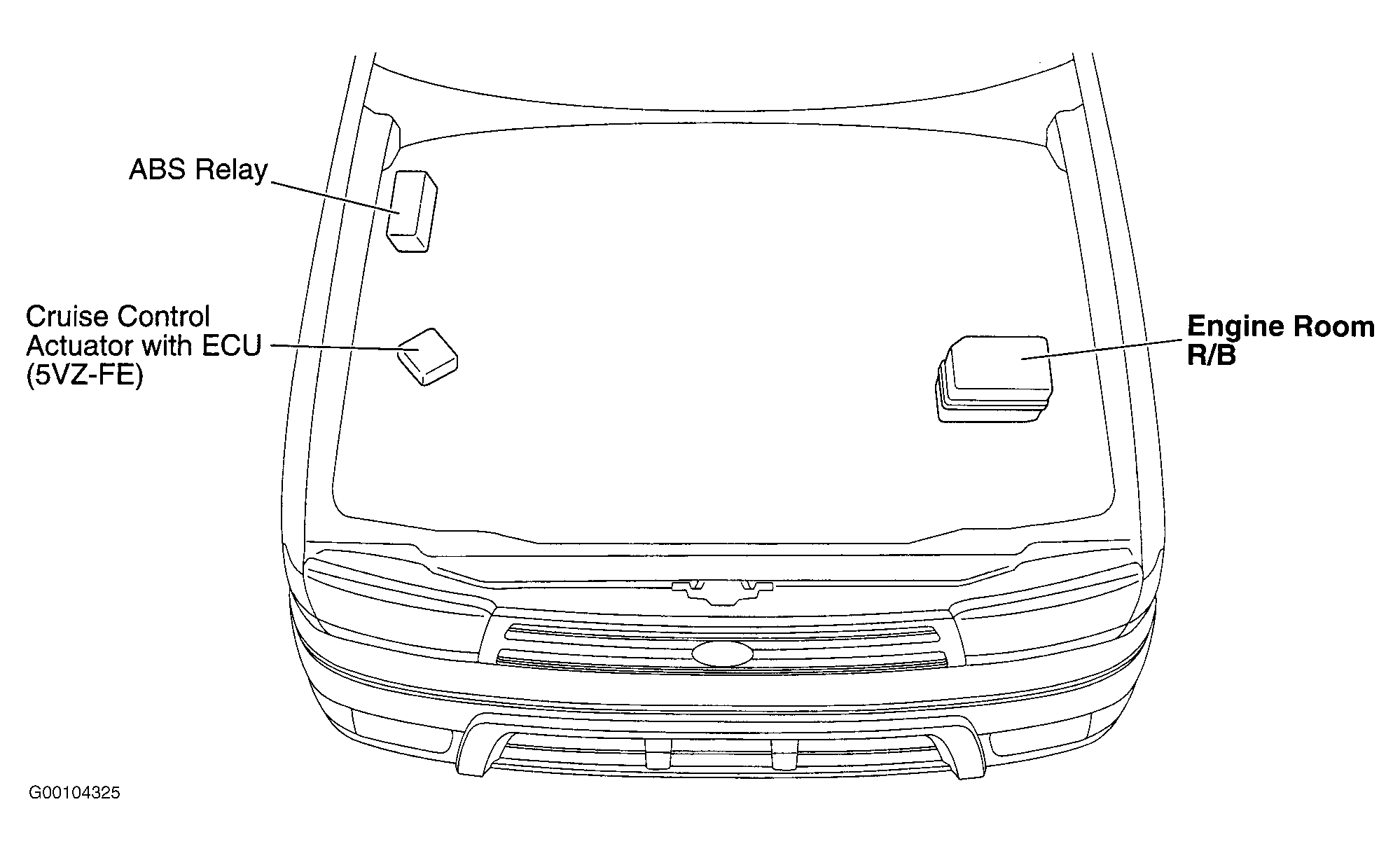

Fig 1: Locating Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

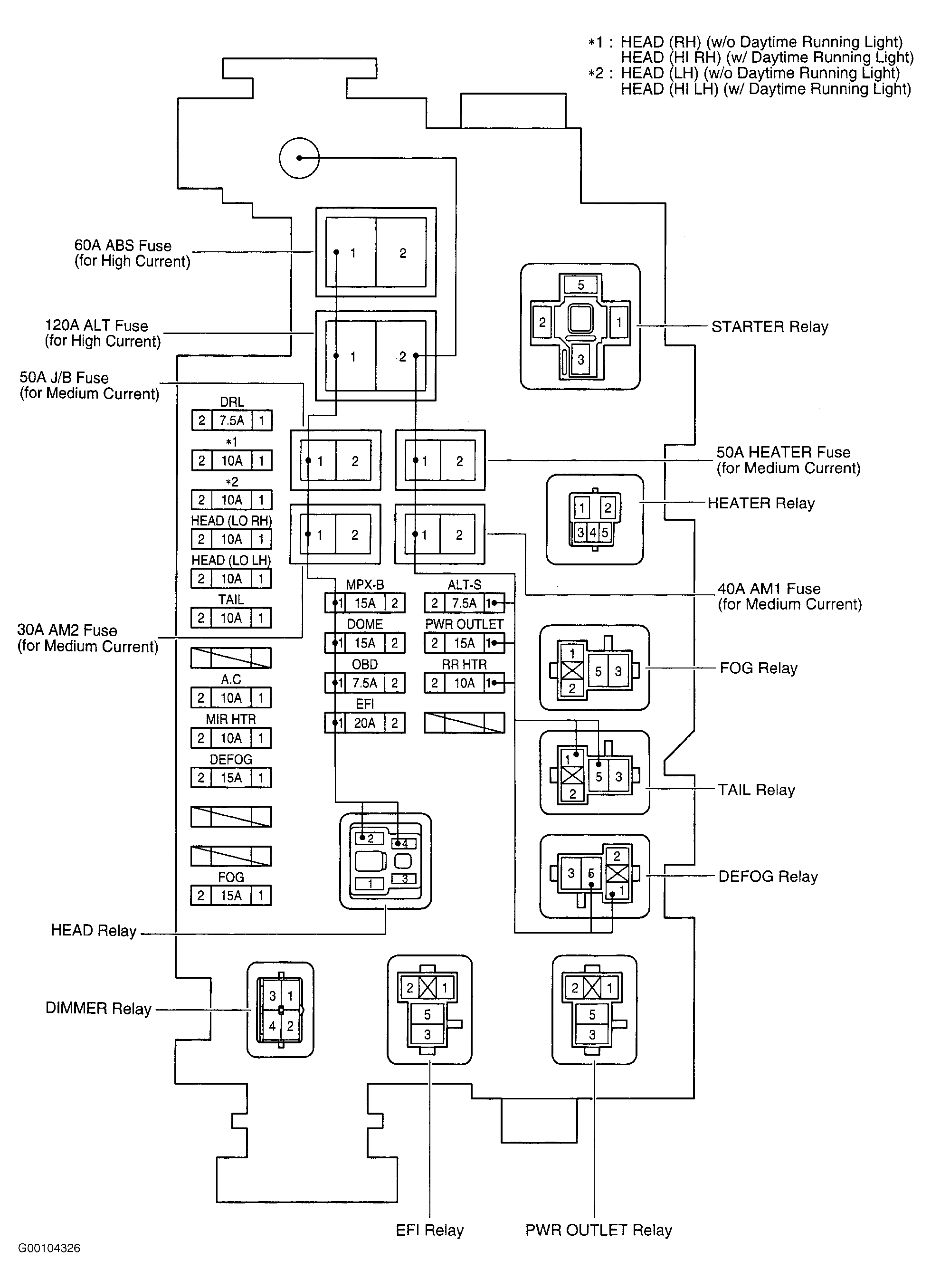

Fig 2: Identifying Engine Room R/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

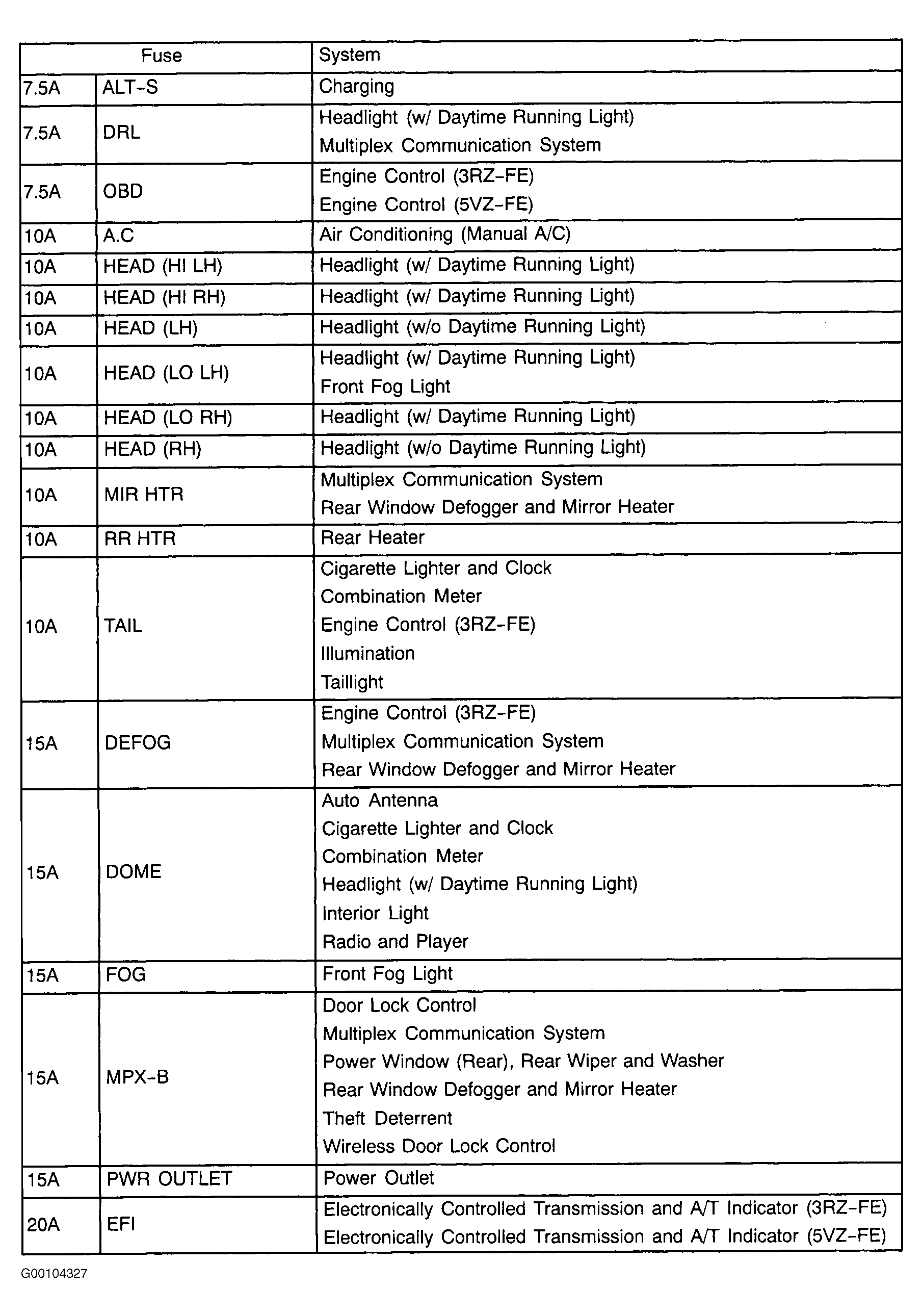

Fig 3: Engine Room R/B Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

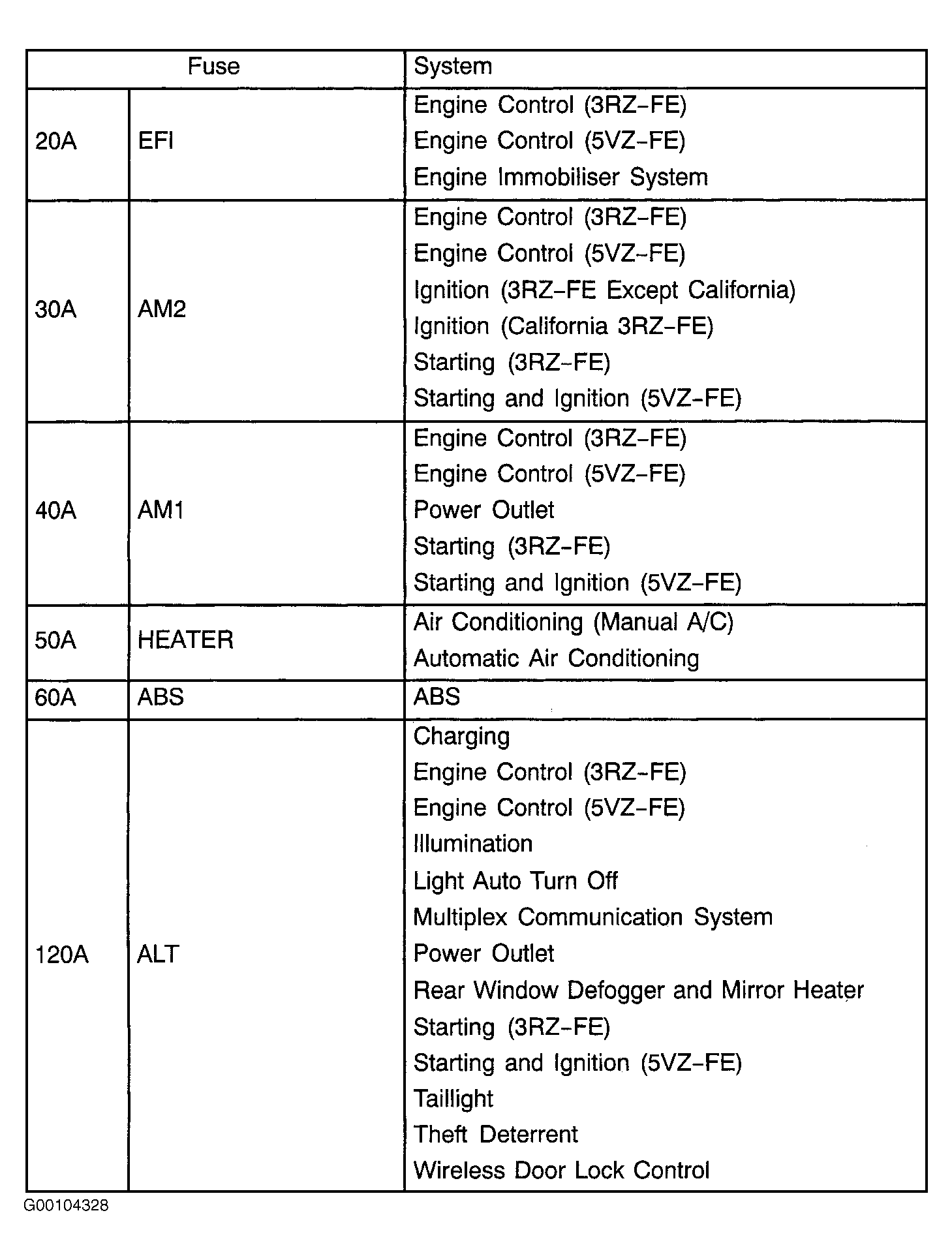

Fig 4: Engine Room R/B Legend (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
