Oil Pump: Inspection
WARNING: This page is about a different car, the 2000 Toyota Tundra, 2000 Toyota Land Cruiser, 2000 Lexus LX 470, 1999 Toyota Land Cruiser, and 1999 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect components for damage. Coat relief valve with engine oil and ensure relief valve slides freely in bore of oil pump body. Replace relief valve and/or oil pump body if relief valve fails to slide freely.

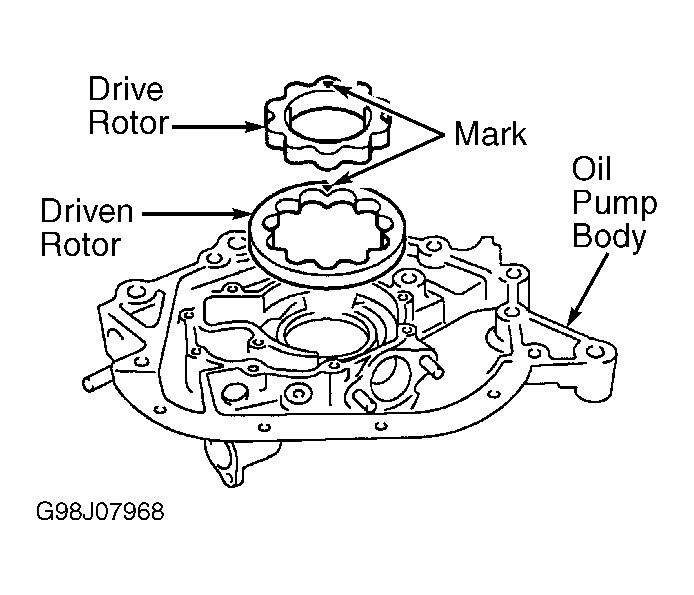

- Install drive and driven rotors in oil pump body with mark facing upward. See Fig 1.
- Using feeler gauge, measure driven rotor-to-oil pump body clearance. Replace rotor assembly or oil pump body if clearance exceeds specification. See OIL PUMP SPECIFICATIONS table.
- Using feeler gauge, measure rotor tip clearance between tip of drive rotor and tip of driven rotor. Tip of drive rotor is on outside of rotor, and tip of driven rotor is on inside of rotor. Replace rotor assembly if clearance exceeds specification. See OIL PUMP SPECIFICATIONS table.
- Place straightedge across oil pump body, above both rotors. Using feeler gauge, measure rotor side clearance between straightedge and surface of each rotor. Replace rotor assembly or oil pump body if rotor side clearance exceeds specification. See OIL PUMP SPECIFICATIONS table.
OIL PUMP SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Driven Rotor-To-Oil Pump Body Clearance | ||
| Standard | .0039-.0069 (.100-.175) | |
| Wear Limit | .0118 (.300) | |
| Rotor Side Clearance | ||
| Standard | .0012-.0035 (.030-.090) | |
| Wear Limit | .0059 (.150) | |
| Rotor Tip Clearance | ||
| Standard | .0043-.0094 (.110-.240) | |
| Wear Limit | .0138 (.350) | |
