Theft Deterrent Indicator Light

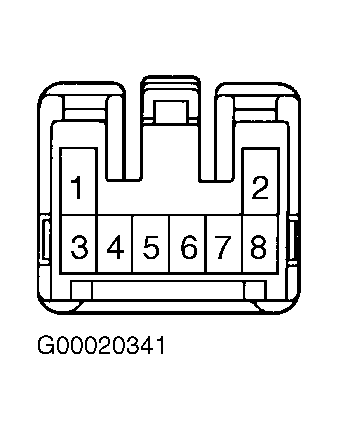

Disconnect theft deterrent light 7-pin connector. Connect positive battery voltage to connector terminal No. 3 (Blue wire) and negative battery voltage to connector terminal No. 6 (White/Black wire). If light comes on, light control rheostat is okay. If light does not come on, replace light control rheostat.
