Component Locations
NOTE:
For component locations, refer to illustrations. See Fig 1-Fig 4
.

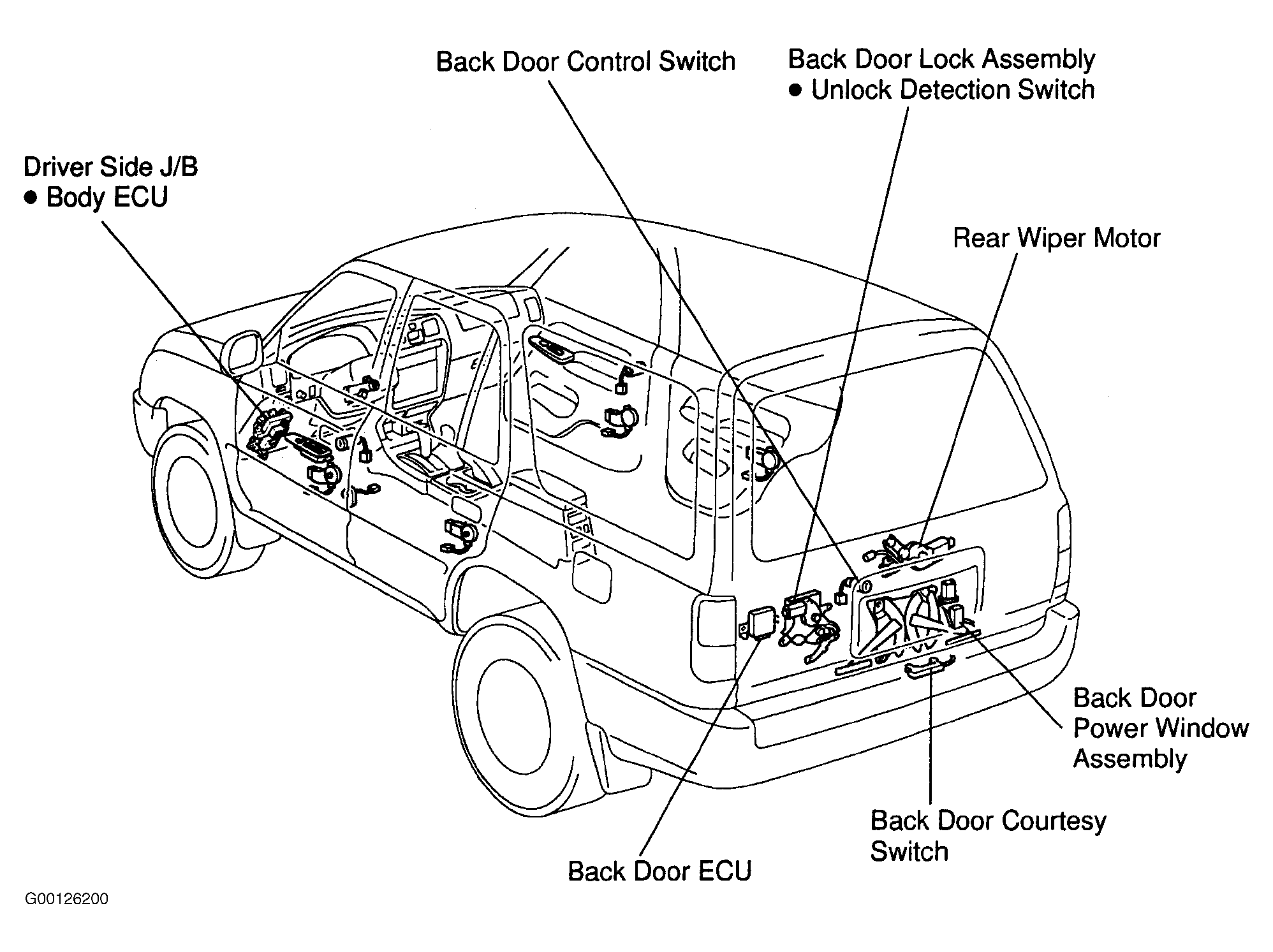

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

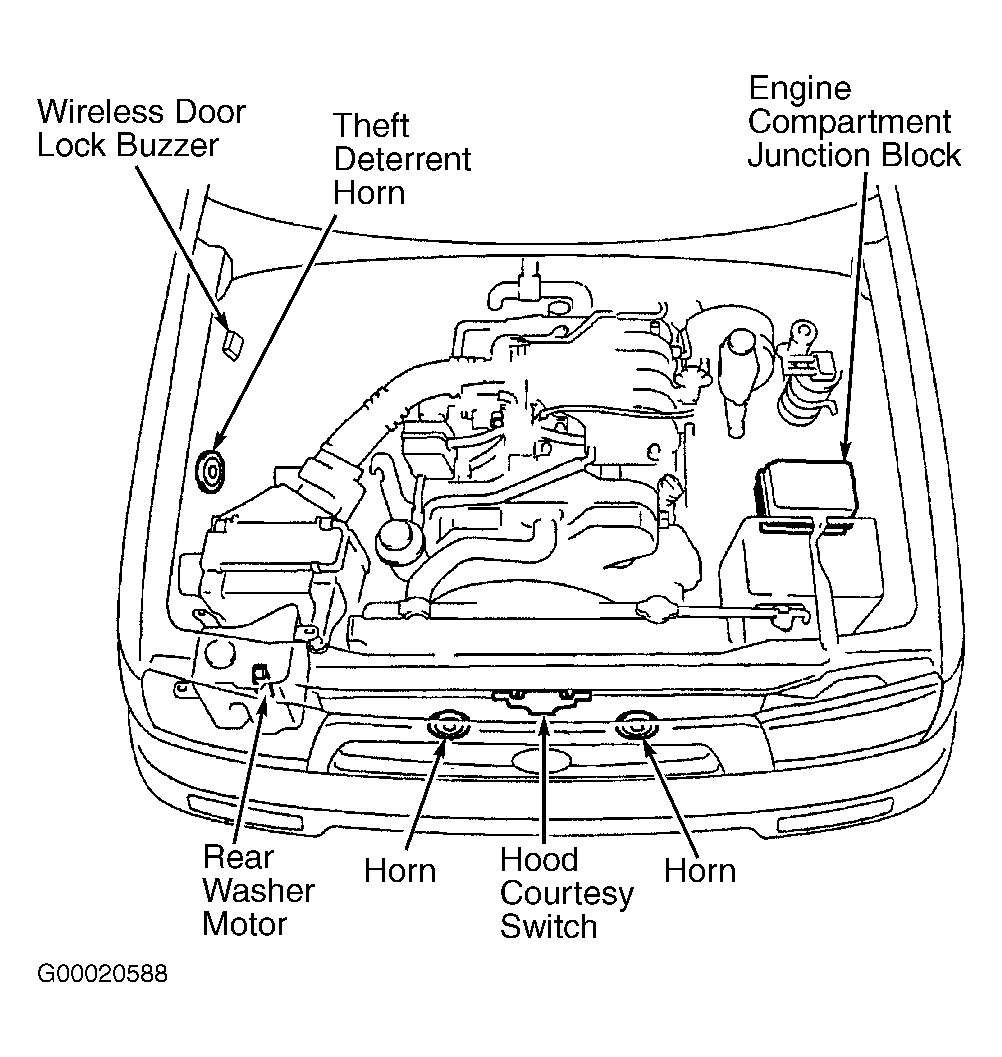

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

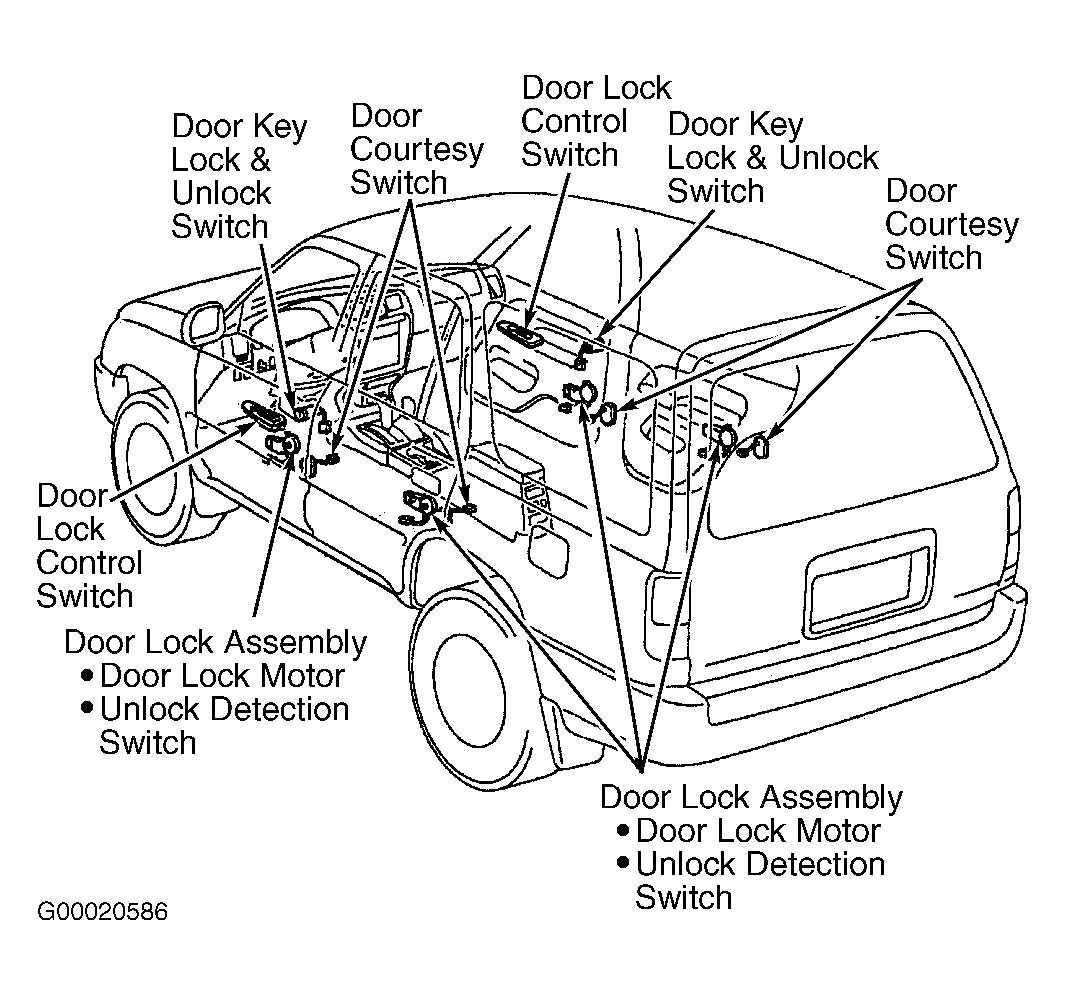

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

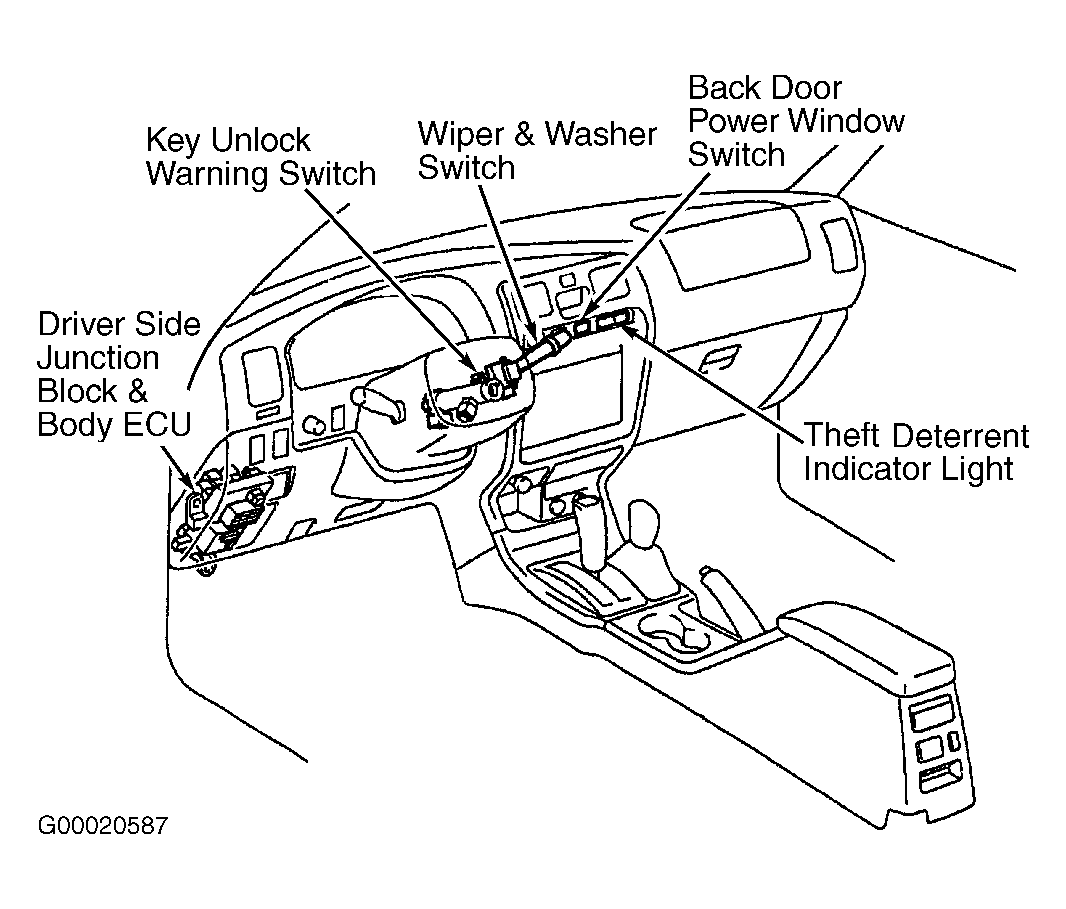

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
