Lateral Control Rod: Removal

  1. Support rear axle housing with jack.
  2. Remove the 2 bolt, nut, washer and lateral control rod. See Fig 1.

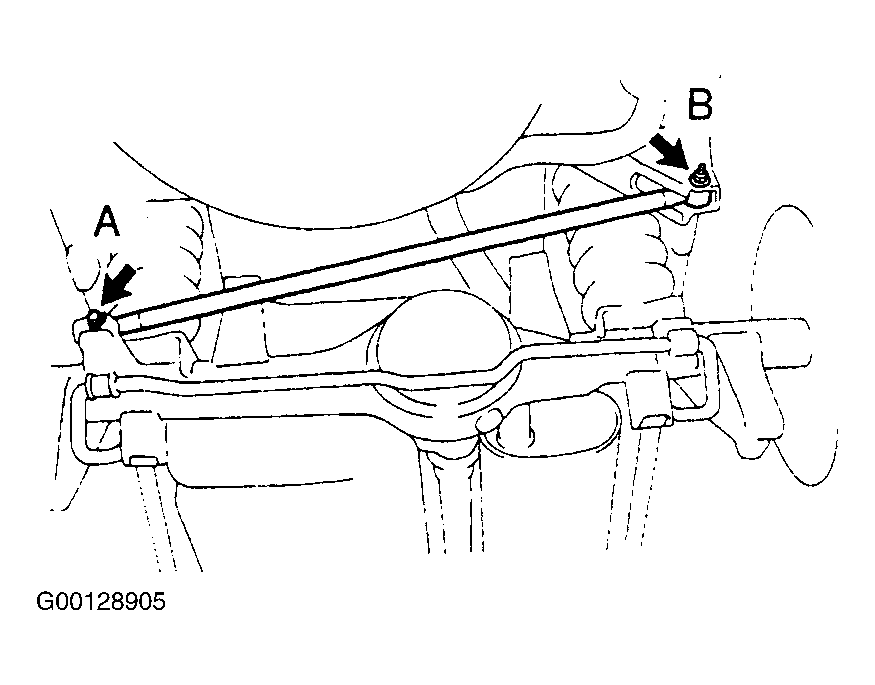

Fig 1: Removing Lateral Control Rod Nut, Bolt & Wash
G00128905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
