System Operation Check
WARNING: This page is about a different car, the 1997 Toyota Supra. However, it is still accessible from the selected car via links, so may be relevant.

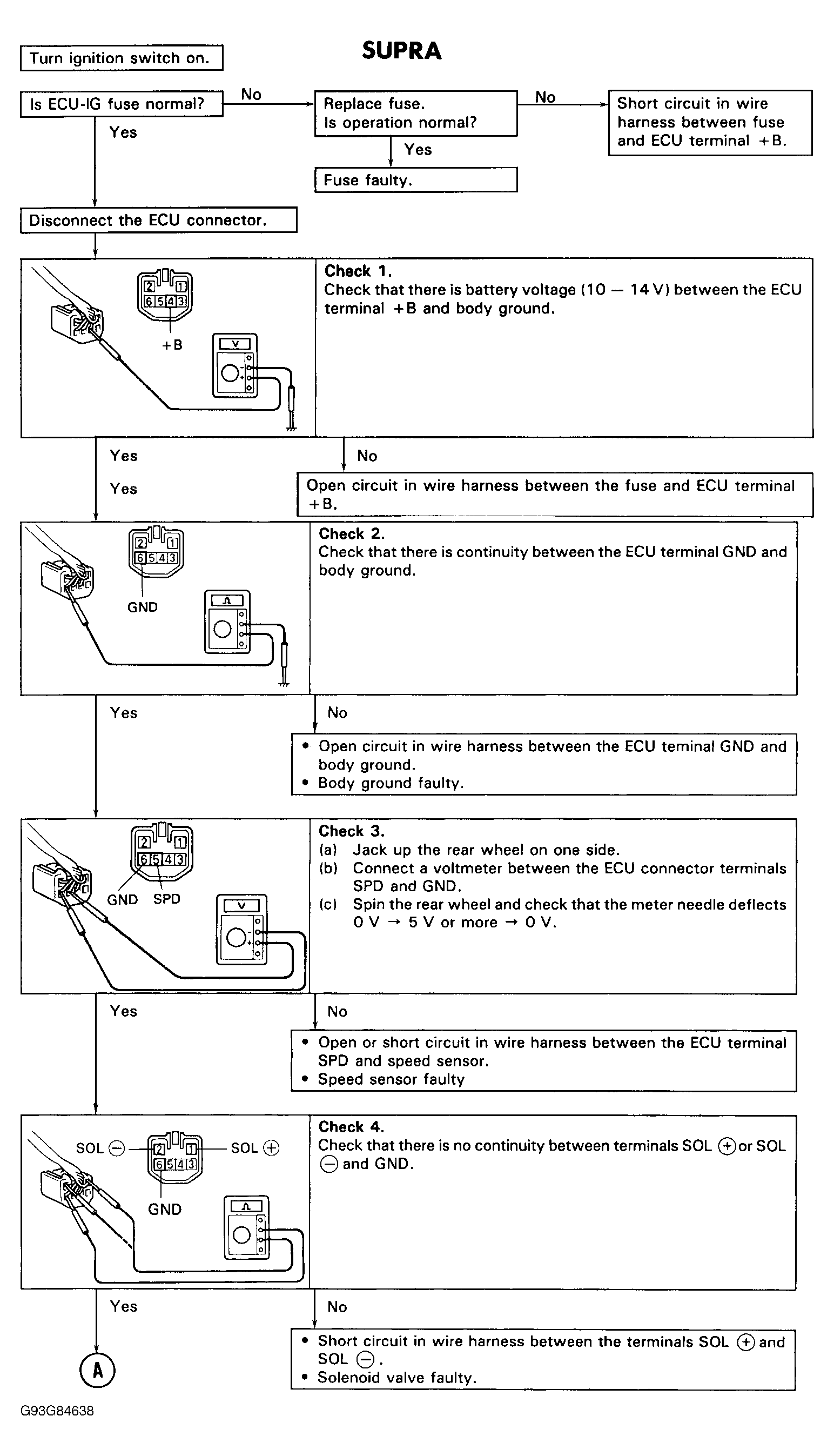

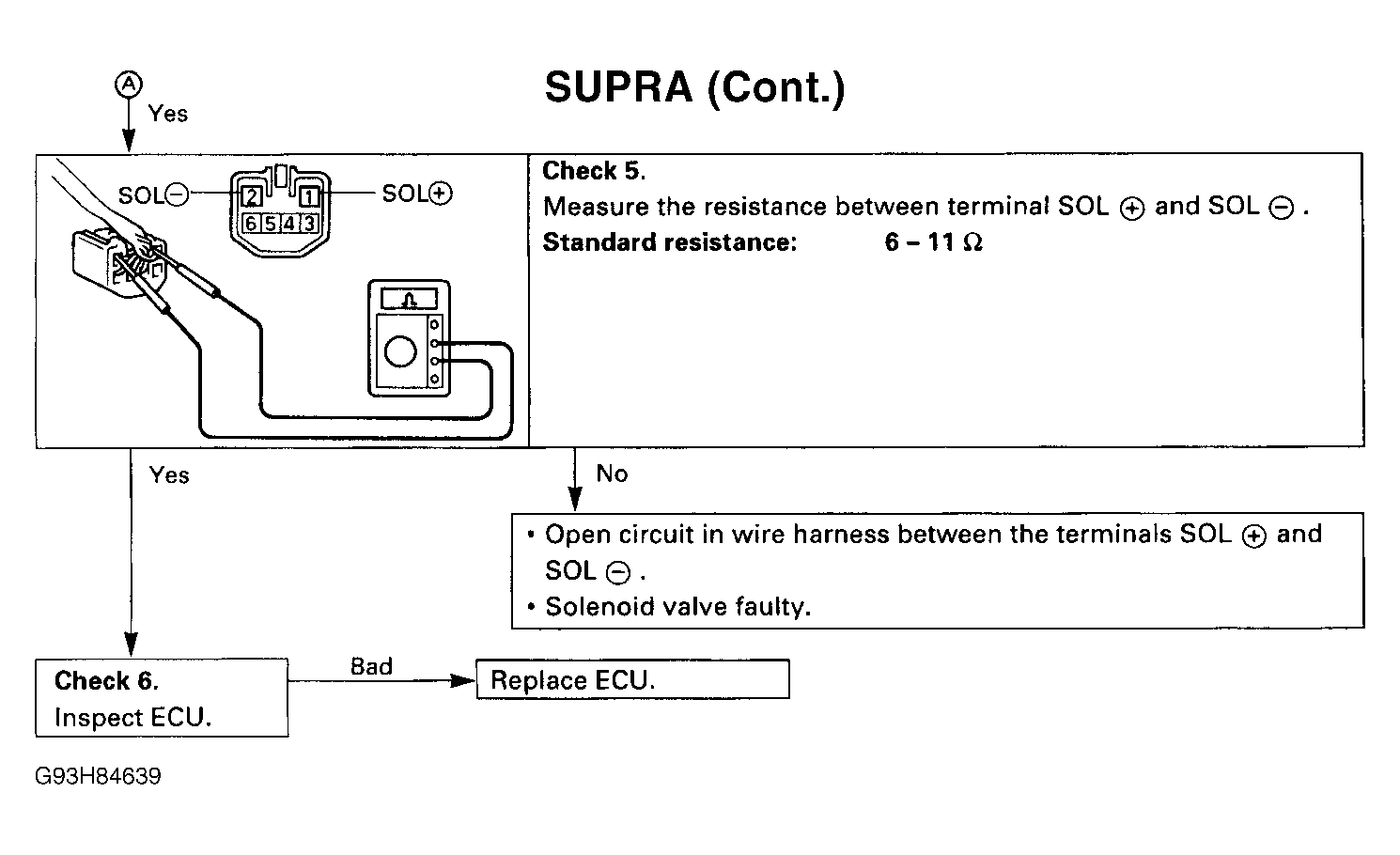

To troubleshoot the electronic control system, follow the flowchart. See Fig 1 and Fig 2
.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
