Door Unlock Detection Switch
- Remove door trim panel and service hole cover. Disconnect 5-pin electrical connector for front door unlock detection switch and 4-pin electrical connector for rear door unlock detection switch. See Figure.

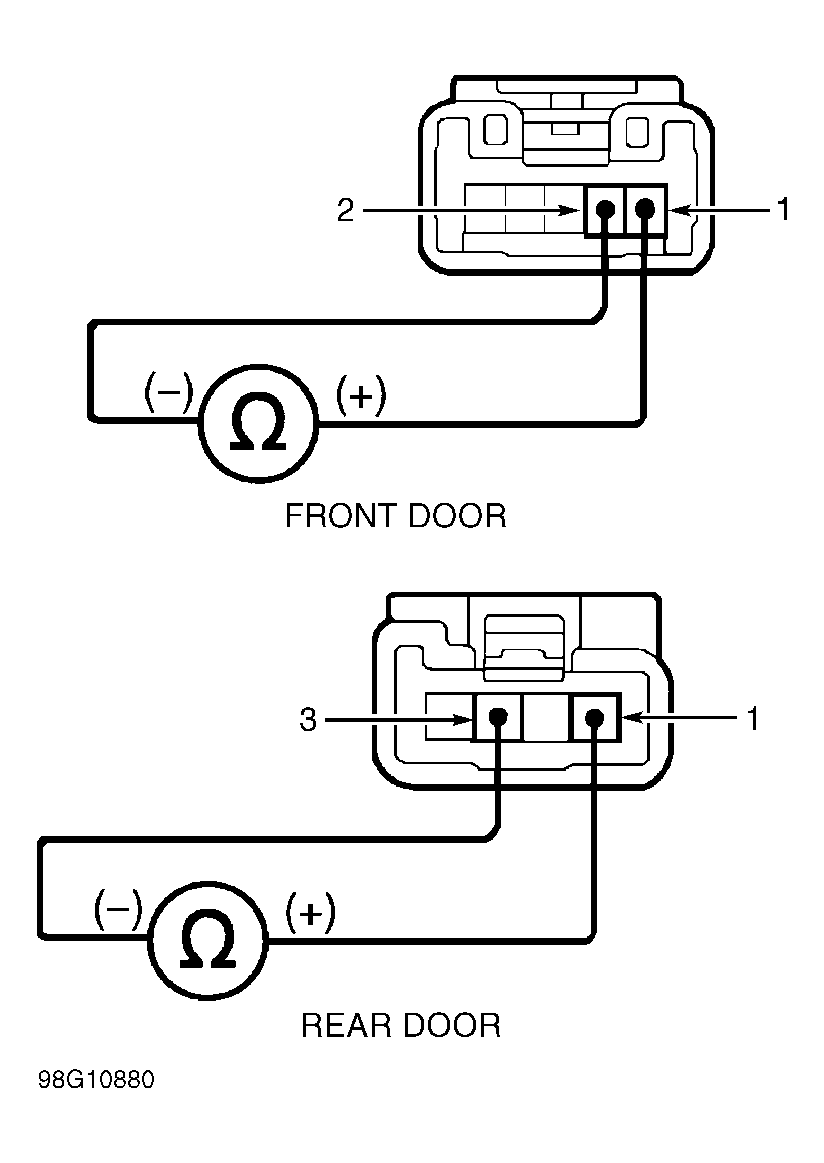

- Connect DVOM between electrical terminals No. 1 and 2 on electrical connector for front door unlock detection switch. Connect DVOM between electrical terminals No. 1 and 3 on electrical connector for rear door unlock detection switch. See Fig 1.
- Check that no continuity exists in LOCK position and continuity exists in UNLOCK position by using door lock knob on door. Replace door unlock detection switch if defective.
