Component Locations
Component Locations
For component locations, refer to illustration. See
Fig 1
.

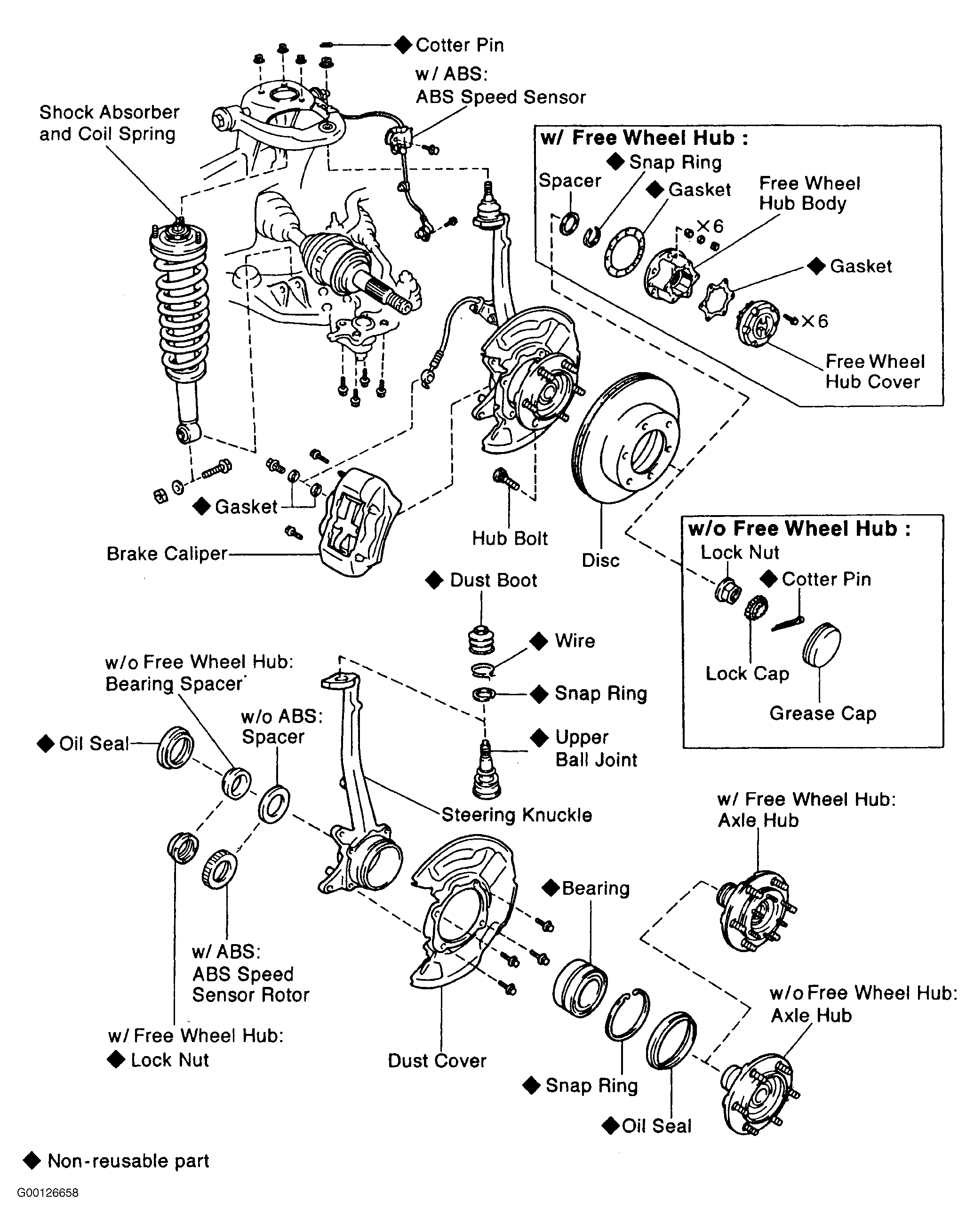

Fig 1: Exploded View Of Front Axle Hub Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
