Fuses & Circuit Breakers: Notes

Fuse box is located below instrument panel to left of steering column on all vehicles. An additional fuse and relay box located in the engine compartment.

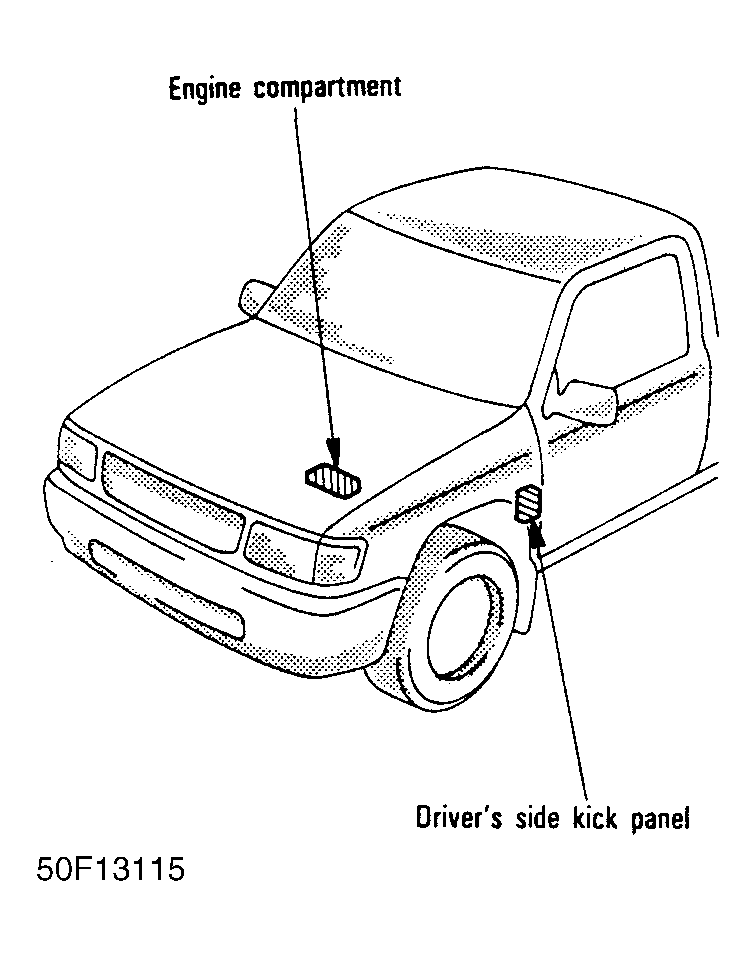

Fig 1: Fuse Block Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

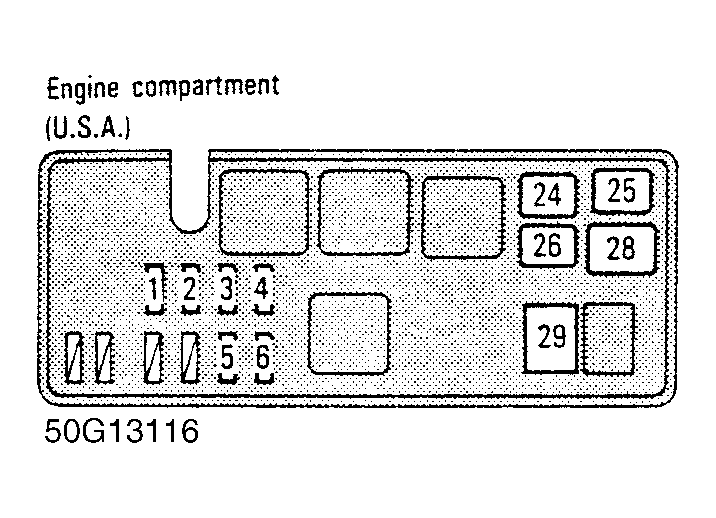

Fig 2: Engine Compartment Fuse Box Identification (USA)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

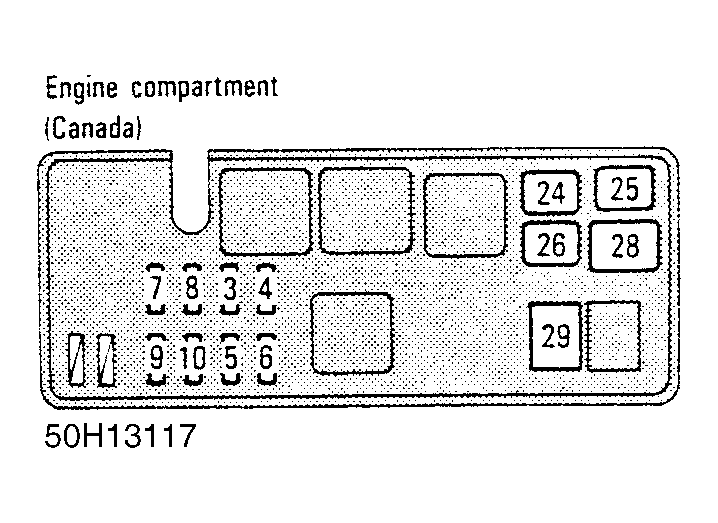

Fig 3: Engine Compartment Fuse Box Identification (Canada)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
