TP Sensor Resistance Specifications

TP SENSOR RESISTANCE SPECIFICATIONS (CAMRY & CELICA 2.2L) ⁽¹⁾

Throttle Position

Terminals Tested

Ohms

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

Fully Open

VC & E2

2500-5900

⁽¹⁾	Apply vacuum to throttle opener before checking TP sensor.

TP SENSOR RESISTANCE SPECIFICATIONS (COROLLA - 1.8L)

Throttle Position	Terminals Tested	Ohms
Fully Closed	VTA & E2	200-5700
Fully Open	VTA & E2	2000-10,200
Fully Open	VC & E2	2500-5900

TP SENSOR RESISTANCE SPECIFICATIONS (RAV4 - 2.0L)⁽¹⁾

Throttle Position

Terminals Tested

Ohms

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

Fully Open

VC & E2

2500-5900

⁽¹⁾	Apply vacuum to throttle opener before checking TP sensor.

TP SENSOR RESISTANCE SPECIFICATIONS (TACOMA - 2.4L & 2.7L) ⁽¹⁾

Throttle Position

Terminals Tested

Ohms

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

Fully Open

VC & E2

2500-5900

⁽¹⁾	Apply vacuum to throttle opener before checking TP sensor.

TP SENSOR RESISTANCE SPECIFICATIONS (T100 & 4RUNNER - 2.7L) ⁽¹⁾

Throttle Position

Terminals Tested

Ohms

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

Fully Open

VC & E2

2500-5900

⁽¹⁾	Apply vacuum to throttle opener before checking TP sensor.

TP SENSOR RESISTANCE SPECIFICATIONS (TERCEL - 1.5L) ⁽¹⁾

Throttle Position

Terminals Tested

Ohms

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

Fully Open

VC & E2

2500-5900

⁽¹⁾	On A/T models, disconnect throttle cable from linkage before checking TP sensor.

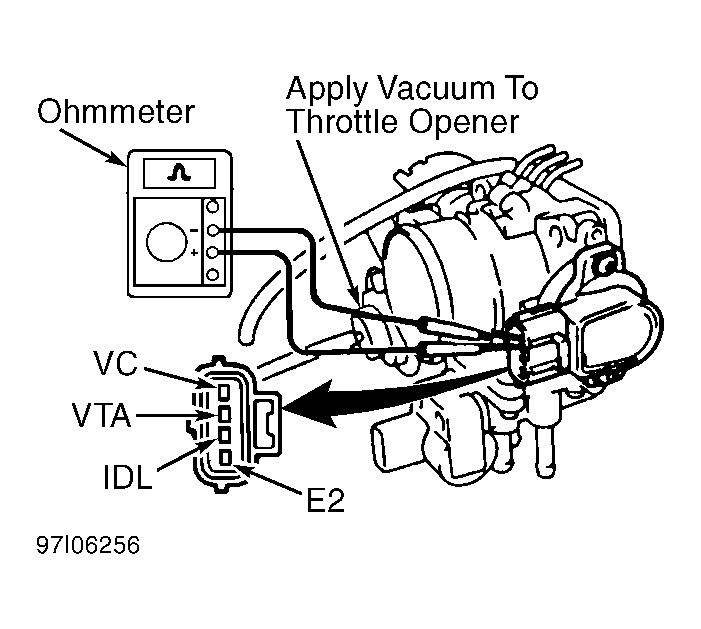

Fig 1: Throttle Position (TP) Sensor Terminals (Camry) ID

Fig 2: Throttle Position (TP) Sensor Terminals (Celica) ID

Fig 3: Throttle Position (TP) Sensor Terminals (Corolla) ID

Fig 4: Throttle Position (TP) Sensor Terminals (Tacoma, T100 & 4Runner) ID

Fig 5: Throttle Position (TP) Sensor Terminals (Tercel) ID
