Power Source Legend

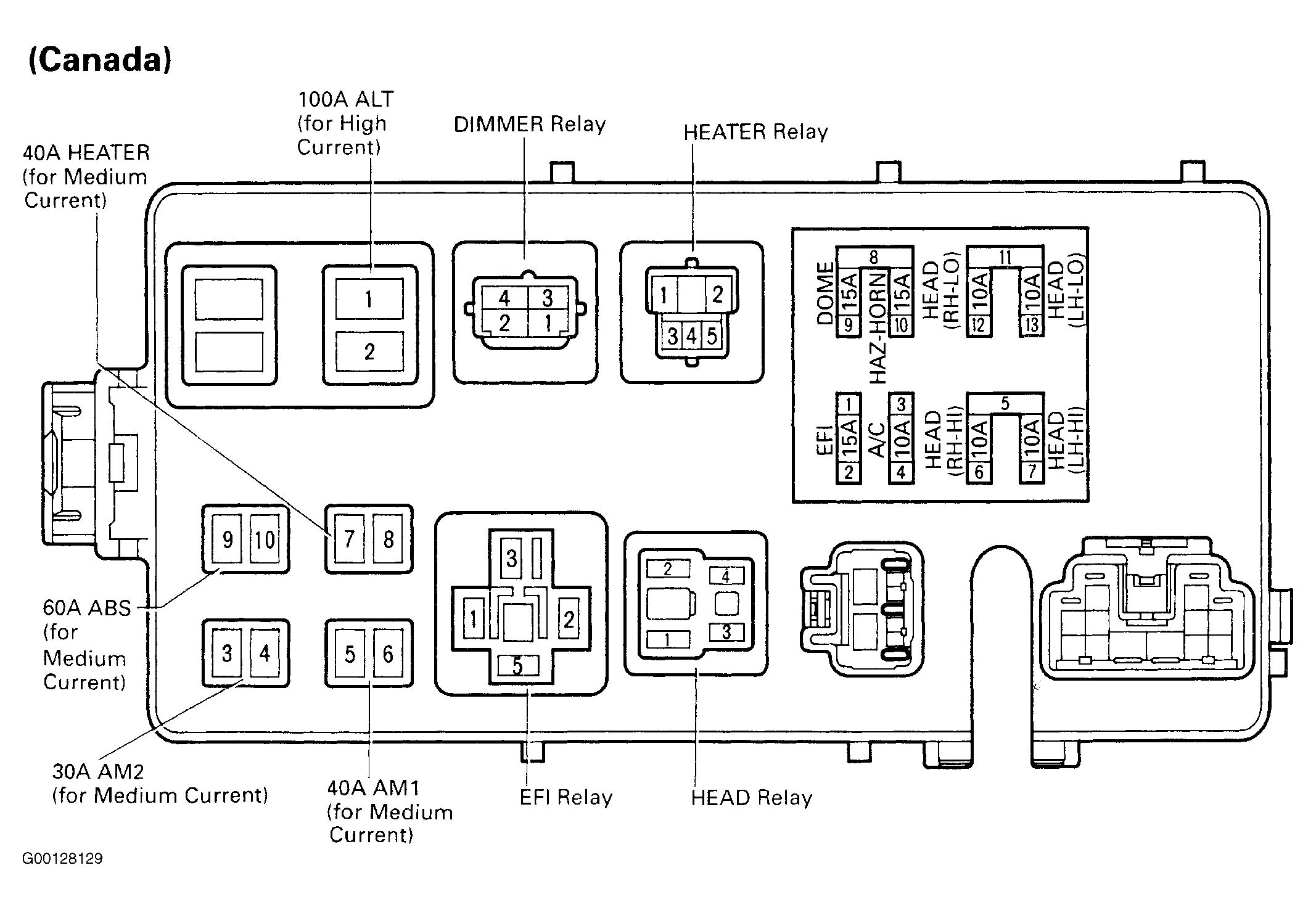

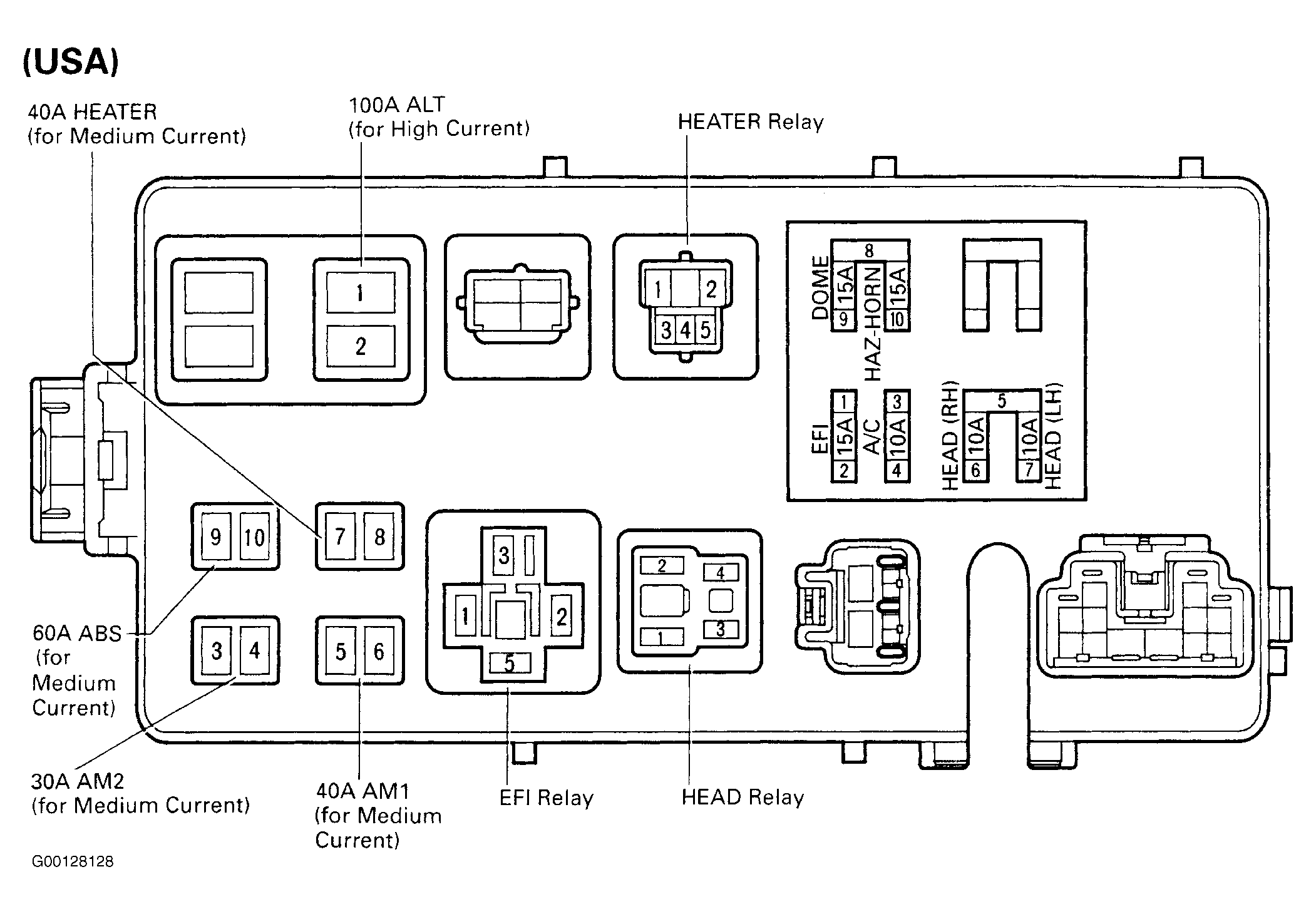

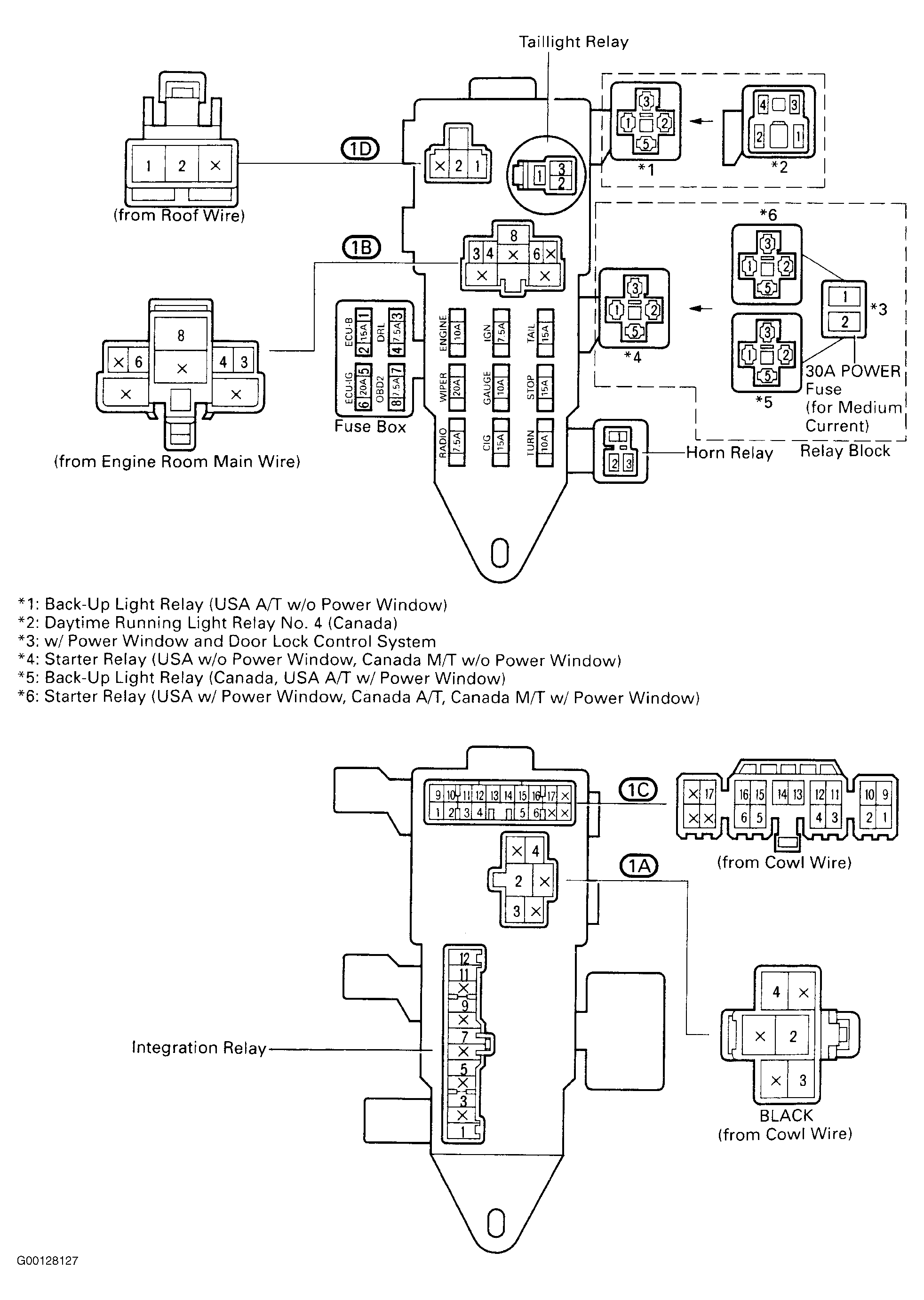

NOTE: To identify J/B No. 1 components, see Figure. To identify relay block components, see Figure. To identify R/B No. 2 components, see Figure or Figure .

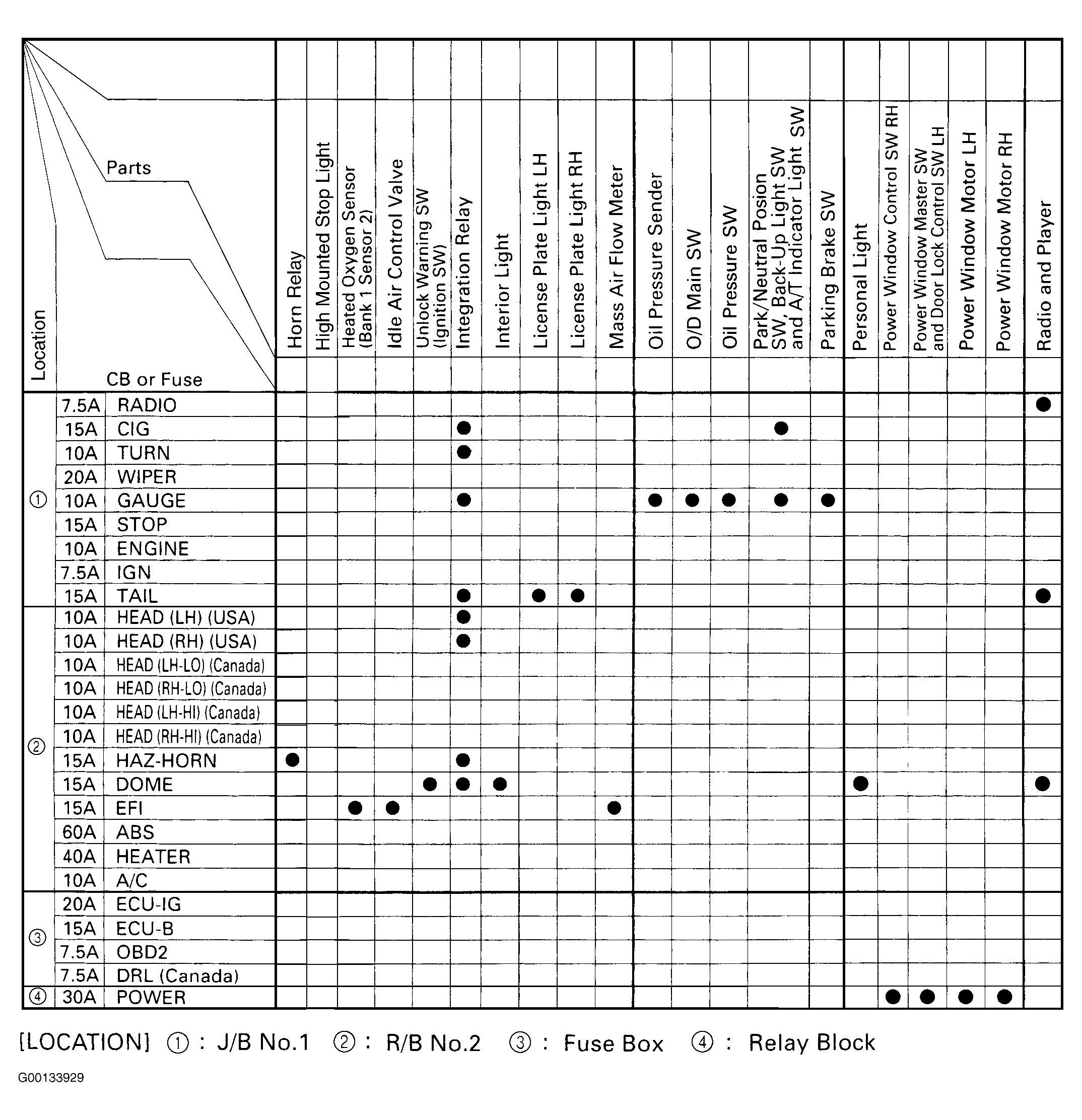

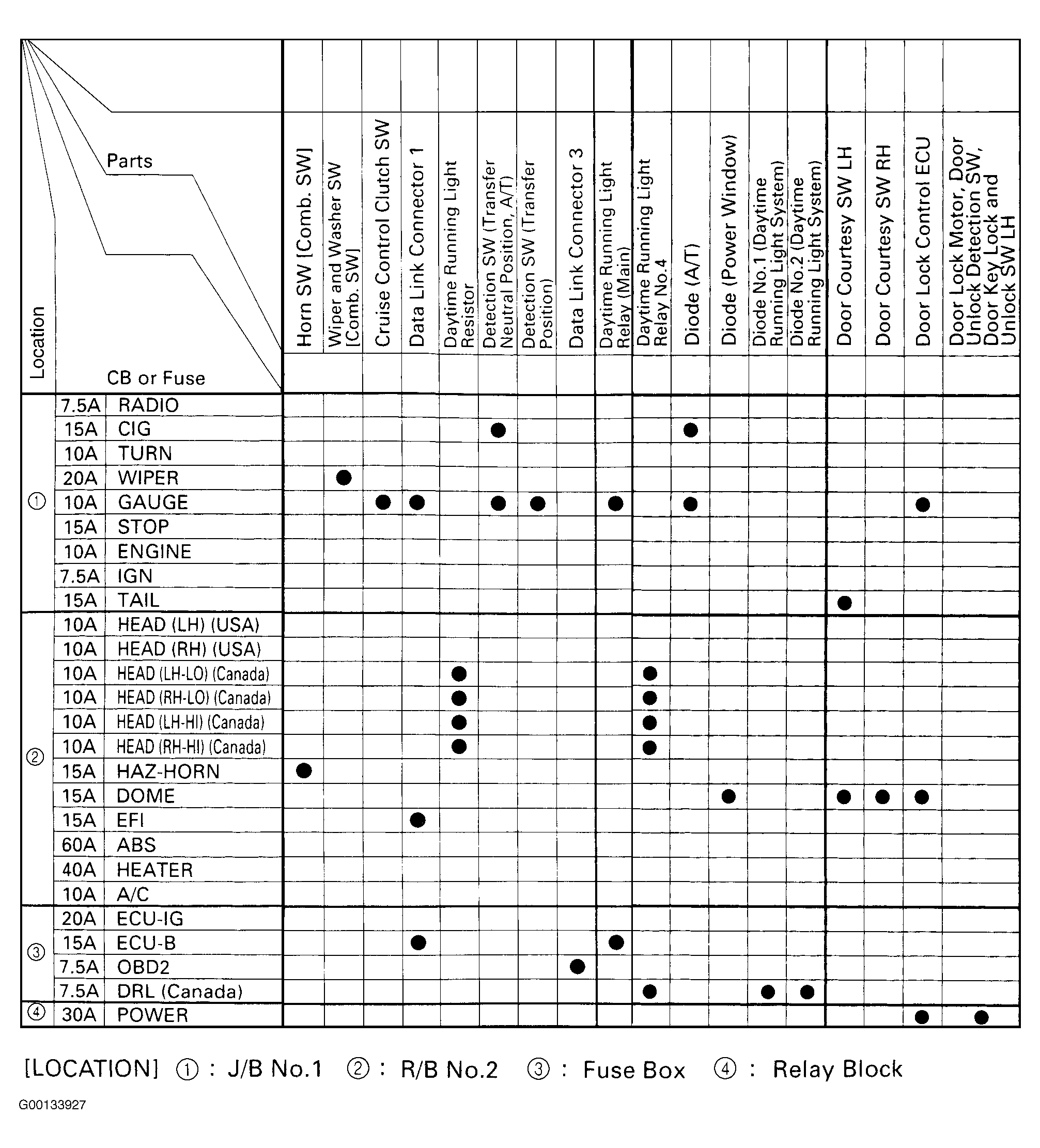

Fig 1: Power Source Legend (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

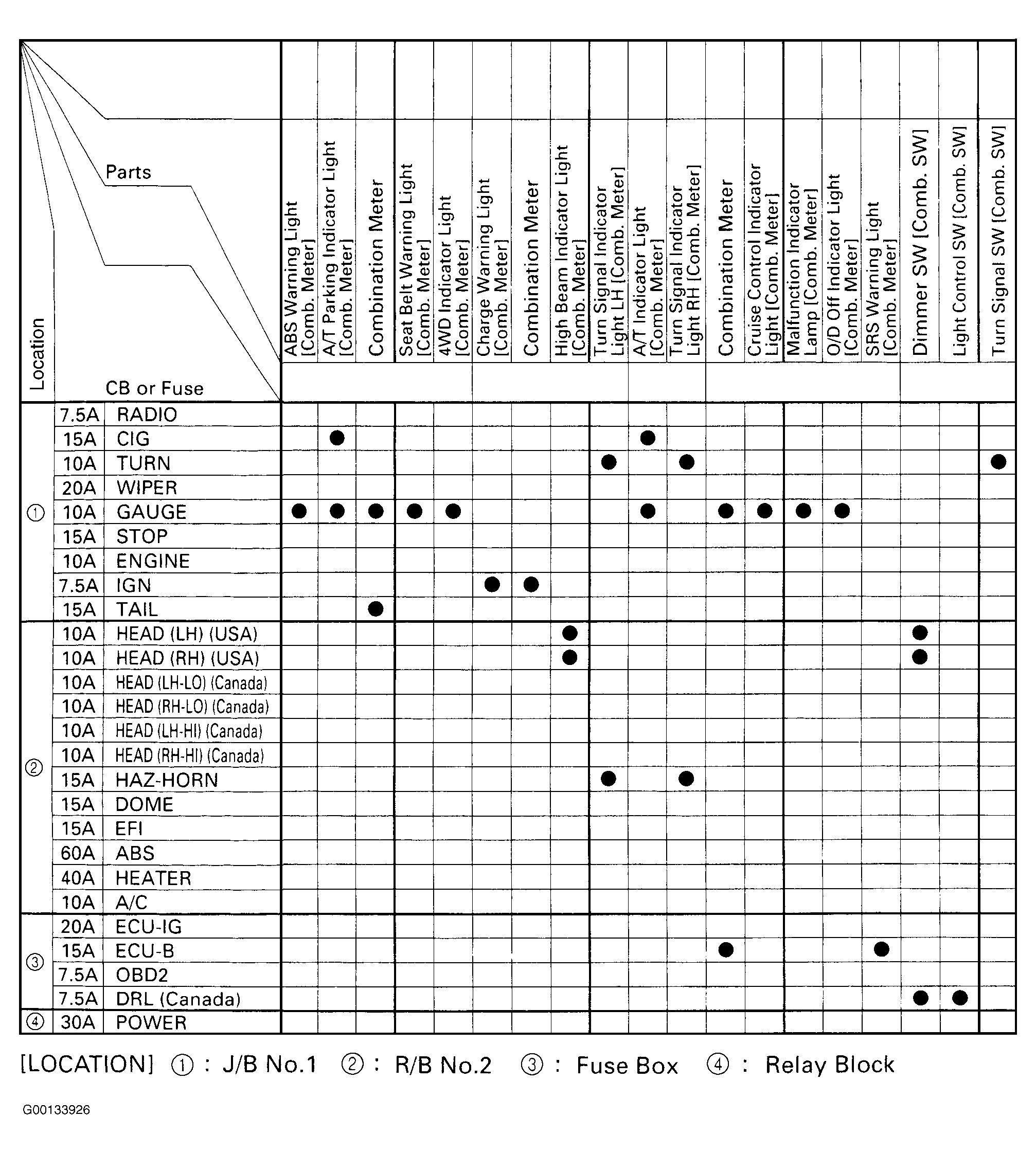

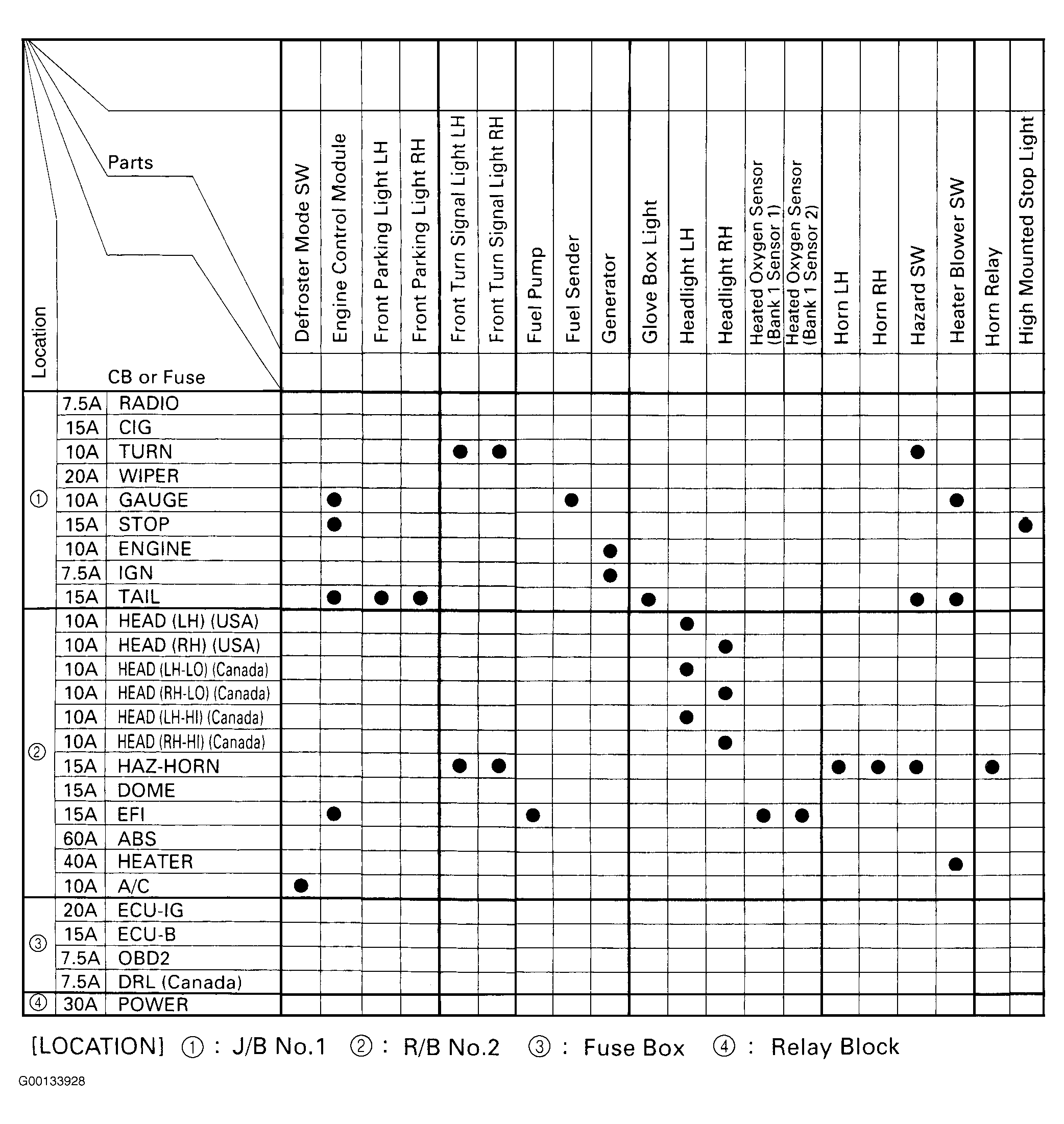

Fig 2: Power Source Legend (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

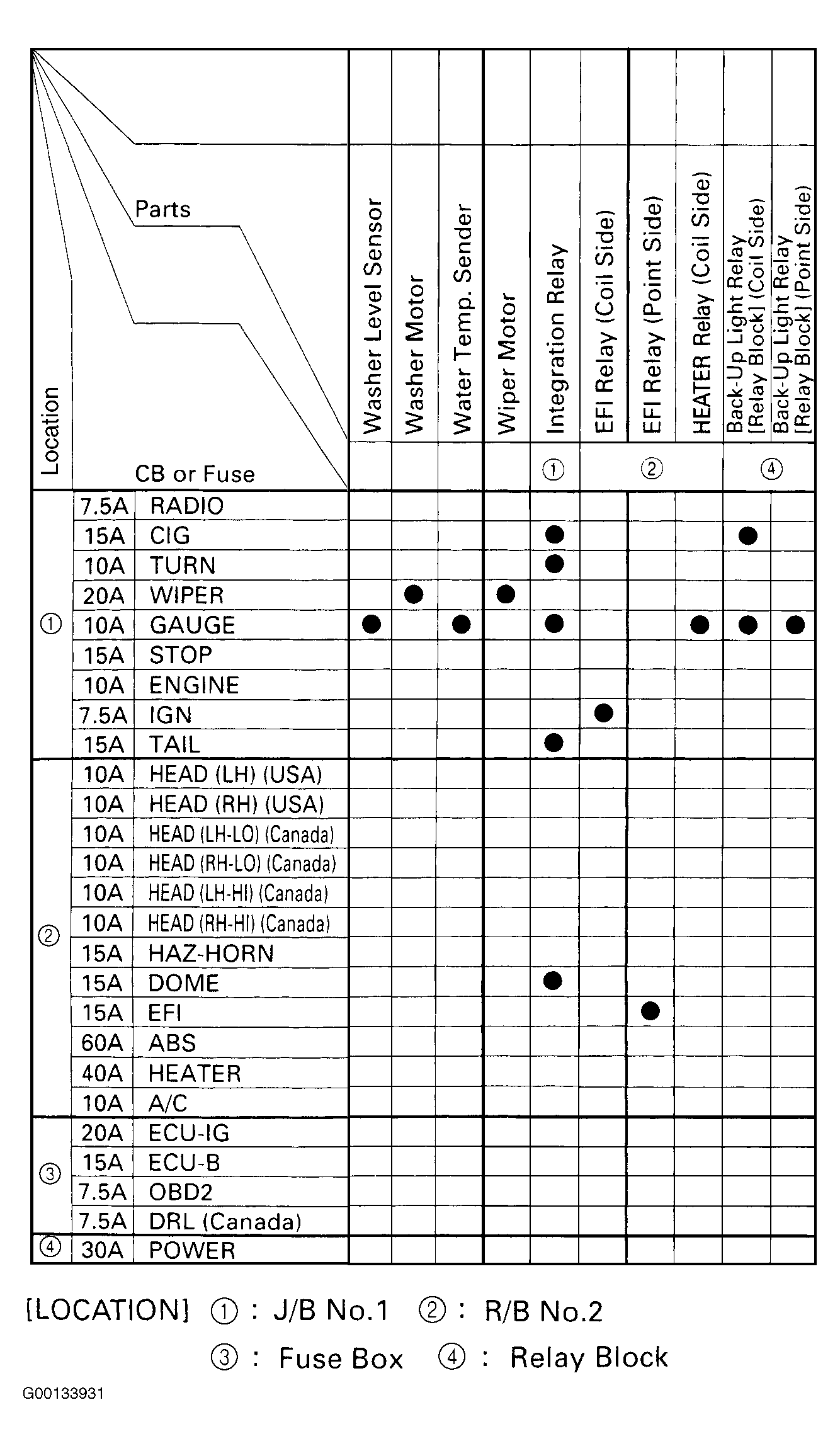

Fig 3: Power Source Legend (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

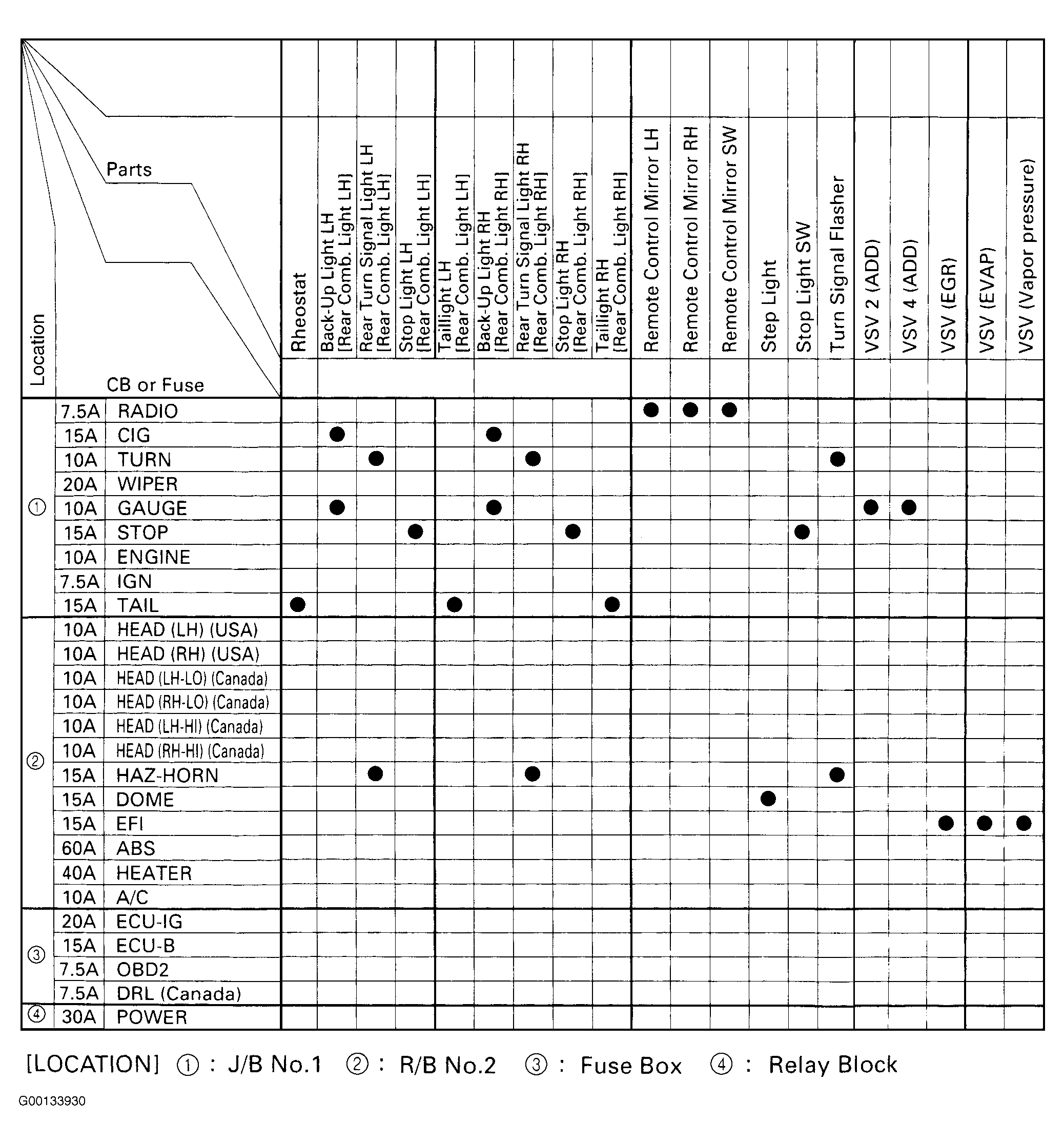

Fig 4: Power Source Legend (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

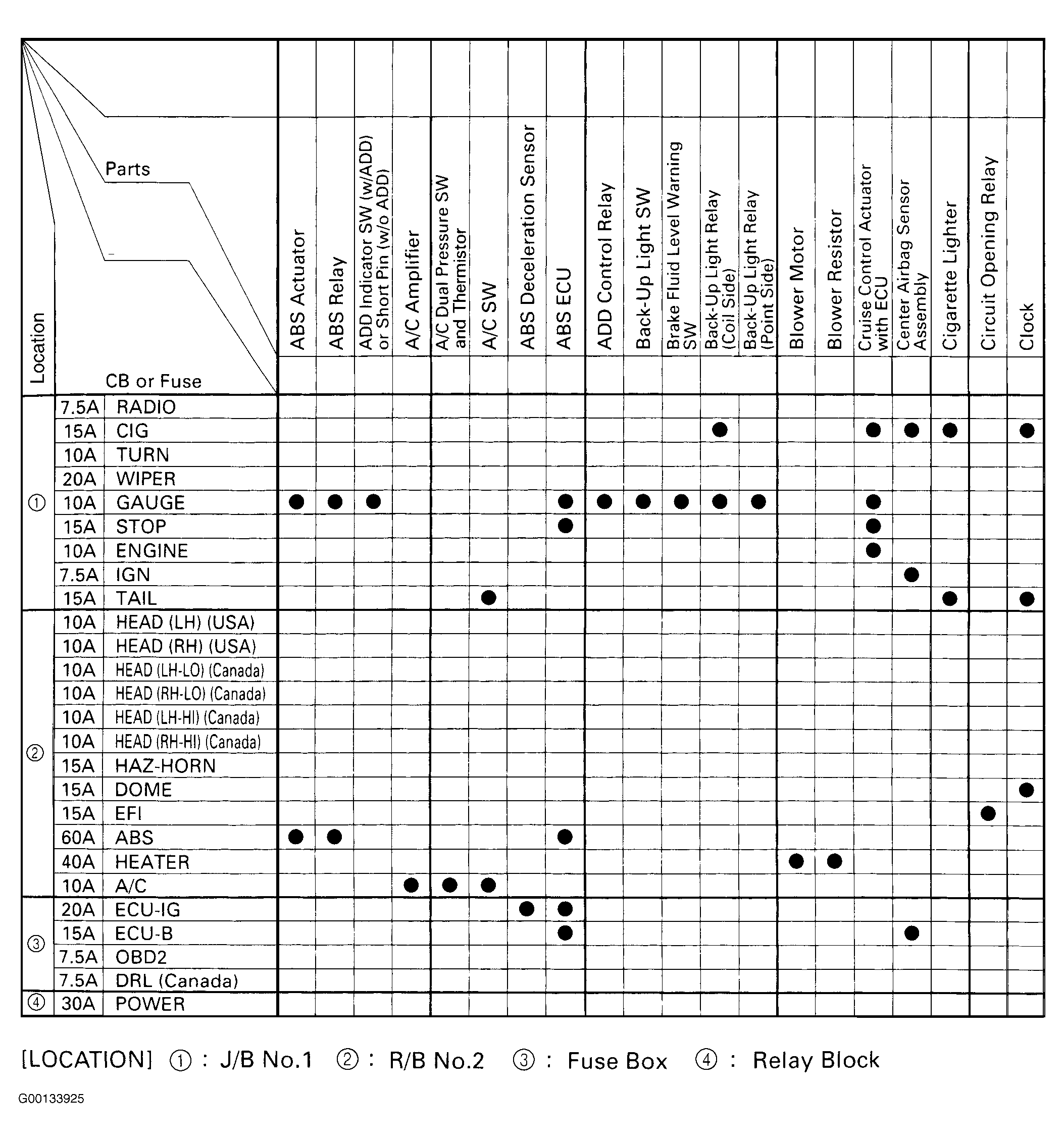

Fig 5: Power Source Legend (5 Of 7)

Fig 6: Power Source Legend (6 Of 7)

Fig 7: Power Source Legend (7 Of 7)
