Abs Circuit Inspection

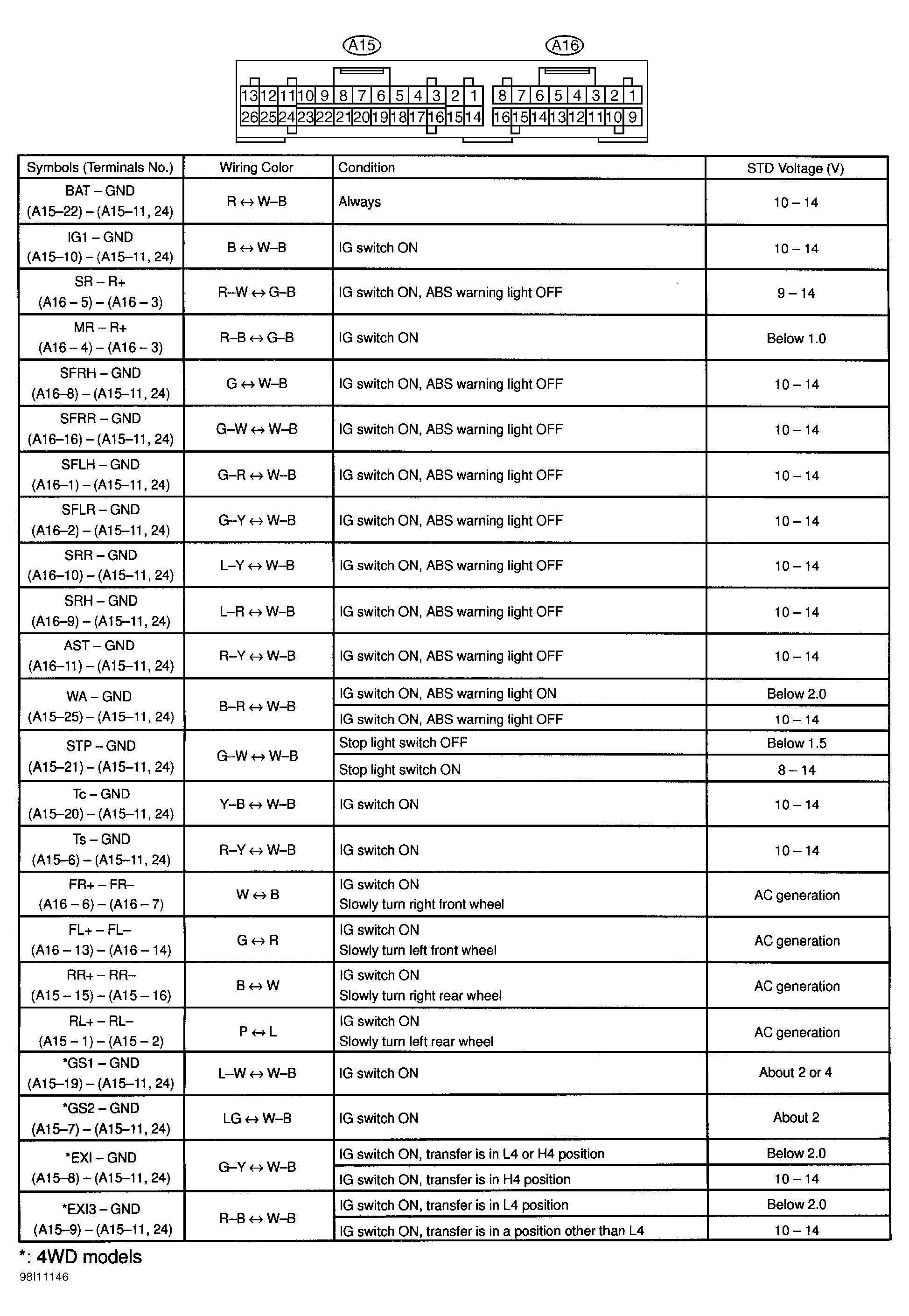

Remove ABS ECU, leaving harness connectors connected. Using DVOM, measure voltage in appropriate circuits by backprobing ABS ECU harness connectors. See Fig 1. Ensure voltage is within specification under specified conditions.
Remove ABS ECU, leaving harness connectors connected. Using DVOM, measure voltage in appropriate circuits by backprobing ABS ECU harness connectors. See Fig 1. Ensure voltage is within specification under specified conditions.
