Ignition Coil: Installation

  1. To install, reverse removal procedure using NEW gaskets. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS .
  2. When installing spark plug wire on ignition coil, ensure spline on holder aligns with spline on ignition coil. Lightly pull upward on holder to ensure lock claw is securely locked in place.

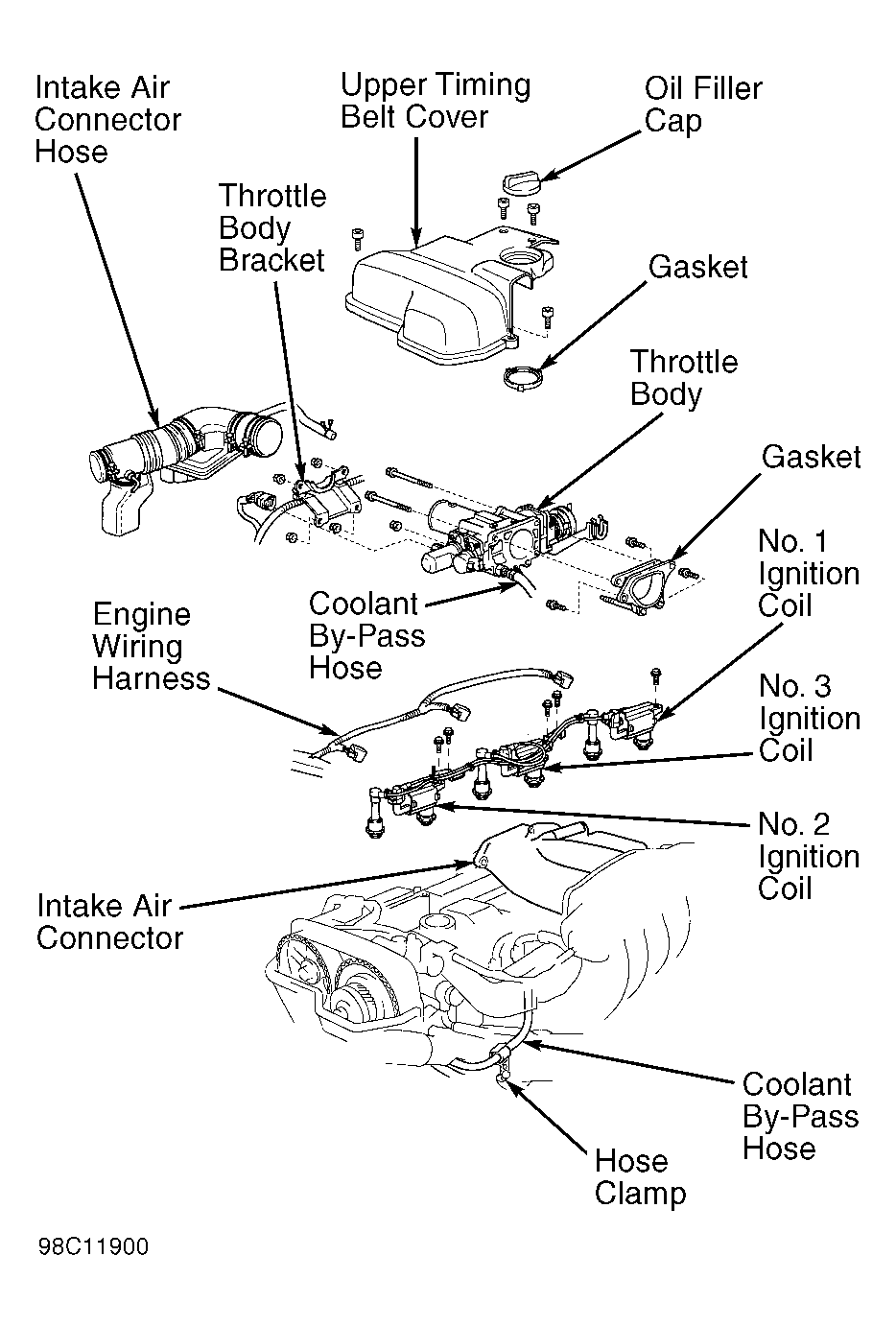

Fig 1: Locating Ignition Coils & Components (Non-Turbo)
G98C11900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Removing Spark Plug Wire From Ignition Coil (Non-Turbo)
G98F11903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
