Component Identification

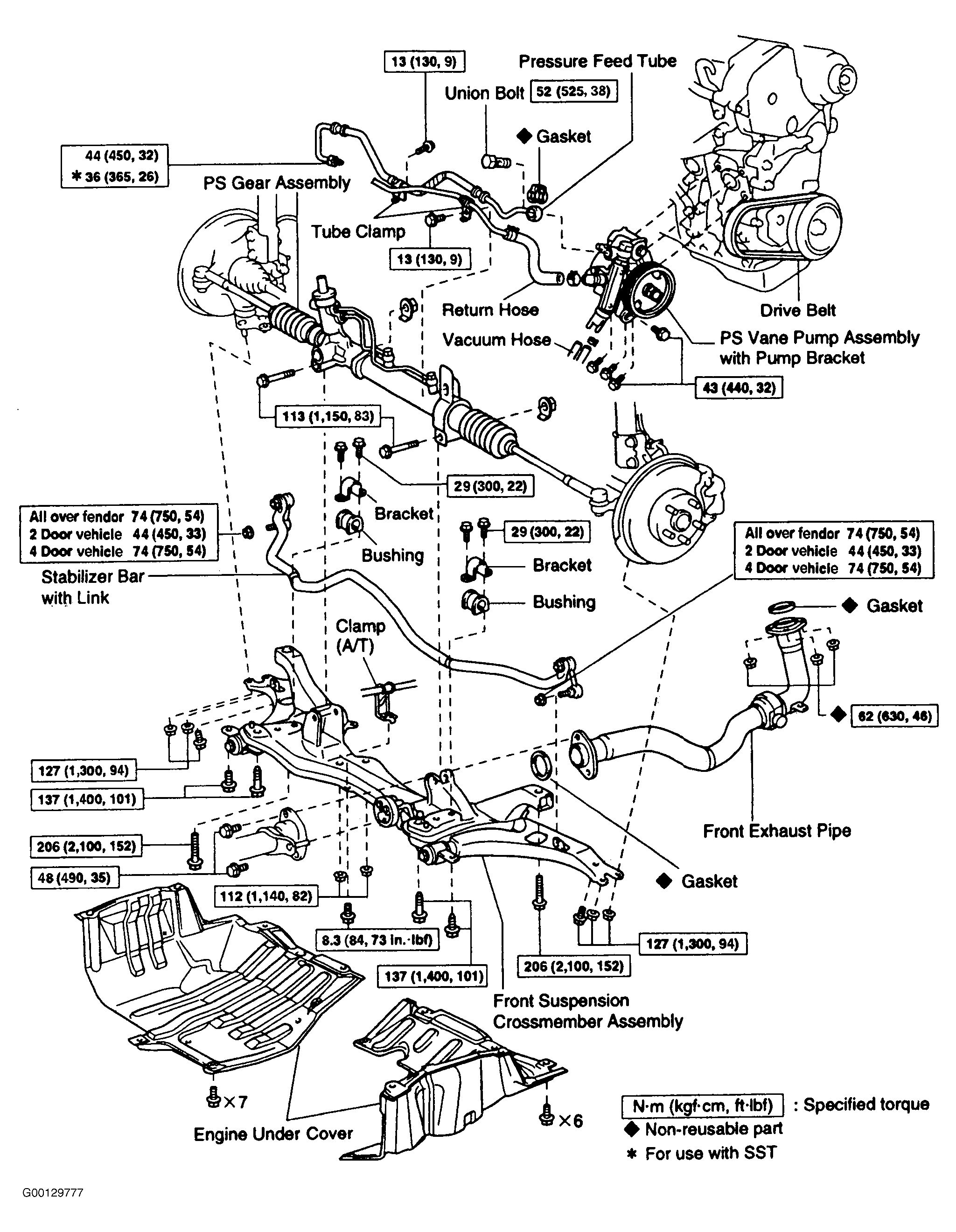

Fig 1: Identifying Power Steering Vane Pump Components (1 Of 2)
G00129777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

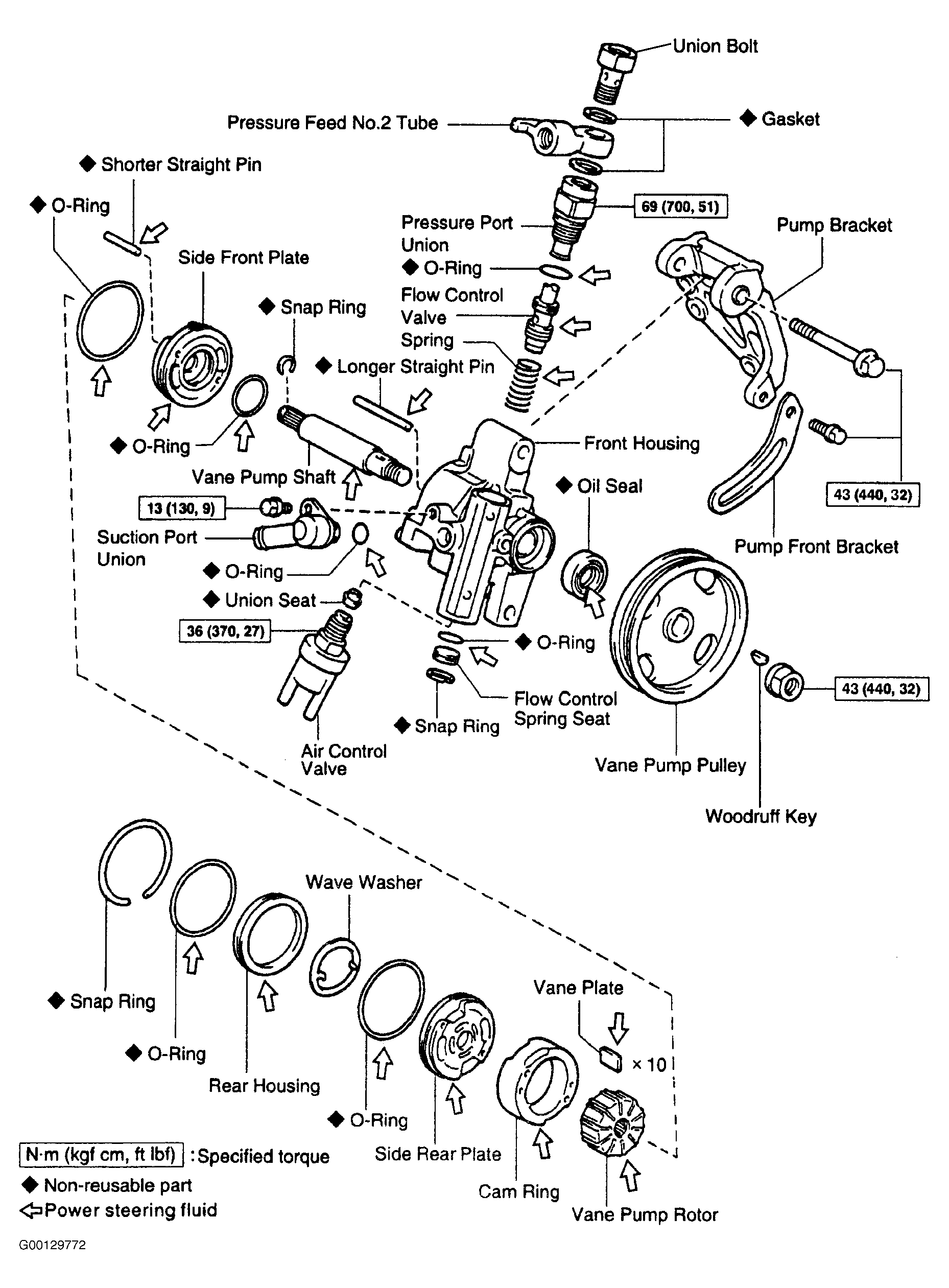

Fig 2: Identifying Power Steering Vane Pump Components (2 Of 2)
G00129772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

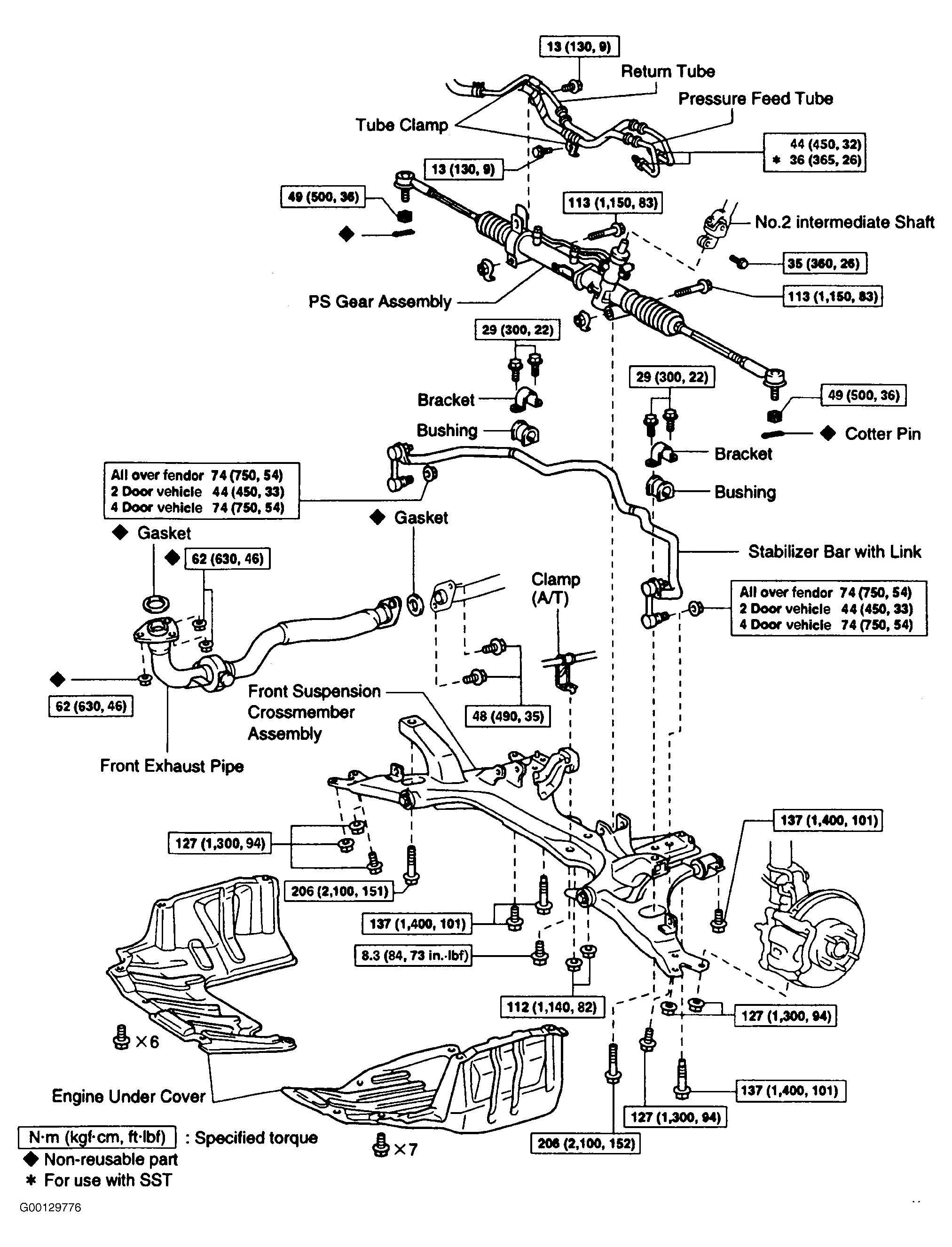

Fig 3: Identifying Power Steering Gear Components (1 Of 3)
G00129776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

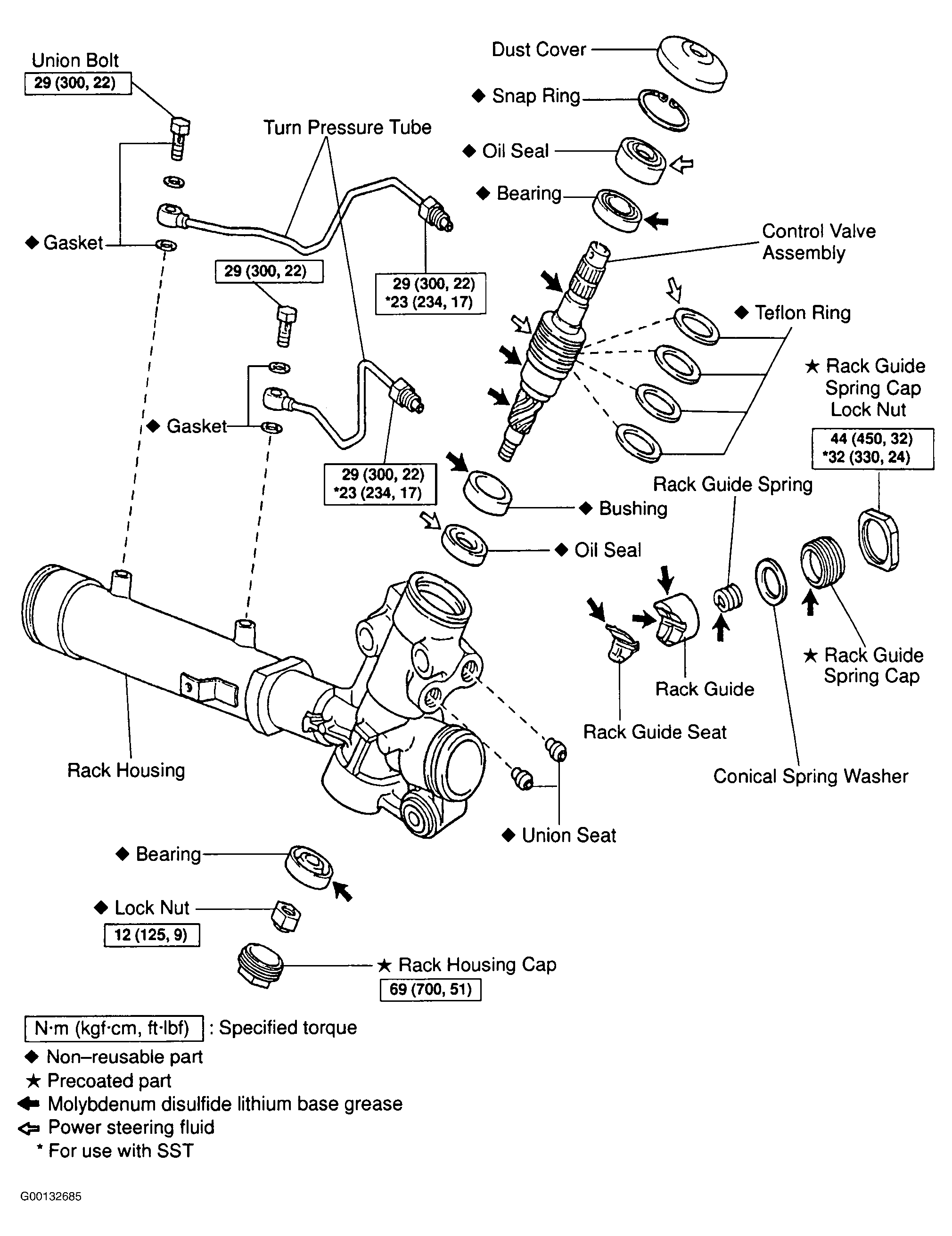

Fig 4: Identifying Power Steering Gear Components (2 Of 3)
G00132685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

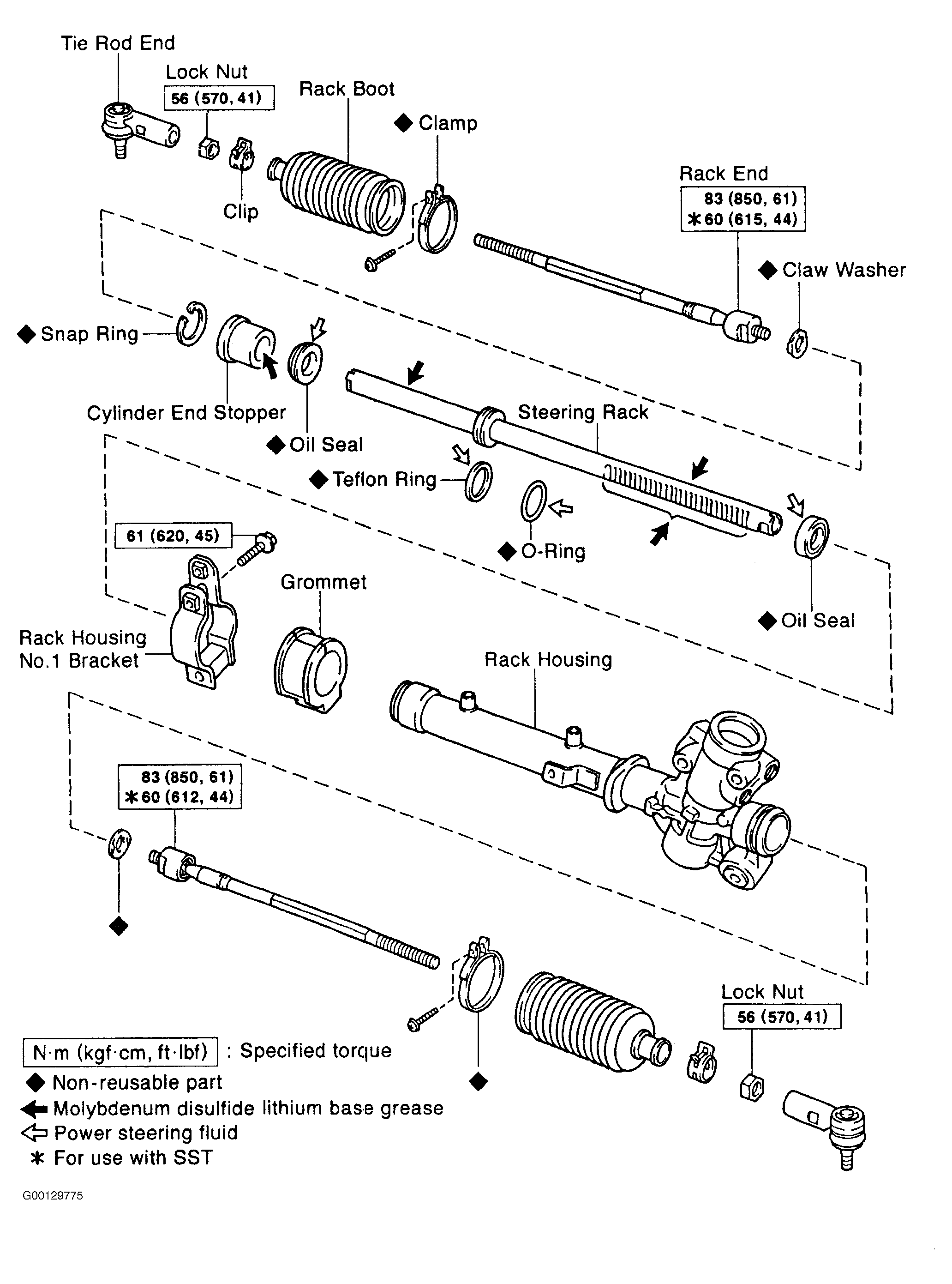

Fig 5: Identifying Power Steering Gear Components (3 Of 3)
G00129775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
