Service Point Locations

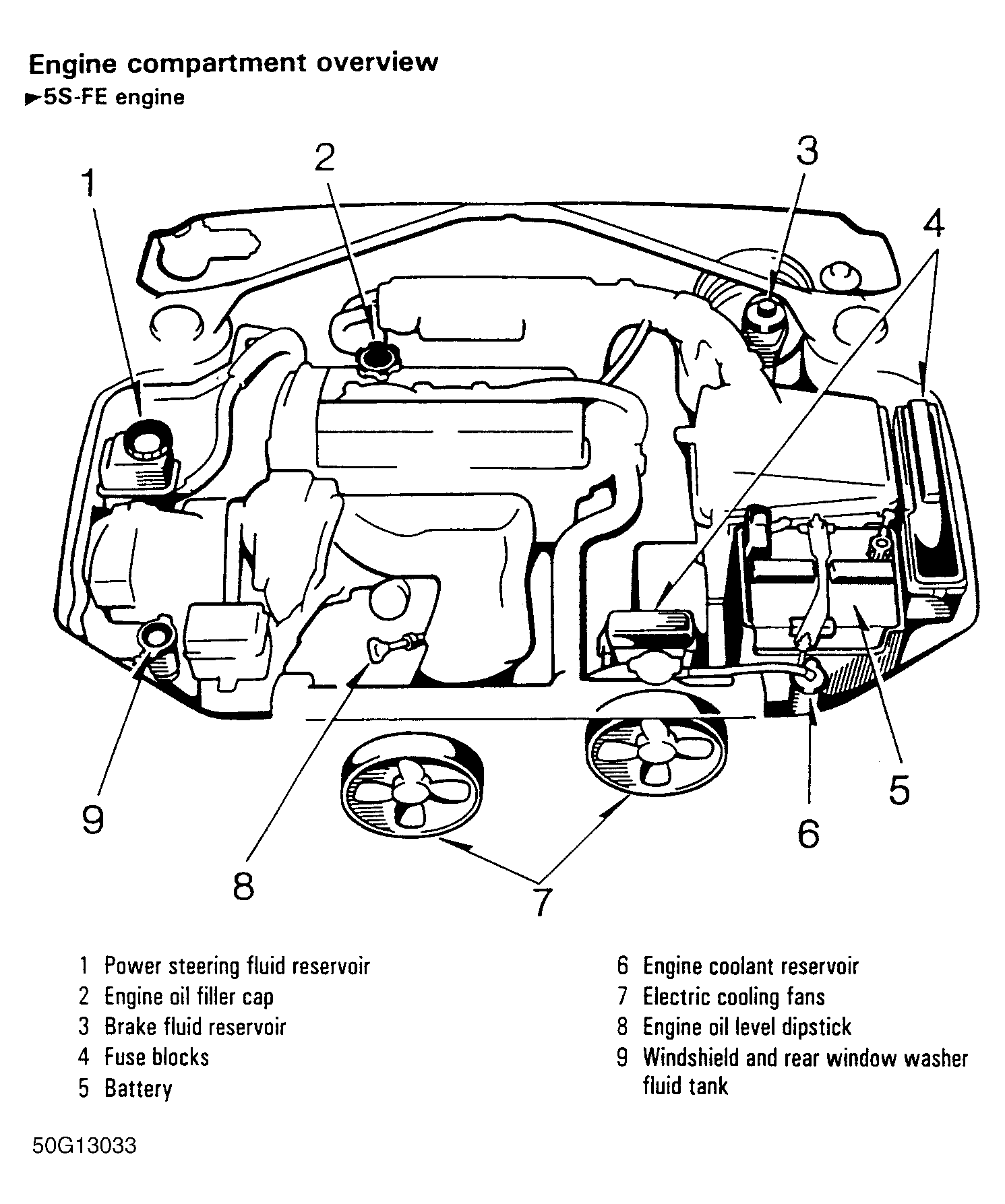

Fig 1: Service Point Locations (5S-FE Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

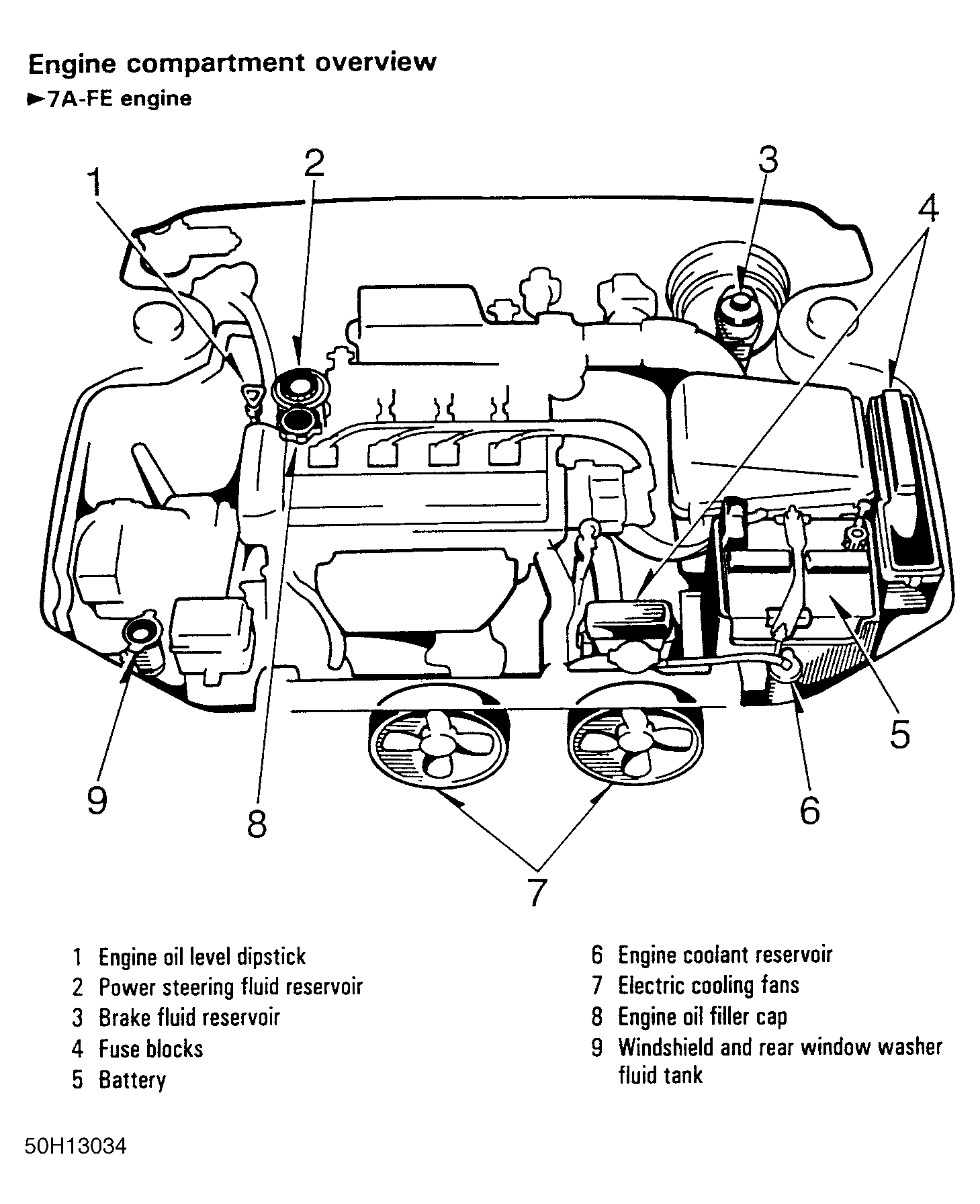

Fig 2: Service Point Locations (7A-FE Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

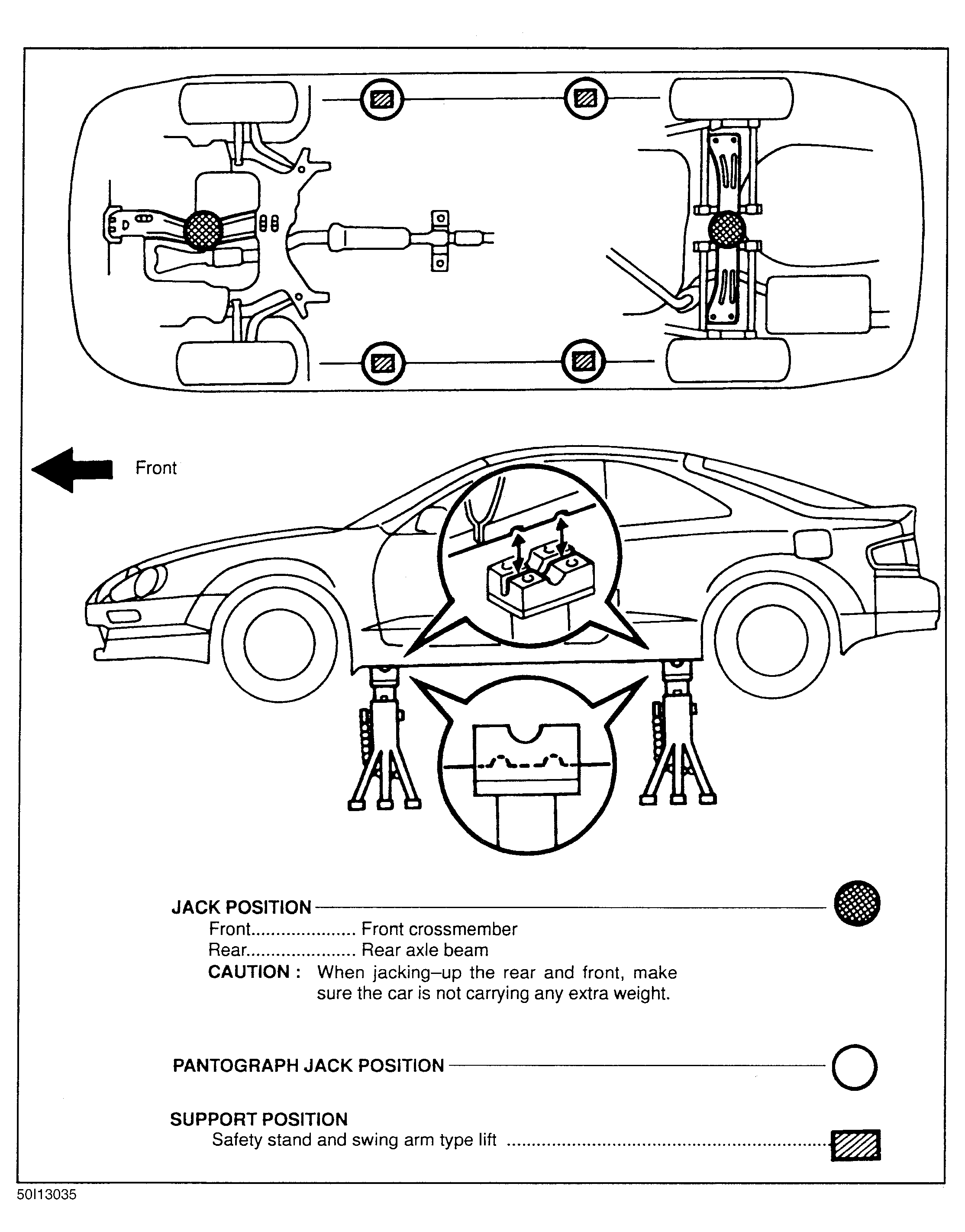

Fig 3: Vehicle Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
