Abs Motor Relay

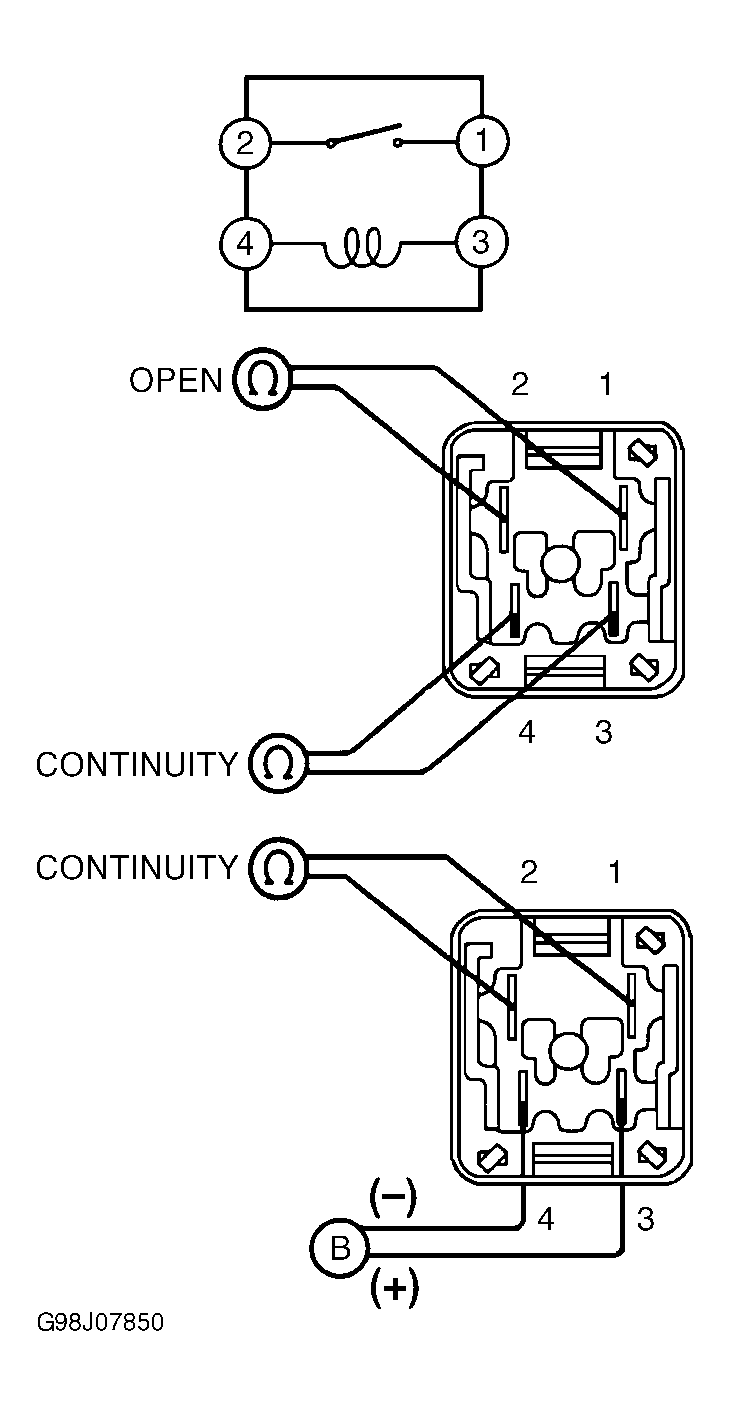

Remove ABS motor relay from underhood relay box. See Figure. Check continuity between specified terminals. See ABS MOTOR RELAY CONTINUITY table. Replace as needed. If relay is okay, go to next step.
ABS MOTOR RELAY CONTINUITY
| Terminal No. (1) | Continuity | |||
|---|---|---|---|---|
| Static Test | ||||
| 1 & 2 | No | |||
| 3 & 4 | Yes (62 ohms) | |||
| Battery Voltage Applied To Terminals No. 3 & 4 | ||||
| 1 & 2 | Yes | |||
|
||||
