Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

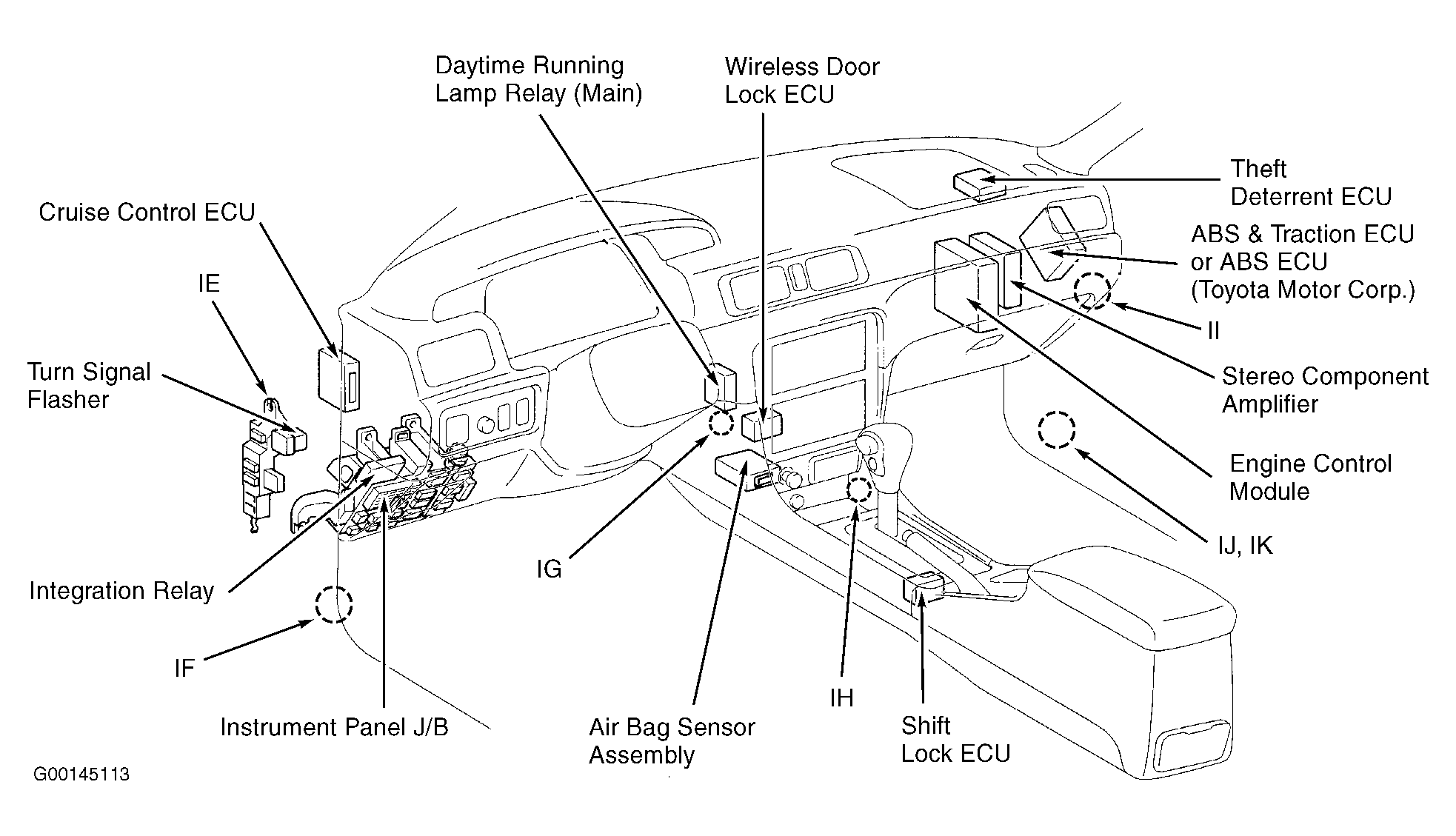

| ABS & Traction ECU | Behind right side of glove box. See Figure. |

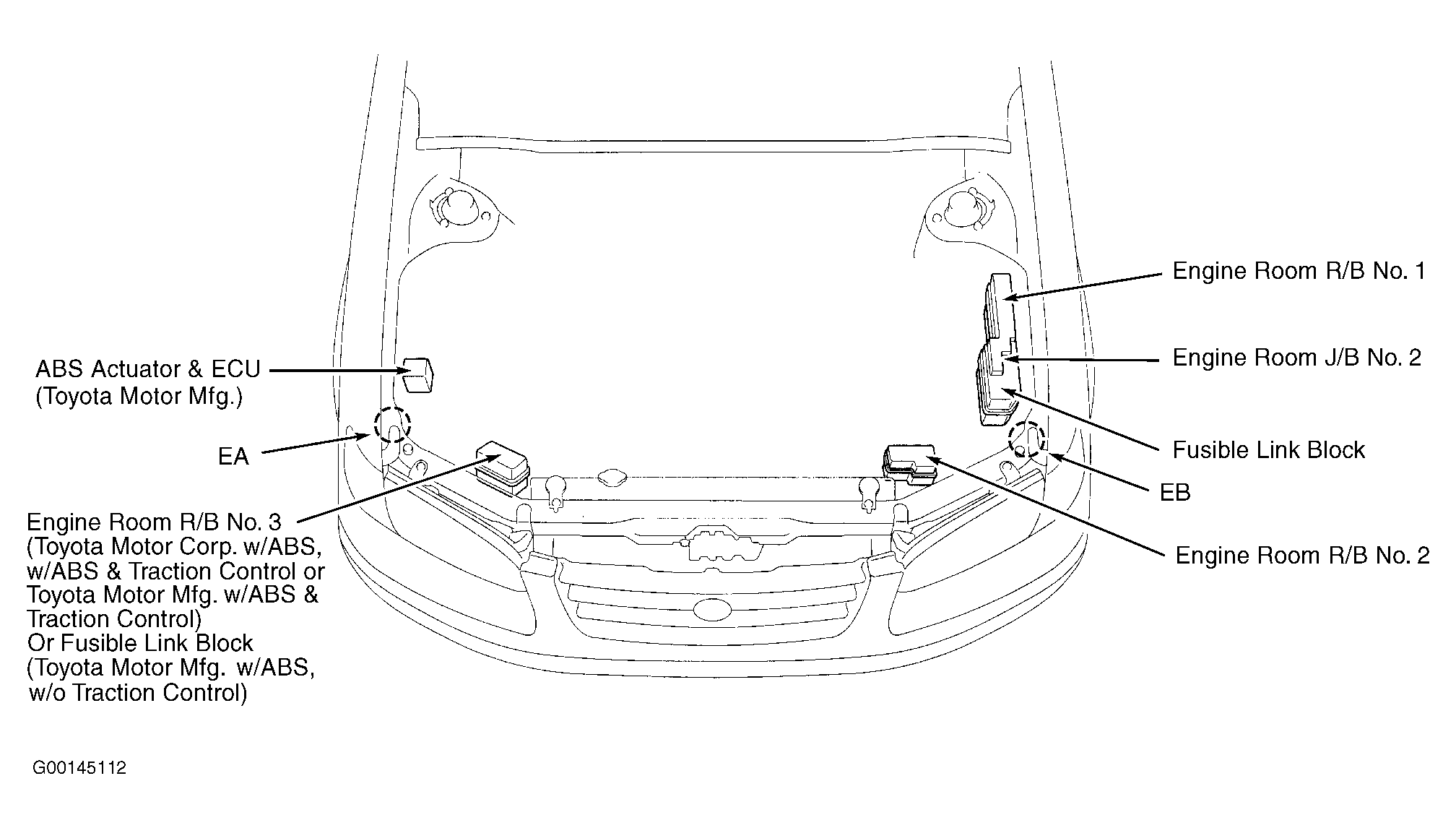

| ABS Actuator & ECU (Toyota Motor Mfg.) | On right front of engine compartment. See Figure. |
| ABS ECU (Toyota Motor Corp.) | Behind right side of glove box. See Figure. |
| A/C Amplifier | Behind glove box. |
| Air Bag Sensor Assembly | Below center console. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Engine Control Module | Behind glove box. See Figure. |
| Shift Lock ECU | Below center console, rear of gear selector. See Figure. |
| Stereo Component Amplifier | Behind glove box. See Figure. |
| Theft Deterrent ECU | Behind top right side of dash. See Figure. |
| Transponder Key Amplifier | On right side of steering column. |
| Wireless Door Lock ECU | Behind center of dash. See Figure. |
