PROCEDURE FOR REPLACEMENT OF ECM
TECHNICAL SERVICE BULLETIN
Reference Number(s): EL003-98, Date of Issue:
April 17, 1998
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
PROCEDURE FOR REPLACEMENT OF ECM
Model(s): 1998 Toyota Camry, Avalon
Section: Electrical
Bulletin No.: EL003-98
Date: April 17, 1998
INTRODUCTION
On some non-immobilizer equipped 1998 Camry and Avalon models, the ECM used is the same as for immobilizer equipped vehicles. For these models, it is necessary to register a "without engine immobilizer" code to prevent permanent failure of the ECM.
NOTE:
In some instances the ECM is equipped the same in spite of the existence or nonexistence of the immobilizer system (see part numbers listed below).
PARTS INFORMATION
PARTS INFORMATION
| Model | Part Number * | Application |
|---|---|---|
| Avalon | 89661-07130 | Cal. Spec. w/ Traction Control |
| " | 89661-07132 | " |
| " | 89661-07140 | Cal. Spec. |
| " | 89661-07142 | " |
| Camry V6 | 89661-07150 | Fed Spec. W/Traction Control |
| " | 89661-06590 | " |
| " | 89661-06600 | Cal Spec. |
| " | 89661-06601 | " |
| " | 89661-06602 | " |
| " | 89661-06610 | Cal. Spec. W/Traction Control |
| " | 89661-06611 | " |
| " | 89661-06612 | " |
| " | 89661-3T320 | DENSO Fed. Spec. W/Traction Control |
| " | 89661-3T330 | DENSO Cal. Spec. |
| " | 89661-3T331 | " |
| " | 89661-3T332 | " |
| " | 89661-3T340 | DENSO Cal. Spec. W/Traction Control |
| " | 89661-3T341 | " |
| " | 89661-3T342 | " |
| * - Part Number for immobilizer and non-immobilizer equipped Vehicles. | ||
PRODUCTION CHANGE INFORMATION
PRODUCTION CHANGE INFORMATION
| Model | Model Code | Production | Starting VIN |
|---|---|---|---|
| Avalon | MCX10 | NAP | 4T1BF** BWU212596 |
| Camry | MCV20 | NAP | 4T1BF** K* WU040547 |
| " | " | " | 4T1BF** K* WU923884 |
| " | " | TMC | JT2BF** K* W0083883 |
| " | SXV20 | NAP | 4T1BG** K* WU185092 |
| " | " | " | 4T1BG** K* WU825530 |
| " | " | TMC | JT2BF** K* W0101108 |
PROCEDURE

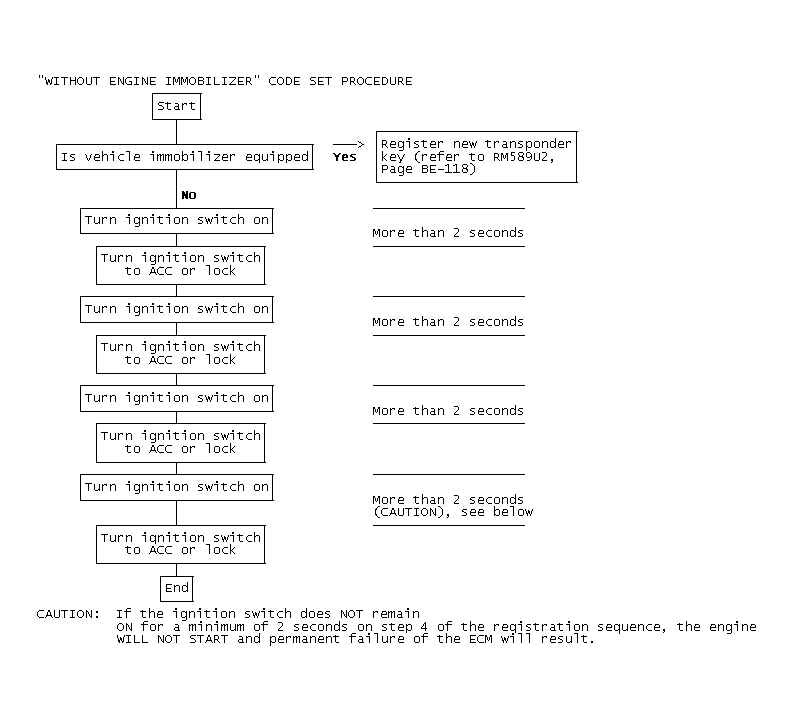

The following MUST be performed after installing a new ECM.
NOTE:
Two seconds after turning the ignition switch ON the fourth time, the code that designates "without engine immobilizer" will be registered in the ECM.
WARRANTY INFORMATION
Not applicable to warranty.
