Component Tests

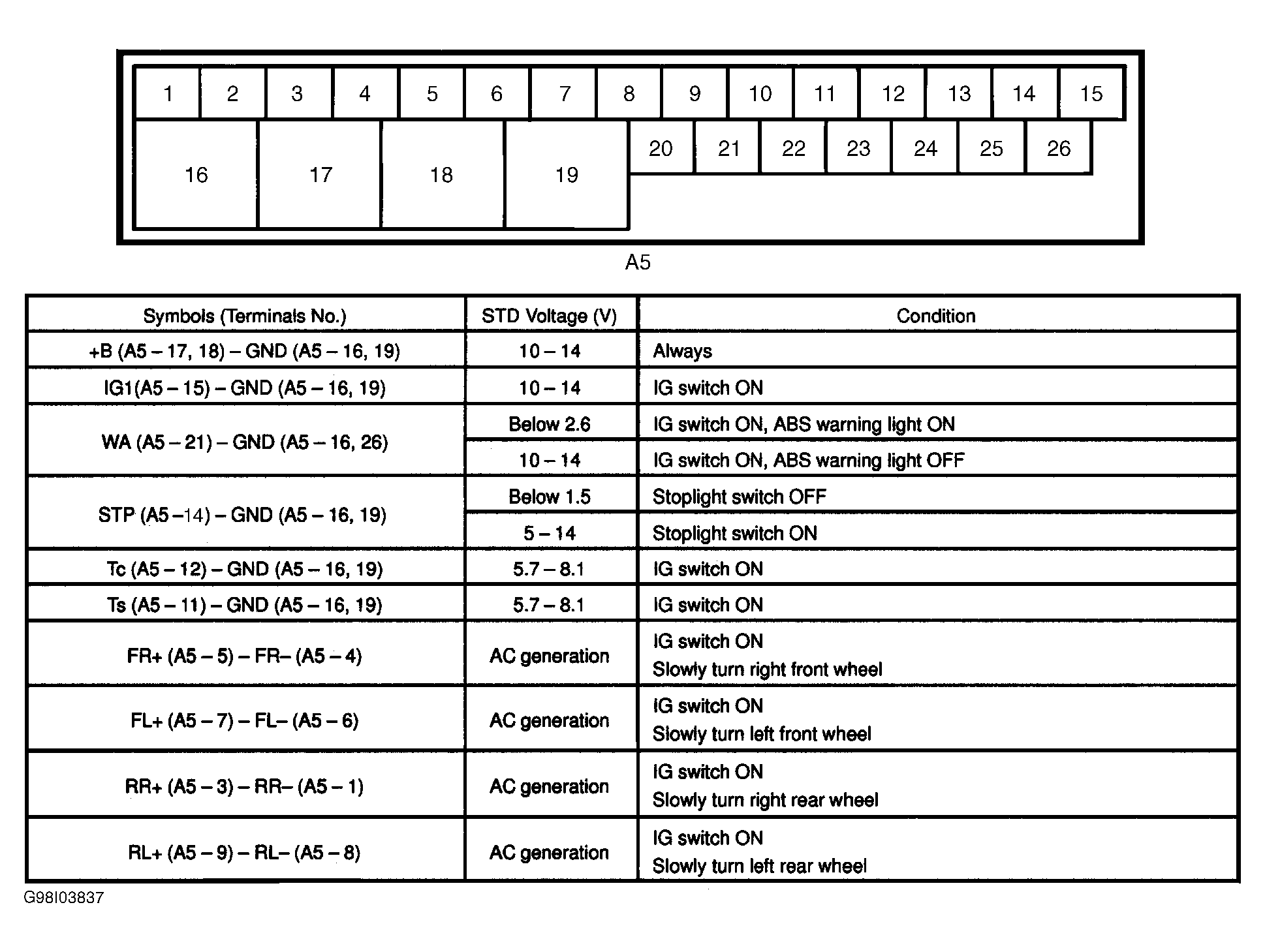

For component testing, see appropriate test under DIAGNOSTIC TESTS . ABS circuits and harness can be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1.
For component testing, see appropriate test under DIAGNOSTIC TESTS . ABS circuits and harness can be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1.
