Trunk Key Lock & Unlock Switch
- Remove trim panel from trunk for access to trunk key lock and unlock switch located on inside of trunk lid. See Figure.

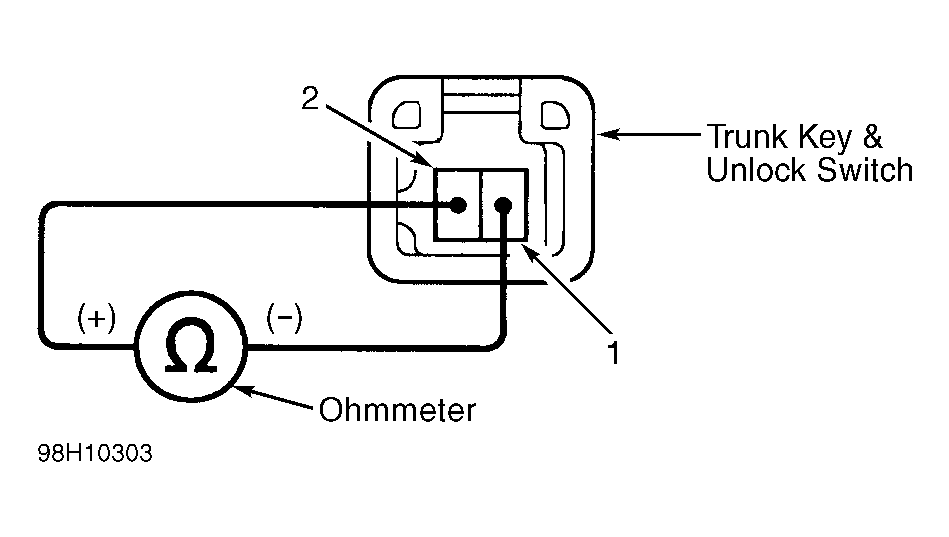

- Disconnect electrical connector at trunk key lock and unlock switch. Connect ohmmeter between terminals No. 1 and 2 on trunk key lock and unlock switch. See Fig 1.
- Check that no continuity exists between terminals No. 1 and 2 on trunk key lock and unlock switch with key in normal position. Check that continuity exists between terminals No. 1 and 2 on trunk key lock and unlock switch when key is turned to unlock position. Replace trunk key lock and unlock switch if defective.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
