Door Unlock Detection Switch
- Remove door trim panel and service hole cover. Disconnect Gray 4-pin electrical connector for door lock motor and door unlock detection switch. See Figure.

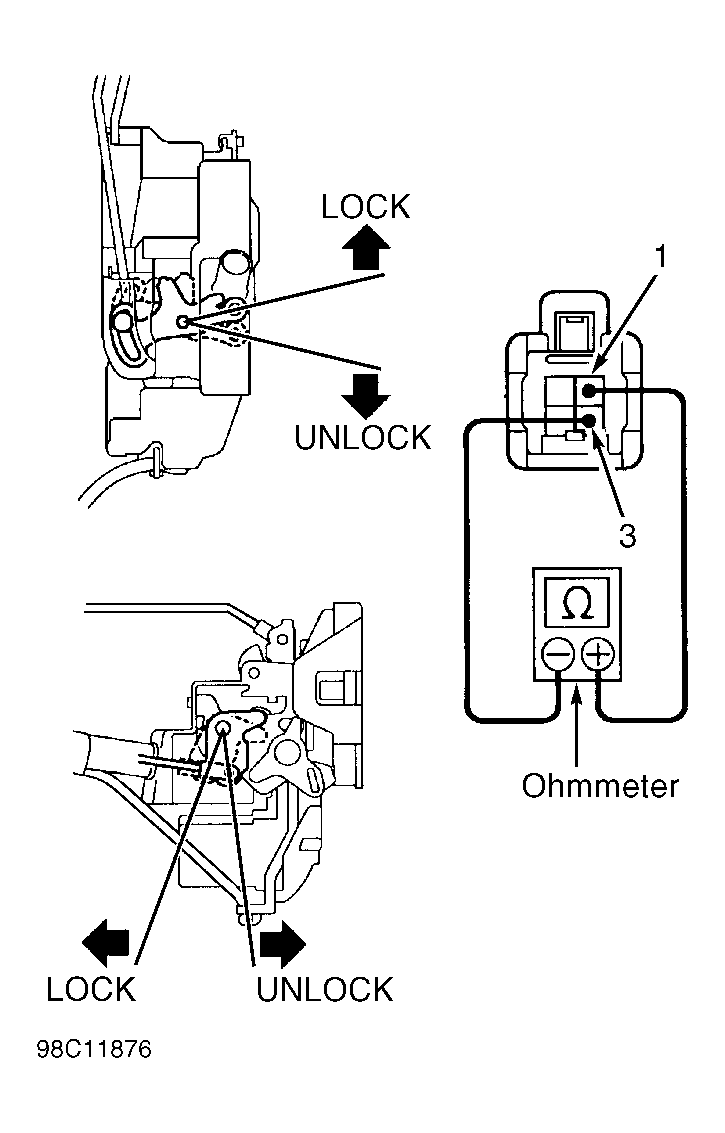

- Connect ohmmeter between terminals No. 1 and 3 on electrical connector for door lock motor and door unlock detection switch. See Fig 1.
- Check that no continuity exists in LOCK position and continuity exists in UNLOCK position by using door lock switch on door. See Fig 1. Replace door unlock detection switch if defective.
