Throttle Position Sensor: Tercel

Manufacturer does not list procedure for Throttle Position (TP) sensor adjustment. Only information available is for checking resistance of TP sensor.
Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 1-42. On A/T models, disconnect throttle cable from linkage before checking TP sensor.
Using ohmmeter, check resistance between specified terminals in relation to throttle position. See THROTTLE POSITION SENSOR RESISTANCE table. Replace components as necessary if resistance is not within specification.

THROTTLE POSITION SENSOR RESISTANCE

Application Type

Clearance In. (mm)

Terminals Tested

Ohmmeter Reading

Camry ⁽¹⁾

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

Corolla

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

RAV4 ⁽¹⁾

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

Tacoma, T100, 4Runner⁽¹⁾

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

Tercel ⁽²⁾

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

⁽¹⁾	Apply vacuum to throttle opener before checking TP sensor.

⁽²⁾	On A/T models, disconnect throttle cable from linkage before checking TP sensor.

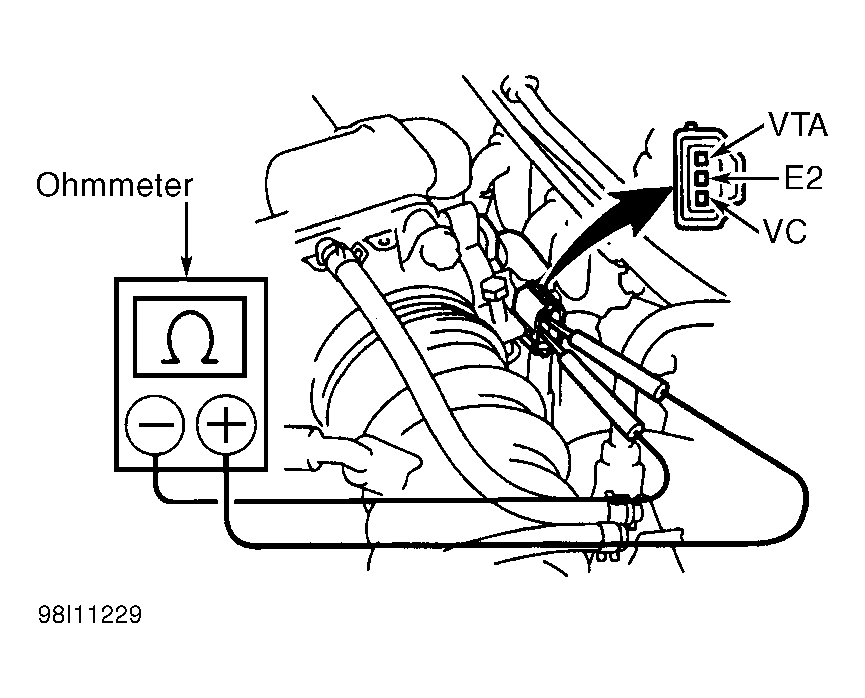

Fig 1: Identifying TP Sensor Terminals (Camry)

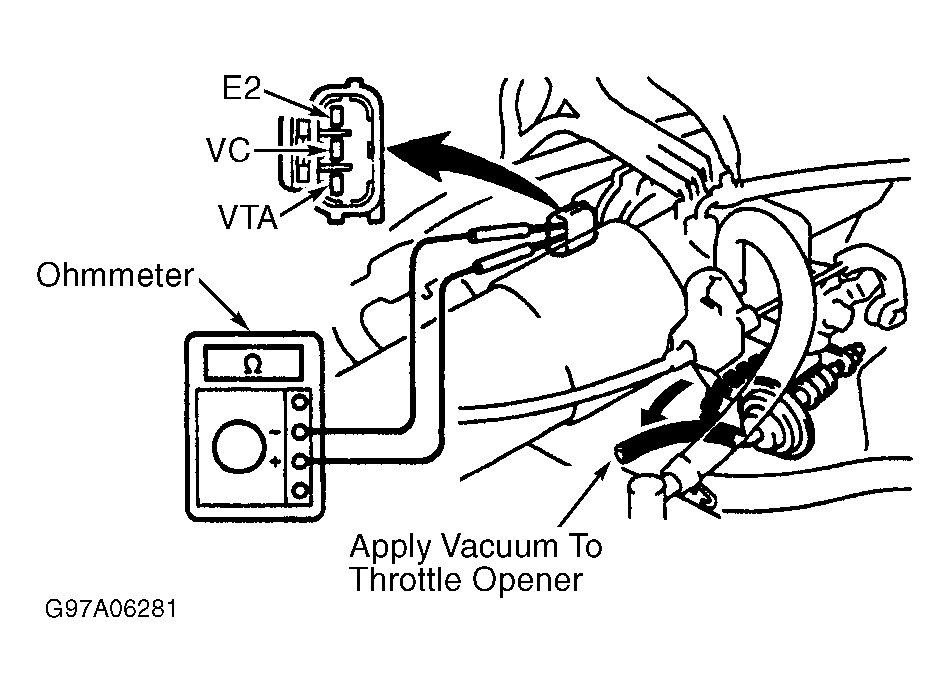

Fig 2: Identifying TP Sensor Terminals (Celica)

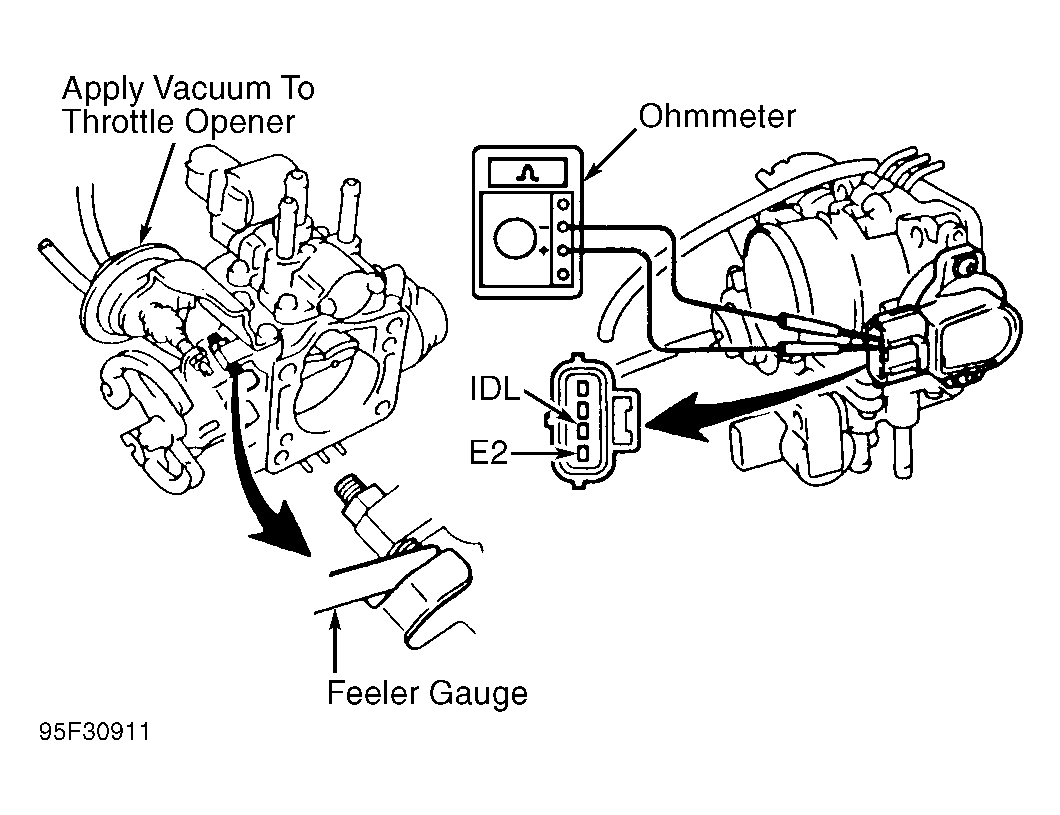

Fig 3: Identifying TP Sensor Terminals (Corolla)

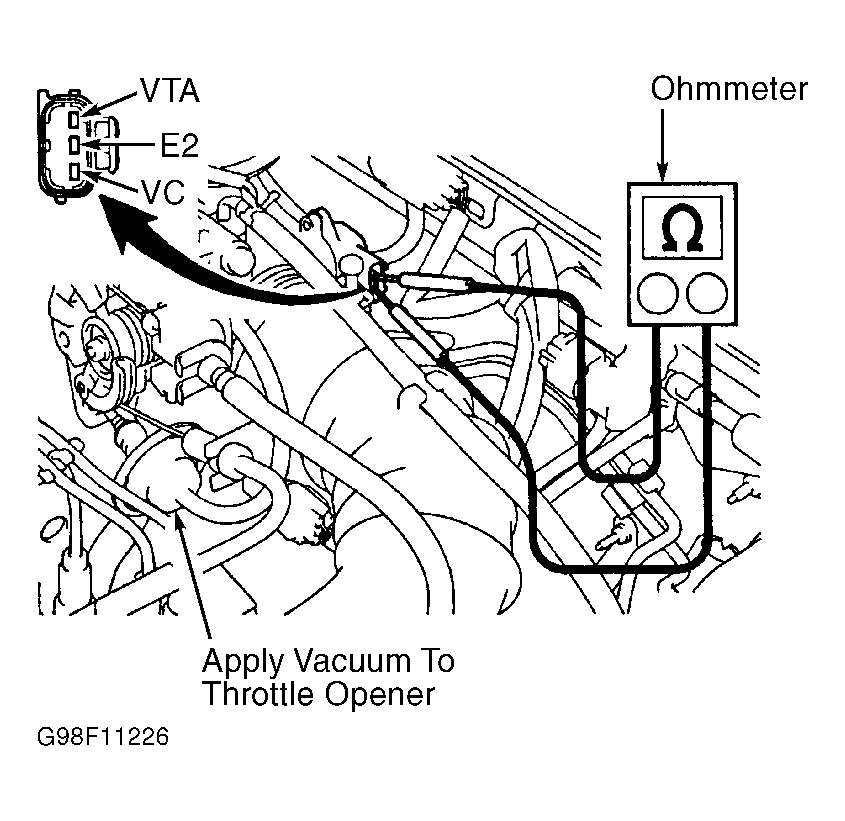

Fig 4: Identifying TP Sensor Terminals (Tacoma, T100 & 4Runner)

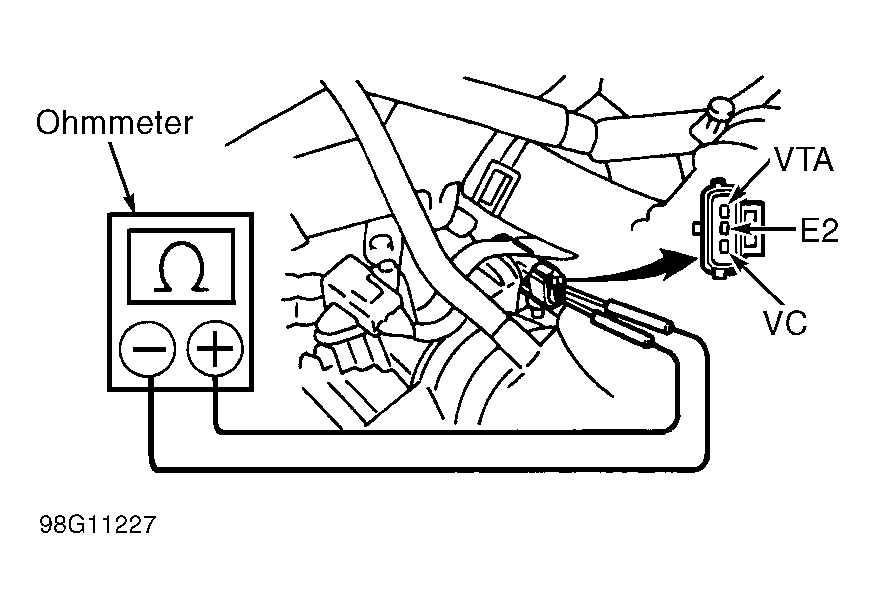

Fig 5: Identifying TP Sensor Terminals (Tercel)
