Power Source Legend (Current Flow Chart)

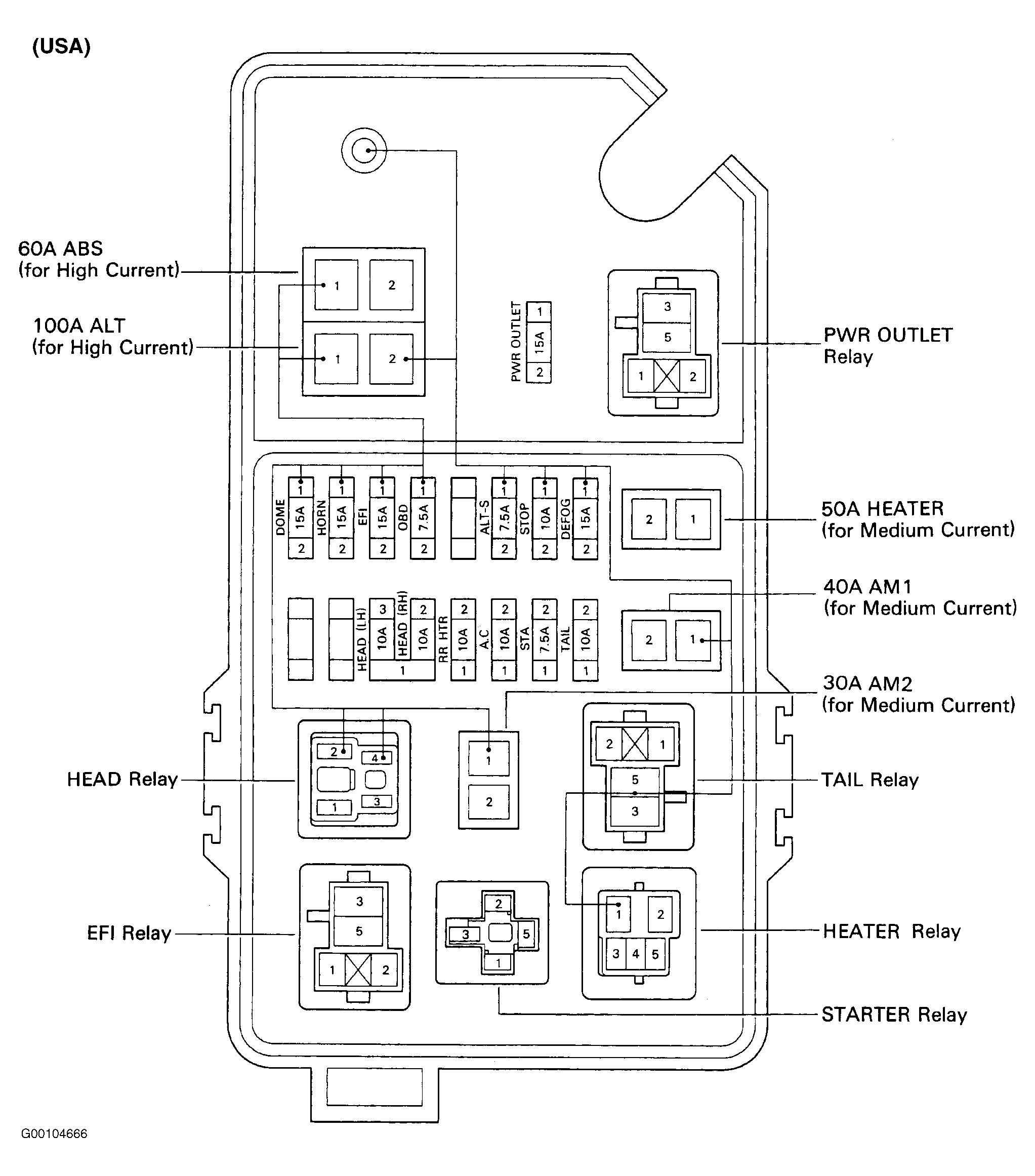

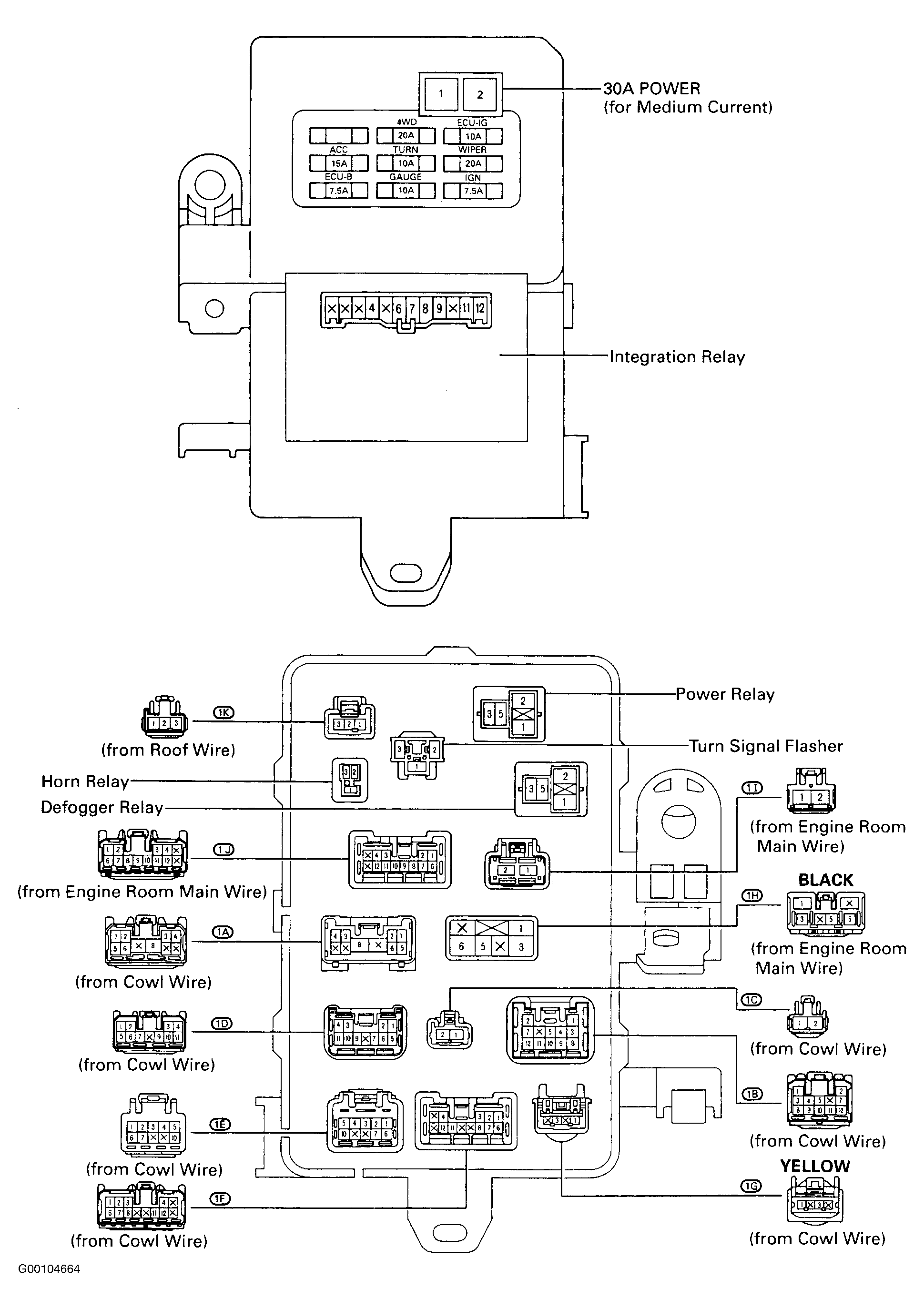

NOTE: To identify driver side J/B components, see Figure. To identify engine room R/B, see Figure or Figure .

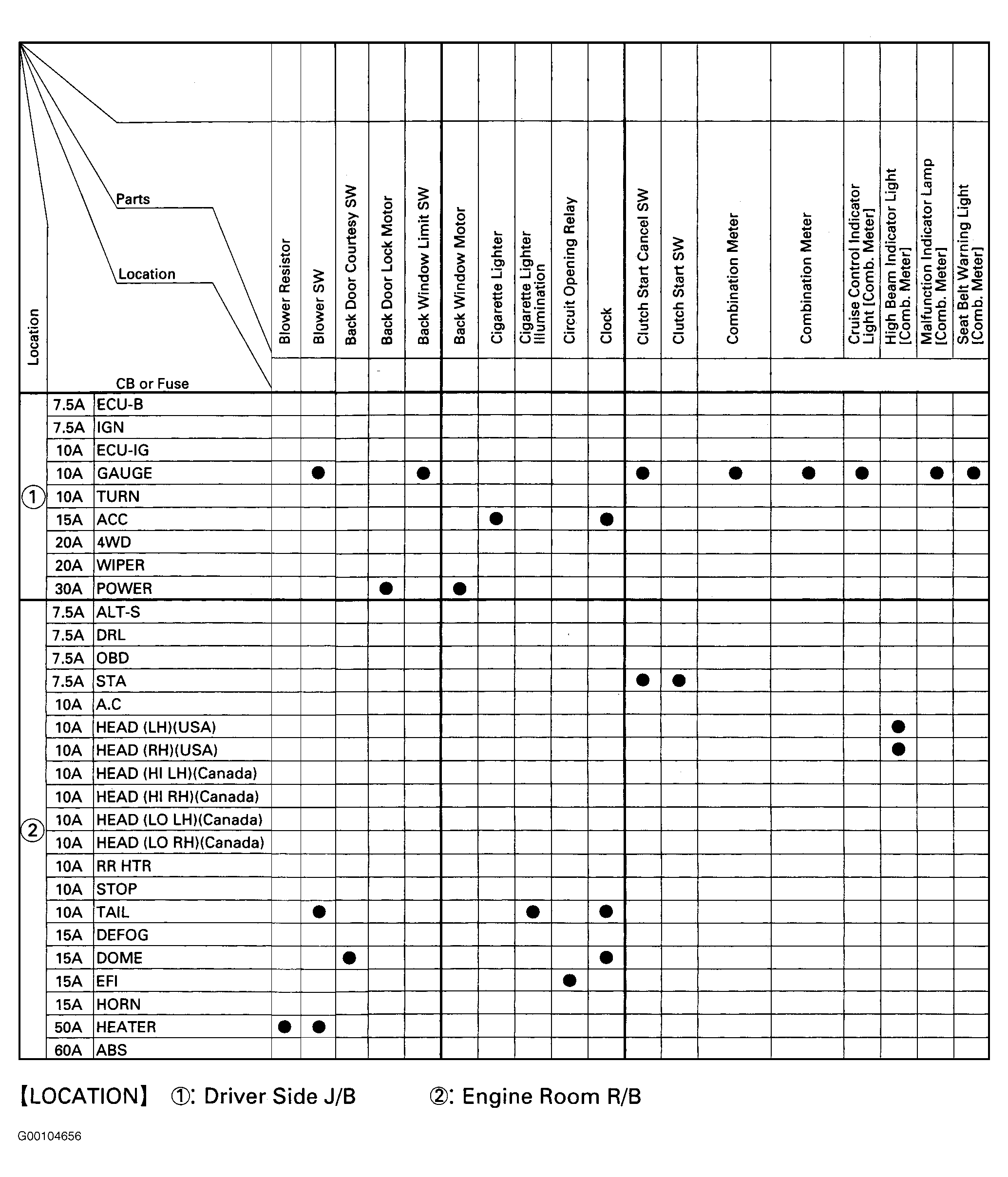

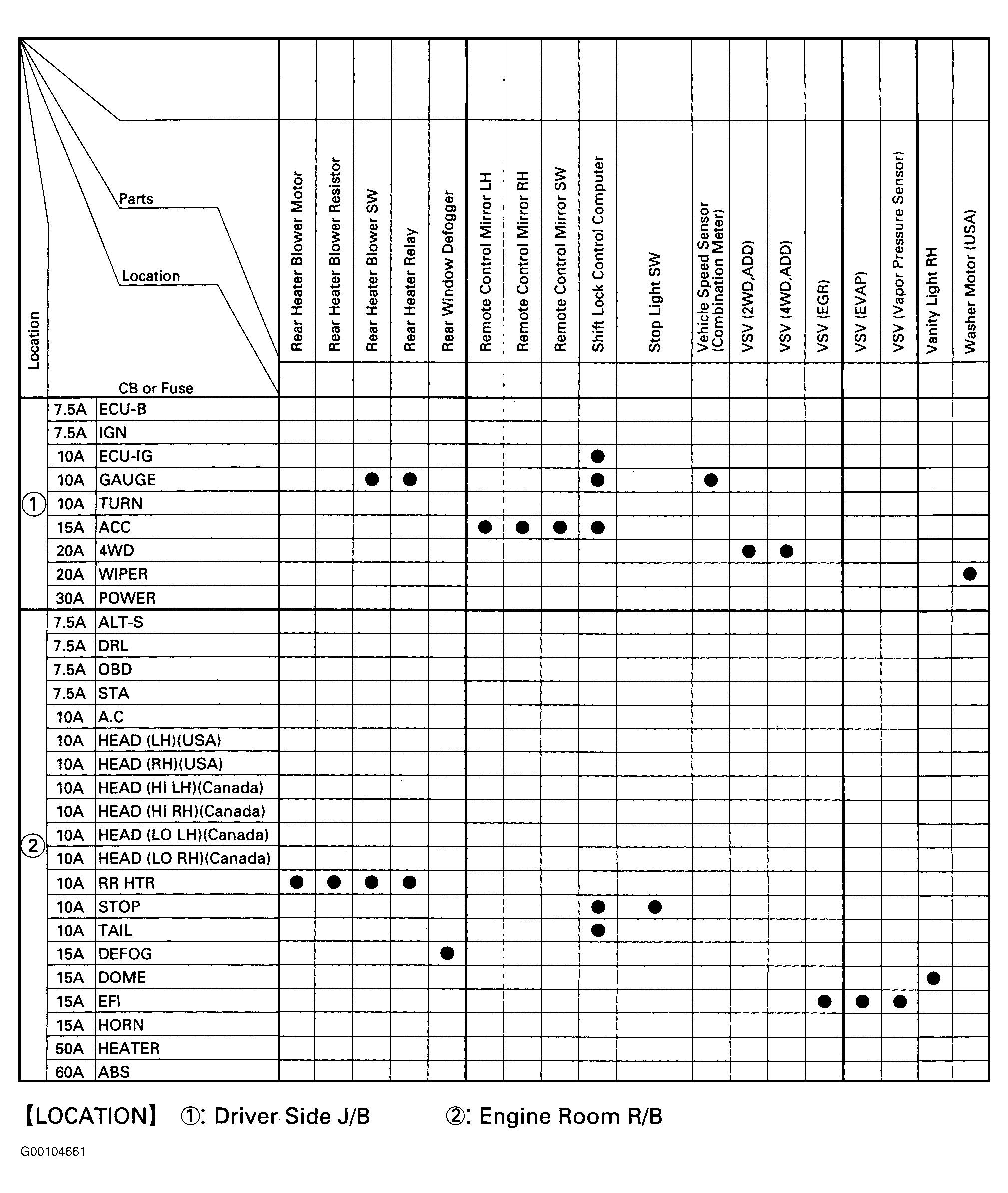

Fig 1: Power Source Legend (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

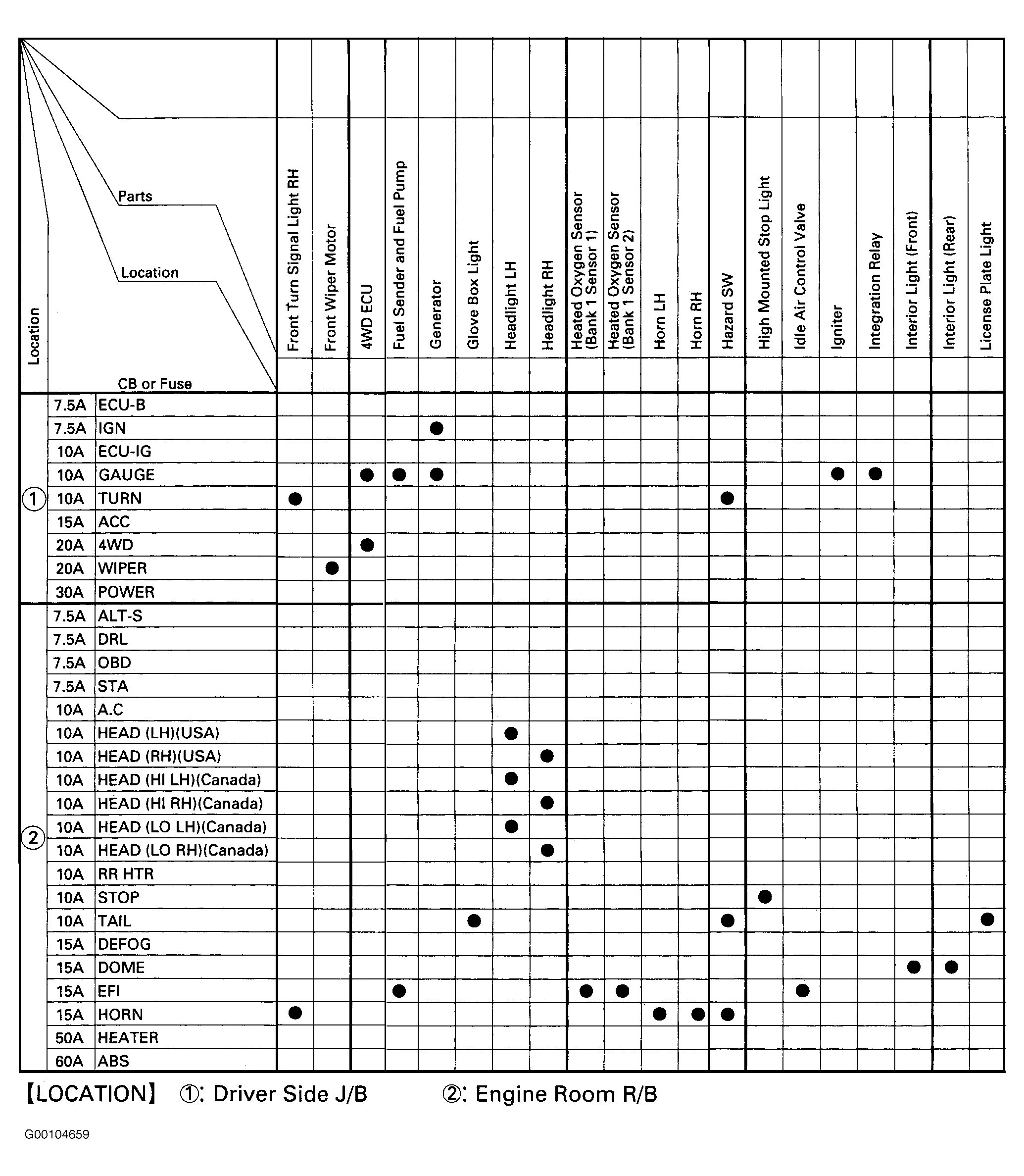

Fig 2: Power Source Legend (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

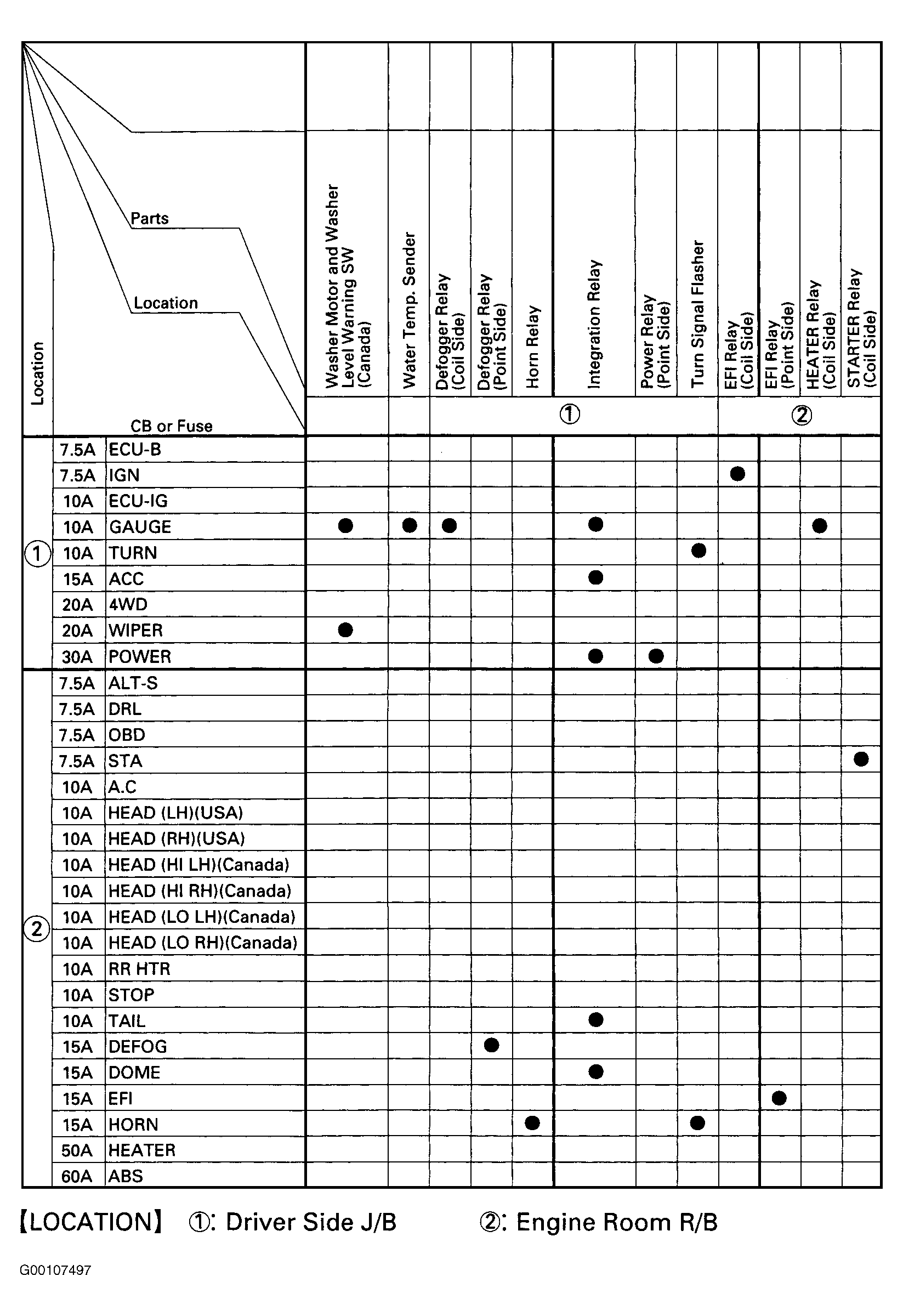

Fig 3: Power Source Legend (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

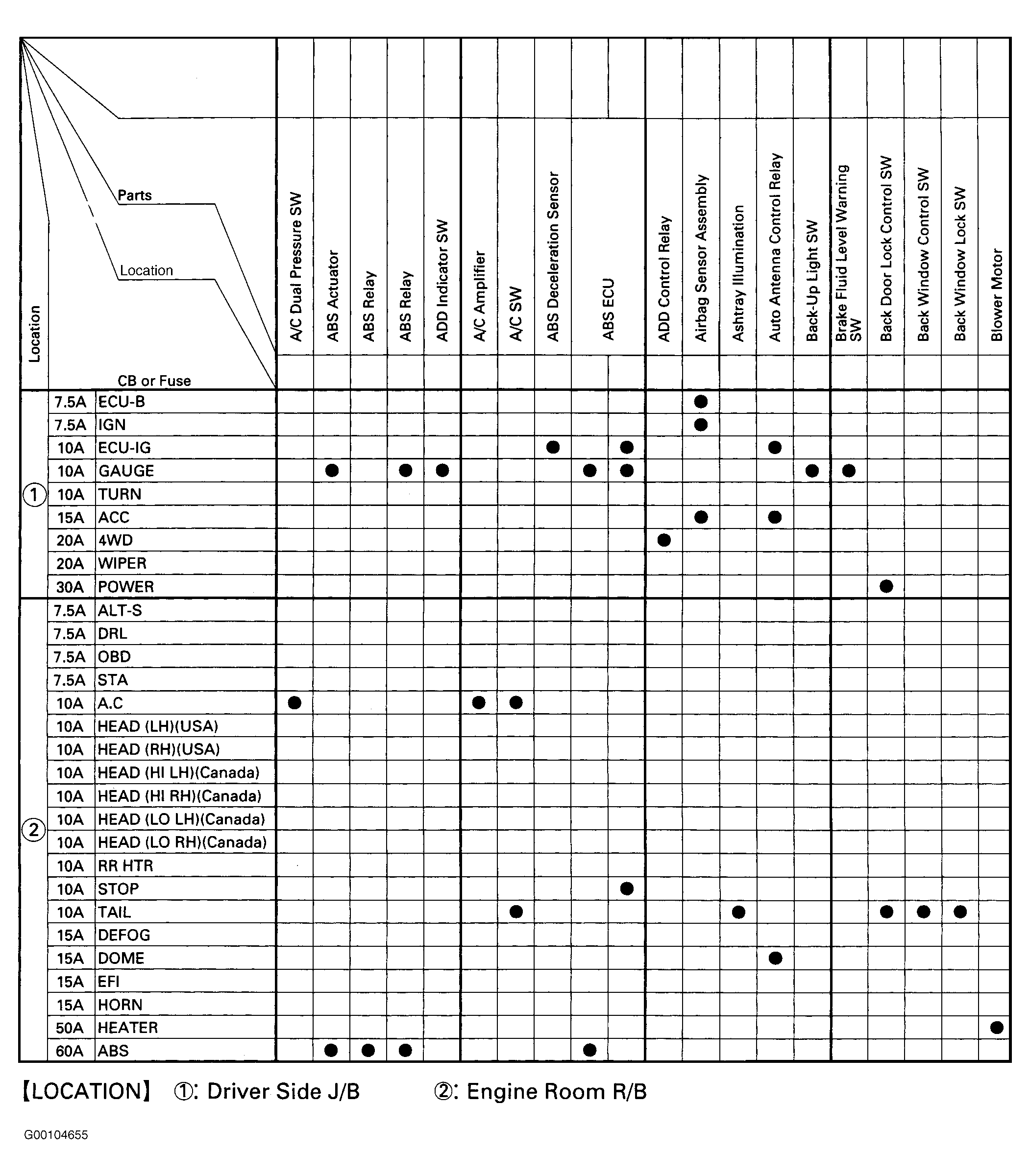

Fig 4: Power Source Legend (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

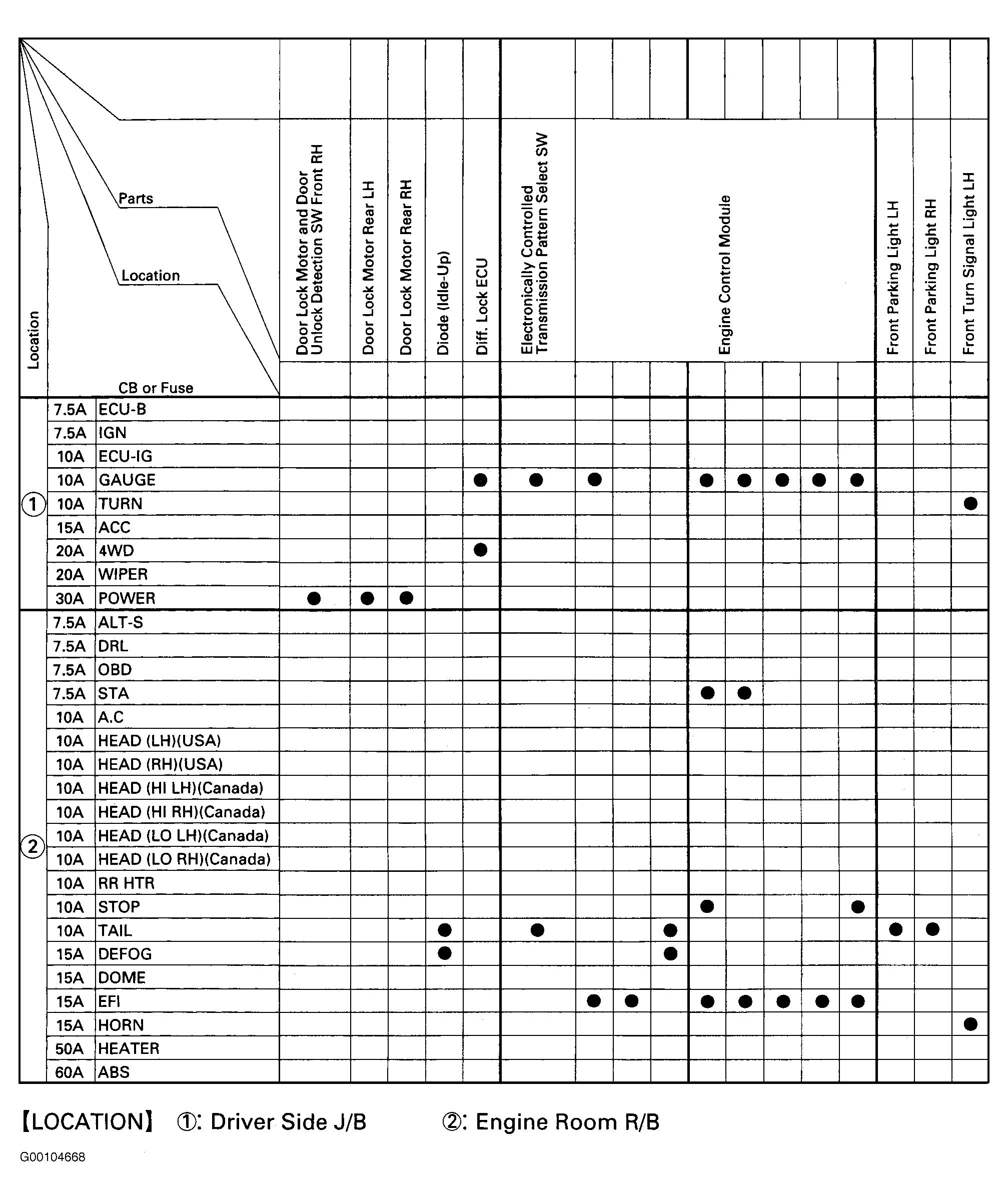

Fig 5: Power Source Legend (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

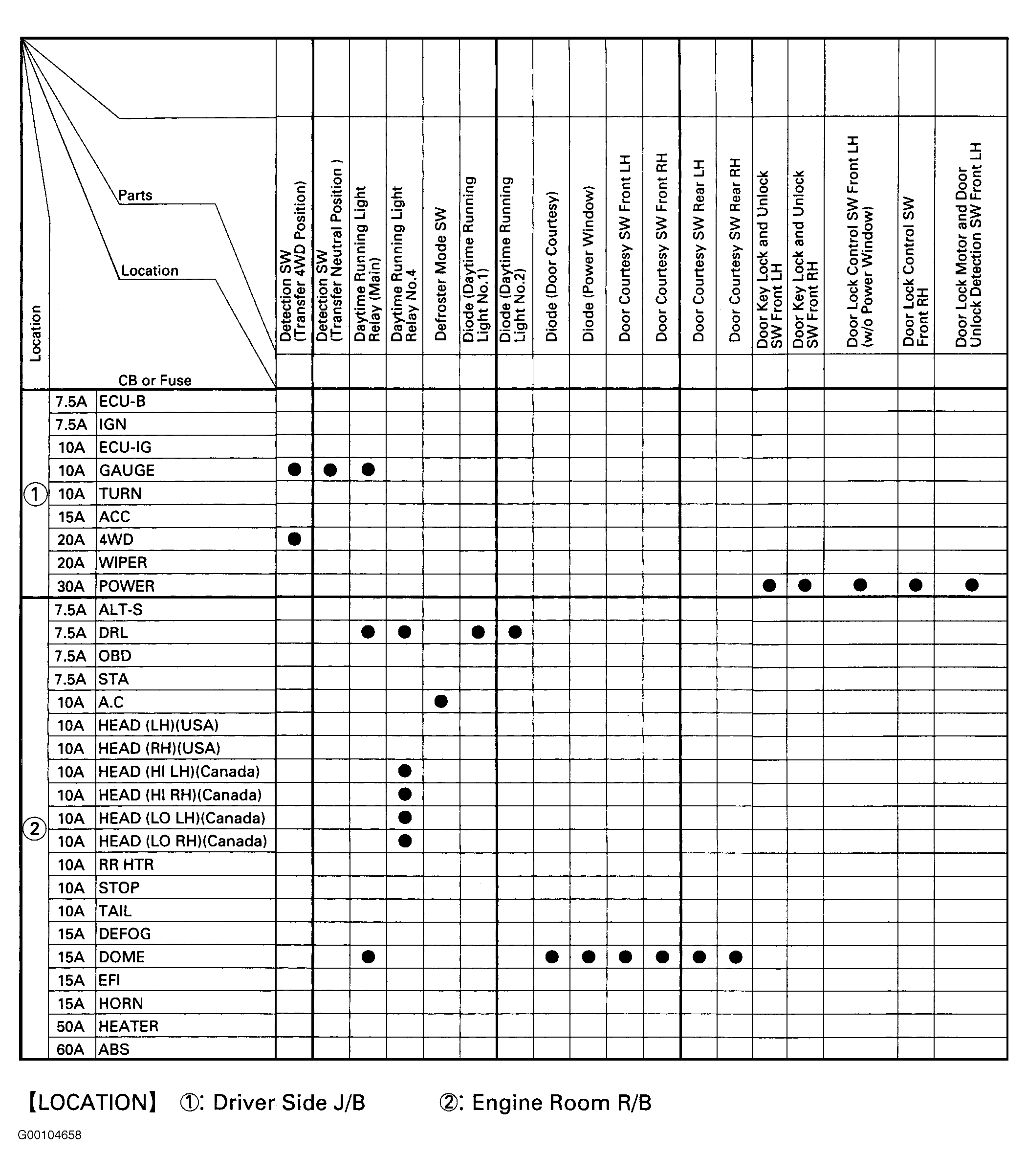

Fig 6: Power Source Legend (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Power Source Legend (7 Of 10)

Fig 8: Power Source Legend (8 Of 10)

Fig 9: Power Source Legend (9 Of 10)

Fig 10: Power Source Legend (10 Of 10)
