Home
>>
Toyota
>>
1997
>>
Tercel 2D Sedan, Standard
>>
Repair and Diagnosis
>>
Maintenance
>>
Procedures
>>
Maintenance Information
>>
Service Point Locations
Service Point Locations

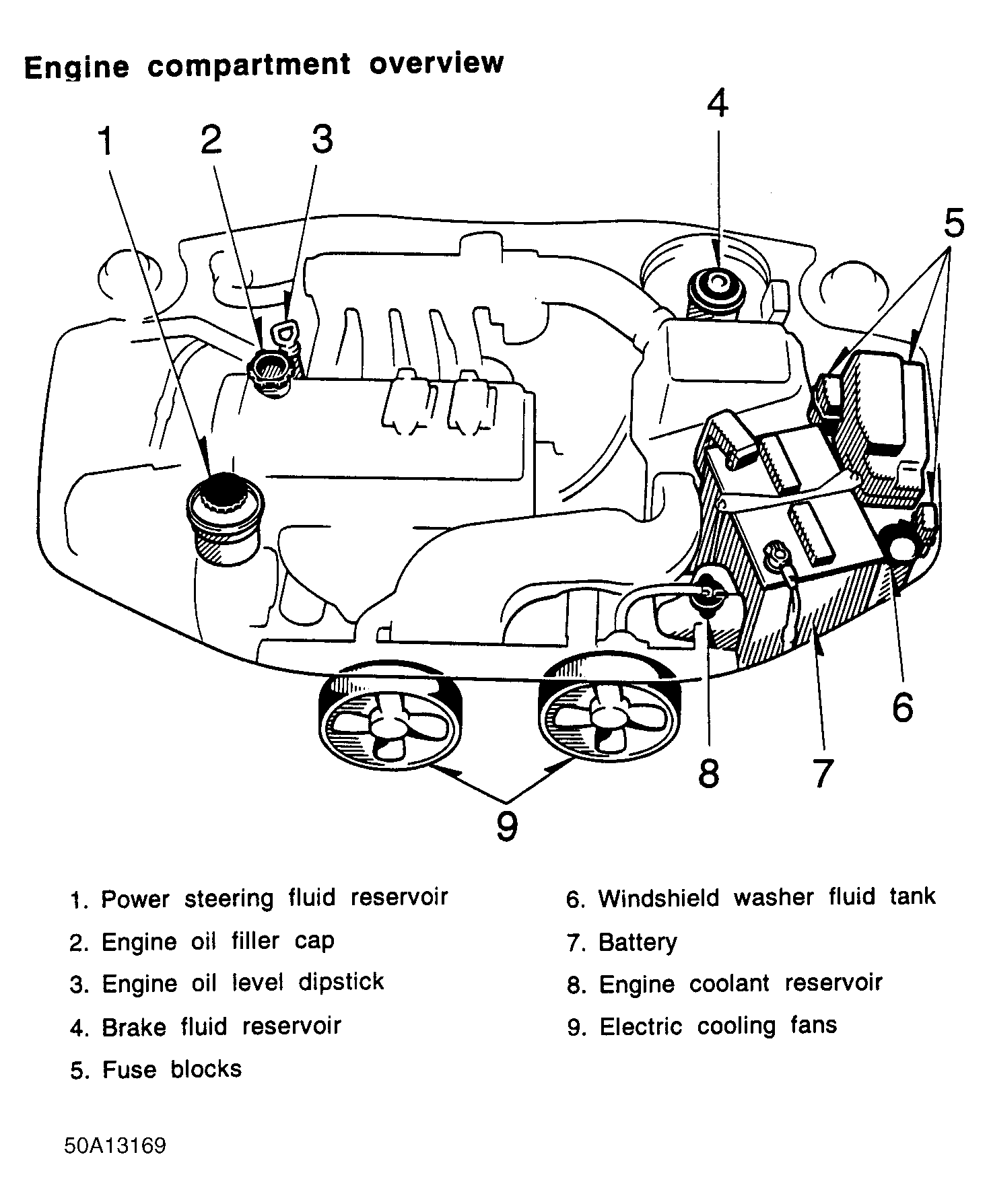

Fig 1: Service Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

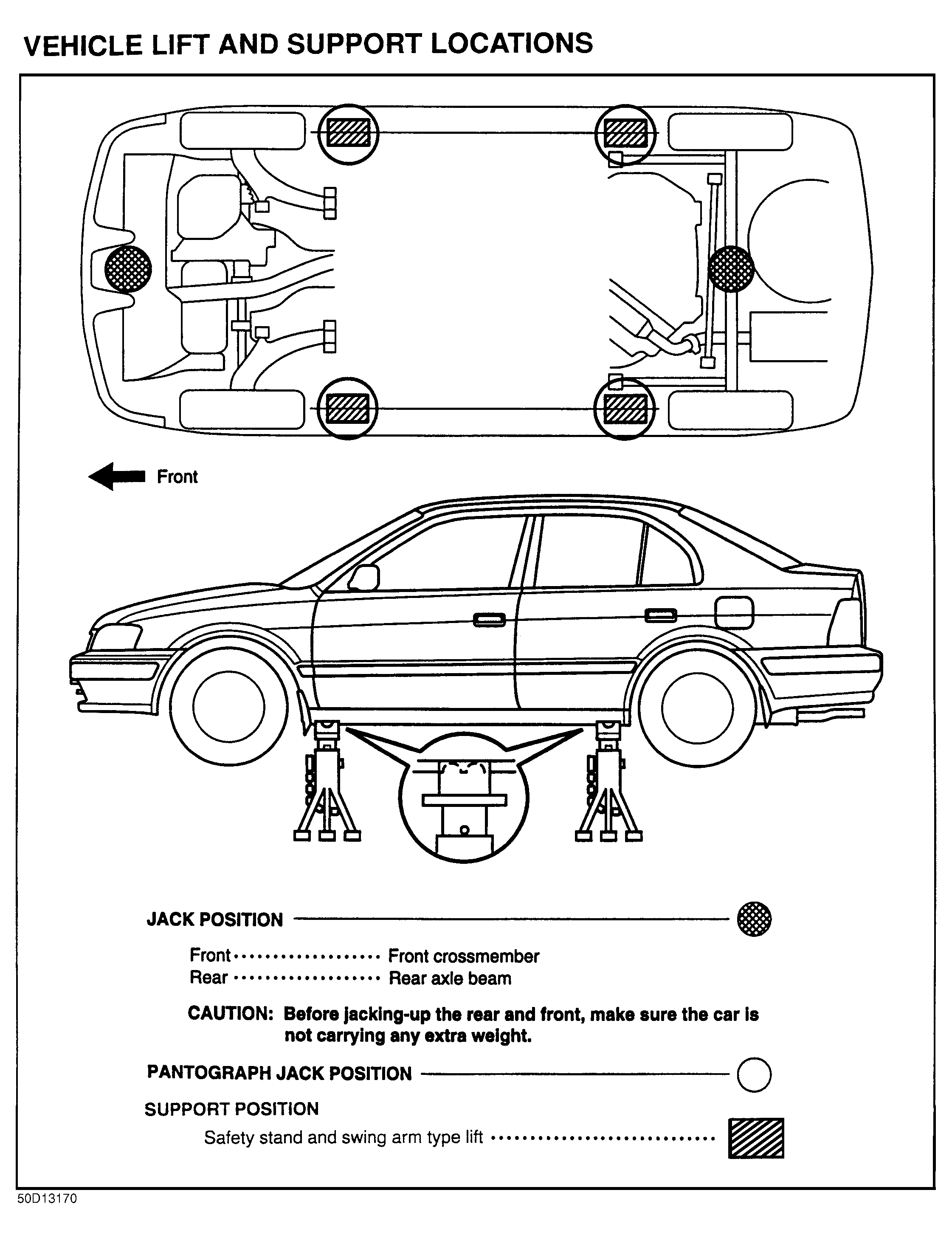

Fig 2: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
