Fuel Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse removal procedure using NEW gasket. Tighten fuel pump mounting bracket-to-fuel tank bolts to specification. See TORQUE SPECIFICATIONS .
  2. Operate fuel pump and check for fuel leaks. See FUEL PUMP OPERATION under FUEL SYSTEM in BASIC TESTING - 3.4L article.

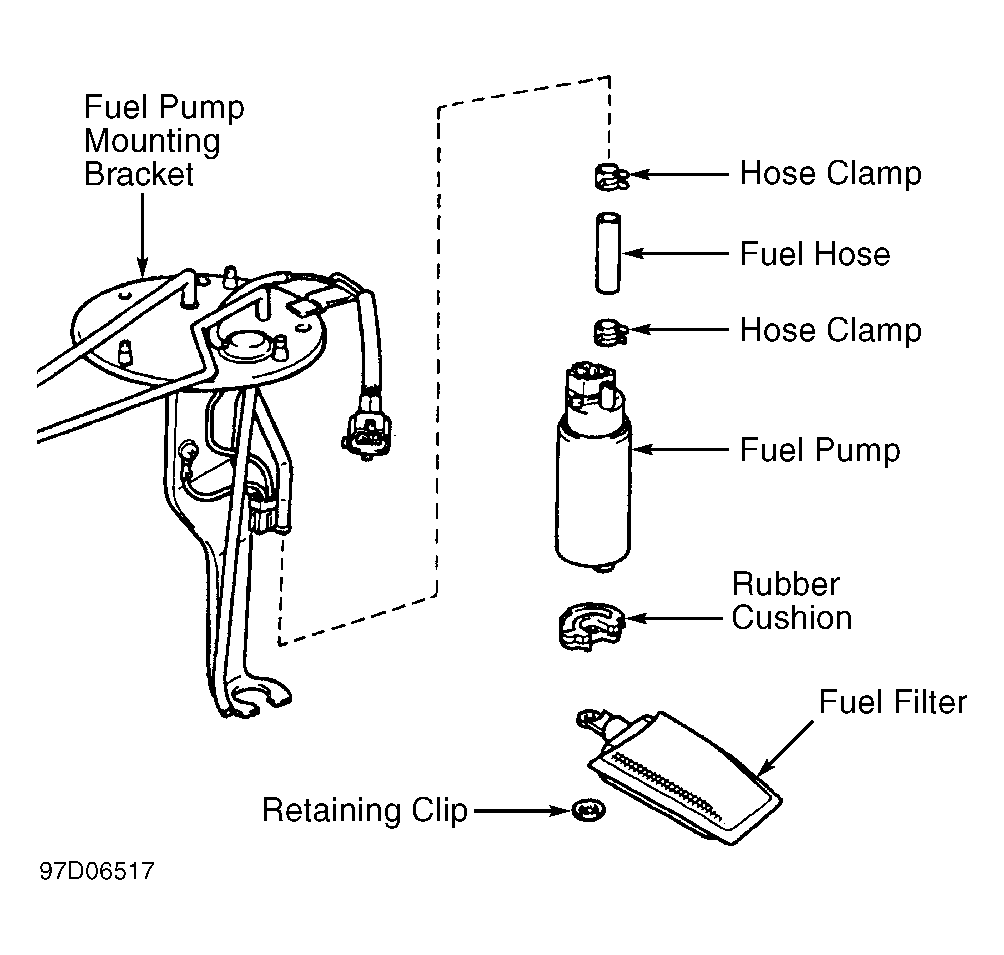

Fig 1: Exploded View Of Typical Fuel Pump & Components
G97D06517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
