Power Door Lock Control Relay/Integration Relay Circuit
NOTE:

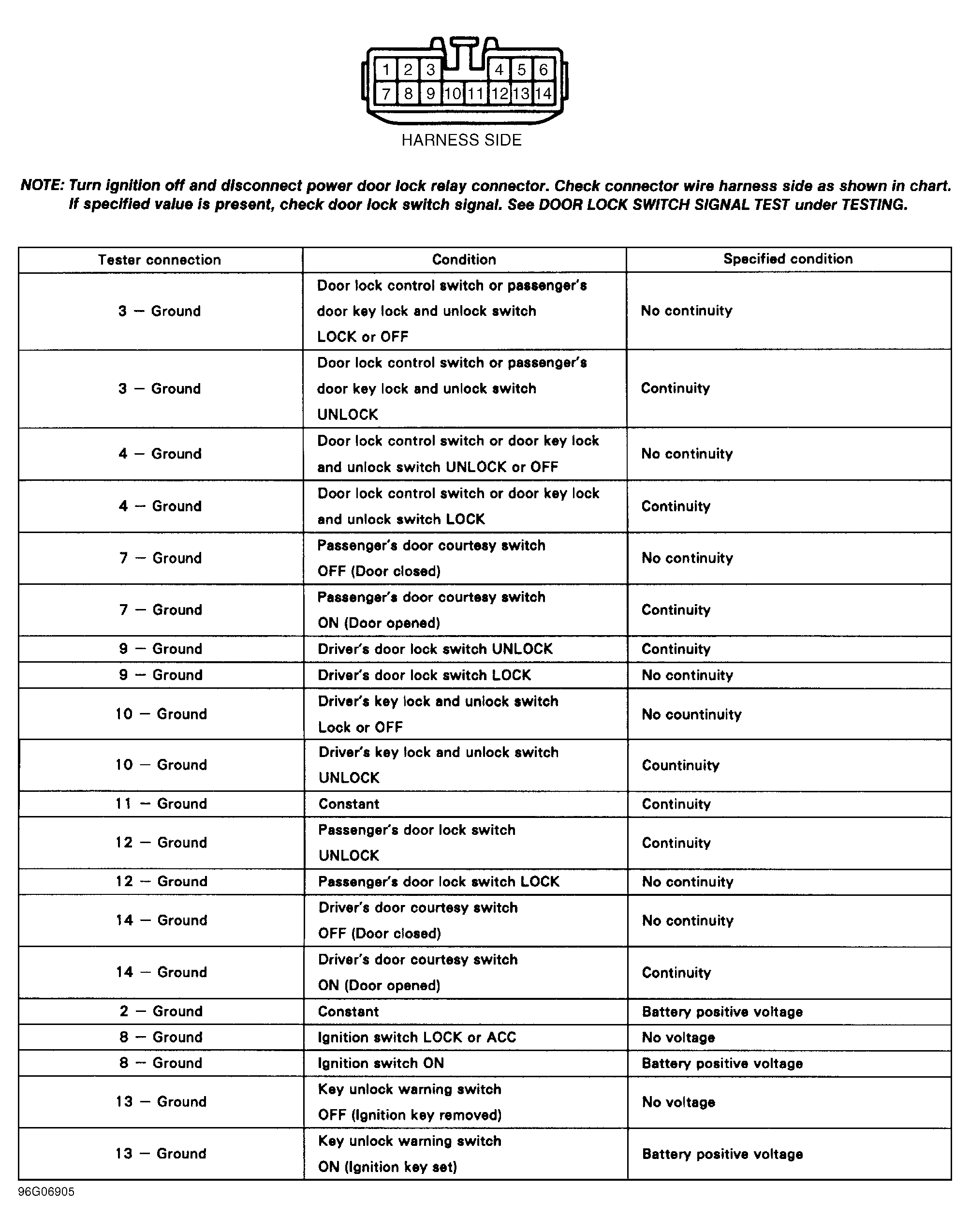

Power door lock control relay/integration relay circuit test charts are provided to pinpoint a malfunctioning circuit. Checking pin voltages at power door lock control relay/integration relay connectors will help determine if power door lock control relay/integration relay are receiving and sending proper voltage signals. Using test charts may also help determine if there is a short or open in harness or connectors.
NOTE:
Unless stated otherwise in testing procedures, perform all voltage tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance. Voltage readings may vary slightly due to battery condition or charging rate.
