Electrical Component Locator: Grounds

GROUNDS

Component Component Location
BF At left inner quarterpanel. See Figure.
BG At right inner quarterpanel. See Figure.

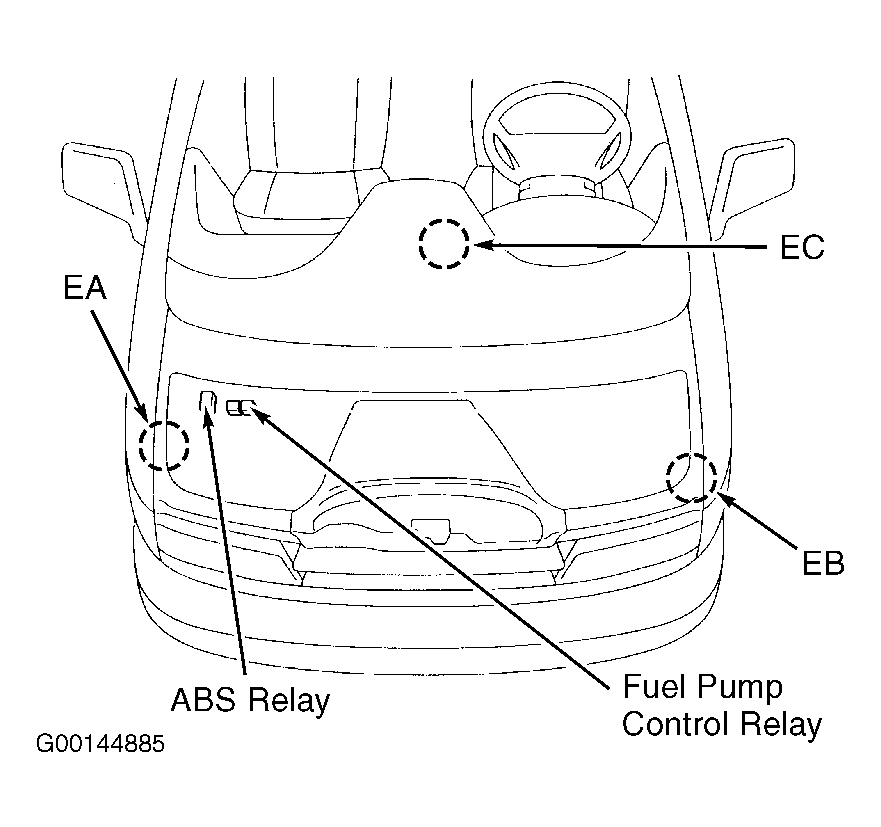

EA At front of right fender. See Figure.
EB At front of left fender. See Figure.
EC At intake manifold. See Figure.
ID At left side of dash reinforcement. See Figure.
IE At right side of dash reinforcement. See Figure.
