Trouble Shooting
NOTE:

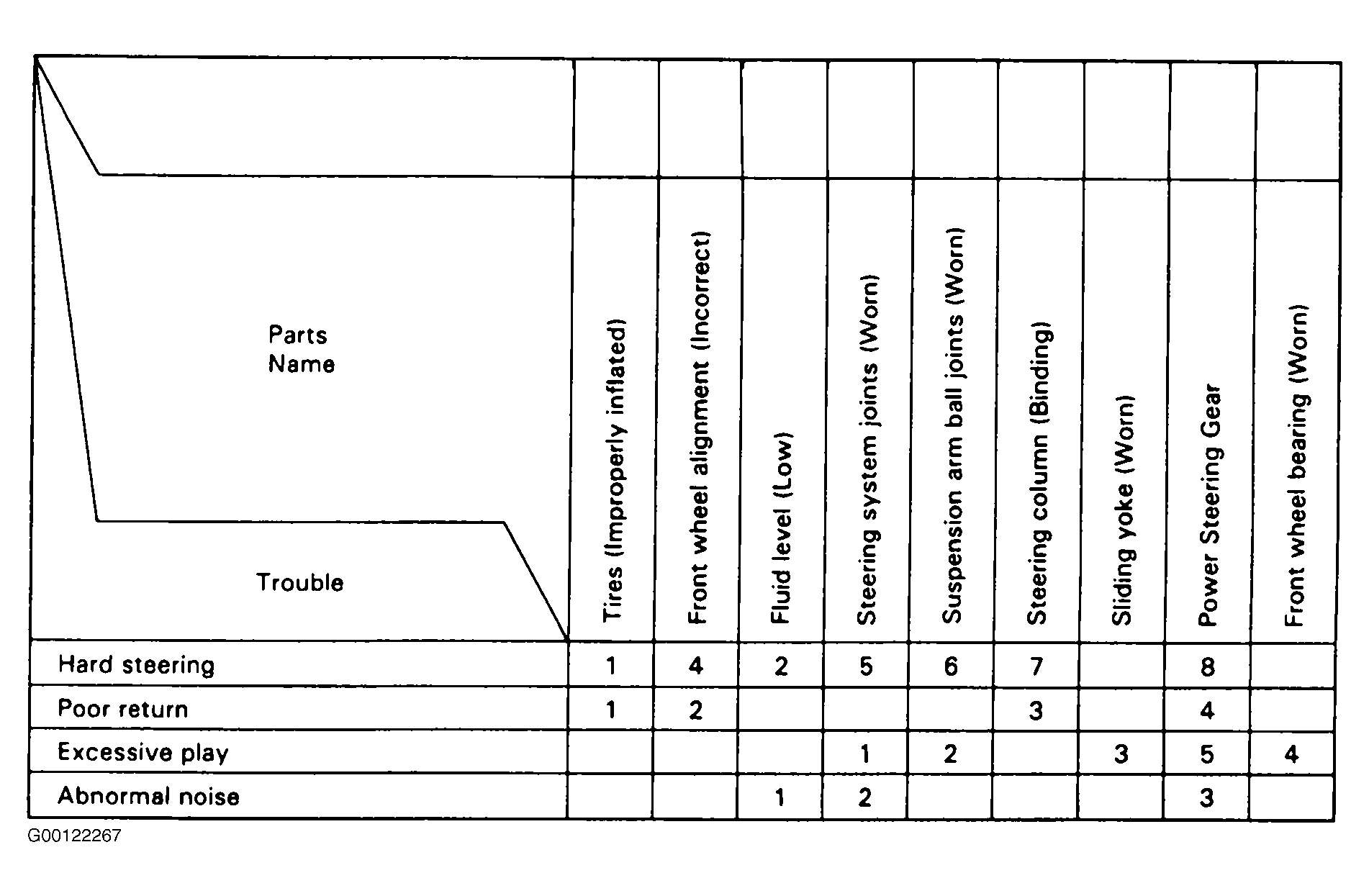

Using the trouble shooting chart will assist in finding the cause of the problem. See Fig 1. The numbers indicate the priority of the likely cause of the problem. Check each component in order. Repair or replace components as necessary.
