Home >> Toyota >> 1997 >> Land Cruiser >> Repair and Diagnosis >> Steering >> Power Steering >> Overhaul >> Steering Gear >> Notes

Steering Gear: Notes

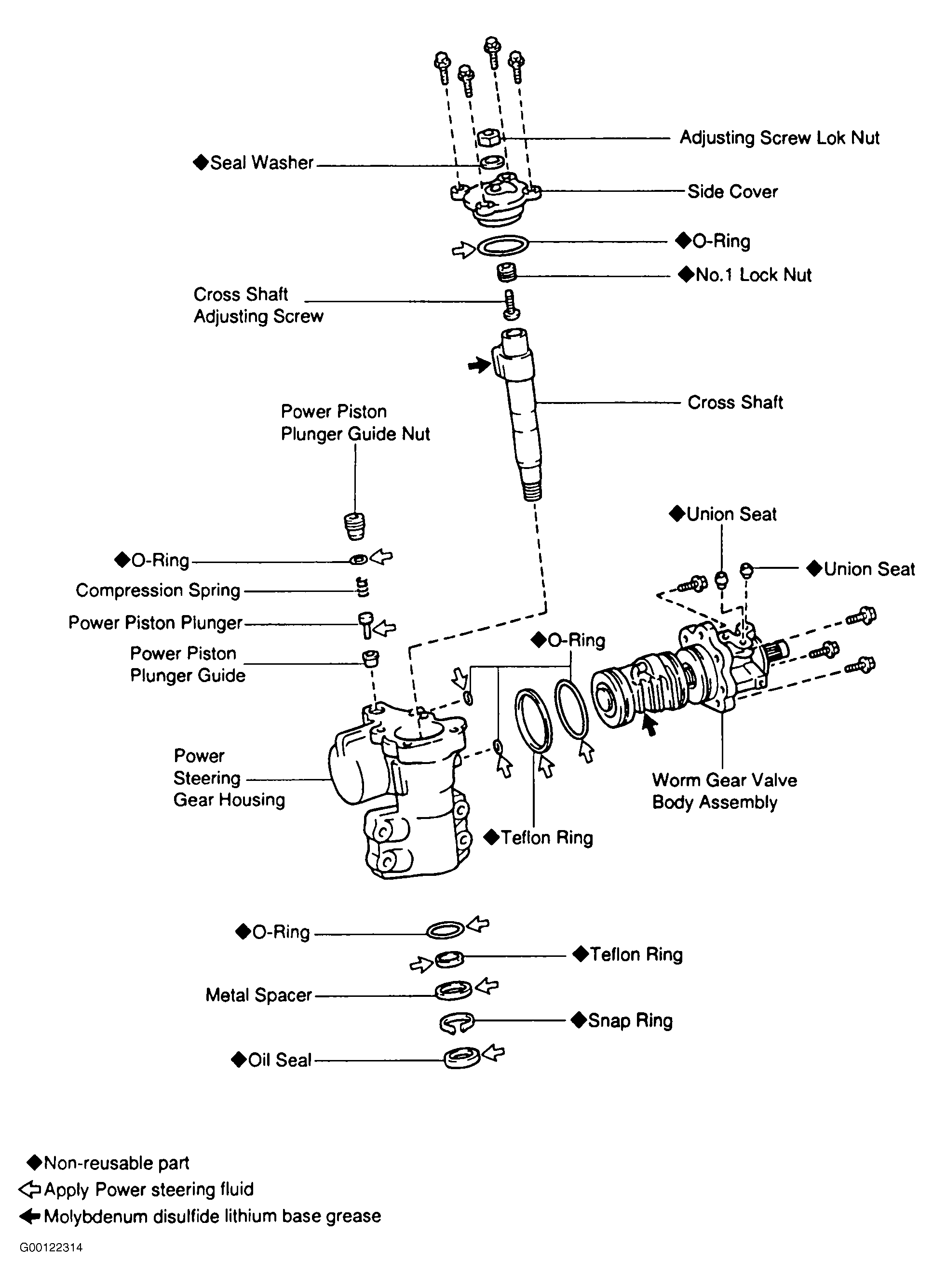

Fig 1: Exploded View Of Power Steering Gear

G00122314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
