Test No. 14: Trouble Code Circuit

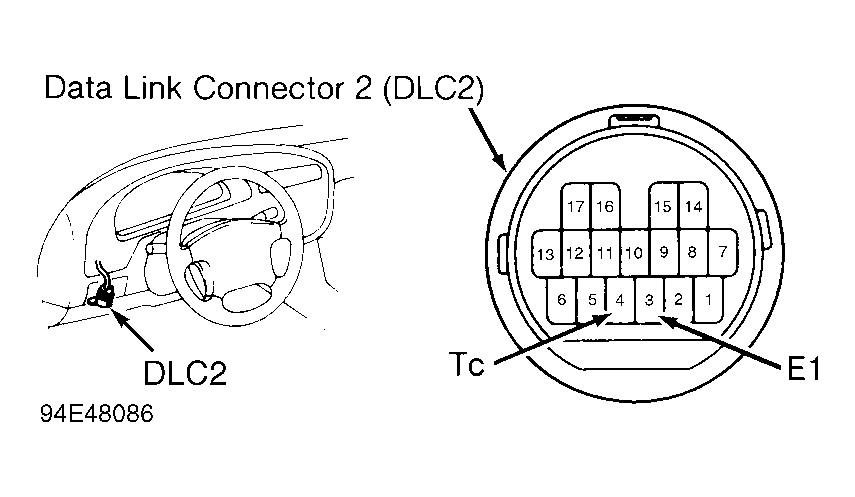

  1. Locate Data Link Connector 2 (DLC2) below left side of steering column. See Figure. Connect voltmeter positive lead to terminal Tc and negative lead to terminal E1. See Figure. Turn ignition switch to ON position and ensure battery voltage exists between terminals. If voltage is as specified, go to test for next trouble code displayed or appropriate symptom under TROUBLE SHOOTING BY SYMPTOM  under TROUBLE SHOOTING.
  2. If battery voltage does not exist, ensure no short or open exists in harness or connectors between CC ECU and DLC2 or between DLC2 and ground. If harness and connectors are okay, check CC ECU. See PIN VOLTAGE TESTS . If found to be defective, replace CC ECU and retest system.
