System Testing: Notes

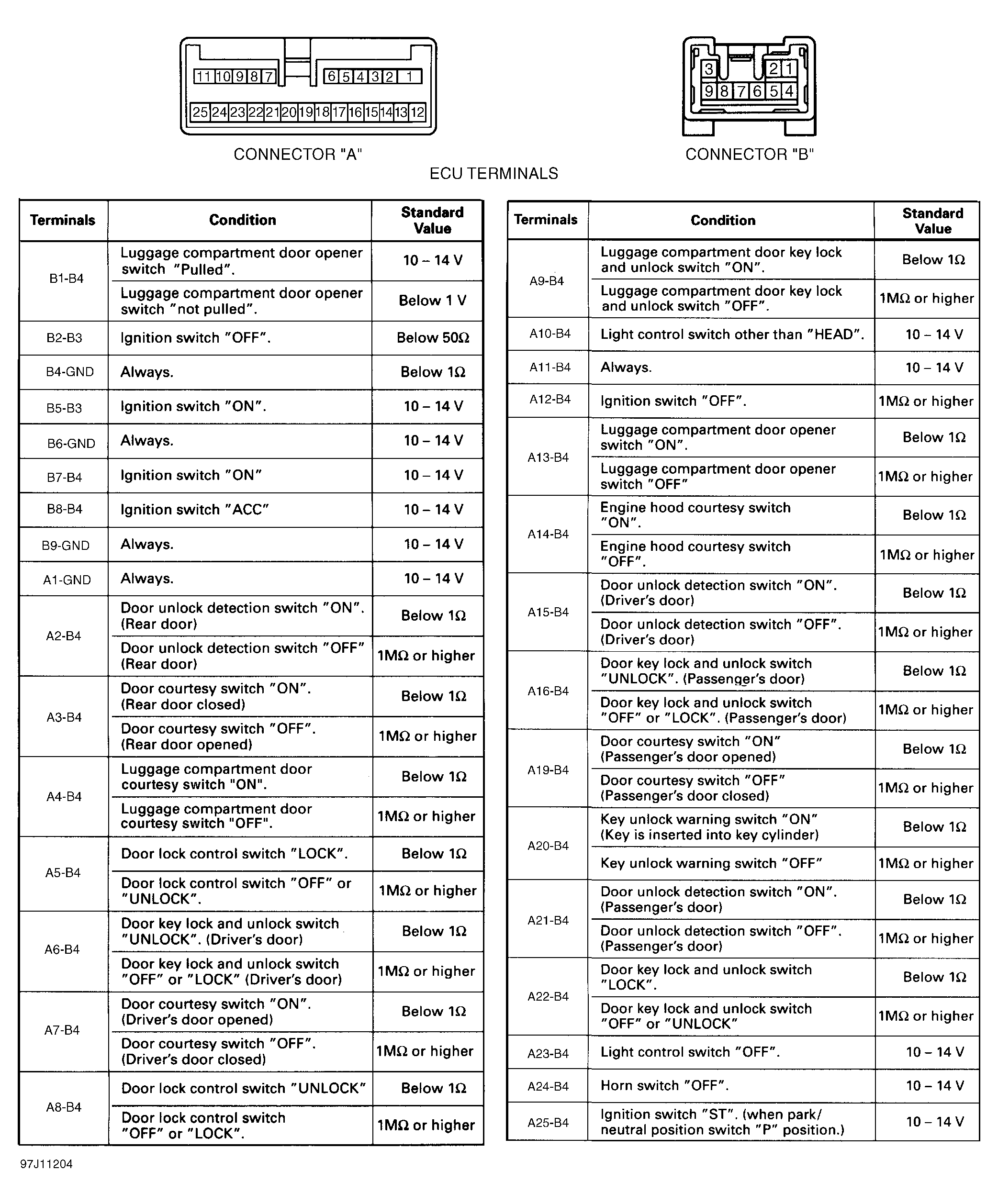

NOTE: Perform all tests using a volt-ohmmeter with a minimum 10-megohm input impedance. To identify ATS ECU connector terminals and for additional ATS ECU circuit testing, refer to illustration. See Figure.
