Pin Voltage Tests
WARNING: This page is about a different variant/trim than selected.

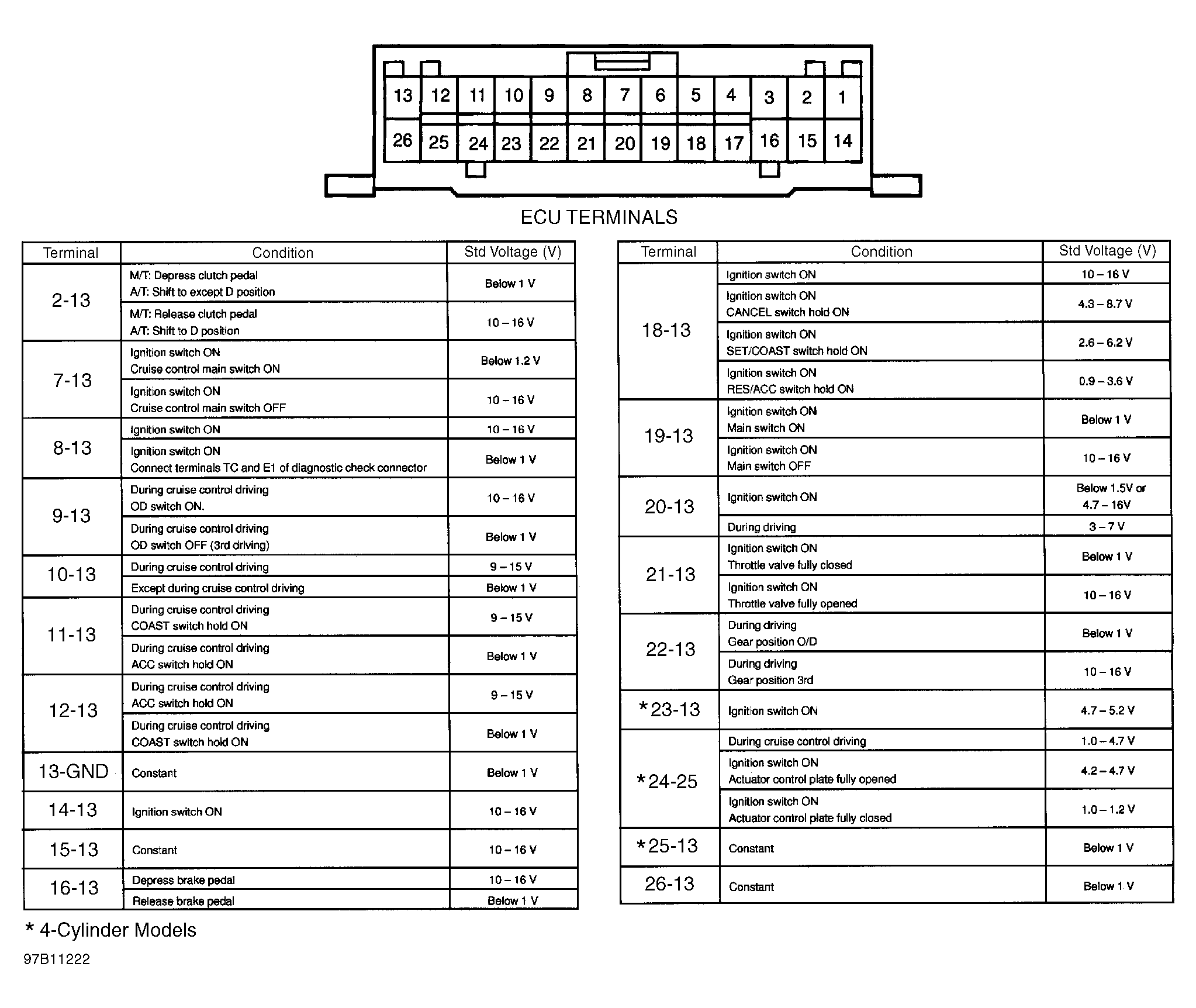

Use CC ECU pin testing chart to determine if CC ECU is malfunctioning. Remove CC ECU with 26-pin connector connected. Test CC ECU voltages by backprobing CC ECU using a DVOM with ignition in ON position, unless otherwise specified. See Fig 1.
