Component Locations

NOTE: On vehicles equipped with anti-theft system, refer to illustrations for component locations. See Fig 1.

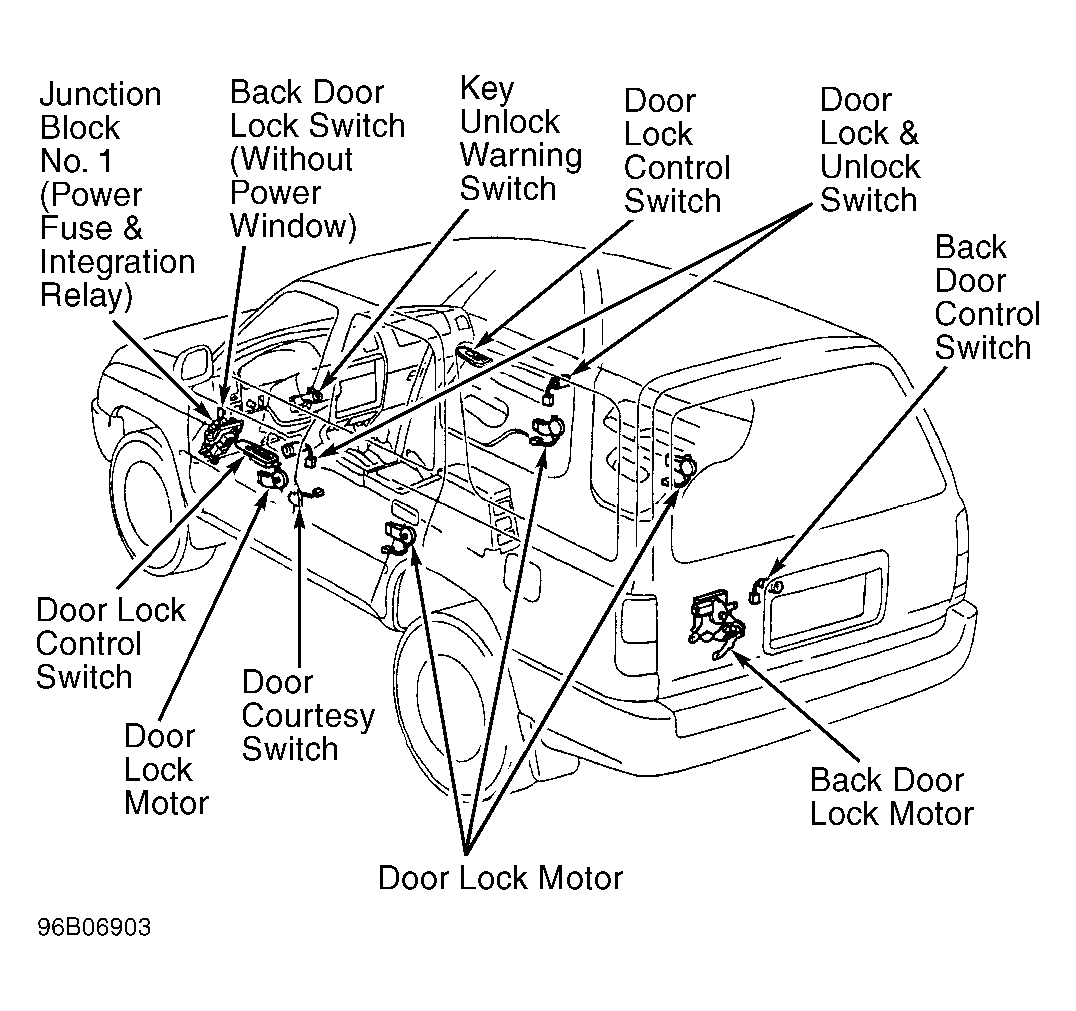

Fig 1: Locating Power Door Lock Components
G96B06903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
