Stoplight Switch Circuit

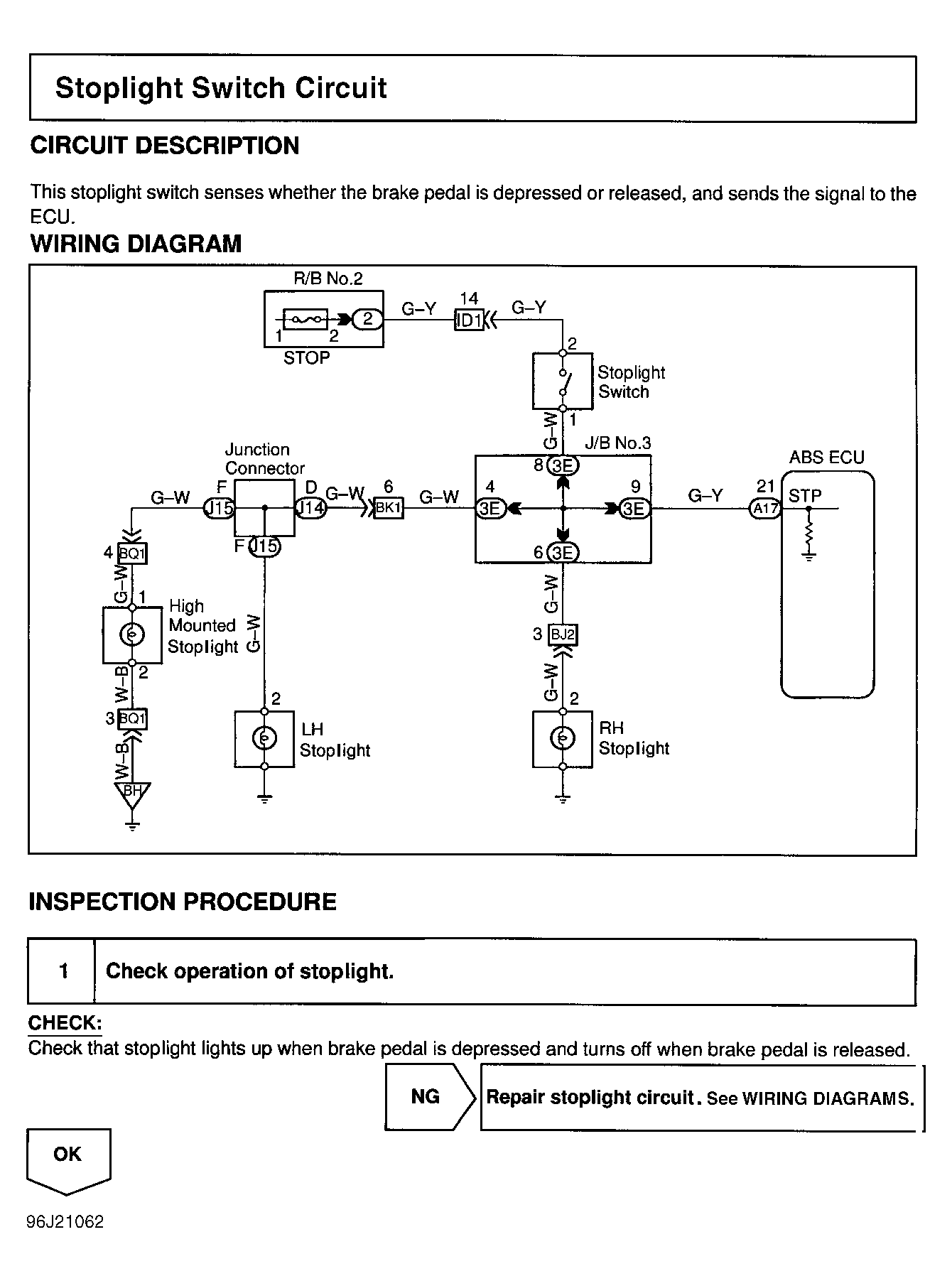

Fig 1: Stoplight Switch Circuit (1 Of 2)
G96J21062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

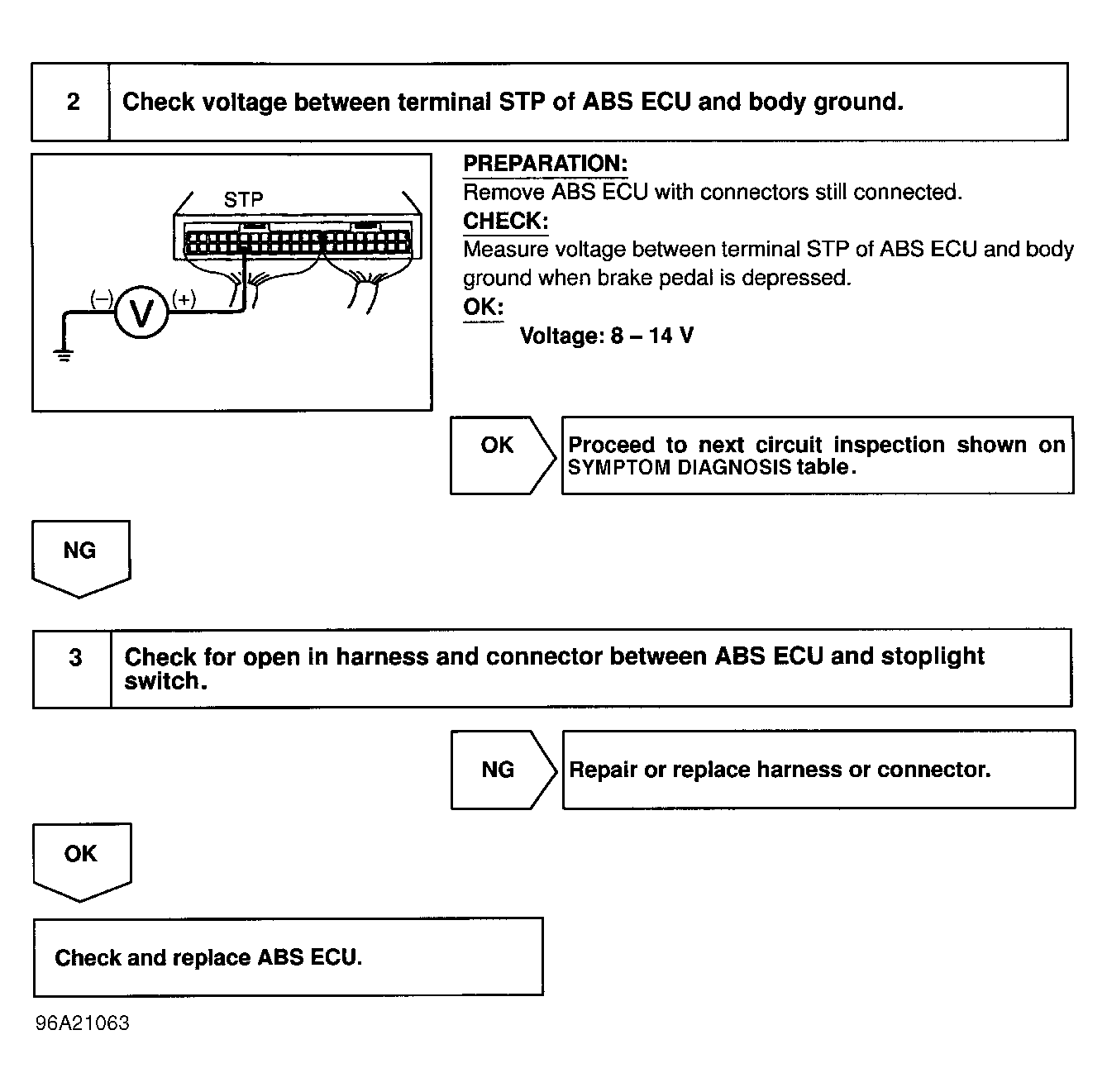

Fig 2: Stoplight Switch Circuit (2 Of 2)
G96A21063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
