Power Window Relay (Back Door/Tailgate)

Disconnect 18-pin control relay connector, located inside back door/tailgate. Using a Digital Volt-Ohmmeter (DVOM), check each circuit individually using test chart. See Fig 1. If after testing all control relay circuits, values are as specified and back door/tailgate window does not operate properly, replace back door/tailgate relay and recheck operation.

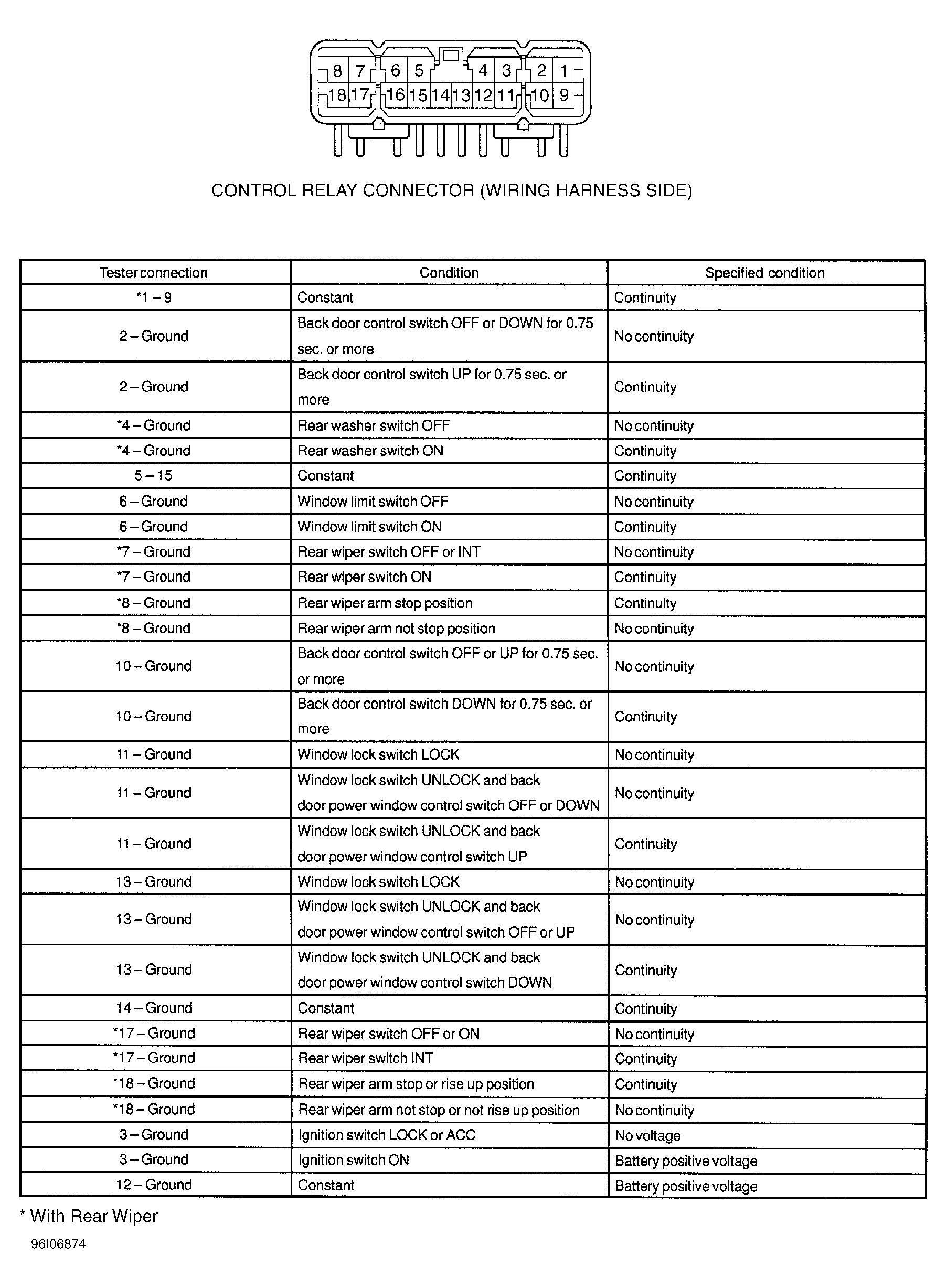

Fig 1: Back Door/Tailgate Control Relay Circuit Testing
G96I06874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
