Maintenance Information
>>
Service Point Locations
Service Point Locations

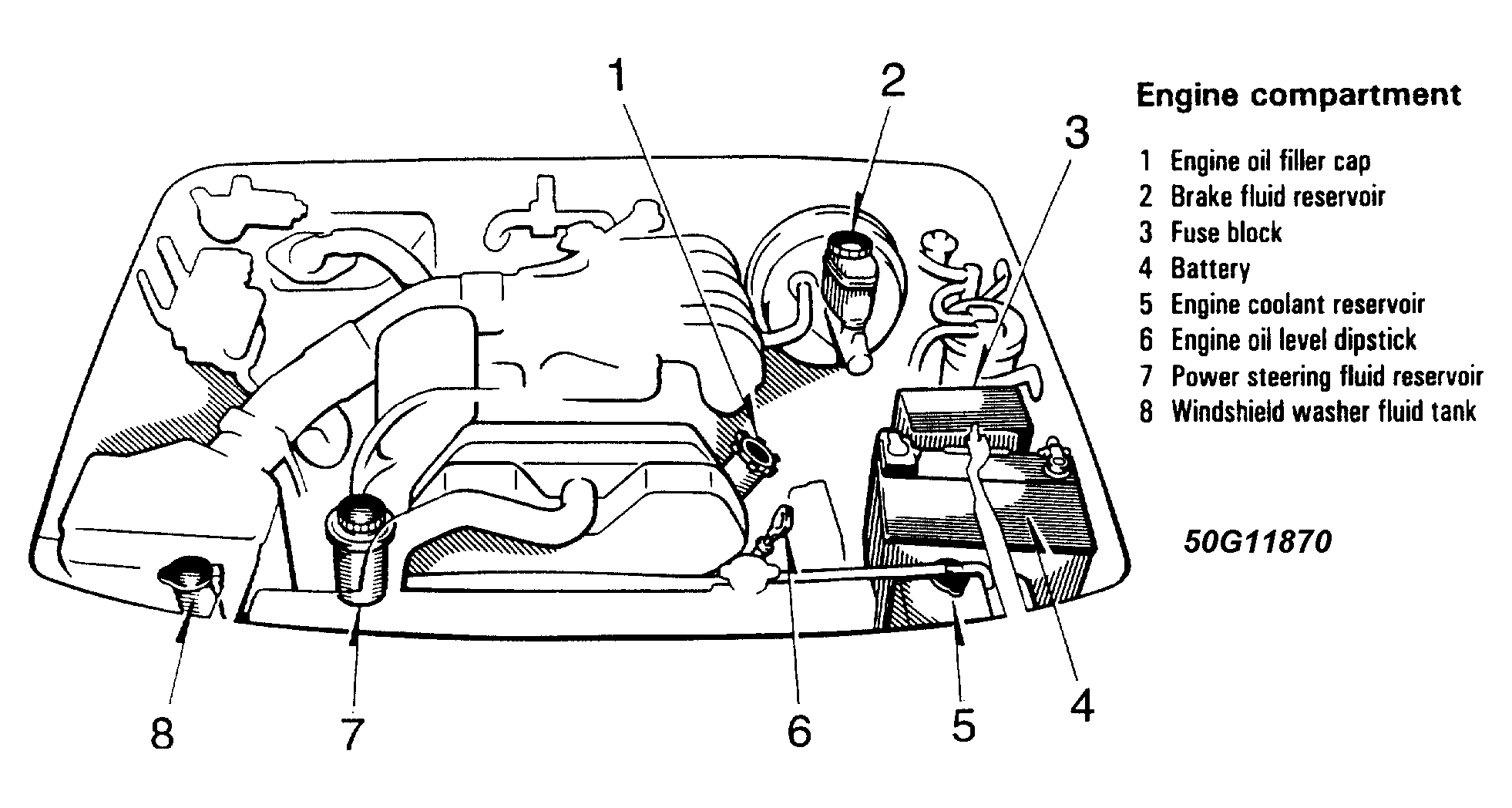

Fig 1: Service Point Locations (Typical 4-Cylinder) Yourtesy of Toyota Motor Sales, U.S.A., Inc.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Service Point Locations (3.4L V6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
