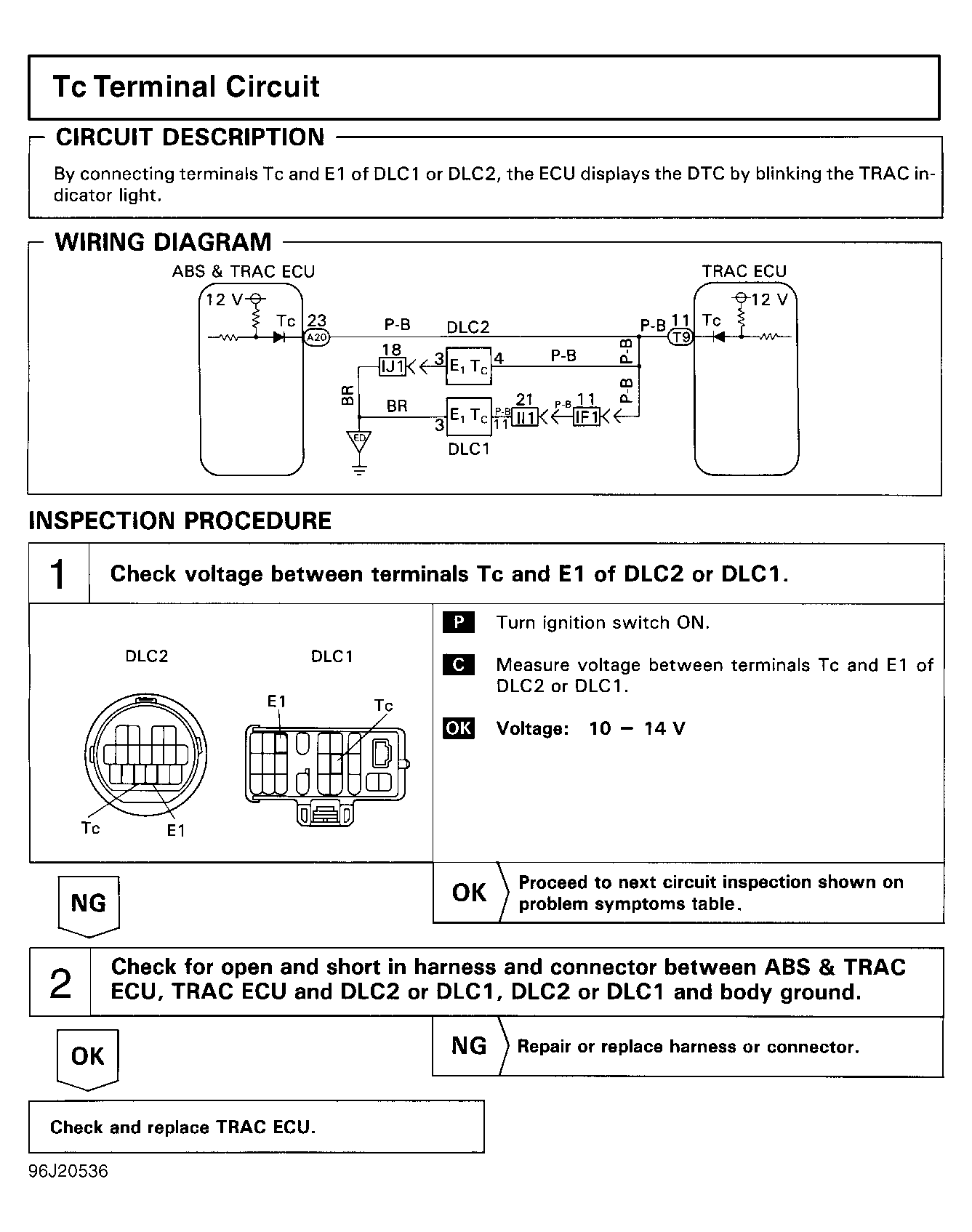

Tc TERMINAL CIRCUIT
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 24 | TRAC SUB-THROTTLE ACTUATOR CIRCUIT |
| DTC 25 & 26 | TRAC SUB-THROTTLE VALVE |
| DTC 31, 32, 33 & 34 | SPEED SENSOR CIRCUIT |
| DTC 41 | IG POWER SOURCE CIRCUIT |
| DTC 43 | ABS & TRAC ECU MALFUNCTION |
| DTC 44 | NE SIGNAL CIRCUIT |
| DTC 45 & 46 | MAIN THROTTLE POSITION SENSOR CIRCUIT |
| DTC 47 & 48 | SUB-THROTTLE POSITION SENSOR CIRCUIT |
| DTC 51 | ENGINE MALFUNCTION DETECTION CIRCUIT |
| DTC 53 | ECM COMMUNICATION CIRCUIT MALFUNCTION |
| DTC 61 | ABS & TRAC ECU COMMUNICATION CIRCUIT MALFUNCTION |
