Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

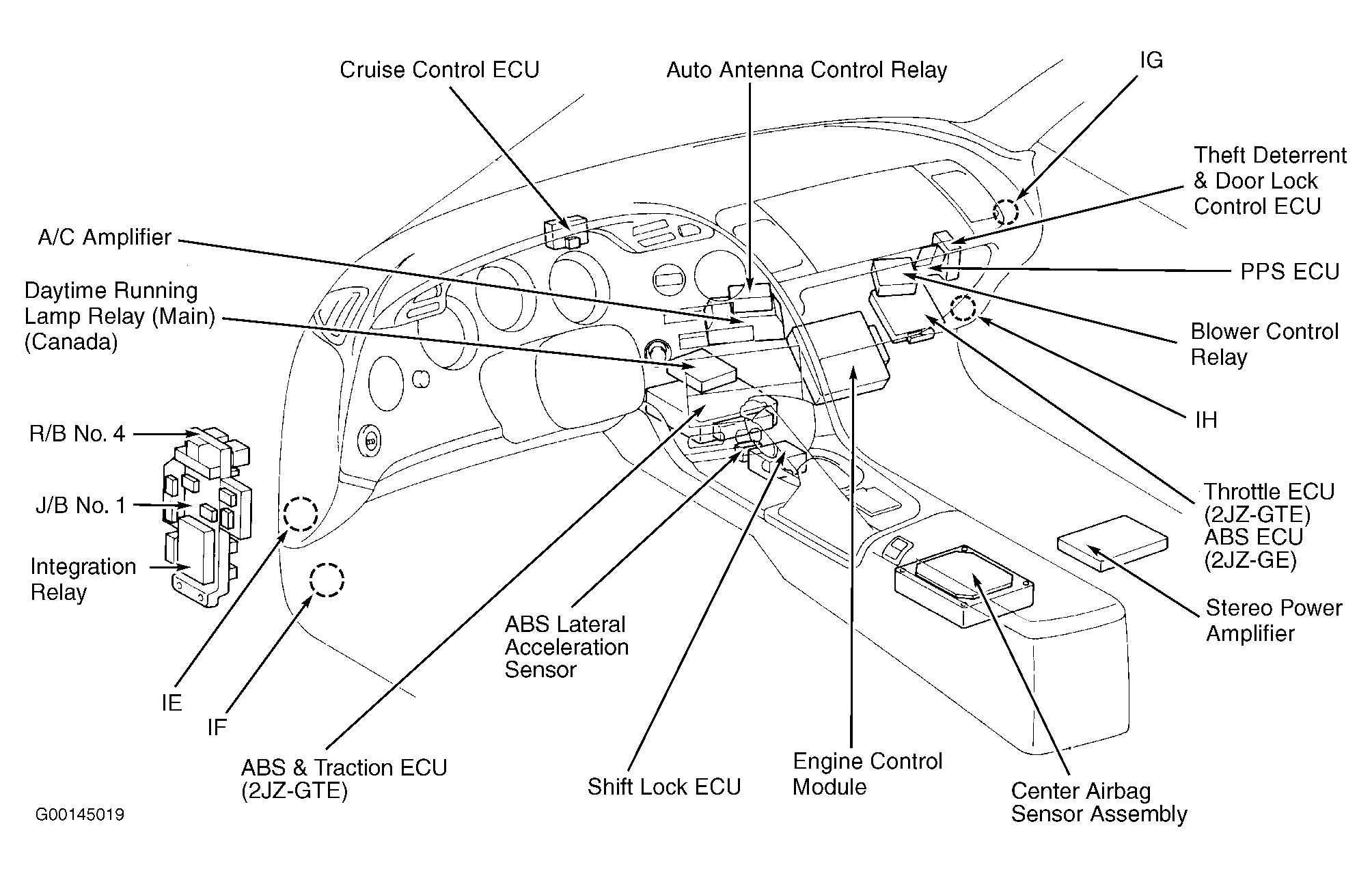

J/B No. 1 On left kick panel. See Figure.

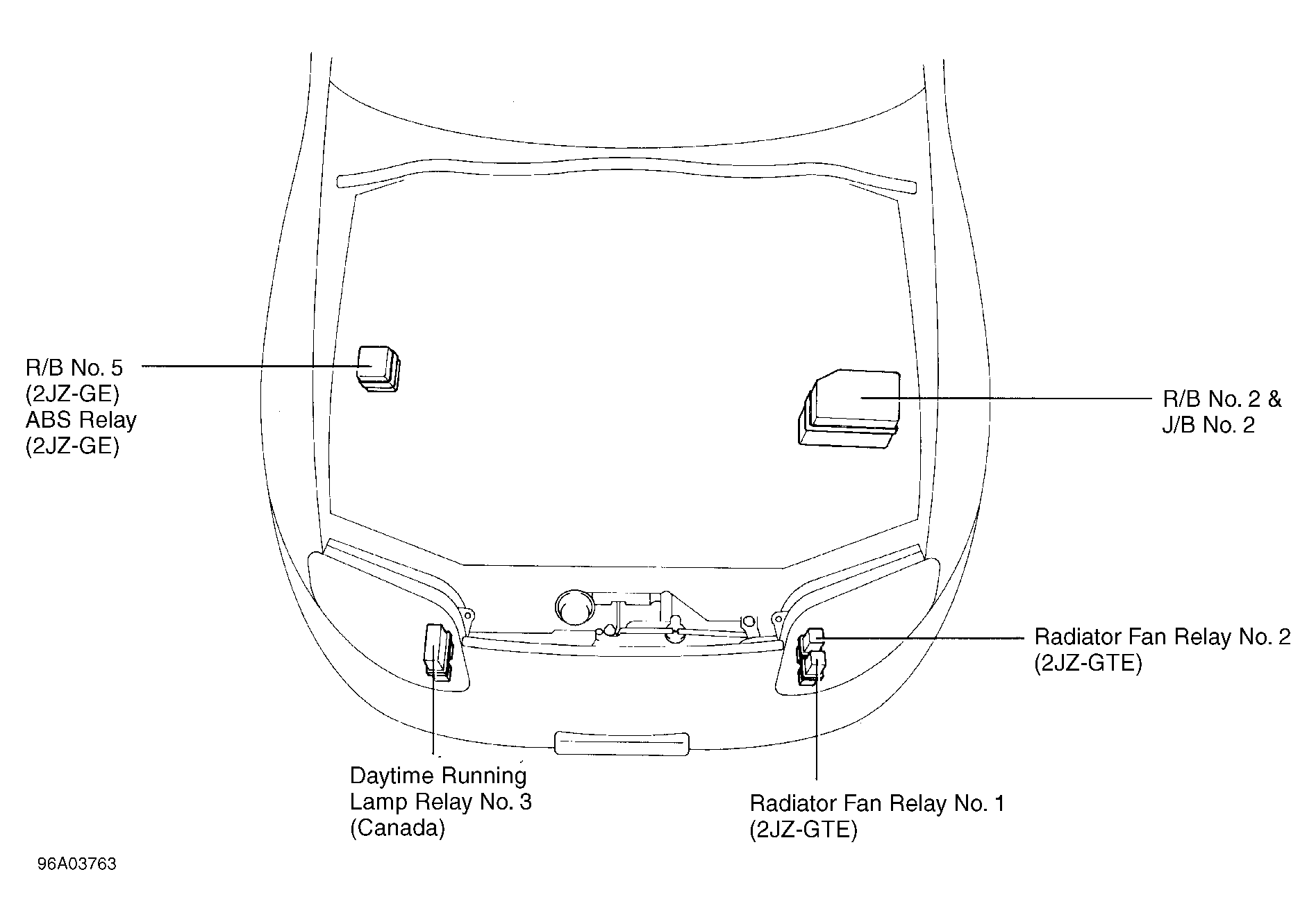

J/B No. 2 On left side of engine compartment. See Figure.
R/B No. 2 On left side of engine compartment. See Figure.
R/B No. 4 On top of J/B No. 1. See Figure.
R/B No. 5 On right side of engine compartment. See Figure.
