Toyota
>>
1996
>>
Supra 3.0 D, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Circuit Tests
>>
DTC 44: Lateral Acceleration Sensor Circuit
DTC 44: Lateral Acceleration Sensor Circuit

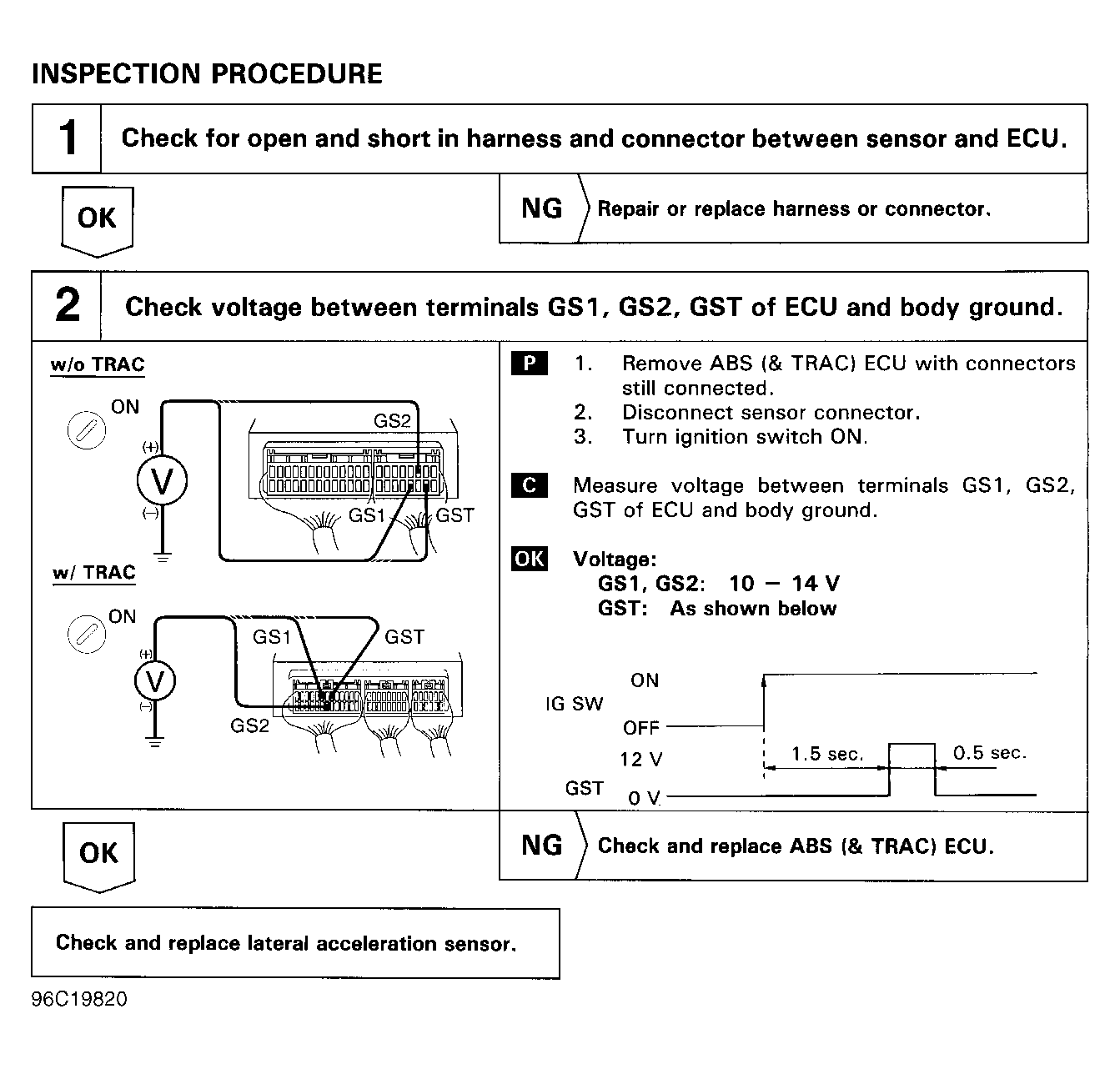

Fig 1: DTC 44 LATERAL ACCELERATION SENSOR CIRCUIT (1 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

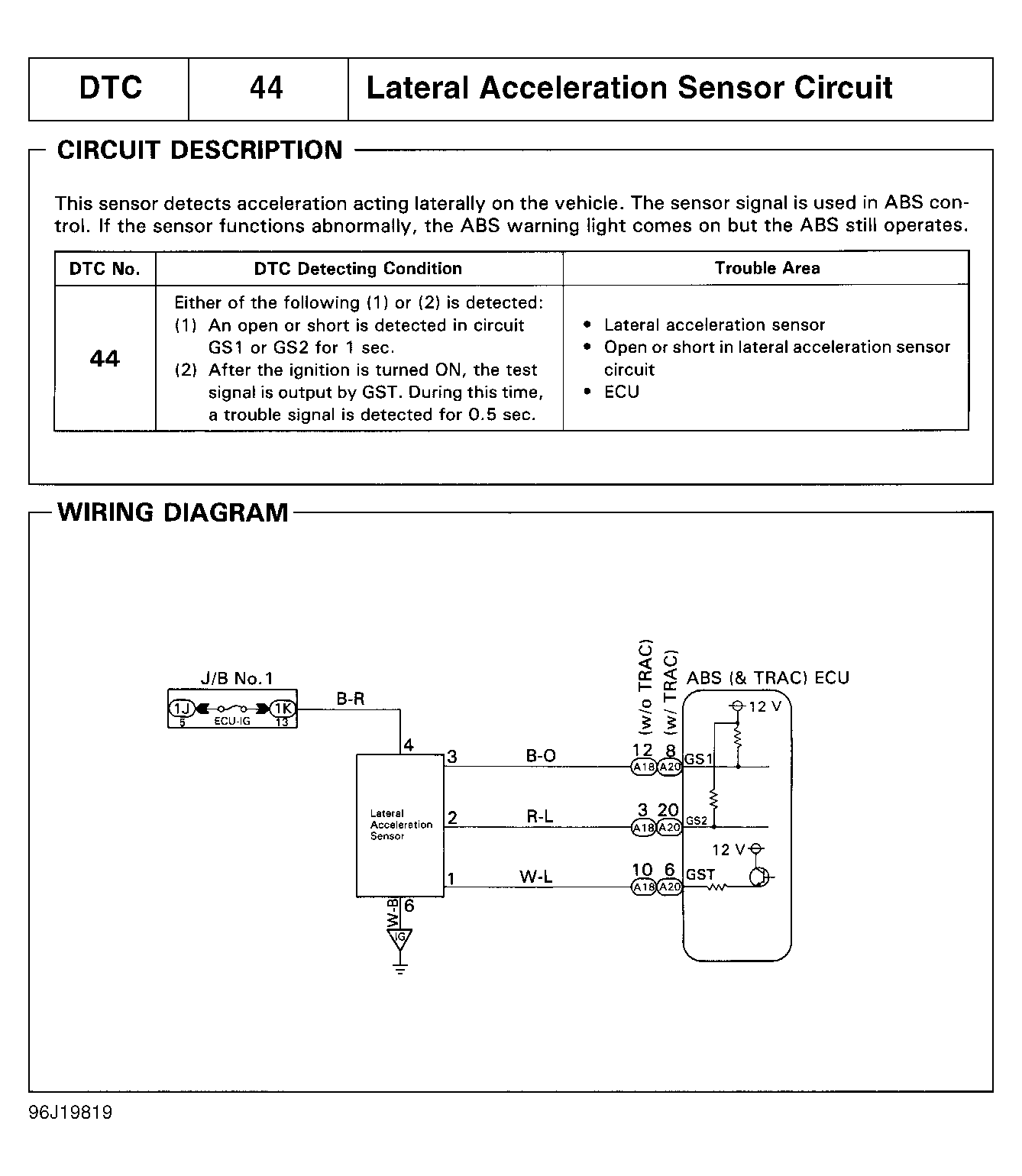

Fig 2: DTC 44 LATERAL ACCELERATION SENSOR CIRCUIT (2 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
