Supra 3.0 D, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Circuit Tests
>>
DTC 41: IG Power Source Circuit
DTC 41: IG Power Source Circuit

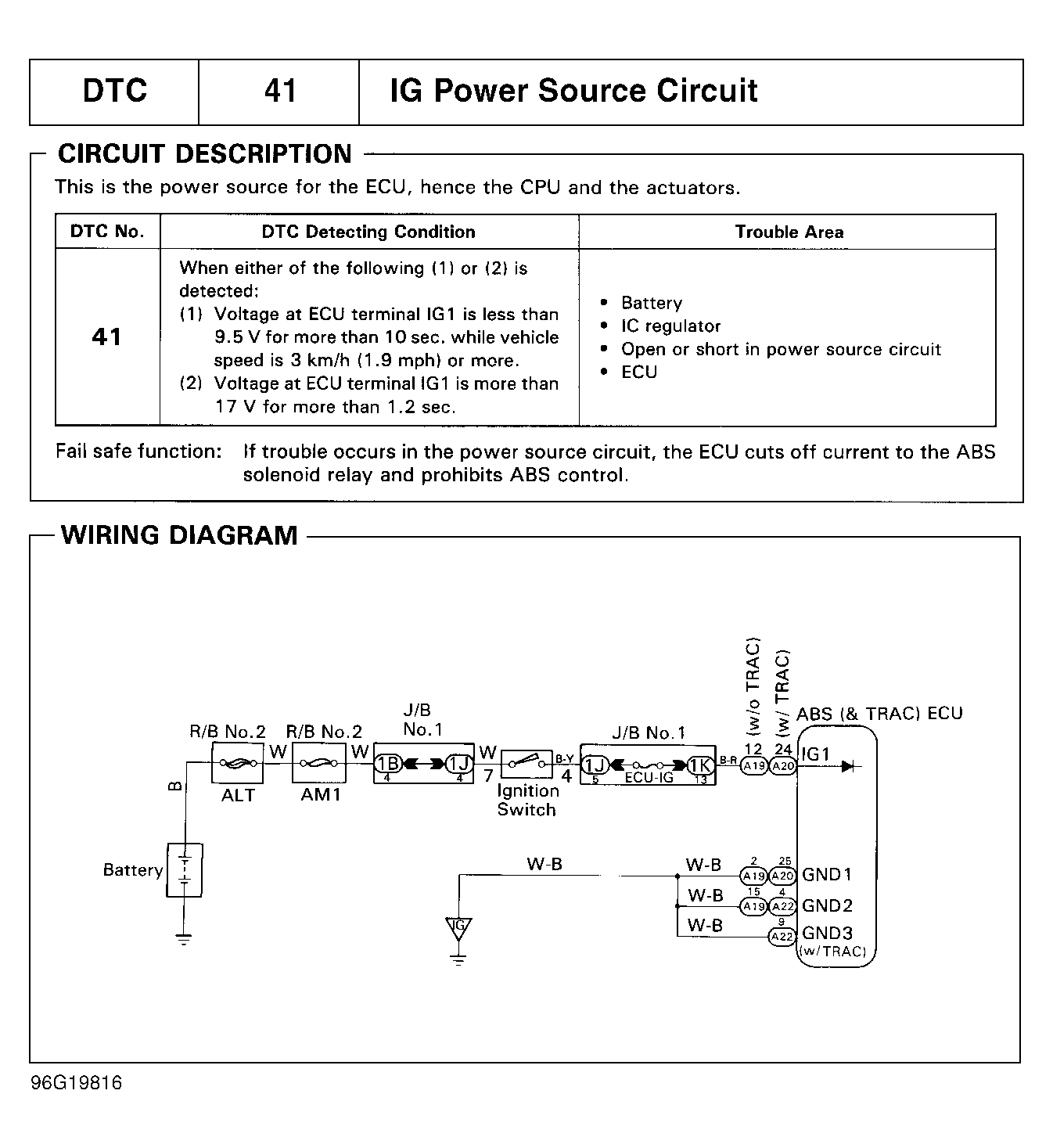

Fig 1: DTC 41 IG POWER SOURCE CIRCUIT (1 OF 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

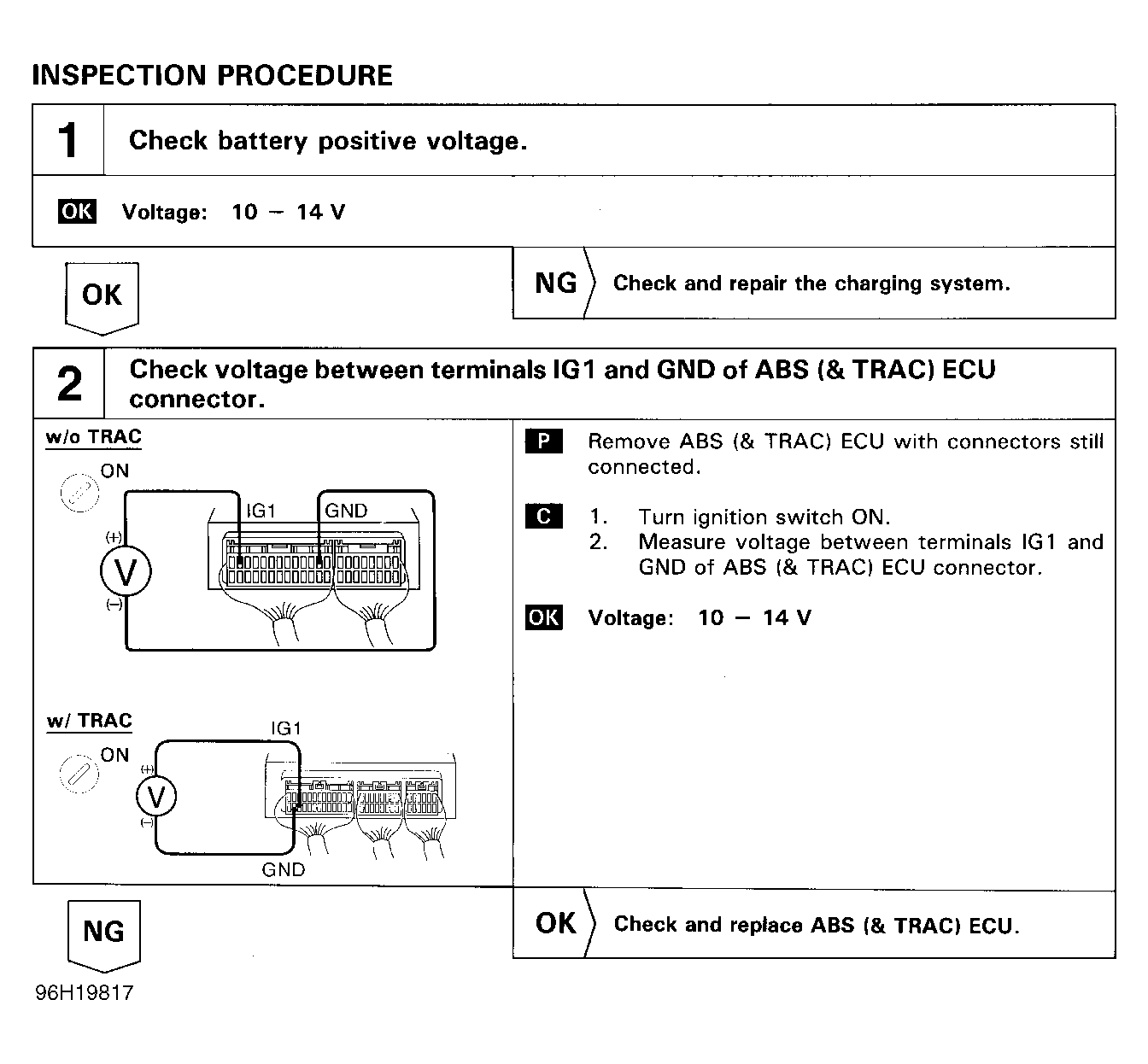

Fig 2: DTC 41 IG POWER SOURCE CIRCUIT (2 OF 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

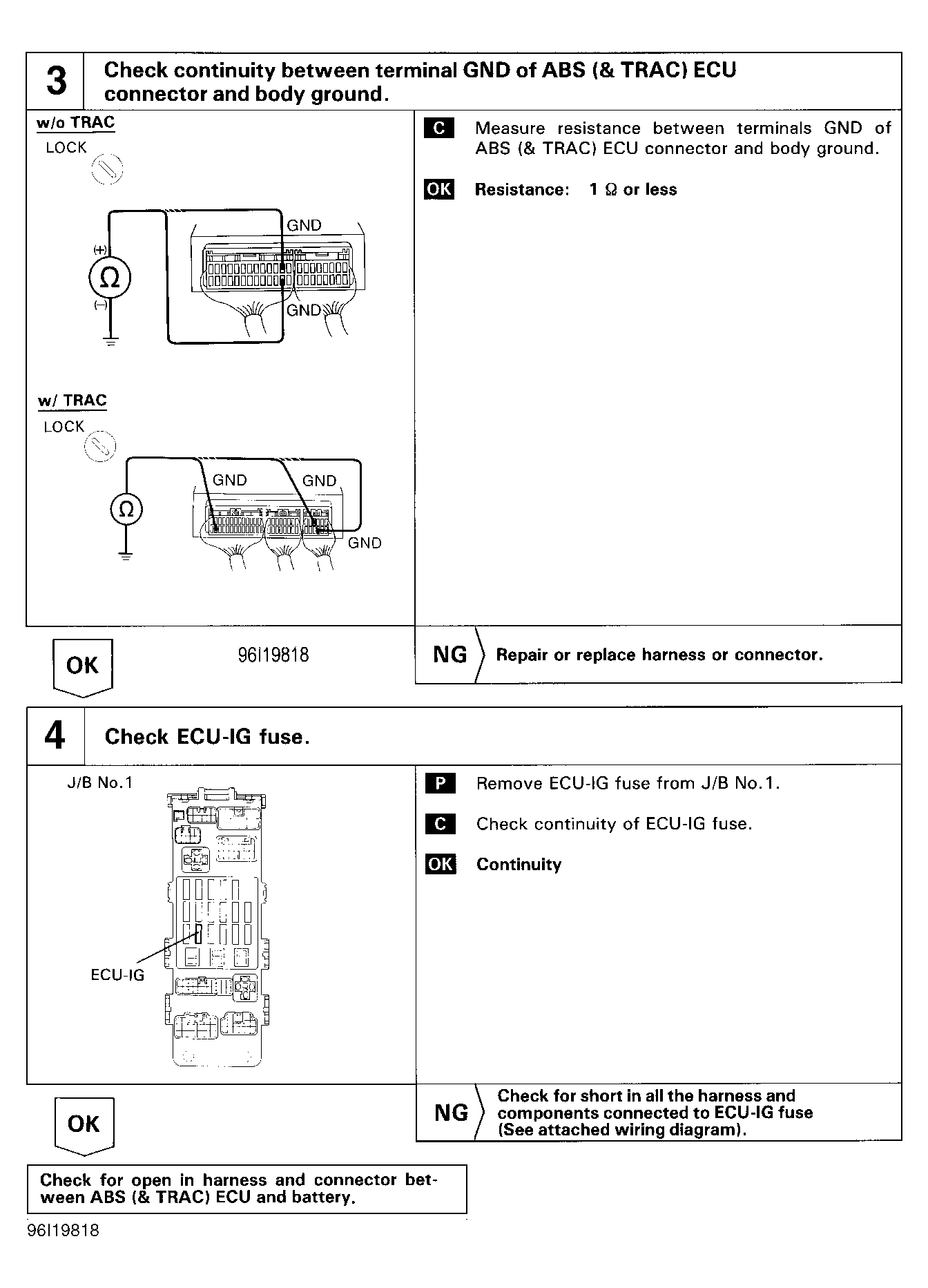

Fig 3: DTC 41 IG POWER SOURCE CIRCUIT (3 OF 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
