Stoplight Switch Circuit

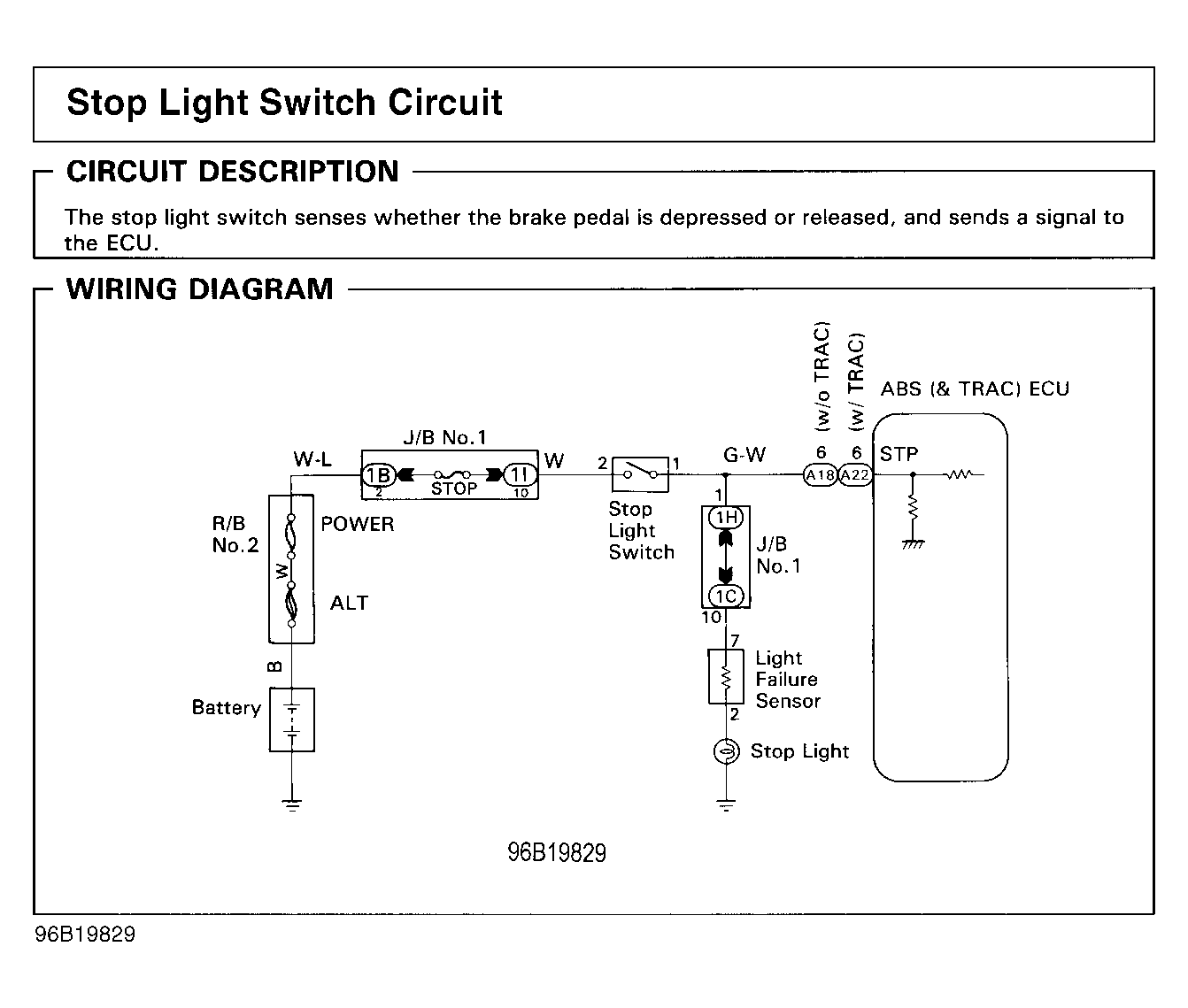

Fig 1: STOPLIGHT SWITCH CIRCUIT (1 OF 2)
G96B19829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

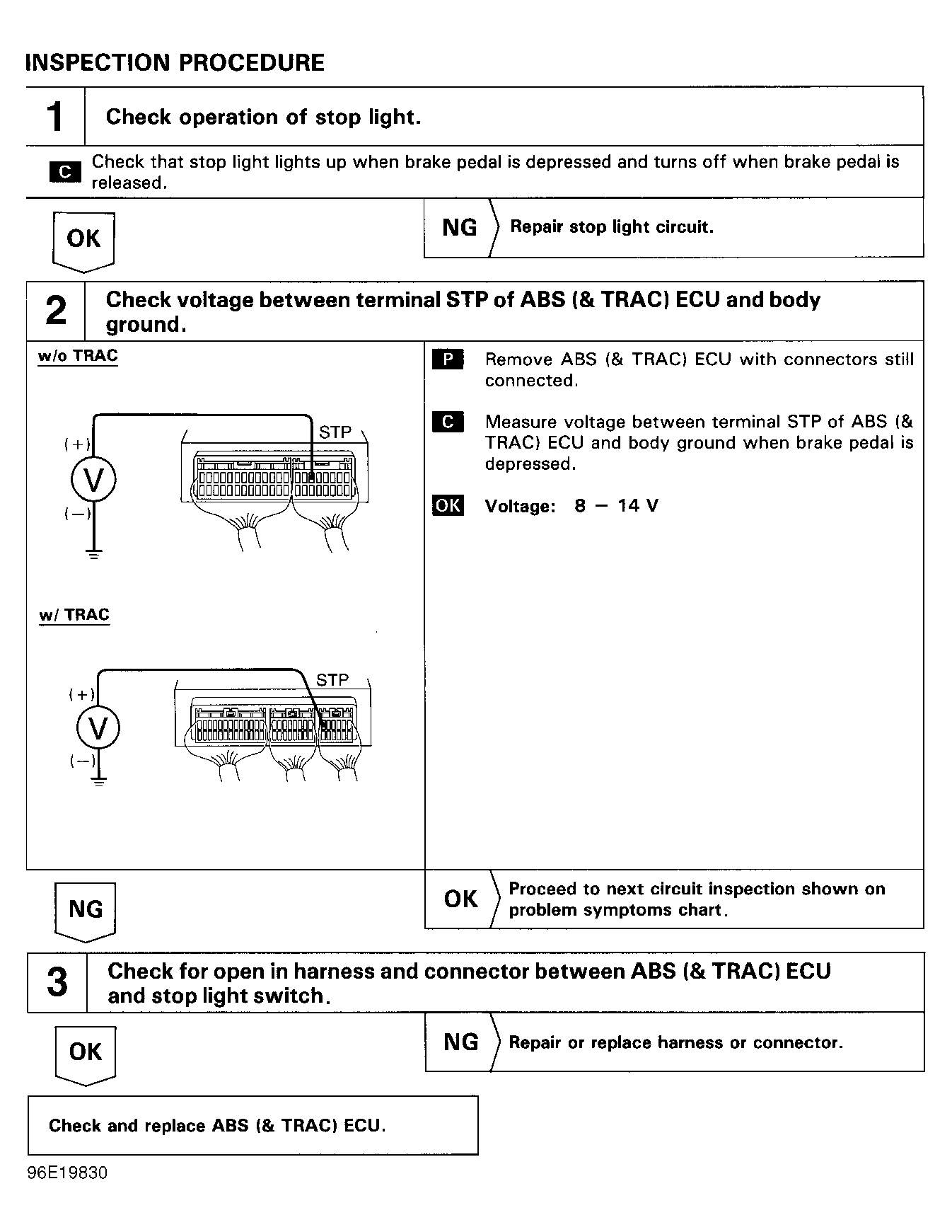

Fig 2: STOPLIGHT SWITCH CIRCUIT (2 OF 2)
G96E19830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
